Figure 7. Psc Electric Box Components & Electrical Data - EarthLinked Prime Series Quick Start Instructions

Compressor Compressor
Unit Model Model
-025-1C ZPS26K5E-PFV
-025-2C ZPS26K5E-TF5
-030-1C ZPS30K5E-PFV
-030-2C ZPS30K5E-TF5
-036-1C ZPS35K5E-PFV
-036-2C ZPS35K5E-TF5
-040-1C ZPS40K5E-PFV
-040-2C ZPS40K5E-TF5
-050-1C ZPS51K5E-PFV
-050-2C ZPS51K5E-TF5
-060-1C ZPS60K5E-PFV
-060-2C ZPS60K5E-TF5
LRA = Locked Rotor Amps
RLA = Rated Load Amps
MCA = Minimum Circuit Ampacity

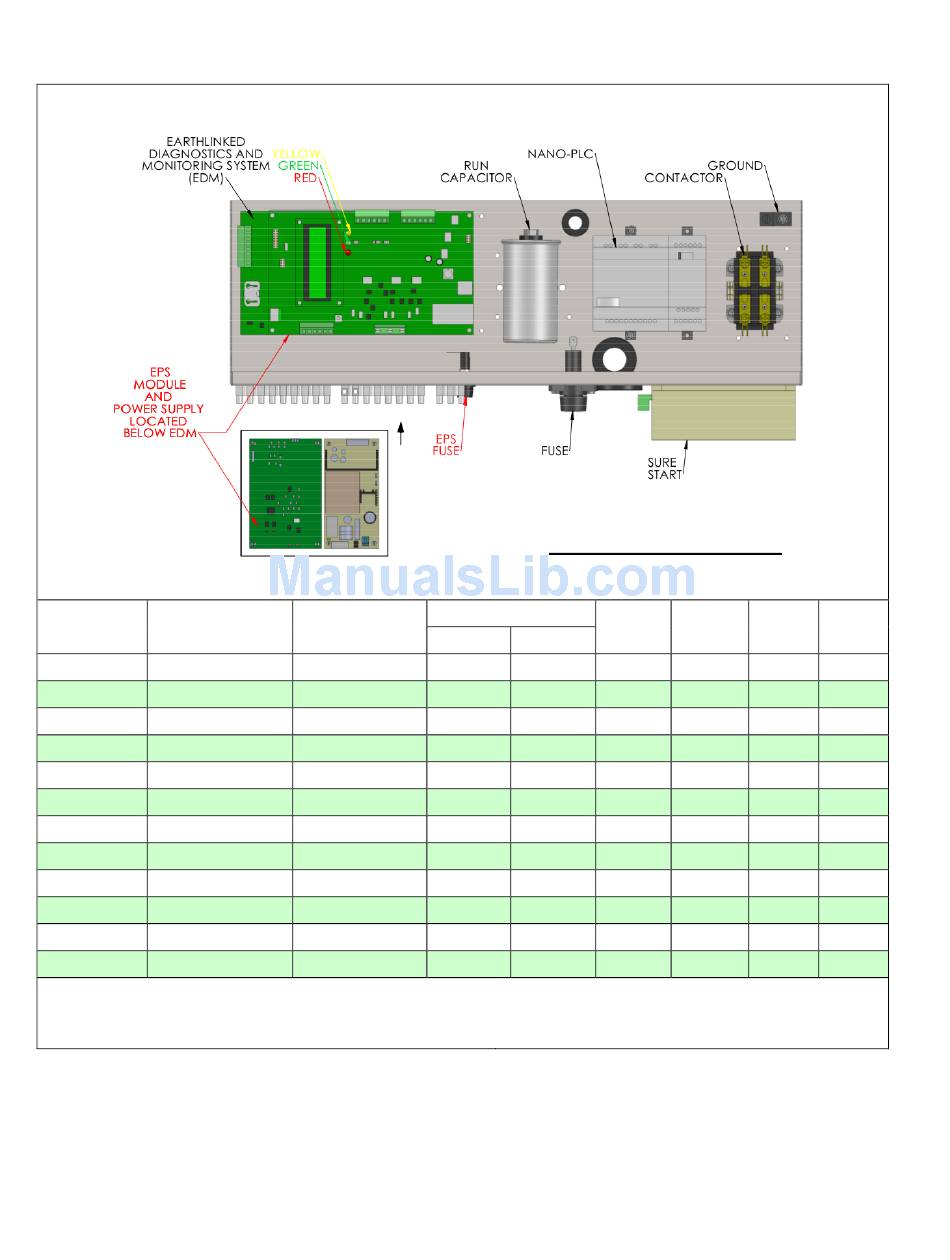

Figure 7. PSC Electric Box Components & Electrical Data
PSC-QS (10/16)
Voltage
Voltage/Phase/
Hz
Min.
230-1-60 207
230-3-60 207
230-1-60 207
230-3-60 207
230-1-60 207
230-3-60 207
230-1-60 207
230-3-60 207
230-1-60 207
230-3-60 207
230-1-60 207
230-3-60 207
Single Phase Electric Box
LRA
Max.
253 73.0
253 58.0
253 83.0
253 73.0
253 96.0
253 88.0
253 104.0
253 83.1
253 152.9
253 110.0
253 179.2
253 136.0
MFS = Maximum Fuse or HACR Circuit Breaker Size
(External)
Average Wire Size = Consult NEC and Local Codes
RLA MCA MFS
14.6 18.0 30
9.6 12.0 20
17.0 21.0 35
12.9 16.0 25
20.0 25.0 40
15.8 19.0 30
23.6 29.0 45
15.6 19.2 30
30.2 37.0 50
18.4 23.0 35
33.1 41.0 60
19.6 24.0 35
Page 14
