5.5.

Still Capture Pin

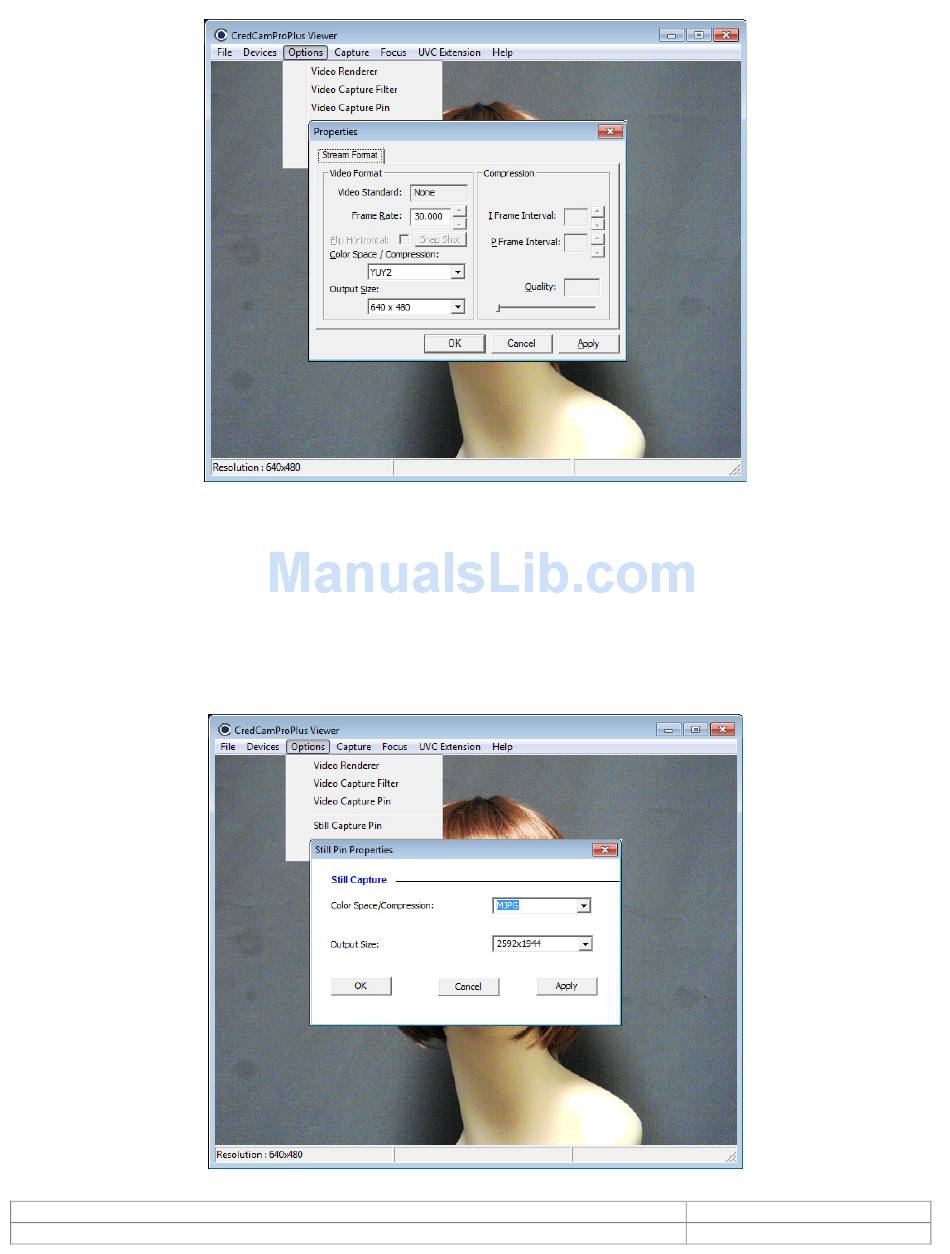

When you select the Still Capture Pin sub menu from the Options drop-down, a dialog box will open
allowing you to configure the output size and compression features of still capture pin. The preview
running in the main application will be stopped until the still capture pin dialog box is active. Once the
dialog box is closed preview will start automatically. The available output size and color spaces will be
listed in the combo box (see below). After selecting the required output size and color space, press
"Apply" to configure the changes. Pressing "OK" will start previewing the video stream with newly
configured output size and compression values. At any point in time, click "Cancel" to exit the dialog and
start the preview.
Doc # INS-16001
Revision: 2.1.0.0
Issue Date: 07/20/2016
Page 15 of 27
