Credential Cam Pro Plus Instruction Manual

5mp photo id flash camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

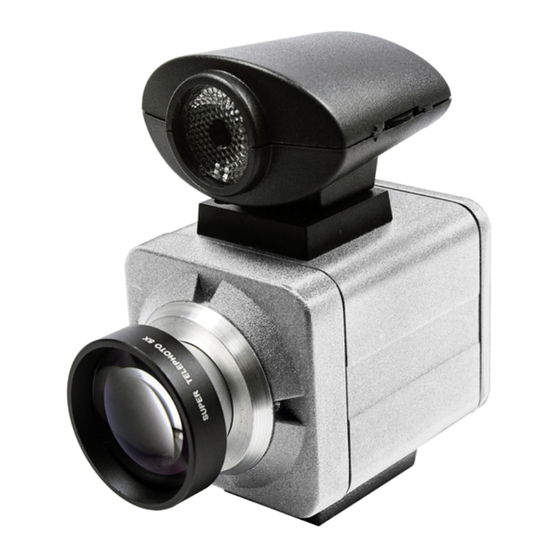

5MP Photo ID Flash Camera
Instruction Manual for Credential Cam Pro Plus
Prior to Using This Document: The supplier reserves the right to modify the information in this document as
necessary and without notice. It is the user's responsibility to be certain they possess the most recent version of this
document by going to the supplier's website, searching for the model number, and comparing revision letters on the
respective document, located in the document's footer.
For technical assistance with this product, please contact the supplier from whom the product was purchased.
Doc # INS-16001
Revision: 2.1.0.0
Revision: 2.1.0.0
Issue Date: 07/20/2016
Page 1 of 27

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cam Pro Plus and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Credential Cam Pro Plus

  • Page 1 5MP Photo ID Flash Camera Instruction Manual for Credential Cam Pro Plus Revision: 2.1.0.0 Prior to Using This Document: The supplier reserves the right to modify the information in this document as necessary and without notice. It is the user’s responsibility to be certain they possess the most recent version of this document by going to the supplier’s website, searching for the model number, and comparing revision letters on the...

  • Page 2: Table Of Contents

    Table of Contents Document History ......................... 3 Overview of the Credential Cam Pro Plus .................. 3 2.1. About the Camera ......................3 2.2. Contents ........................3 Specifications ........................3 3.1. Flash Support ......................4 3.2. Still Image Capture ...................... 4 3.3.

  • Page 3: Document History

    2.2. Contents The Credential Cam Pro Plus camera with built-in flash comes with a 10-foot USB mini cable, ¼-20 tripod mount (attached to camera base), and Demonstration Viewer Installation CD containing USB Viewer software, TWAIN driver, USB drivers and user manual.

  • Page 4: Flash Support

    Power Consumption <500 mA 3.1. Flash Support The Credential Cam Pro Plus supports up to two LED Flash units. Flash units are powered from the USB camera. 3.2. Still Image Capture The Credential Cam Pro Plus supports a single image "snapshot" mode with optional JPEG compression, eliminating the need for a frame grabber.

  • Page 5: Viewer Installation

    Please install the software before connecting the camera to your computer. Note: If you have a previous version of the Credential Cam USB software installed on your computer, you should first remove this. To remove an older version, go to Start and select all programs. Find the Credential Cam folder and select the Uninstall Viewer option.
  • Page 6 Pick the file directory you would like to install the Credential Cam Pro Plus software. The default • folder is C:\Program Files (x86)\CredCam\CameraViewer\ You will be given the option to install for everyone or just the user currently logged in. Choose •...
  • Page 7 If a “User Account Control” pop-up is displayed, click “Yes” to allow changes. • Once complete, a window will display that the 5MP Camera Viewer has sucessfully been installed. • Doc # INS-16001 Issue Date: 07/20/2016 Revision: 2.1.0.0 Page 7 of 27...
  • Page 8 Select “Close” to finalize the installation. • The USB camera can now be connected to the camera. Doc # INS-16001 Issue Date: 07/20/2016 Revision: 2.1.0.0 Page 8 of 27...

  • Page 9: Cred Cam Pro Plus Viewer

    5. Cred Cam Pro Plus Viewer Plug in the camera via USB cable, then open the Viewer. To open the Viewer, Go to Start >> All Programs >> CredCam >> Cred Cam Pro Plus Viewer. You should now see a window like the one below.

  • Page 10: Devices

    5.1. Devices When you click the Devices menu all video devices connected to the PC will be enumerated and listed. A check mark will be placed alongside the camera whose images are being displayed in the window. 5.2. Options When you select the Options menu, the pictured drop-down will appear. Doc # INS-16001 Issue Date: 07/20/2016 Revision: 2.1.0.0...

  • Page 11: Video Renderer

    5.2.1. Video Renderer The Video Renderer properties (“Video Source Properties”) are shown below. These properties include frames played, frames dropped in Renderer, average frame rate achieved, etc. All values displayed are for the currently selected camera. Note that there are three tabs within Video Source Properties: Quality, Direct Draw, and Performance, with the Quality tab displayed as default.

  • Page 12: Performance

    5.2.4. Performance Doc # INS-16001 Issue Date: 07/20/2016 Revision: 2.1.0.0 Page 12 of 27...

  • Page 13: Video Capture Filter

    5.3. Video Capture Filter 5.3.1. Video Proc. Amp On selecting Video Capture Filter, a dialog will be launched which displays 2 kinds of video capture filter properties. a) Video Proc Amp Settings b) Camera Control Settings a) Video Proc Amp Settings You can adjust the Video Proc Amp settings in the dialog.

  • Page 14: Video Capture Pin

    5.4. Video Capture Pin 5.4.1. Stream Format On clicking the Video Capture Pin sub menu from the Options drop-down, a dialog box will open allowing you to configure the output size and compression features of stream format. The preview running in the main application will be stopped until the Video Capture Pin dialog box is active. Once the dialog box is closed preview will start automatically.

  • Page 15: Still Capture Pin

    5.5. Still Capture Pin When you select the Still Capture Pin sub menu from the Options drop-down, a dialog box will open allowing you to configure the output size and compression features of still capture pin. The preview running in the main application will be stopped until the still capture pin dialog box is active. Once the dialog box is closed preview will start automatically.

  • Page 16: Current Settings

    5.6. Current Settings Select the Current Settings sub menu from the Options drop-down to open a dialog box that lists the currently configured values for the device. This dialog box allows you to see all the properties configured and their effects. Doc # INS-16001 Issue Date: 07/20/2016 Revision: 2.1.0.0...

  • Page 17: Capture

    5.7. Capture The Capture Menu has 2 options: • Get Still (Enter) Still File Path • 5.7.1. Get Still (Enter) Capture the still image from the still pin by selecting this menu (Capture>>Get Still) or by simply pressing the “Enter” key on your keyboard. The still image will be saved in the desktop directory by default.

  • Page 18: Still File Path

    5.7.2. Still File Path Use this menu (Capture>>Still File Path) to establish the folder where the images captured will be saved. You can browse to the required directory and set up a file location so that in the future, all images captured will be saved in that folder.

  • Page 19: Focus

    5.8. Focus 5.8.1. Trigger Autofocus The Credential Cam Pro Plus USB 2.0 camera is fully UVC compliant. All basic camera controls can be accessed via the standard UVC command protocol. Focus Please note that Focus is a standard UVC supported command. However, depending upon the software package being used, the focus menu item can be difficult to find.

  • Page 20: Uvc Extension

    5.9. UVC Extension On selecting the UVC Extension menu, a UVC Extension Control dialog box will open (provided that the device supports extension unit). The UVC Extension has the following features: • Auto Focus Status • Auto Focus Trigger • Focus Mode •...

  • Page 21: Af Trigger

    5.9.2. AF Trigger This setting focuses the camera (no screen shot). The AF Trigger button will perform the Single Trigger Auto Focus. The Focus Mode button opens the Focus Mode Dialog to perform Auto Focus and Manual Focus. It contains two Radio buttons: 1) Auto Focus, and 2) Manual Focus The Auto Focus Radio button is selected by default.

  • Page 22: Flash Control

    Flash Control command doesn’t work with this model. 5.9.4. Debug Control 5.9.4.1. Sensor ID The Sensor ID button will display the current sensor ID details. For the Credential Cam Pro Plus USB camera, sensor id is as shown: Doc # INS-16001 Issue Date: 07/20/2016 Revision: 2.1.0.0...
  • Page 23 5.9.4.2. Firmware Ver The Firmware Ver button will display the current firmware version details. For the Credential Cam Pro Plus USB camera, firmware version is as shown: Doc # INS-16001 Issue Date: 07/20/2016 Revision: 2.1.0.0 Page 23 of 27...

  • Page 24: Help

    5.9.5. Help Help will show the current version of the Credential Cam Pro Plus Viewer. 5.9.6. About 6. TWAIN Installation To install the TWAIN data source, double click the executable file named SetupGTDS.exe. Note: the file name might be slightly different depending on the revision level of the software.

  • Page 25: Using The Twain Interface

    The following window will appear: If the Viewer is to be installed in a location other than the default directories, click on the Browse button and specify the desired location, otherwise click on the Install Button and the following screens will appear: The TWAIN driver installation is now complete.

  • Page 26: Zoom Feature

    The TWAIN interface will attach itself to the first Credential Cam Pro Plus camera it finds connected to the computer. For best operation, run the TWAIN Interface on a system that has only one Credential Cam Pro Plus camera installed.
  • Page 27 The still image would be captured at full resolution (2592 x 1944 ) and automatically cropped to pixels the size defined by the box drawn in the preview mode as shown below. Image in Streaming Video Captured Still Image If for example, the box drawn in the preview mode was half the height and half the width of the full screen then the captured image would have a resolution of 1296 x 972 pixels.
