Summary of Contents for Daewoo DFZ-233

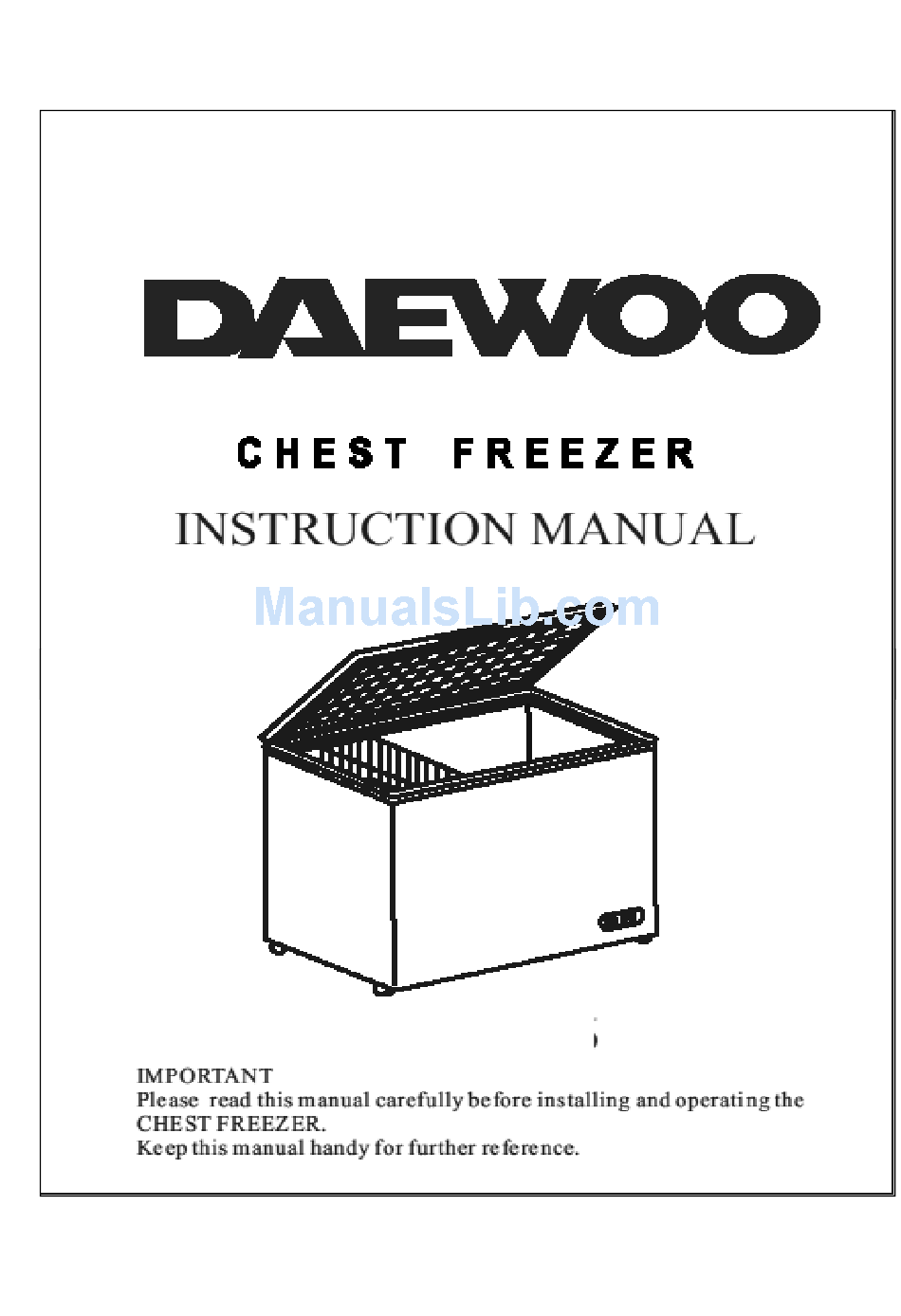

  • Page 1 DFZ-233...
  • Page 2: Table Of Contents

    Content: ........Parts Names ......General Information ......Reminders Before Use ......Reminders During Use ........ Operation Tips ......Electrical Diagram ......Trouble-shooting...
  • Page 3: Parts Names

    Parts Names 1.Door lock 5.Swirl castor 2.Foam door 6.Control panel 3.Fruit basket 7.Brand plate 4.Foam body 8.Light(opitional) Your freezer may not conform with figures illustrated due to product modifications.
  • Page 4: General Information

    General Information The refrigerating system for this freezer is mainly composed of a fully-closed refrigerating compressor, an interior evaporator closely compacted, properly processed with a good cooling result. It is convenient for use, quiet and saves on electricity. The hard polyaminoester foam (made from spot high-pressured foaming) is used for the thermal insulation which results in good performance and durability.
  • Page 5: Reminders During Use

    Reminders During Use Do not put flammable or explosive articles and corrosive or volatile organic solvents Poisonous into the freezer so as to prevent accidents Never put in flammable or explosive articles, and corrosive or volatile organic solvents. and to protect freezer cabinet from corrosion. Temperature of articles to be put into the freezer should not be too high.
  • Page 6: Operation Tips

    Note: Never use metal utensils to scrape off frosting layers. In normal condition, power interruption should be avoided. Should power be interrupted accidentally, do not power on within five minutes to avoid damage to compressor. It is suggested that the freezer be cleaned periodically generally clean it every 30~45 days.
  • Page 7: Electrical Diagram

    NOTE: A green light and red light are installed on the temperature control panel. The red light is power indicator when power is connected to the freezer. The green light indicates compressor is running or otherwise This makes it convenient to determine if there is power or not or if the refrigerating system is working or not.
  • Page 8 are not Check if the screw is secured Checked if castors are The cabinet is not in level surface all level on the ground Secure the tube Remove same article Checked if temperature sensor Temperature sensor tube is off from unit tube is off Checked if cool crrent Defrost in time...
