Technical Data - Revolution 975367 User Instructions

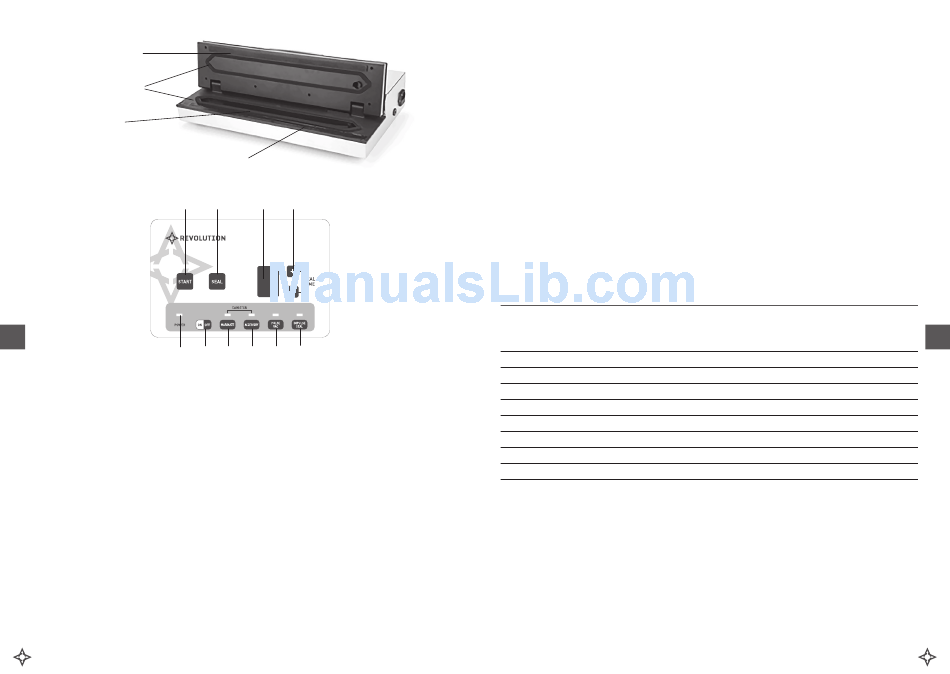

Foam gasket strip
Vacuum chamber
gasket
Vacuum
chamber plate
C
EN
A
• A – POWER LED
• When the POWER LED is on, the machine is
ready to use.
• B – ON/OFF button
• • When
machine is ready to use, press ON/OFF. The last
sealing time is displayed and the fan starts – the
machine is ready to generate vacuum.
• • If the machine is inactive for 10 minutes, the
display and the fan are automatically switched
off.
• • In order to stop the machine, press ON/OFF.
Also when the sealing cycle is finished, press ON/
OFF to switch off the machine, and disconnect it
from the mains.
• C – Auto Vacuum button (START)
• In the Default mode press the START button. The
machine automatically starts generating vacuum
and sealing. In the Marinate mode press the
START button. The machine automatically starts
marinating.
6
Sealing bar
D E F
B G H I J
• In the Pulse Vac mode press the START button.
The machine automatically starts generating
vacuum in the pulse mode.
• For more comfortable access, the Quick Start
the button is placed on the handle. (This button has
the same function as the START button on the
control panel).
• (NOTE: This function can be started if the lid is
closed and slightly pressed).
• D – SEAL button
• 1. Press the SEAL button in order to stop the
vacuum generating cycle and immediately seal
the bag in order to prevent soft foodstuffs from
getting crushed.
• 2. Allows to form bags of any sizes.
• For more comfortable access, the SEAL button
is placed on the handle. (This button has the
same function as the SEAL button on the control
panel).
• (NOTE: This function can be started if the lid is
closed and pressed).
• E – Digital display
• 1. Displays the
vacuum cycle, counts down from 9 to 0. When 0 is
reached, the cycle is finished.
• 2. Displays the sealing time which can be set and
adjusted from 0 to 6. The sealing time save function
is also available.
• 3. If the display shows "E", it means that the ma-
chine is in the protection mode.
• F – Sealing time adjustment button ("+" or "-")
• Setting the sealing time by means of "Up" and
"Down or "+" and "-" buttons. When the value is set
to 0, the machine does not start the sealing cycle.
• G – The Marinate mode
• The Marinate mode is designed to repeat the vac-
uum generation cycle and air release to the bag,
which results in perfect marinating of foodstuffs
within the shortest time possible.
• (NOTE: This function can be started if the lid is
opened).

3. TECHNICAL DATA

Dimensions
The maximum vacuum bag width
Depth of the sealing bar
Power
Voltage
Pressure
Pump
Weight
Protection class
The manufacturer and dealer is not liable for any
inaccuracies due to printing errors or transcrip-
tion, in this manual. In line with our policy of con-
tinuous improvement products, we reserve the
• H – Accessory
• Not available in this model.
• I – Pulse Vac button
• The Pulse Vac button prevents soft foodstuffs from
getting crushed. As the Pulse Vac button is pressed,
the machine gradually evacuates air.
• (NOTE: This function can be started if the lid is
closed and pressed).
• J – Impulse Seal button
• When the Impulse Seal button is pressed, its LED
lights up. The machine switches over to the Impulse
Seal mode. Now the bag can be sealed by simply
opening and closing the lid. (The mode is applied
mainly when it is not necessary to generate vacuum).
• (NOTE: This function can be started if the lid is
closed and pressed).
390x275x(H)150 mm
310 mm
5 mm
700 W
230 V~50 Hz
16l/min
double
6,9 kg
Class I
right to make modification of the product, pack-
aging and specifications contained in the Docu-
mentation without prior notice.
EN
7
