FAILURE TO READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY BEFORE INSTALLING OR OPERATING THIS
CONTROL COULD CAUSE PERSONAL INJURY AND/OR PROPERTY DAMAGE.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
DESCRIPTION
This is a low cost microcomputer based remote temperature
sensor, with a Liquid Crystal Display utilizing a single
integrated chip radio transmitter to transmit temperature and
associated information to the host-controlling thermostat.
Features:
- The ability to display sensed temperature from -40°F to
140°F
- User selected temperature offset + 4°F with up to 8 hours
hold time
- Calibrate Ambient Temperature + 4°F
- Selectable Fahrenheit/Celsius Display.
- Keypad Lockout.
- Comfort Adjust Bar Graph indicator.
- Indoor temperature sensors.
- Low battery indicator.
- Disable display temperature.
- Green display backlight.
- Transmitter multiple channel operation (10 channels are
provided).
- Installer learning mode can be used to bind the sensor's
transmitter with the thermostat's receiver and verify the
maximum allowable range.
- A non-volatile memory provided to save the user's settings
without batteries.

SPECIFICATIONS

Operating Range: (based on thermostat range)
F145RF-1328 Indoor Model . . . . . . . . . . . . . . . . . . 40 to 99°F
Operating Humidity Range . . . . . . . . . . . . . . . . . . . 0 to 90% RH (non-condensing)
Maximum Distance from Thermostat . . . . . . . . . . . 150 feet
Color . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Classic White
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.611"H x 4.269"W x 0.875"D
Compatible with all White-Rodgers wireless remote sensing thermostats
Operator: Save these instructions for future use!
CAUTION
!
Changes or modifications not expressly approved by
White-Rodgers could void the user's authority to
operate the equipment.
www.white-rodgers.com
F145RF-1328
F145RF-1328
F145RF-1328
F145RF-1328
F145RF-1328
Indoor Wireless Remote Sensor
Indoor Wireless Remote Sensor
Indoor Wireless Remote Sensor
Indoor Wireless Remote Sensor
Indoor Wireless Remote Sensor

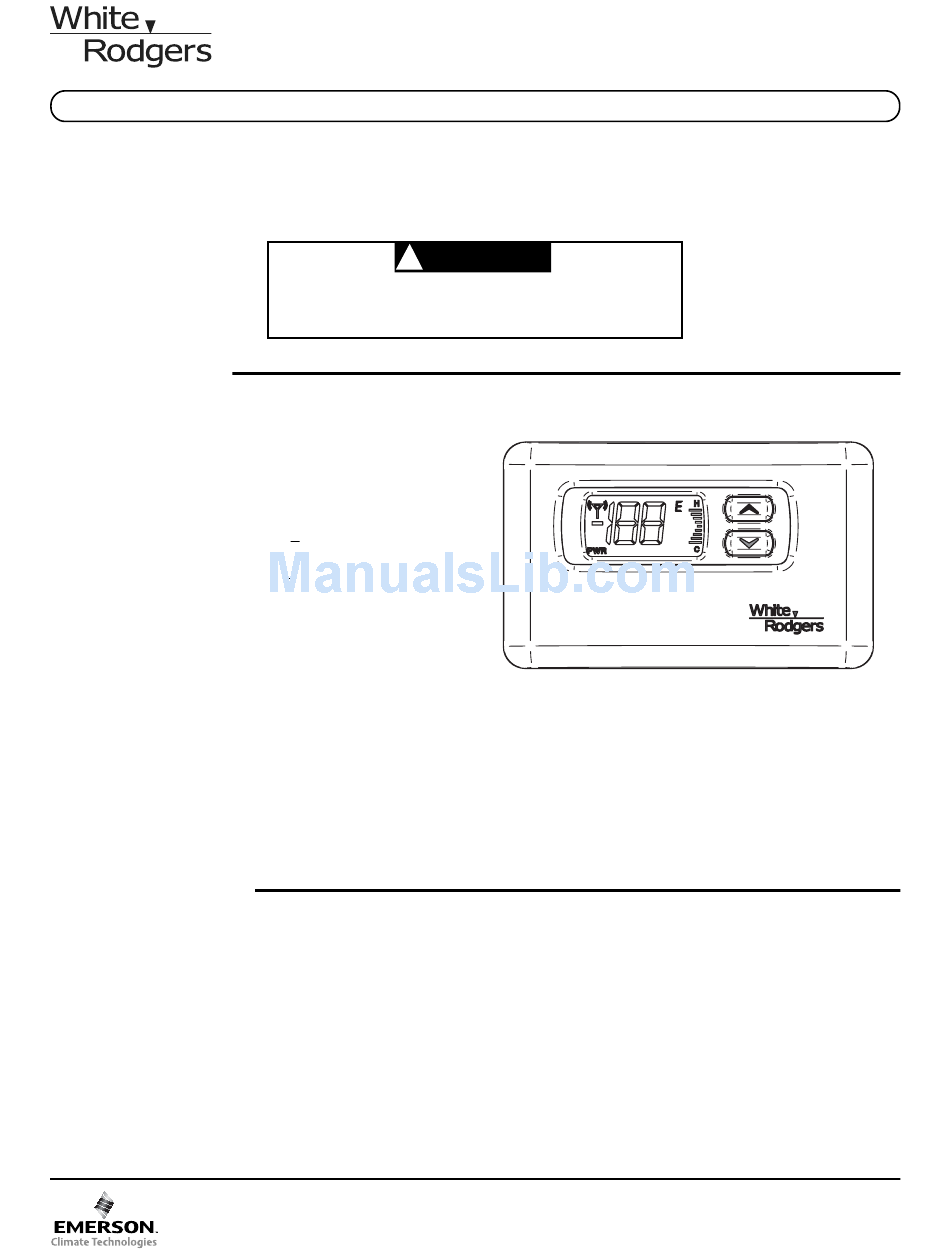

INSTALLATION INSTRUCTIONS
F145RF-1328 Indoor Wireless Remote Sensor
PART NO. 37-6836A
