FAILURE TO READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY
BEFORE INSTALLING OR OPERATING THIS CONTROL COULD CAUSE
PERSONAL INJURY AND/OR PROPERTY DAMAGE.
Wireless Indoor/Outdoor
Remote Sensor
F145RF-1600
NOTE
For heat pump application, outdoor remote sensor can be used
for dual fuel outdoor temperature setting. See Homeowner
•‡”
—‹†‡
‘ ‰—”ƒ–‹‘ ‡— ’–‹‘• ’ƒ‰‡ 26, menu #21.
SPECIFICATIONS
Operating Temperature range: ..... 0
Battery ......................................... 2 "AA" Alkaline Batteries
Operating Humidity Range........... 0 to 85% RH (non-condensing)
Color ............................................ Classic White
Weight ......................................... Weighs less than 0.25 lb.
Dimensions .................................. 5"H x 3"W x 2"D
Save these instructions for future use!
Comfort Interface
o
to 120
o
www.white-rodgers.com
www.emersonclimate.com
F145RF-1600
Indoor/Outdoor Wireless
Remote Sensor for 1F98EZ-1621
INSTALLATION INSTRUCTIONS
1F98EZ-1621 will accept
up to 3 remote sensors
…‘ ‰—”‡† ˆ‘” ‹†‘‘” ƒ† 1
Model 1F98EZ-1641
”‡‘–‡ •‡•‘” …‘ ‰—”‡†
Includes Comfort/User Interface, Equipment Control
for outdoor.
and one Wireless Remote Sensor
Equipment Control
Module
INDEX
Locate and Mount Remote Sensor
Powering the Remote/Connecting to 1F98EZ-1621
‘ ” ‹”‡Ž‡•• ‡˜‹…‡• ƒ”‡ ‘—‹…ƒ–‹‰
How to Identify the Sensor Number
How to Check Battery Status
‡‘˜‡ ‹”‡Ž‡•• ‡˜‹…‡• ˆ”‘ –Š‡ ‹”‡Ž‡•• ›•–‡
Troubleshooting
Remote Sensor
(outdoor location)
Page
2
2
3
4
4
4
4
PART NO. 37-7247B
Replaces 37-7247A
1137
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for White Rodgers F145RF-1600
Summary of Contents for White Rodgers F145RF-1600
-
Page 1: Installation Instructions

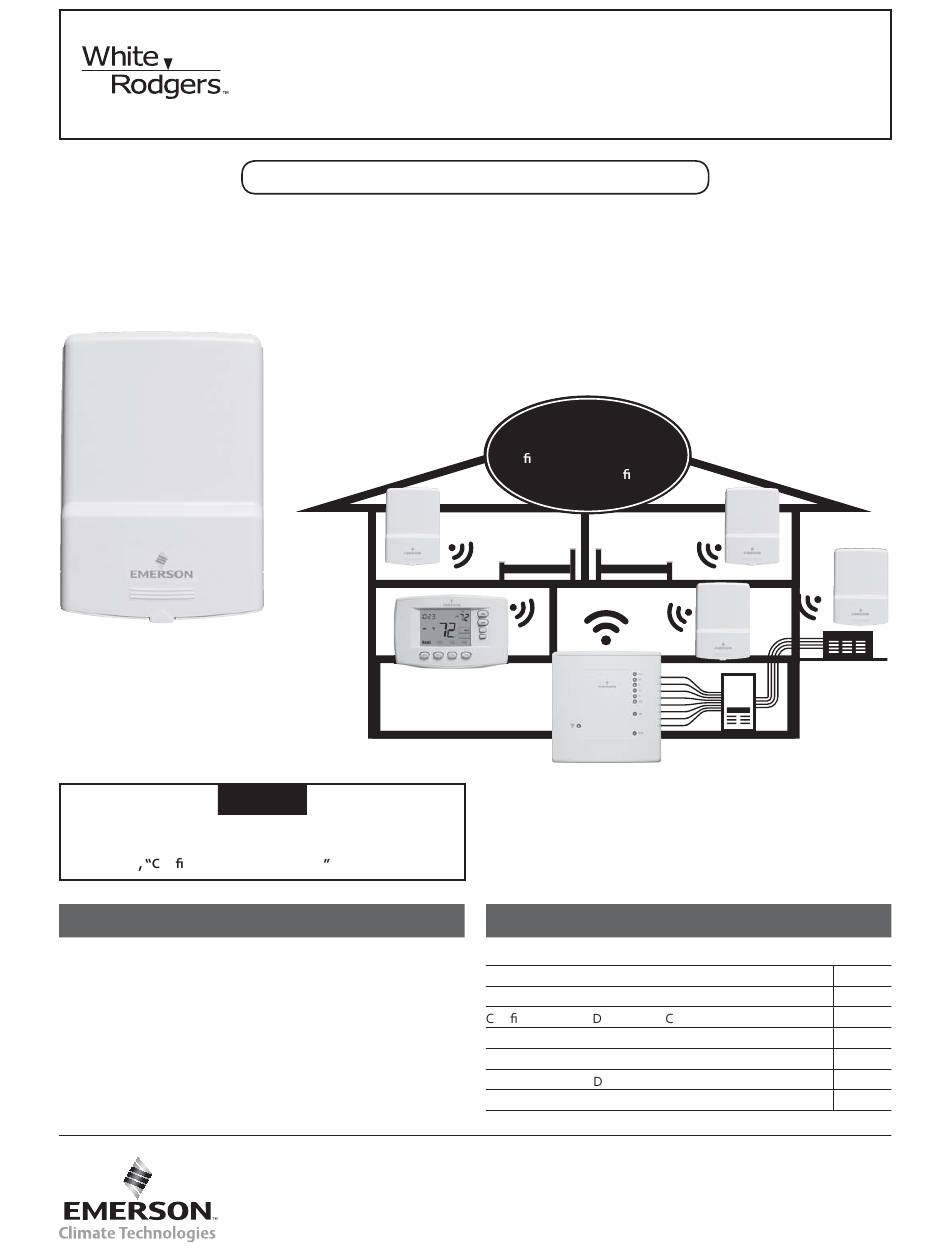

F145RF-1600 Indoor/Outdoor Wireless Remote Sensor for 1F98EZ-1621 INSTALLATION INSTRUCTIONS Save these instructions for future use! FAILURE TO READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY BEFORE INSTALLING OR OPERATING THIS CONTROL COULD CAUSE PERSONAL INJURY AND/OR PROPERTY DAMAGE. 1F98EZ-1621 will accept up to 3 remote sensors …‘... - Page 2 LOCATE AND MOUNT REMOTE SENSOR IMPORTANT Before drilling holes for mounting the Remote Sensor, verify the area(s) chosen for mounting allows good wireless communication to the Equipment Control Module. Place the remote(s) where they will be mounted (but do not drill holes yet) ƒ†...
