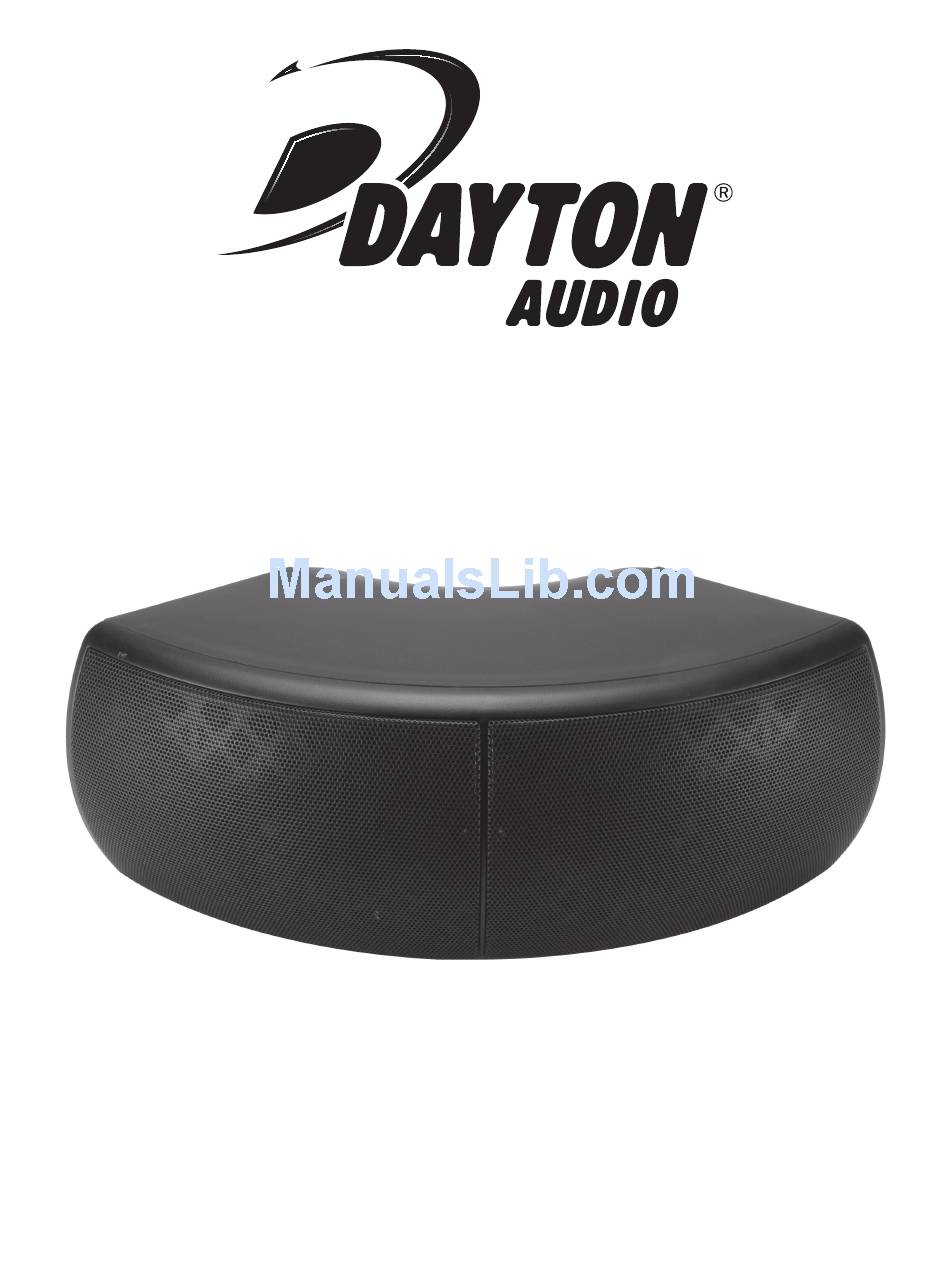

Page 1: User Manual

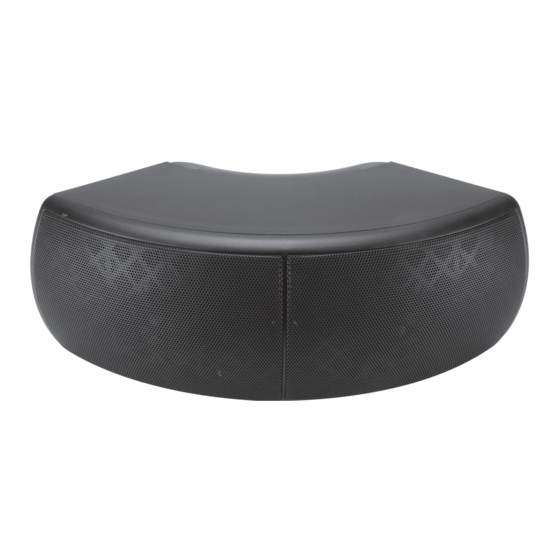

70V Commercial Speaker Pair Model: QS204-4 User Manual daytonaudio.com Designed and Engineered in USA... - Page 2 If there is an electrical outlet nearby, turn off the circuit breaker to avoid possible injury. Note: Your Dayton Audio QS204-4 speakers are compact, but substantial in weight. They should be mounted into solid structure, not drywall. If drywall mounting is required, use high-strength anchors designed for heavy loads such as light fixtures.
- Page 3 Final Installation To complete mounting the speaker, choose the desired orientation (vertical or horizontal) and then slide the speaker into the large half of the bracket, then install the small half of the bracket (the endcap) using the long screws provided. Note: If the speaker does not slide easily into the bracket in the desired orientation, rotate it 180 degrees and try again.
-
Page 4: Specifications
Again, if you hear distortion or audible distress, turn the volume down. The QS204-4 speakers are designed to withstand outdoor environments, including incidental exposure to water. They are not designed to be washed us- ing a pressure washer or hose nozzle. - Page 5 QS204-4 User Manual Addendum ATTENTION This speaker is pre-configured from the factory for 70V/100V operation. This may cause low output when connected directly to an amplifier. To use this speaker with a conventional (non-70V/100V) audio system, follow the below process to change the 70V/100V tap setting.
