FlashLogic FLC-AL-GM2-EN Install Manual page 6

INSTALL GUIDE
Page 6 of 11
5 4 3
6 5 4 3 2 2 1
IGNITION SWITCH
CONNECTOR - WHITE
TRUNK/TAILGATE WINDOW RELEASE (-) OUTPUT TRUNK/TAILGATE WINDOW RELEASE
LEGEND
N/A NOT REQUIRED IN DATA MODE (1-WAY)
NOT REQUIRED IN DATA MODE (2-WAY)
USE DATA MODE
OR HARDWIRE MODE
GWR (-) INPUT - BLUE/WHITE GWR (-) INPUT - BLUE/WHITE
LOCK/ARM (-) INPUT - GREEN/BLACK LOCK/ARM (-) INPUT - GREEN/BLACK
UNLOCK/DISARM (-) INPUT - BLUE/BLACK UNLOCK/DISARM (-) INPUT - BLUE/BLACK
TRUNK/TAILGATE WINDOW RELEASE (-) INPUT - RED/WHITE TRUNK/TAILGATE WINDOW RELEASE (-) INPUT - RED/WHITE
AUTO-RELOCK (+) INPUT - WHITE AUTO-RELOCK (+) INPUT - WHITE
ACCESSORY (+) INPUT - BLACK/WHITE ACCESSORY (+) INPUT - BLACK/WHITE
RAP SHUTDOWN (-) OUTPUT - GREEN RAP SHUTDOWN (-) OUTPUT -
*TACH (AC) OUTPUT - PURPLE/WHITE *TACH (AC) OUTPUT - PURPLE/WHITE
CONNECT TO DRIVER DOOR
SWITCH TO TURN OFF RADIO
AT THE END OF THE
REMOTE START SEQUENCE
CONNECT TO CONSTANT 12V (+)
TO ENABLE AUTOMATIC RELOCK
AFTER START
OBDII CONNECTOR LOCATED
UNDER DRIVER SIDE DASH
1 1 2 3 4 5 6 7
9 10 11 12 13 14 15
WWW.FLASHLOGIC.COM
U.S. Patent No. 8,856,780
FLC-AL(DL)-GM2-EN

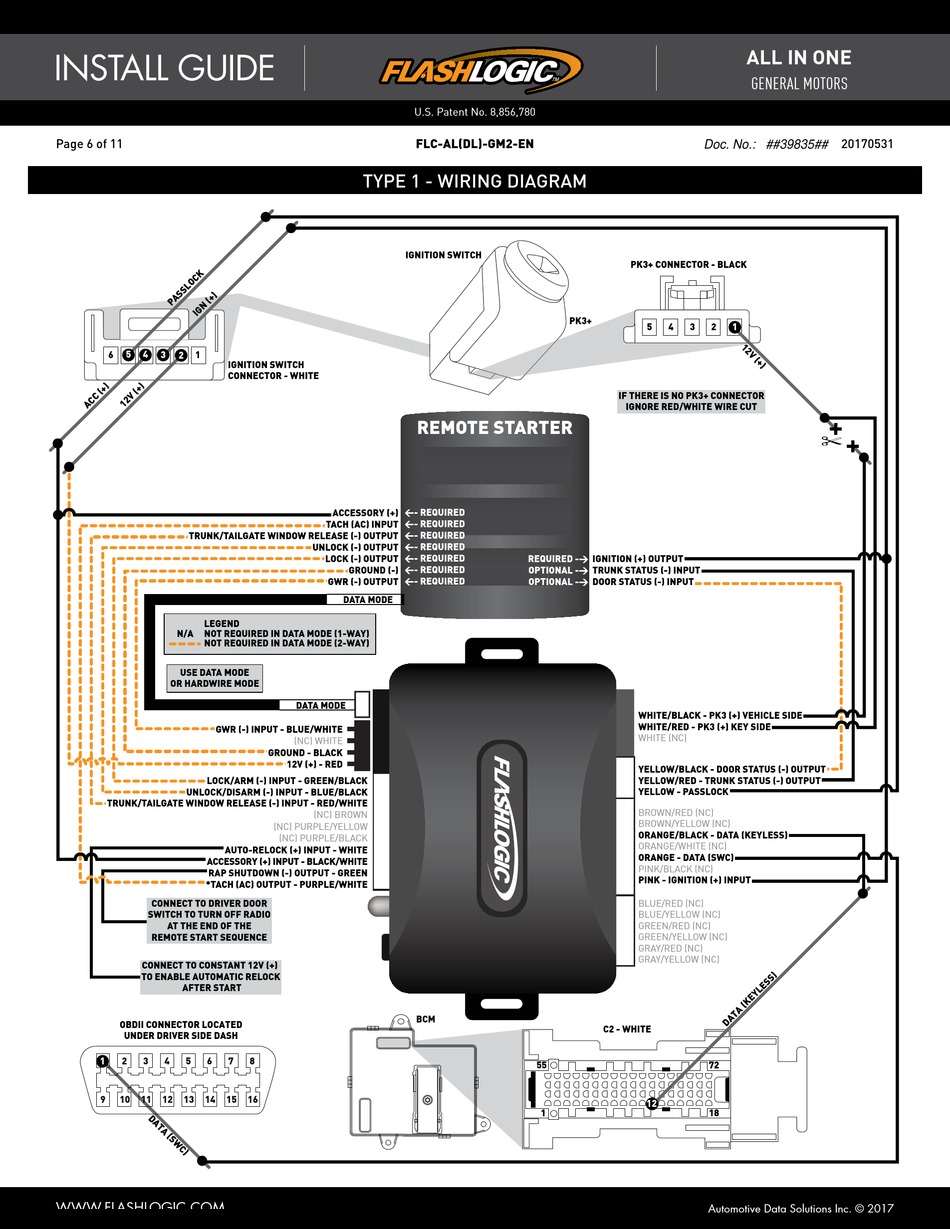

TYPE 1 - WIRING DIAGRAM
IGNITION SWITCH
REMOTE STARTER
<- REQUIRED
ACCESSORY (+) ACCESSORY (+)
TACH (AC) INPUT TACH (AC) INPUT <- REQUIRED
(-) OUTPUT <- REQUIRED
<- REQUIRED
UNLOCK (-) OUTPUT UNLOCK (-) OUTPUT
LOCK (-) OUTPUT LOCK (-) OUTPUT <- REQUIRED
<- REQUIRED
GROUND (-) GROUND (-)
GWR (-) OUTPUT GWR (-) OUTPUT <- REQUIRED
DATA MODE
DATA MODE
(NC) WHITE (NC) WHITE
GROUND - BLACK GROUND - BLACK
12V (+) - RED 12V (+) - RED
(NC) BROWN (NC) BROWN
(NC) PURPLE/YELLOW (NC) PURPLE/YELLOW
(NC) PURPLE/BLACK (NC) PURPLE/BLACK
GREEN
BCM
8
16
Doc. No.: ##39835##
PK3+ CONNECTOR - BLACK
PK3+
5 4 3
IF THERE IS NO PK3+ CONNECTOR
IGNORE RED/WHITE WIRE CUT
IGNITION (+) OUTPUT IGNITION (+) OUTPUT
REQUIRED ->
OPTIONAL -> TRUNK STATUS (-) INPUT TRUNK STATUS (-) INPUT
OPTIONAL -> DOOR STATUS (-) INPUT DOOR STATUS (-) INPUT
WHITE/BLACK - PK3 (+) VEHICLE SIDE WHITE/BLACK - PK3 (+) VEHICLE SIDE
WHITE/RED - PK3 (+) KEY SIDE WHITE/RED - PK3 (+) KEY SIDE
WHITE (NC) WHITE (NC)
YELLOW/BLACK - DOOR STATUS (-) OUTPUT YELLOW/BLACK - DOOR STATUS (-) OUTPUT
YELLOW/RED - TRUNK STATUS (-) OUTPUT YELLOW/RED - TRUNK STATUS (-) OUTPUT
YELLOW - PASSLOCK YELLOW - PASSLOCK
BROWN/RED (NC) BROWN/RED (NC)
BROWN/YELLOW (NC) BROWN/YELLOW (NC)
ORANGE/BLACK - DATA (KEYLESS) ORANGE/BLACK - DATA (KEYLESS)
ORANGE/WHITE (NC) ORANGE/WHITE (NC)
ORANGE - DATA (SWC) ORANGE - DATA (SWC)
PINK/BLACK (NC) PINK/BLACK (NC)
PINK - IGNITION (+) INPUT PINK - IGNITION (+) INPUT
BLUE/RED (NC) BLUE/RED (NC)
BLUE/YELLOW (NC) BLUE/YELLOW (NC)
GREEN/RED (NC) GREEN/RED (NC)
GREEN/YELLOW (NC) GREEN/YELLOW (NC)
GRAY/RED (NC) GRAY/RED (NC)
GRAY/YELLOW (NC) GRAY/YELLOW (NC)
C2 - WHITE
55
12
1
ALL IN ONE
General Motors
20170531
1
2 1
72
18
Automotive Data Solutions Inc. © 2017
