INSTALL GUIDE
ADS-AL(DL)-GM2 73
ADS-DL-GM2 73
Page 10 of 11
1
LED fl ashes (1X) once = DATA MODE
LED fl ashes (2X) twice = STANDARD HARDWIRE MODE
1
2
3
4
WWW.FLASHLOGIC.COM

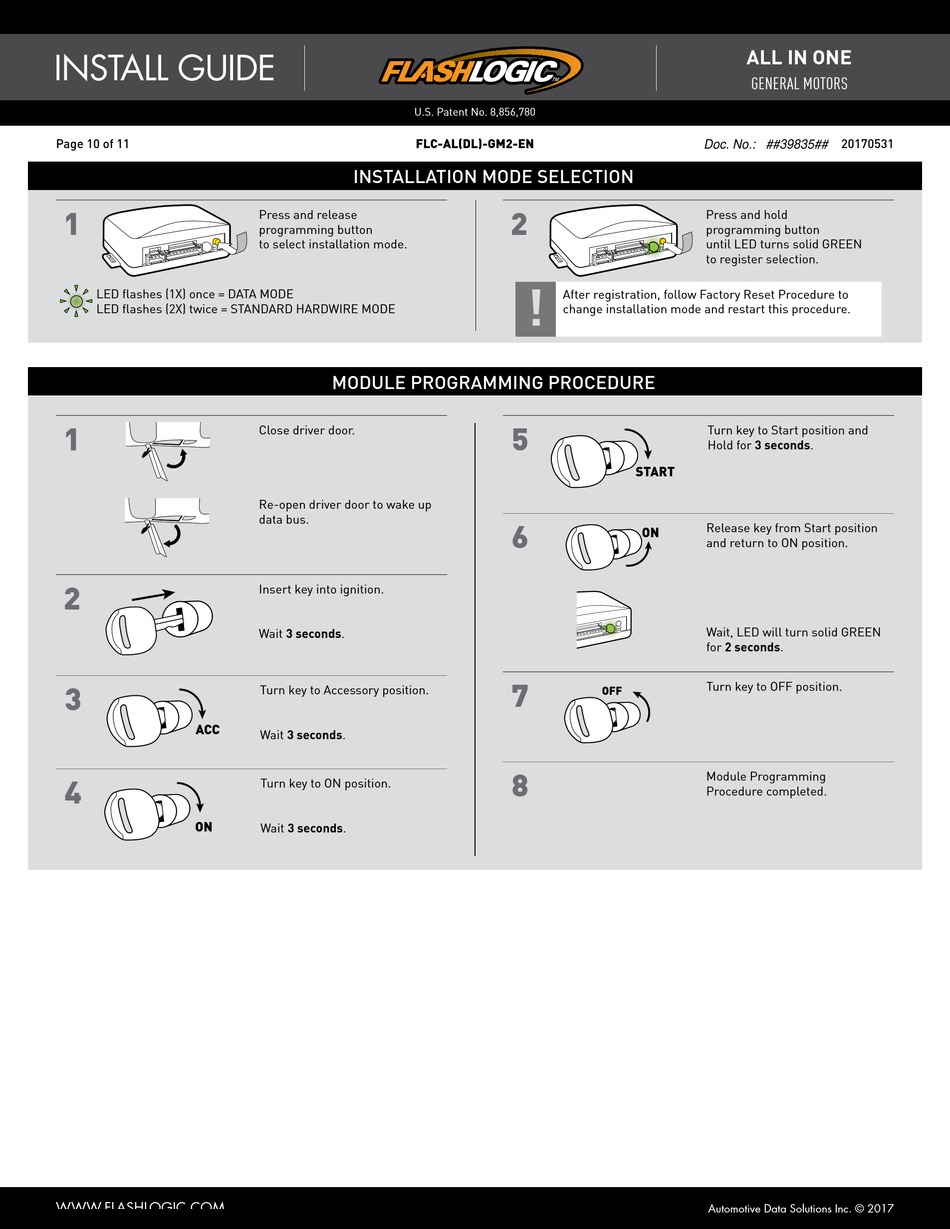

INSTALLATION MODE SELECTION
Press and release
programming button
to select installation mode.
MODULE PROGRAMMING PROCEDURE
Close driver door.
Re-open driver door to wake up
data bus.
Insert key into ignition.
Wait 3 seconds.
Turn key to Accessory position.
ACC
Wait 3 seconds.
Turn key to ON position.
ON
Wait 3 seconds.
U.S. Patent No. 8,856,780
FLC-AL(DL)-GM2-EN
2
!
After registration, follow Factory Reset Procedure to
change installation mode and restart this procedure.
5
6
7
8
ALL IN ONE
General Motors
Doc. No.: ##39835##
Press and hold
programming button
until LED turns solid GREEN
to register selection.
Turn key to Start position and
Hold for 3 seconds.
START
Release key from Start position
ON
and return to ON position.
Wait, LED will turn solid GREEN
for 2 seconds.
Turn key to OFF position.
OFF
Module Programming
Procedure completed.
Automotive Data Solutions Inc. © 2017
