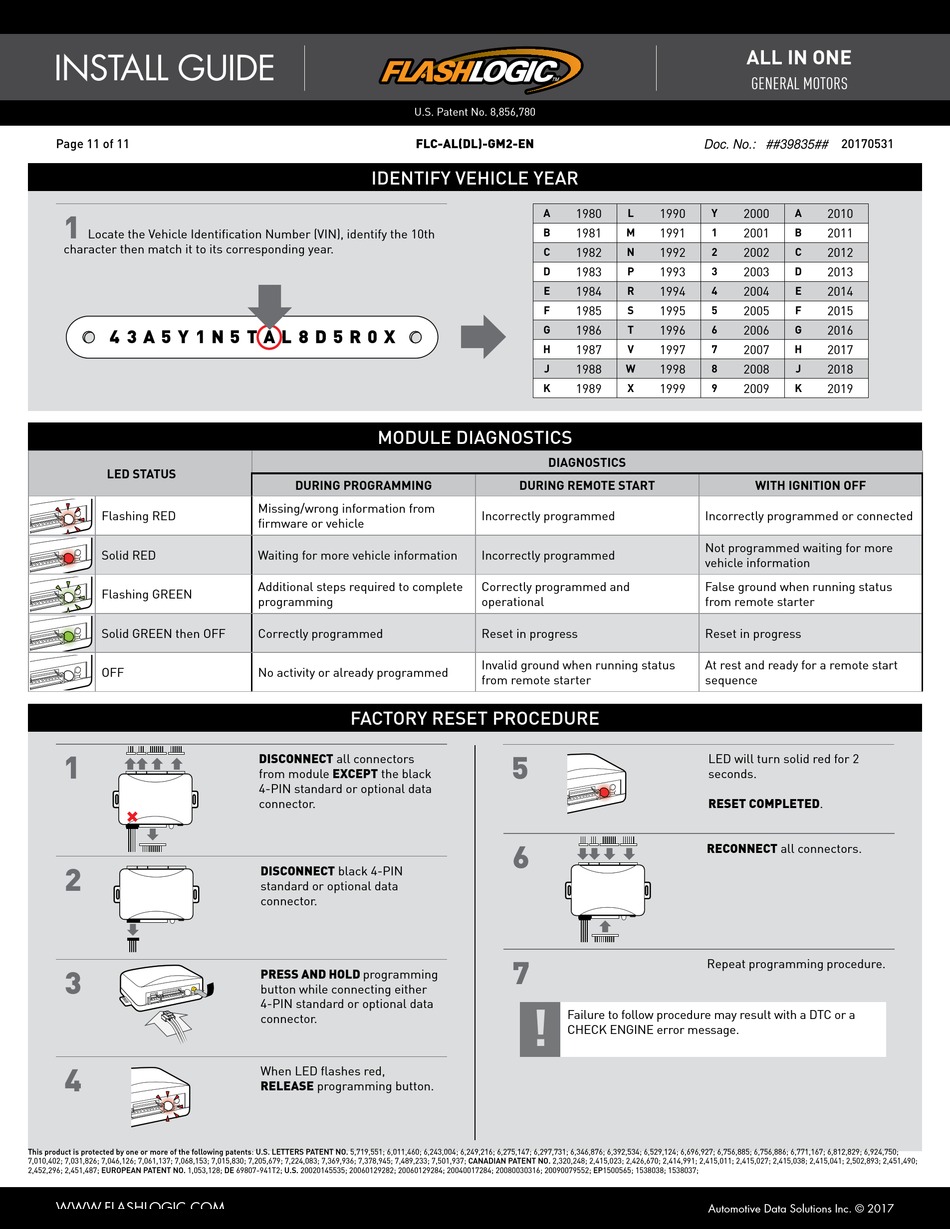

INSTALL GUIDE
Page 11 of 11
1
Locate the Vehicle Identifi cation Number (VIN), identify the 10th
character then match it to its corresponding year.
4 3 A 5 Y 1 N
LED STATUS
Flashing RED
Solid RED
Flashing GREEN
Solid GREEN then OFF
OFF
1
2
3
4
This product is protected by one or more of the following patents: U.S. LETTERS PATENT NO. 5,719,551; 6,011,460; 6,243,004; 6,249,216; 6,275,147; 6,297,731; 6,346,876; 6,392,534; 6,529,124; 6,696,927; 6,756,885; 6,756,886; 6,771,167; 6,812,829; 6,924,750;
7,010,402; 7,031,826; 7,046,126; 7,061,137; 7,068,153; 7,015,830; 7,205,679; 7,224,083; 7,369,936; 7,378,945; 7,489,233; 7,501,937; CANADIAN PATENT NO. 2,320,248; 2,415,023; 2,426,670; 2,414,991; 2,415,011; 2,415,027; 2,415,038; 2,415,041; 2,502,893; 2,451,490;
2,452,296; 2,451,487; EUROPEAN PATENT NO. 1,053,128; DE 69807-941T2; U.S. 20020145535; 20060129282; 20060129284; 20040017284; 20080030316; 20090079552; EP1500565; 1538038; 1538037;
WWW.FLASHLOGIC.COM
IDENTIFY VEHICLE YEAR
5 T A L 8 D 5 R 0 X
MODULE DIAGNOSTICS
DURING PROGRAMMING
Missing/wrong information from
fi rmware or vehicle
Waiting for more vehicle information
Additional steps required to complete
programming
Correctly programmed
No activity or already programmed
FACTORY RESET PROCEDURE
DISCONNECT all connectors
from module EXCEPT the black
4-PIN standard or optional data
connector.
DISCONNECT black 4-PIN
standard or optional data
connector.
PRESS AND HOLD programming
button while connecting either
4-PIN standard or optional data
connector.
When LED fl ashes red,
RELEASE programming button.
U.S. Patent No. 8,856,780
FLC-AL(DL)-GM2-EN
NOTICE
A 1980
B 1981
C 1982
D 1983
1984
E
Æ
F 1985
G 1986
H 1987
J 1988
K 1989
DIAGNOSTICS
DURING REMOTE START
Incorrectly programmed
Incorrectly programmed
Correctly programmed and
operational
Reset in progress
Invalid ground when running status
from remote starter
5
6
7
!
Failure to follow procedure may result with a DTC or a
CHECK ENGINE error message.
ALL IN ONE
General Motors
Doc. No.: ##39835##
L 1990 Y 2000 A
M 1991 1 2001 B
N 1992 2 2002 C
P 1993 3 2003 D
1994 2004
R 4 E
S 1995 5 2005 F
T 1996 6 2006 G
V 1997 7 2007 H
W 1998 8 2008 J
X 1999 9 2009 K
WITH IGNITION OFF
Incorrectly programmed or connected
Not programmed waiting for more
vehicle information
False ground when running status
from remote starter
Reset in progress
At rest and ready for a remote start
sequence
LED will turn solid red for 2
seconds.
RESET COMPLETED.
RECONNECT all connectors.
Repeat programming procedure.
Automotive Data Solutions Inc. © 2017
PAGE X-X PAGE X-X PAGE X-X PAGE 1-1
20170531
2010
2011
2012
2013
2014
2015
2016
2017
2018
2019
