Grifco GSD-SDO Instruction Manual

Grifco GSD-SDO Instruction Manual

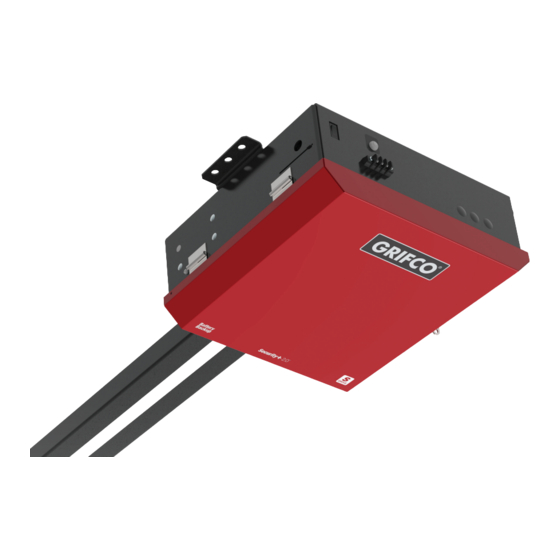

Commercial sectional door operator with integral battery back up

Advertisement

INSTRUCTION MANUAL
GSD-SDO
DC Operator
GSD-R2.4M
Rail for 2.4m Door
GSD-R3.6M
Rail for 3.6m Door
GSD-RKIT
Hardware Kit for
Custom Rail Length
up to 6m
Commercial Sectional Door Operator
• THIS OPERATOR IS TO BE INSTALLED AND SERVICED BY A TRAINED TECHNICIAN ONLY
• This operator is compatible with Security+ 2.0
Chamberlain Australia Pty Ltd
Unit 1, 75 Epping Rd North Ryde NSW 2113
Ph: 1800 638 234
www.grifco.com.au
Ref: 01-38727D
With Integral Battery Back Up
®
accessories
OPERATOR
OPERATOR
REQUIRES GRIFCO
REQUIRES GRIFCO
MONITORED ENTRAPMENT
MONITORED ENTRAPMENT
PROTECTION
PROTECTION

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GSD-SDO and is the answer not in the manual?

Questions and answers

Summary of Contents for Grifco GSD-SDO

  • Page 1 INSTRUCTION MANUAL GSD-SDO OPERATOR OPERATOR REQUIRES GRIFCO REQUIRES GRIFCO DC Operator MONITORED ENTRAPMENT MONITORED ENTRAPMENT PROTECTION PROTECTION GSD-R2.4M Rail for 2.4m Door GSD-R3.6M Rail for 3.6m Door GSD-RKIT Hardware Kit for Custom Rail Length up to 6m Commercial Sectional Door Operator With Integral Battery Back Up •...
  • Page 2: Safety Symbol And Signal Word Review

    SAFETY SYMBOL AND SIGNAL WORD REVIEW This commercial door operator has been designed and tested to offer safe service provided it is installed, operated, maintained and tested in strict accordance with the instructions and warnings contained in this manual. WARNING When you see these Safety Symbols and Signal Words on the following pages, they will alert you to the possibility of serious Mechanical...
  • Page 3: Table Of Contents

    WIRING DIAGRAM CHAMBERLAIN LIMITED WARRANTY CARTON INVENTORY Battery 12 Vdc 7AH (2) GSD-R2.4M 2.4 m Rail GSD-R3.6M 3.6 m Rail GSD-RKIT Rail Kit for Custom Length (6m max) NOT SHOWN: Door Bracket J-Bar Fasteners GSD-SDO DC Operator Documentation Packet Chain...
  • Page 4: Operator Specifications

    INTRODUCTION OPERATOR SPECIFICATIONS Main AC Power Supply 230-240 VAC 50Hz, 400W Rated Load (R/T) 270N (Continuous) System Operating Voltage 24 VDC Transformer Run / Battery Backup Accessory Power 24 VDC, 500 mA max. for ON and SW (switched) Maximum Door Heights (Rail Part No.) 2.4m (GSD-R2.4M) 3.6m (GSD-R3.6M) 6.0m (GSD-RKIT - rail angle not supplied)
  • Page 5: Operator Overview

    INTRODUCTION OPERATOR OVERVIEW ACCESS CONTROL DEVICE EXTERNAL TERMINAL BLOCK CONDUIT ENTRY / EXIT REAR OF OPERATOR AC POWER RESET BUTTON SWITCH EMI BOARD ANTENNA CONNECTION CONTROL BOARD LOCKABLE LID EXPANSION BOARD CONDUIT ENTRY / EXIT TOP OF OPERATOR MOTOR GSD-STAR1000EVO CHAIN GUARD MOUNTING GEAR BOX...
  • Page 6: Control Board Overview

    11. Diagnostic Code Display: The diagnostic code display will show the operator type, firmware version, and diagnostic codes. The operator type will display as "Gd" followed by a "24" which indicates the operator type as GSD-SDO. The firmware version will show after the operator type, example "1.2"...
  • Page 7: Expansion Board Overview

    INTRODUCTION EXPANSION BOARD OVERVIEW 1 QUICK CLOSE Switch: 5 AUX RELAY Switches: Set the AUX RELAY switches as need- ed to obtain the desired function as shown on pages 20-21. OFF: No change to the door's normal operation. 6 EYE/EDGE Switches: Set the EYE/EDGE switches as needed ON: When CLOSE EYES/Interrupt loop is deactivated it causes to obtain the desired OPEN or CLOSE functionality.
  • Page 8: Installation

    INSTALLATION BEFORE INSTALLATION, ENSURE THE OPERATOR IS SUITABLE FOR THE TYPE AND SIZE OF THE DOOR. ENSURE THE TEMPERATURE RANGE MARKED ON THE OPERATOR IS SUITABLE FOR THE LOCATION OF THE INSTALLATION. ENSURE THAT THE DRIVEN PART IS IN GOOD MECHANICAL CONDITION, CORRECTLY BALANCED AND OPENS AND CLOSES PROPERLY.
  • Page 9: Electrical Connection And Door Attachment

    6. Dispose of used batteries responsibly 7. Follow instructions above to connect new batteries J15 Plug OPERATOR WILL NOT FUNCTION WITHOUT GRIFCO BATTERIES CONNECTED WARNING Batteries are supplied charged. When batteries are connected the operator is fully functional without AC power connected.
  • Page 10: Commissioning

    COMMISSIONING LIMIT SETTING INTRODUCTION LIMIT SETUP LEDS Your operator is designed with electronic controls to make travel limit and force adjustments easy. The adjustments allow you to SET OPEN SET CLOSE OPERATOR MODE EXPLANATION program where the door will stop in the open and close position. The electronic controls sense the amount of force required to open NORMAL MODE Limits are set...
  • Page 11: Types Of Monitored Entrapment Protection

    / collision with the door lintel. GRIFCO monitored Safety Beams must be used to provide protection. For applications with no monitored entrapment protection, the operator can be controlled using the on-board "OPEN /...
  • Page 12: Commissioning Entrapment Protection Systems

    COMMISSIONING COMMISSIONING ENTRAPMENT PROTECTION SYSTEMS CONTROL BOARD CLOSE EYES (Infrared Safety Beams) The CLOSE EYES/INTERRUPT input is for PE beam entrapment protection in the CLOSING direction. When an obstruction is detected during closing, the door will stop and open to the fully open position.
  • Page 13: Force Setting And Fine Adjustment

    COMMISSIONING FORCE SETTING AND FINE ADJUSTMENT SET THE FORCE With entrapment protection attached, cycle the door open and closed using the green "TEST BUTTONS". The operator will automatically set the force. FINE TUNE THE FORCE The REVERSAL FORCE DIAL on the control board is used for fine tuning the force in cases where wind or environmental changes may affect the door travel.
  • Page 14: Types Of Security +2.0 Transmitters

    COMMISSIONING TYPES OF SECURITY +2.0 TRANSMITTERS All Grifco remote access devices feature Security +2.0 technology. This With inbuilt perpetual rolling code technology, Grifco Security +2.0 advanced platform cuts through interference, and ensures consistent, transmitters are safe and secure. All devices feature exceptional battery life, reliable, long range operation of your commercial door.
  • Page 15: Commissioning Remote Transmitters

    COMMISSIONING COMMISSIONING REMOTE TRANSMITTERS (SOLD SEPARATELY) A total of 50 Security+ 2.0 remote transmitters and 2 wireless keypads (1 PIN for each wireless keypad) can be programmed to the operator. When programming a third wireless keypad to the operator, the first wireless keypad will be erased to allow the third wireless keypad to be programmed.
  • Page 16 COMMISSIONING COMMISSIONING REMOTE TRANSMITTERS (CONT.) LIMIT SETUP WITH A REMOTE TRANSMITTER To set the limits using a remote transmitter, first you will need a 3-button transmitter that has been programmed for OPEN, CLOSE, and STOP. Refer to the Programming section. INITIAL LIMITS AND FORCE ADJUSTMENT The door MUST be attached to the operator before setting the limits and force.
  • Page 17: Accessory Wiring

    ACCESSORY WIRING CONNECTING ACCESS CONTROL ACCESSORIES Access control devices can either be wired internally to the operator or via the external terminal block. INTERNAL CONNECTION EXTERNAL CONNECTION The diagram below shows where to connect access control External terminals are provided for installations where 3rd party devices devices such as card readers, keypads or key switches etc.
  • Page 18: Misecllaneous Wiring

    ACCESSORY WIRING MISCELLANEOUS WIRING THREE BUTTON CONTROL STATION (4 Terminals) • OPEN and COM: Opens a closed door. Hard open (maintained switch overrides external safeties and resets alarm condition). If maintained, pauses Timer-to-Close at (main control board) OPEN limit. Opens a closing door and holds open an open door (within Three Button Control Station line-of-sight).
  • Page 19: Operator Alarm

    OPERATION OPERATOR ALARM The operator alarm will beep 3 times with a command if the battery is low. When the inherent force of the operator (RPM/current sensor) detects the following (twice consecutively) the alarm will sound (up to 5 minutes) and the operator will need to be reset: A.
  • Page 20: Expansion Board

    EXPANSION BOARD AUXILIARY RELAYS AUX RELAY 1 AND 2 Normally Open (N.O.) and Normally Closed (N.C.) relay contacts to control external devices, for connection low voltage (42 Vdc [34 Vac] max 5 Amps) power sources only. AUX RELAY SWITCH AUX RELAY 1 AUX RELAY 2 SETTING SETTINGS...
  • Page 21: Wiring Accessories To The Expansion Board

    EXPANSION BOARD WIRING ACCESSORIES TO THE EXPANSION BOARD Refer to the chart below and the corresponding image for a description of the expansion board inputs. Entrapment Protection Device Inputs EYES ONLY Input: Open or Close Direction Photoelectric Sensors, Close: reverses fully, (4 terminals total), Open or Close Open: stops door Direction based on switch setting...
  • Page 22: Maintenance

    Batteries do not perform well in extremely cold temperatures. For best performance, the batteries should be replaced every 3 years. Use only Grifco replacement batteries. The operator comes with two 7AH batteries. The batteries contain lead and need to be disposed of properly.
  • Page 23: Troubleshooting

    TROUBLESHOOTING VIEWING DIAGNOSTIC CODES TO VIEW THE CODES: The codes will show on the Diagnostic Display DIAGNOSTICS DISPLAY OPEN, CLOSE, & STOP BUTTONS Press and hold the ... then press and ... then press and STOP button hold the CLOSE hold the OPEN button button until "ER"...
  • Page 24 TROUBLESHOOTING VIEWING DIAGNOSTIC CODES (CONT.) The operator will show the code sequence number followed by the code number: CODE SEQUENCE NUMBER ... A SECOND LATER ... CODE NUMBER The first number shown is the most recent The second number shown after the code code (example: "01").
  • Page 25: Diagnostic Codes Chart

    Some codes are saved in the code history and some are not. If a code is not saved it will briefly appear on the display as it occurs, then disappear. Inherent Entrapment External Entrapment Grifco System Installed System Informational Protection...
  • Page 26 Some codes are saved in the code history and some are not. If a code is not saved it will briefly appear on the display as it occurs, then disappear. Inherent Entrapment External Entrapment Grifco System Installed System Informational Protection...
  • Page 27: Control Board Leds

    TROUBLESHOOTING OPERATOR ALARM CHART ALARM CHART 1 beep every 3 seconds Operator is operating from battery power. AC power during door operation not connected 3 beeps every 3 seconds Operator is operating from LOW battery power. AC during door operation power not connected.
  • Page 28: Troubleshooting Chart

    TROUBLESHOOTING TROUBLESHOOTING CHART SYMPTOM POSSIBLE CAUSES SOLUTIONS Operator does a) No power to control board a) Check AC and battery power. not run and b) Open fuse b) Check fuses. diagnostic code c) If on battery power only, low or dead c) Charge batteries or replace batteries.
  • Page 29 TROUBLESHOOTING TROUBLESHOOTING CHART continued... SYMPTOM POSSIBLE CAUSES SOLUTIONS Exit loop activation a) Exit vehicle detector setup incorrectly a) Review Exit loop detector settings. Adjust settings as needed. does not cause b) Defective Exit loop detector b) Replace defective Exit loop detector door to open c) Low battery with LOW BATT option c) Check if AC power is available.
  • Page 30: Service And Repair Parts

    TROUBLESHOOTING TROUBLESHOOTING CHART continued... SYMPTOM POSSIBLE CAUSES SOLUTIONS Switched (SW) Accessory a) In limit setup mode a) Learn the limits power remaining on Accessories connected to a) Normal behavior a) Move accessory to accessory power "ON" Switch (SW) Accessory power not working correctly, turning off, or resetting Accessories connected to...
  • Page 31: Wiring Diagram

    WIRING DIAGRAM Antenna Coaxial Antenna Cable CONTROL BOARD Jumper N.C. Photoelectric Sensors and Edge Sensors DIAGNOSTICS 12V 7AH Battery Resistor 12V 7AH Battery Piezo Alarm Black Black Reset Button Transformer 375 VA, 24V, 120V Gray APS Encoder Blue Orange Brown Purple Bridge Rectifier 1/2 HP 24 Vdc...
  • Page 32: Chamberlain Limited Warranty

    Chamberlain’s S-Drive Warranty Chamberlain warrants to the original purchaser of the Grifco S-Drive product (Operator) that: 1 The S-Drive operator (including electric motor) is free from defects in materials and workmanship for a period of 2 years from the date of purchase or 100,000 cycles (which ever comes first).
