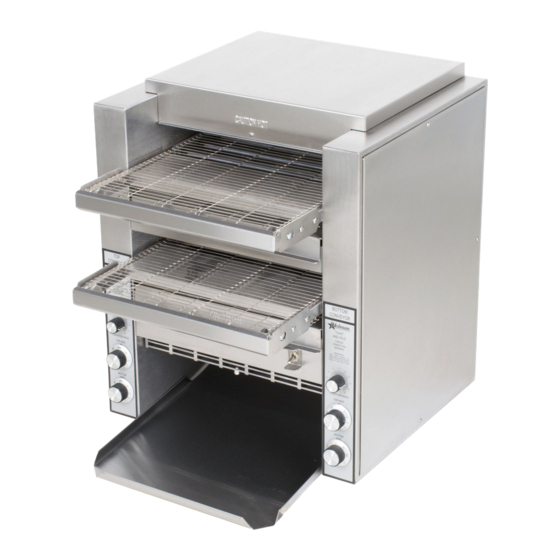

- Page 1 McDONALD’S OPERATOR'S MANUAL HOLMAN CONVEYOR TOASTERS MODEL DT14-M FOR SERVICE INFORMATION U.S. AND CANADA CALL: TOLL FREE 1-800-807-9054 24 HOURS/DAY 7 DAYS/WEEK TABLE OF CONTENTS UNCRATING AND INSPECTION PAGE 2 ASSEMBLY AND INSTALLATION PAGE 2 POWER SAVER SWITCHES PAGE 3...
- Page 2 OPERATOR'S MANUAL HOLMAN CONVEYOR TOASTERS MODEL DT14 UNCRATING AND INSPECTION Unpack unit and components from container. Remove all visible packing material and inspect unit for damage. If damage is discovered, call the factory immediately and tell us the extent of the damage.
- Page 3 HOLMAN CONVEYOR TOASTERS MODEL DT14-M POWER SAVER SWITCH Your Holman toaster is equipped with 2 rotary power saver switches. FULL POWER- When in this position your unit is at Full Power and ready to use. Adjust the Top and Bottom Variable Heat Controls and Conveyor Belt Speed Control to your desired settings.
- Page 4 5. Wipe exterior surface of unit. RESET/HIGH LIMIT CRUMB TRAYS REFER TO ENCLOSED LAMINATED MAINTENANCE SHEET INCLUDED WITH TOASTER FOR FURTHER INSTRUCTIONS NOTE: LUBRICATION OF DRIVE CHAIN WITH GRAPHITE BASED LUBRICANT IS REQUIRED AS PERIODIC MAINTENANCE. CALL HOLMAN FACTORY SERVICE DEPARTMENT FOR DETAILS.
- Page 5 Holman Factory Service Department at 1-800-225-3958 as the drive motor and/or speed control may need replacing. THE HOLMAN FACTORY SERVICE TEAM IS AVAILABLE 24 HOURS A DAY/7DAYS A WEEK FOR TECHNACLE ASSISTANCE CALL 1-800-807-9054 OPERATOR'S MANUAL...
- Page 6 Visit our Website at: www.star-mfg.com Email: service@star-mfg.com THOROUGHLY INSPECT YOUR UNIT ON ARRIVAL This unit has been tested for proper operation before leaving our plant to insure delivery of your unit in perfect condition. However, there are instances in which the unit may be damaged in transit. In the event you discover any type of damage to your product upon receipt, you must immediately contact the transportation company who delivered the item to you and initiate your claim with same.
-
Page 7: Parts List
PAGE 5 HOLMAN CONVEYOR TOASTERS MODEL DT14-M PARTS LIST PART NUMBER QTY. DESCRIPTION 100850 TOP COVER ******** HEATER TUBES (REFER TO WIRE DIAGRAM) 402667 RETAINER, HEATER TUBES 160004 CONVEYOR BELT 100996 BACK PANEL 101362 SIDE PANEL (RIGHT) 101361 SIDE PANEL (LEFT) SP-150002 DRIVE CHAIN (LOWER CONVEYOR), 13”... - Page 8 UPPER DECK TOP HEAT LOWER DECK TOP HEAT TOP SPEED LOWER CONTROL SPEED CONTROL DRIVE POWER MOTOR SAVER LOWER DRIVE MOTOR RESET LOWER POWER RESET SAVER FAN SWITCH FAN CORD PLUG GRND MODELS: DT14MA, 208/240V, 60Hz, 8 Tubes, McDonalds Resturants METAL ELEMENTS: 208V 2N-209208...
