2010-2012 Arctic Cat 450 H1
I n s t a l l a t i o n I n s t r u c t i o n s
PLEASE READ ALL DIRECTIONS BEFORE STARTING INSTALLATION
11-008
www.powercommander.com
2191 Mendenhall Drive North Las Vegas, NV 89081 (800) 992-4993 www.powercommander.com
PARTS LIST
1

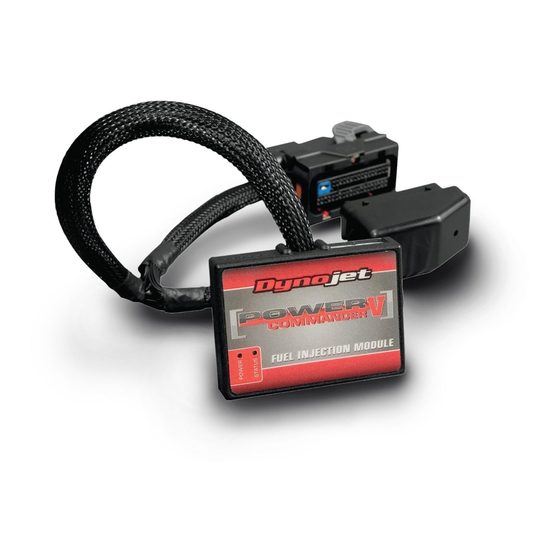

Power Commander
1
USB Cable
1
Installation Guide
2
Power Commander Decals
2
Dynojet Decals
1
Posi-tap
2
Velcro strips
1
Alcohol swab
THE IGNITION MUST BE TURNED
OFF BEFORE INSTALLATION!
THE LATEST POWER COMMANDER
SOFTWARE AND MAP FILES CAN BE
DOWNLOADED FROM OUR WEB SITE AT:
www.powercommander.com
2010-2012 Arctic Cat 450 H1 - PCV - 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Dynojet Power Comander V
Summary of Contents for Dynojet Power Comander V
- Page 1 Installation Guide 2010-2012 Arctic Cat 450 H1 Power Commander Decals I n s t a l l a t i o n I n s t r u c t i o n s Dynojet Decals Posi-tap Velcro strips Alcohol swab THE IGNITION MUST BE TURNED...
- Page 2 Map - (Input 1 or 2) The PCV has the ability to hold 2 different base maps. You can switch on the fly between these two base maps when you hook up a switch to the MAP inputs. You can USB CONNECTION use any open/close type switch. The polarity of the wires is not important. When using the Autotune kit one position will hold a base map and the other position will let you activate the learning mode. When the switch is “CLOSED” Autotune will be activated. (Set to Switch Input #1 by default.) Shifter- (Input 1 or 2) These inputs are for use with the Dynojet quickshifter. Insert the wires from the CRANK Dynojet quickshifter into the SHIFTER inputs. ANALOG The polarity of the wires is not important. (Set to Switch Input #2 by default.) SPEED INPUT 2 (Grnd) EXPANSION PORTS 1 & 2 Speed- If your application has a speed sensor then you can tap into the signal side of the sensor INPUT 2 Optional Accessories such as and run a wire into this input. This will allow POD-300 unit or Auto-tune kit...
- Page 3 FIG.A Remove Remove the seat. Remove the storage cover shown in Figure A. FIG.B To make the injector more accessible, remove the rubber intake snorkel. Loosen the clamp for the snorkel through the opening under the storage cover as shown in Figure B. FIG.C Using the supplied Velcro, secure the PCV module under the seat at the location shown in Figure C. Make sure to clean both surfaces with the alcohol swab before attaching. Route the PCV wiring harness under the seat frame and plastic shroud. Attach the ground wire from the PCV to the negative side of the battery as shown in Figure C. Ground wire 11-008 www.powercommander.com 2010-2012 Arctic Cat 450 H1 - PCV - 3...
- Page 4 FIG.D Unplug the stock wiring harness from the fuel injector (Fig. D). Unplug Plug the PCV wiring harness in-line of the stock wiring harness and the fuel injector. FIG.E Locate the Throttle Position Sensor (TPS) on the left hand side of the throttle body. 10 Using the supplied posi-tap, attach the GREY wire Posi-tap from the PCV to the stock GREEN/BLACK wire from the TPS. 11 Replace the storage cover and seat. 11-008 www.powercommander.com 2010-2012 Arctic Cat 450 H1 - PCV - 4...
