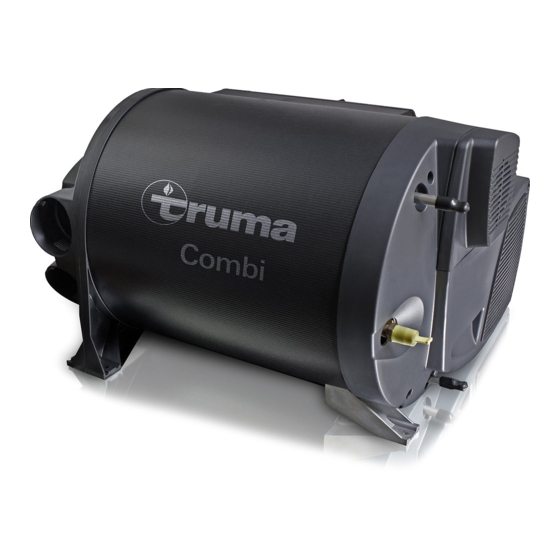

Truma Combi®
LP Gas Furnace with Supplementary Indirect Water Heating
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death or
property damage.
Do not store or use gasoline or other
flammable vapors and liquids in the vicin-
ity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
• Evacuate all persons from the vehicle.
• Shut off the gas supply at the gas contain-
er or source.
• Do not touch any electrical switch, or use
any phone or radio in the vehicle.
• Do not start the vehicle's engine or electric
generator.
• Contact the nearest gas supplier or certi-
fied service technician for repairs.
• If you cannot reach a gas supplier or certi-
fied service technician, contact the nearest
fire department.
• Do not turn on the gas supply until gas
leaks have been repaired.
Installation and service must be performed by
a qualified installer, service agency, or the gas
supplier.
*
Operating instructions
To be kept in the vehicle.
This document is part of the furnace.
* Patent Pending
Conforms to ANSI Std. Z21.47
Certified to CSA Std. 2.3
4010007
