Summary of Contents for Dimplex GDDEU10C

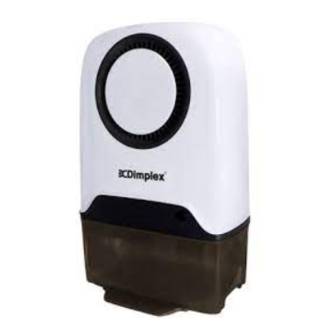

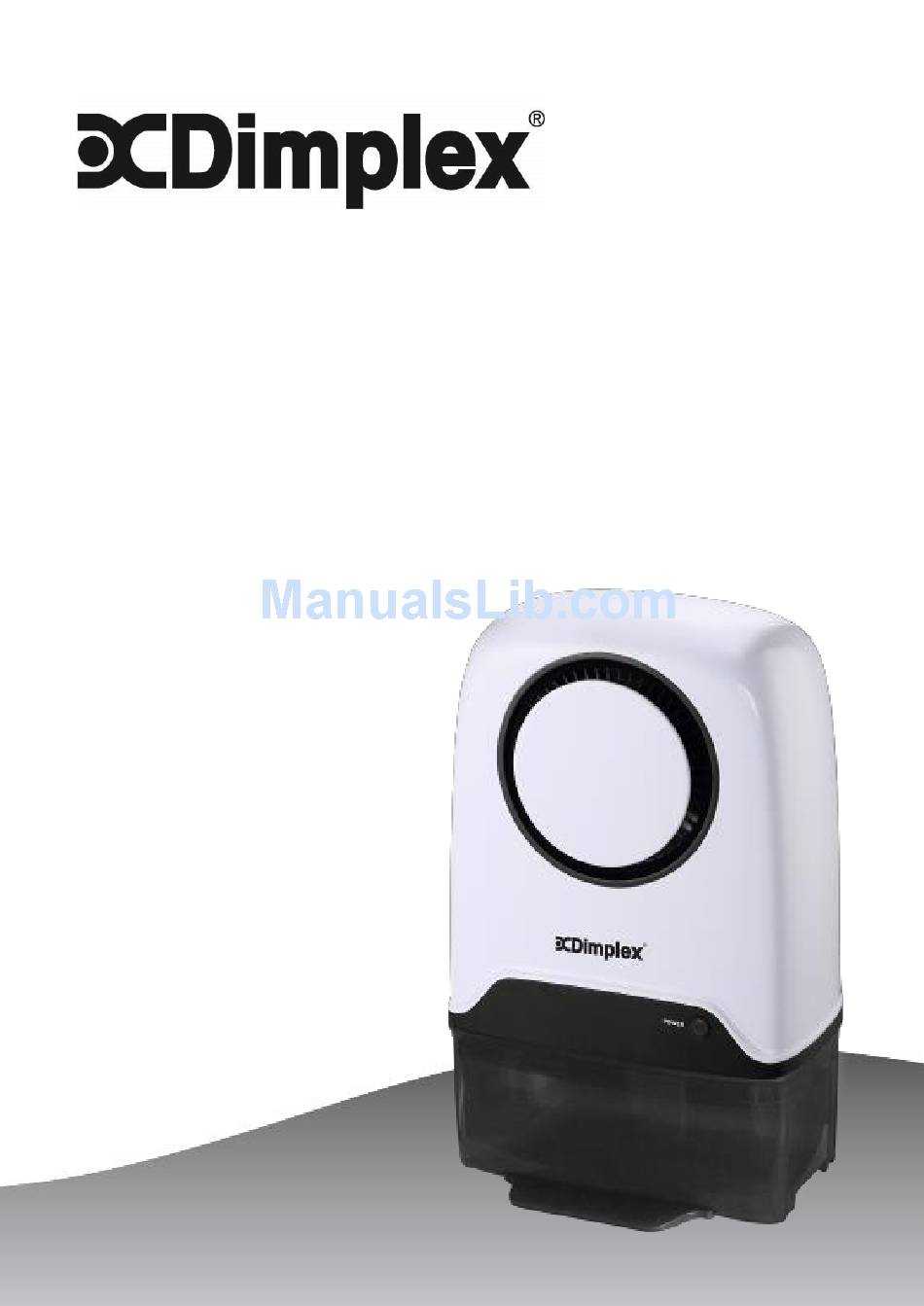

- Page 1 GDDEU10C 10L COLLAPSIBLE DEHUMIDIFIER INSTRUCTION MANUAL...
-
Page 2: Safety Information
SAFETY INFORMATION Please read the manual carefully before using this product for the first time. Store the unit in a safe place to avoid electrical leakage, flaming or personal injury. Do not immerse this product in water or any other liquids. ... -
Page 3: Parts Diagram
PARTS DIAGRAM 1. Air outlet 2. Front housing 3. Power switch and indicator light 4. Water tank handle 5. Unit handle 6. Air Inlet 7. Water tank 8. Water tank stabilising feet 9. Float switch 10. Water tank cover... - Page 4 OPERATING INSTRUCTIONS ASSEMBLY 1. Install the two water tank stabilising feet into the grooves under the water tank (into the front and back). 2. Place the cover into the water tank. Making sure the “FRONT” side is facing up and forwards. 3.
- Page 5 TURNING THE DEHUMIDIFIER ON AND OFF Turning on the unit 1. Plug the unit into a power source. 2. Press the power switch, the dehumidifier will start to work (the indicator light will turn green). Turning off the unit 1. Press the power switch, the unit will stop working and the light will turn off.
- Page 6 EMPTYING WATER TANK When dehumidifying, the water will drain into the water tank. The unit will stop working when the water tank is full and the indicating light will illuminate red. Follow the directions below to empty the tank. 1. Disconnect the unit from the power supply. 2.
- Page 7 USAGE INFORMATION When the indicator light illuminates red, the tank is full. Empty the tank and turn on the unit to resume operation. When the unit turns off, please wait at least 3 minutes before restarting the unit to prevent damaging the compressor. ...
- Page 8 COLLAPSIBLE STORAGE The GDDEU10C is designed to save space when stored away. The water tank lid sits underneath the body with the water tank sitting on top to allow it to fit into small storage spaces. 1. Lift the body from the water tank and the water tank lid.
- Page 9 5. Turn the water tank upside down and place it on top of the body. You may need to push in the vent disc to do so. 6. Pick up the water tank lid, body and bucket altogether and store away.
- Page 10 FILTER REMOVAL & CLEANING Filter Handle Filter 1. Before removing the filter, unplug the unit. 2. Pull up the filter handle. Wash the filter with cool water (cooler than 40℃) every two weeks, and put filter back after it has air-dried naturally. Disconnect the power cord from the power supply when turning off the unit for extended periods.
-
Page 11: Specifications
SPECIFICATIONS Model GDDEU10C Specification Power Supply 220-240V~ 50Hz Power Input (EN60335) 210W Rated Current 1.2A Net Weight 9.5 Kg 10 liters/day Moisture removal (30℃ RH80%) Dimension(mm) 314Wx 242D x 482H Working temperature 5℃-32℃ Water Tank Capacity (CE) N842/2006: R134a is a kind of fluorinated greenhouse gases covered by the Kyoto Protocol. - Page 12 Glen Dimplex New Zealand Ltd 38 Harris Road, East Tamaki Auckland, New Zealand P.O. Box 58473, Botany Manukau 2163, New Zealand Phone: 09 274 8265 Fax: 09 274 8472 Email: sales@glendimplex.co.nz Web: www.dimplex.co.nz...
