Summary of Contents for Dimplex GDDEKD9W

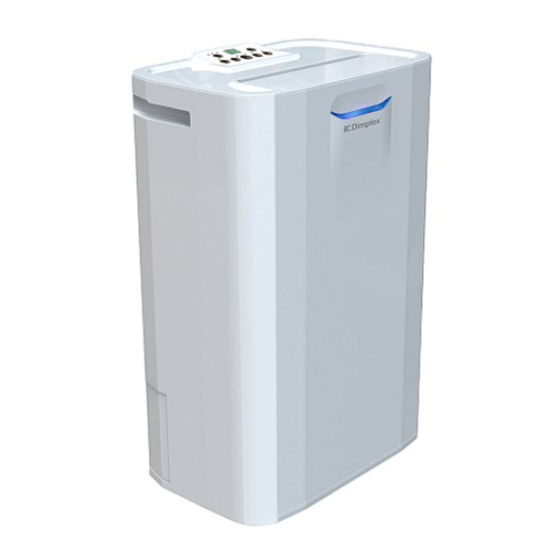

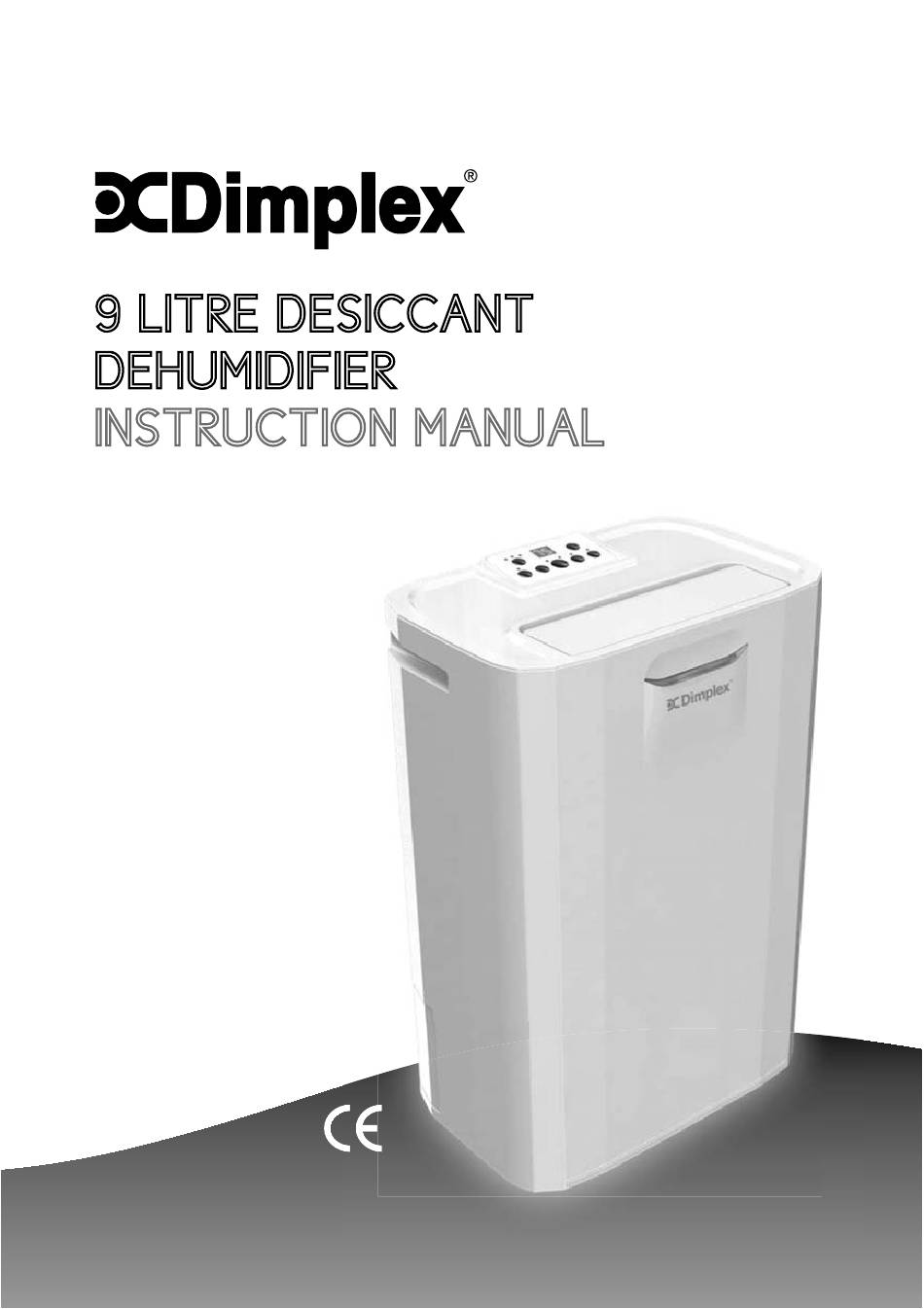

- Page 1 9 LITRE DESICCANT DEHUMIDIFIER INSTRUCTION MANUAL GDDEKD9W Read and retain these instructions for future reference – 1 –...
-
Page 3: Where To Position
WHERE TO POSITION The dehumidifier should be positioned so that it can draw moisture from all areas of your home. When positioning the dehumidifier, ensure that it is placed on a level surface and that there is a minimum of 20 cm (8”) of space on either side of the unit to allow for efficient airflow. - Page 4 • Avoid getting the unit wet. Do not let any liquid enter the unit. • Do not place a container with liquid on top of the unit. • The condensed water is not for drinking; either for humans or animals. •...
- Page 5 • We suggest sending the unit for professional maintenance periodically. • Only a licensed professional is allowed to dismantle or modify the appliance. • The machine is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user/operator, not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.
- Page 6 PARTS Control Panel Air Deflector Humidity Indicator Rear Plate Air Inlet/ Air Filter Power Cord Water Tank Front Plate Activated Filter Frame Carbon Filter – 6 –...
-
Page 7: Programming Feature
PROGRAMMING FEATURE 1. FAN SPEED Indicator 8. DRY CLOTHES (TURBO) Button (Sleep, NORM, TURBO) 9. Humidity Button 2. Humidity/Timer Display Window 10. ON indicator (heat element 3. TIMER Indicator operation indicator) 4. AUTO button 11. Power (ON/OFF) Button 5. AIR CLEAN Indicator 12. - Page 8 • NORMAL: the unit will run in Medium ventilation/HIGH Heat. And, if the ambient humidity is less than the set humidity, the unit will run in Medium fan speed only, no Heat. • TURBO: the unit will run in HIGH ventilation/HIGH Heat. And, when the ambient humidity is less than the set humidity, the unit will run in HIGH fan speed only, no Heat.
-
Page 9: Timer Button
TIMER BUTTON 1. IN OPERATION TIMER: while the dehumidifier is operating, press TIMER button to set the number of hours you want the dehumidifier to continue operation. While pressing the button, the LED display will show the number of hours you set (between 0 and 24 in a cycle). -
Page 10: Operation
OPERATION 1. Plug the unit into the correct mains socket. 2. OPEN THE AIR DEFLECTOR at the top. 3. Press the POWER button to turn on the unit. The unit will start to work in LOW FAN/ LOW HEAT/LOW DEHUMIDIFY (humidity setting: 50%) 4. - Page 11 E5 means the unit is tipped over. Please reposition the unit upright, press POWER button to re-start. For other errors, please call Glen Dimplex or your service centre. DO NOT dismantle the machine by yourselves in any case. DRAINAGE While the water tank is full, the unit will stop working for self-protection.
-
Page 12: Continuous Drainage
CONTINUOUS DRAINAGE When the dehumidifier is operated in very high humidity, the water tank will require more frequent drainage. In this situation, it may be more convenient to set the unit up for continuous drainage with the following procedures: 1. Cut off the cover of the continuous drain at the back of the unit. 2. -
Page 13: Cleaning The Filter
CLEANING THE FILTER Draw out the air filter from the rear of the unit. Activated Filter Frame Carbon Filter For dust filter and filter frame: 1. Use a vacuum cleaner or tap the filter lightly for easy cleaning. If the filter is particularly dirty, use warm water. -
Page 14: Troubleshooting
TROUBLE SHOOTING PROBLEM POSSIBLE REASON The unit doesn’t work at all. 1. Bad connection of the power cord 2. Water tank not positioned correctly or has a full tank. 3. The unit is not standing upright or is not level. The unit is not dehumidifying 1. - Page 15 Glen Dimplex New Zealand Ltd 38 Harris Road, East Tamaki Auckland, New Zealand P.O. Box 58473, Botany Manukau 2163, New Zealand Phone: 09 274 8265 Fax: 09 274 8472 Email: sales@glendimplex.co.nz Web: www.dimplex.co.nz...
