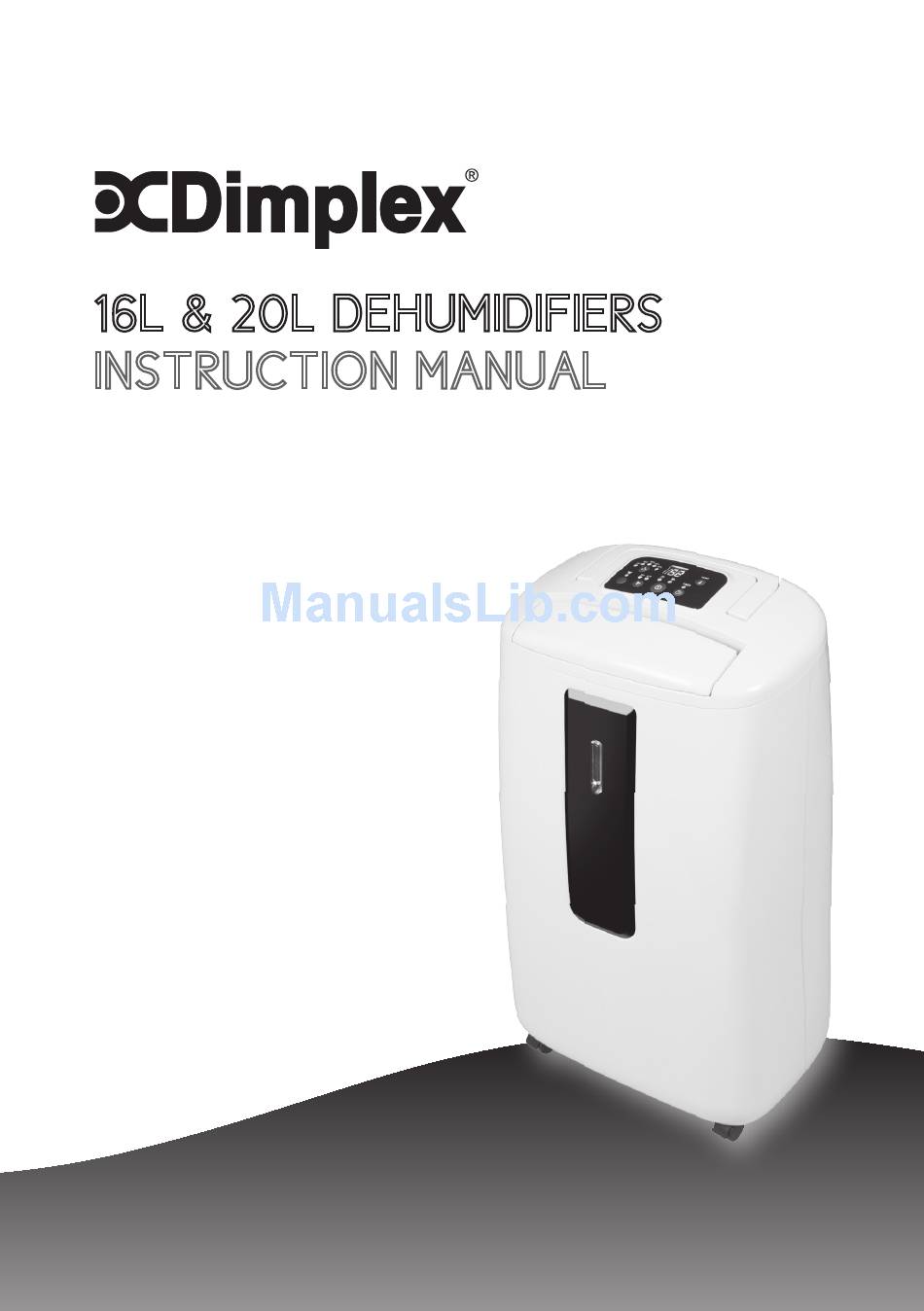

Page 1: Instruction Manual
16L & 20L DEHUMIDIFIERS INSTRUCTION MANUAL GDDEK series (GDDEK16 and GDDEK20) – 1 –... -
Page 2: Table Of Contents
Before use Control Panel Operation Where to position Parts How it works Drainage Maintenance Trouble shooting SPECIFICATIONS Model no. GDDEK16 GDDEK20 Power supply 220-240V~, 50Hz Dehumidification capacity C, 80% 16 L/day 20L/day C, 80% 240W / 1.1A 370W / 1.7A... -
Page 3: Before Use
BEFORE USE CAUTION! Always keep the unit in vertical position. Leave the unit to stand for one hour before connecting to the mains supply after transport or when it has been tilted (e.g. during cleaning). Keep all foreign objects away from the air intake or output openings. The mains supply must conform to the specification shown on the rating plate at the back of the unit. -
Page 4: Control Panel
CONTROL PANEL TEMPERATURE CONT. /HUMIDITY Humidity setting button Clothes drying button Working mode indicator (continuous High ventilation speed indicator dehumidifying, humidity 40%, 50%, Ventilation speed button 60%, 70%). Ideal room humidity is 10. Low ventilation speed indicator 50%-60%. 11. Power indicator Humidity/Temperature/Timer display 12. -
Page 5: Operation
OPERATION Plug the unit into a correct mains socket. (Please refer to the rating label at the rear of the unit for correct voltage/frequency.) Press “ON/OFF” button. The dehumidifier will turn on. Press (humidity setting button) to set the dehumidification level you need. The different levels are: continuous dehumidification, 40% relative humidity, 50%, relative humidity, 60% relative humidity or 70% relative humidity. -
Page 6: Where To Position
WHERE TO POSITION When positioning the dehumidifier, ensure that it is placed on a level surface and that there is a minimum of 10cm (4”) of space on either side of the unit to allow for efficient airflow. This dehumidifier is fitted with castors for extra mobility, if you move the unit, it should first be switched off and the water tank emptied. -
Page 7: Parts
PARTS HUMIDITY INDICATOR LIGHT CASTORS ACCESSORIES ACTIVE CARBON FILTER TO CLEAN AIR TOXINS – 7 –... -
Page 8: How It Works
HOW IT WORKS Your dehumidifier controls relative humidity by passing air through the unit, forcing the excess moisture to condensate over the cooling elements. Contact with this cold surface causes the moisture in the air to condense. This condensed water then drains safely into the anti-bacterial water tank. -
Page 9: Drainage
DRAINAGE When the water tank is full, the dehumidifier will stop and the “Full Water Tank” indicator will light up. To remove the water tank, carefully pull it out squarely from the unit. After empting the water tank, slide the water tank back into place. Make sure it is properly positioned, in order for the “Full Water Tank”... -
Page 10: Maintenance
MAINTENANCE Always unplug the unit from the mains before carrying out any maintenance or cleaning of the unit. CLEANING THE BODY Use a soft cloth to wipe the unit clean. Do not use volatile chemicals, gasoline, harsh detergents, or abrasive cleaning solutions, as these may damage the external body of the unit CLEANING THE FILTER This dehumidifier is equipped with 2 filters :... -
Page 11: Trouble Shooting
STORAGE If unit is not to be used for an extended period of time store by Turning the unit off, unplugging and tidily storing the cord. Completely emptying the water tank and wiping it clean. Covering the unit and storing away from direct sunlight TROUBLE SHOOTING THE UNIT DOES NOT OPERATE: Is the unit plugged in? - Page 12 Glen Dimplex New Zealand Ltd 38 Harris Road, East Tamaki Auckland, New Zealand P.O. Box 58473, Botany Manukau 2163, New Zealand Phone: 09 274 8265 Fax: 09 274 8472 Email: sales@glendimplex.co.nz Web: www.dimplex.co.nz...
