Charging The Battery - sunjoe iONAIR Operator's Manual

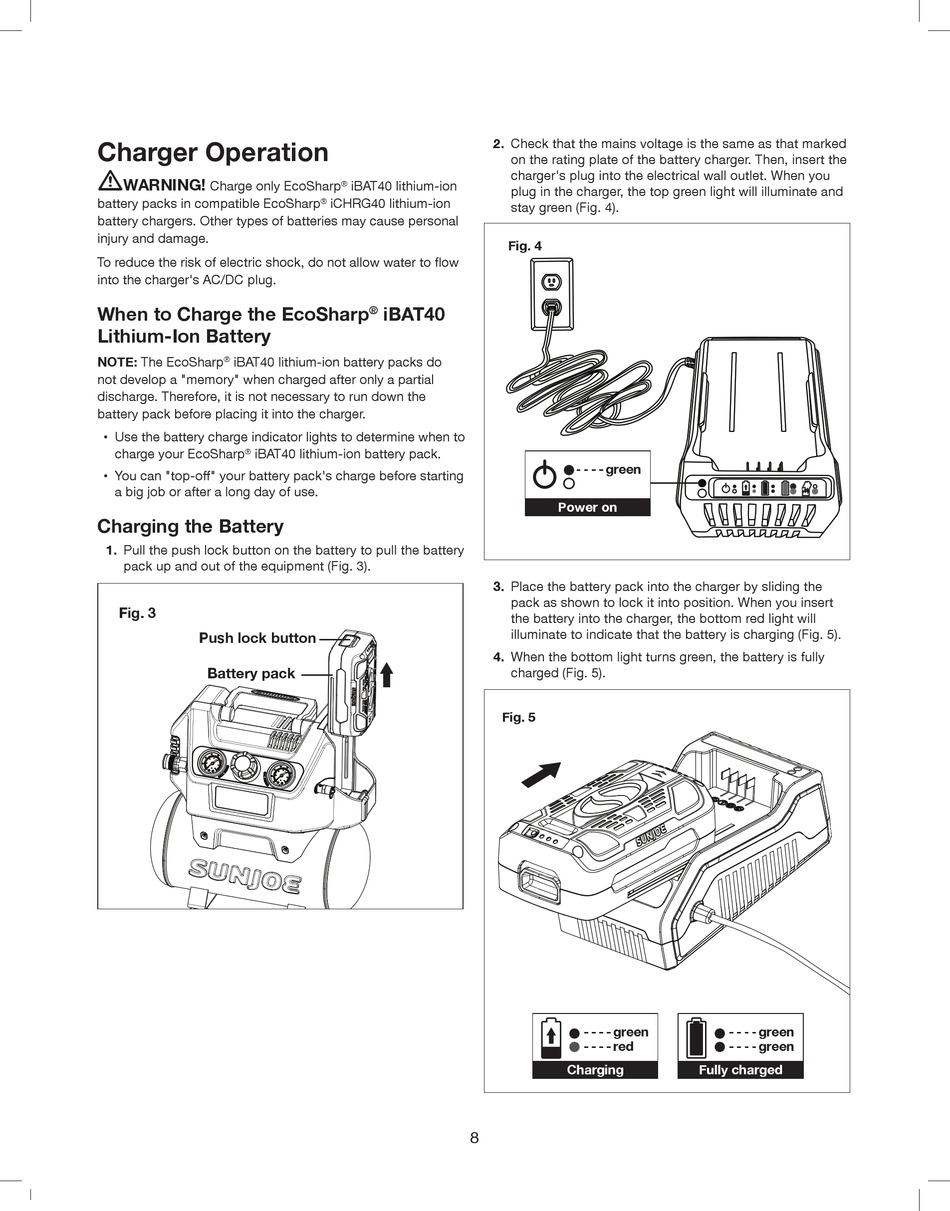

Charger Operation
m
WARNING!
Charge only EcoSharp
battery packs in compatible EcoSharp
battery chargers. Other types of batteries may cause personal
injury and damage.
To reduce the risk of electric shock, do not allow water to flow
into the charger's AC/DC plug.
When to Charge the EcoSharp
Lithium-Ion Battery
NOTE: The EcoSharp
iBAT40 lithium-ion battery packs do
®
not develop a "memory" when charged after only a partial
discharge. Therefore, it is not necessary to run down the
battery pack before placing it into the charger.
• Use the battery charge indicator lights to determine when to
charge your EcoSharp iBAT40 lithium-ion battery pack.
®
• You can "top-off" your battery pack's charge before starting
a big job or after a long day of use.

Charging the Battery

1. Pull the push lock button on the battery to pull the battery
pack up and out of the equipment (Fig. 3).
Fig. 3
Push lock button
Battery pack
2. Check that the mains voltage is the same as that marked
iBAT40 lithium-ion
®
iCHRG40 lithium-ion
®
iBAT40
®
3. Place the battery pack into the charger by sliding the
4. When the bottom light turns green, the battery is fully
8
on the rating plate of the battery charger. Then, insert the
charger's plug into the electrical wall outlet. When you
plug in the charger, the top green light will illuminate and
stay green (Fig. 4).
Fig. 4
green
Power on
pack as shown to lock it into position. When you insert
the battery into the charger, the bottom red light will
illuminate to indicate that the battery is charging (Fig. 5).
charged (Fig. 5).
Fig. 5
green
red
Charging
green
green
Fully charged
