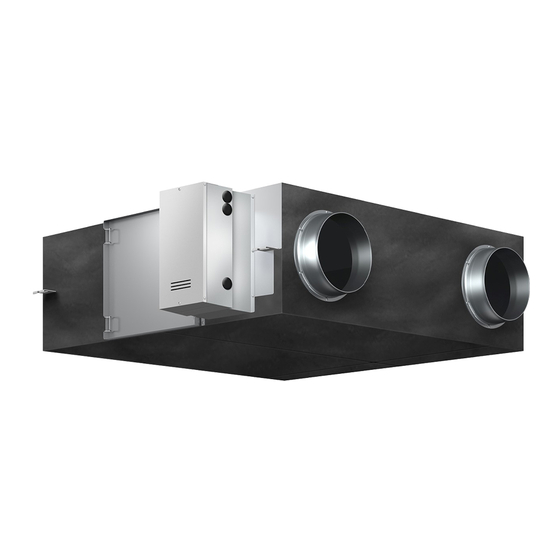

Air to Air Heat Exchanger
Installation Manual
Concealed microcomputer
control type
Model name:
VN-M150HE
VN-M250HE
VN-M350HE
VN-M500HE
VN-M650HE
VN-M800HE
VN-M1000HE
AMP Air Conditioning
For commercial use
Installation Manual
Installation Manual
www.ampair.co.uk | sales@ampair.co.uk
English
1
Xxxxx
xx
Advertisement
Table of Contents
