10.

Charging the Flight Battery

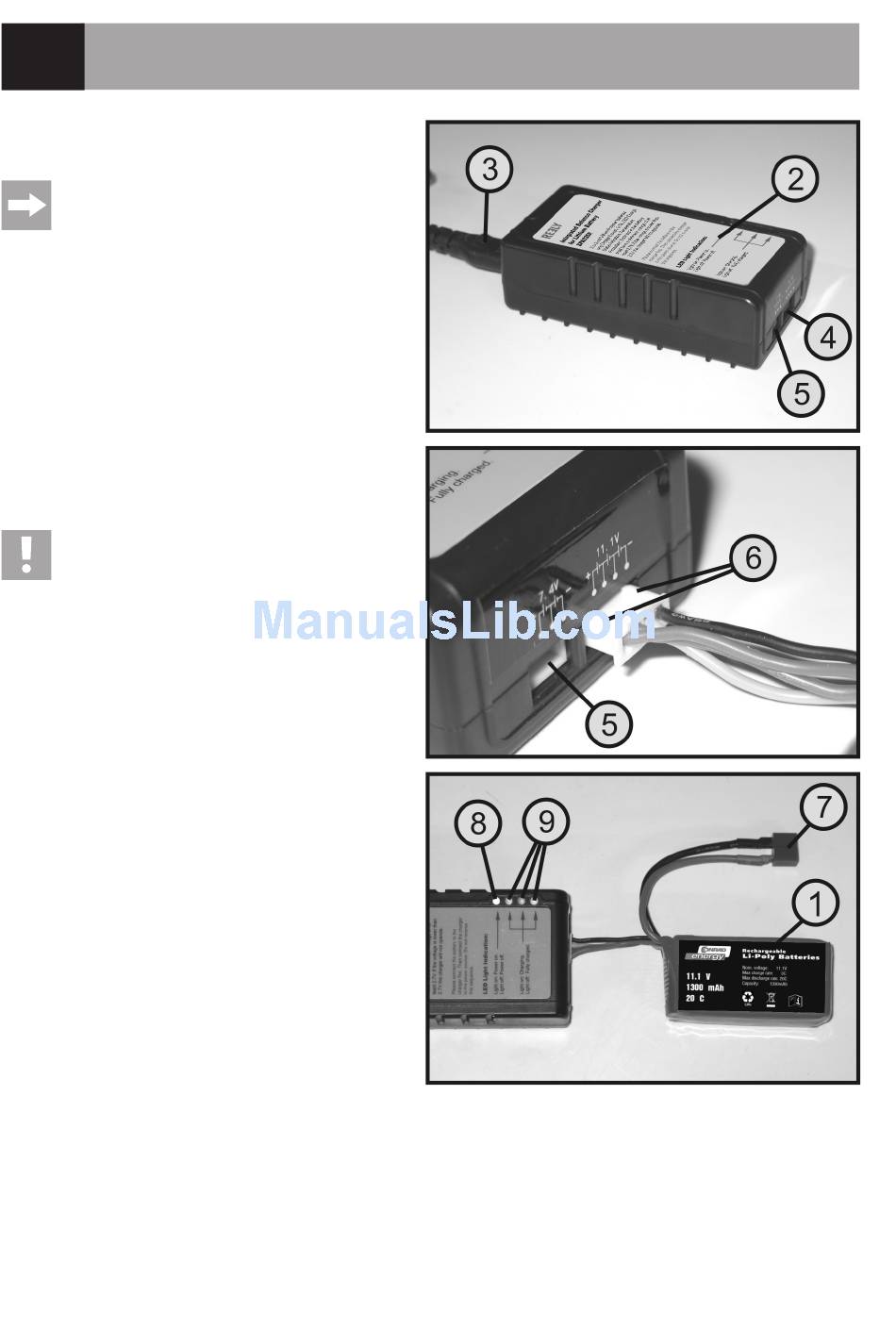

The 3-cell flight battery (1) is charged using the balancer
charger (2) supplied.
When charging, always remove the flight bat-
tery from the model in order to prevent shape
distortion of the plastic parts if the components
heat up.
First connect the plug of the mains cable (3) to the left
side of the balancer charger. The two battery charging
sockets (4 and 5) are on the right side of the LiPo char-
ger.
The plug of the 4-pole balancer connection cable is pro-
tected against polarity reversal and to be connected to
the right/rear charging socket (4). The left/front charging
socket (5) is intended for a 2-cell LiPo battery with 3-pole
balancer connection cable.
Attention!
When connecting the balancer plug connector
protected against polarity reversal to the ba-
lancer charger, ensure that the two guide pins
of the plug (6) point upwards.
The 2-pole connection cable with the T-plug (7) is not
required for charging. Later on, you connect the rechar-
geable battery to the model with this cable.
Figure 6
