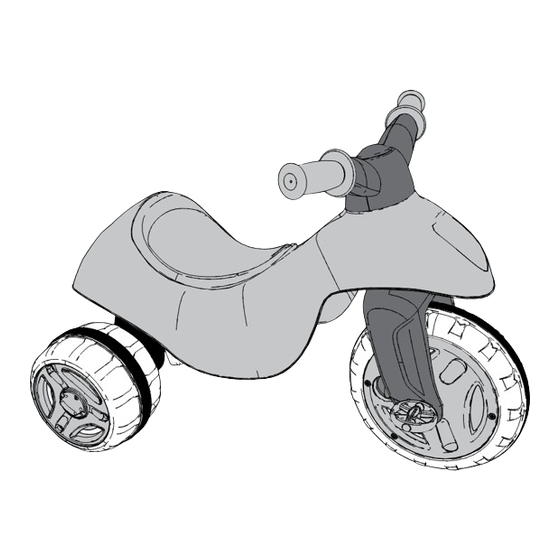

Owner’s Manual Index Safety • General Warnings and Safety Information ..............3-4 • Radio Frequency Information ...................4 • Drive Motor Battery Warnings ...................5 • Battery Notes and Charging Time ..................6 Assembly • Parts Assembly View ......................7 • Charging the Drive Battery....................8 •...
Page 3
WARNING : TO AVOID SERIOUS INJURY: • Do not use the vehicle in an unsafe man- • It is the responsibility of the adult to educate ner or at an unsafe speed. the child and determine if they are capable Examples include but are not limited to: of operating the vehicle safely.
Helmet Warning Information WARNING: ALWAYS WEAR YOUR HELMET WHEN RIDING THIS PRODUCT! • Helmet should sit level on your head and low on your forehead. Exposed forehead can result in serious injury. • Adjust the strap sliders below the ear on both sides. •...
Page 5
WARNING - Charging the Drive Motor Battery The following safety hazards may result in serious injury or death to the user of the vehicle: • Use of a battery or charger other than the supplied rechargeable battery and charger may cause a fi re or explosion. Only use the supplied rechargeable battery (or suitable replacement) and charger with the vehicle.
Drive Motor Battery Only an adult who has read and understands the safety warnings should handle, charge or recharge the battery. Failure to comply with all safety warnings may result in serious injury or death. Battery Fuse The drive motor circuit features a thermal fuse that will automatically trip and cut all power to the vehicle if the motor, electric system or battery is overloaded.
Page 7
Parts View Battery Fuse is located in the Battery compartment, under the seat. Description Description Handlebar Mounting Knob and Axle Washer (x2) Screw Handlebar Assembly Axle Lock-pin (x1) Handlebar Grips Axle Seat / Machine Screw Wheel Cover and Screws (x3) Fork Assembly Drive Motor Front Wheel...
Charging the Drive Battery Charging the Drive Battery NOTE: Before first use, charge battery 8 to 12 hours. Charge Drive Battery after 1-2 hours of use or when the vehicle does not move at its normal speed. 2. Ensure Power Switch is not activated. The Charger Socket is located at rear end of the Trike as shown.
Page 9
Assemble the Rear Wheels (P) x 3 NOTE: Read through ALL steps before proceeding. Plug motor Connectors firmly together and put through Body Hole Install Motor through Body Hole and line up Axle Holes as shown. Place Drive Wheel/Axle assembly through Motor and Axle Holes NOTE: Make sure Wheel Hub...
Page 10
Assembling Front Wheel to Fork (E) x 4 NOTE: Read through ALL steps before proceeding. Place Wheel Assembly so that Crank sits into Fork cutouts as shown. NOTE: Ensure Crank Grove fits in Crank Notch . Squeeze fork together as needed. Place Crank Bracket over Crank and install two Screws securely into Fork Legs...
Page 11
Assembling Handlebar to Fork (F) x 1 NOTE: Read through ALL steps before proceeding. Place Connector Harness through connector Hole With Fork pointing forward, place Handlebar onto Fork Shaft taking care to place wires so they will not be pinched. Install Retainer Cap turning clock-wise until tight.
Dual Drive Hub Lock Operation WARNING : Both Hub Locks must be set the same: Set both Hubs in Drive or both Hubs in Pedal mode mode STEP 1: Push in and rotate front wheel Hub to Pedal mode to pedal the trike or Drive mode to use the battery to drive the trike.
Maintenance Repair and Service General: The vehicle should be checked for Note: If the drive wheel is not tight, it will not damage, missing or badly worn parts before engage the gears and the vehicle will not run. each use. If any part of the product does not •...
Drive Battery Replacement and Disposal The drive battery will eventu- ally lose the ability to hold a charge. Follow these steps to replace and dispose the battery: Remove Seat Remove the Battery Bracket and Screws Disconnect the Red and Black Battery wires. Carefully remove the Bat- tery •...
Page 15
Drive Battery Replacement Install replacement Battery and reconnect the connectors: • Positive Connector has a circuit board attached. Slide Connector onto RED Positive Terminal securely. • Negative Connector connects to the BLACK Negative Terminal Replace the battery Bracket • Ensure Bracket securely holds the Positive Connector down and connected.
Troubleshooting Guide The following are examples of potential problems. Completely read through this manual and the troubleshooting guide table before calling. If you still need help resolving the problem please contact Customer Service. NOTE: Vehicle should be turned off and fully changed before doing troubleshooting. Problem Possible Cause Solution...
Page 17
Troubleshooting Guide - continued Problem Possible Cause Solution Vehicle will not Poor contact of wires or Check that the battery connectors run when Switch is connectors are fi rmly plugged into each other. If pressed. wires are loose around the motor call Customer Service.
Limited Warranty General: • Used in a manner contrary to the instructions • Part or model specifi cations are subject to and warnings in this Owner’s Manual change without notice. • This Limited Warranty is the only warranty Huff y will not be liable for incidental or for the product.
Page 20
ANTES DE DEVOLVER EL RETOURNER AU MAGASIN, PRODUCTO A LA TIENDA, COMMUNIQUEZ AVEC LE SERVICE COMUNÍQUESE CON SERVICIO À LA CLIENTÈLE DE HUFFY. NOUS AL CLIENTE DE HUFFY. NOS VOUS AIDERONS VOLONTIERS AVEC COMPLACE AYUDARLO CON TOUT PROBLÈME CONCERNANT LES CUALQUIER PARTE O PROBLEMA PIÈCES OU LE MONTAGE!
