Huffy Mercedes-Benz SLS AMG Ride On Owner's Manual
  1. Manuals
  2. Brands
  3. Huffy Manuals
  4. Toy
  5. Mercedes-Benz SLS AMG Ride On
  6. Owner's manual

Huffy Mercedes-Benz SLS AMG Ride On Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Owner's Manual
for
Electric Ride On
This manual contains important safety, assembly, operation
and maintenance information.
Please read and fully understand this manual
before operation.
Save this manual for future reference.
m0203
BC
HMercedes Ride On EN 091614
Copyright Huffy Corporation 2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mercedes-Benz SLS AMG Ride On and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Huffy Mercedes-Benz SLS AMG Ride On

Summary of Contents for Huffy Mercedes-Benz SLS AMG Ride On

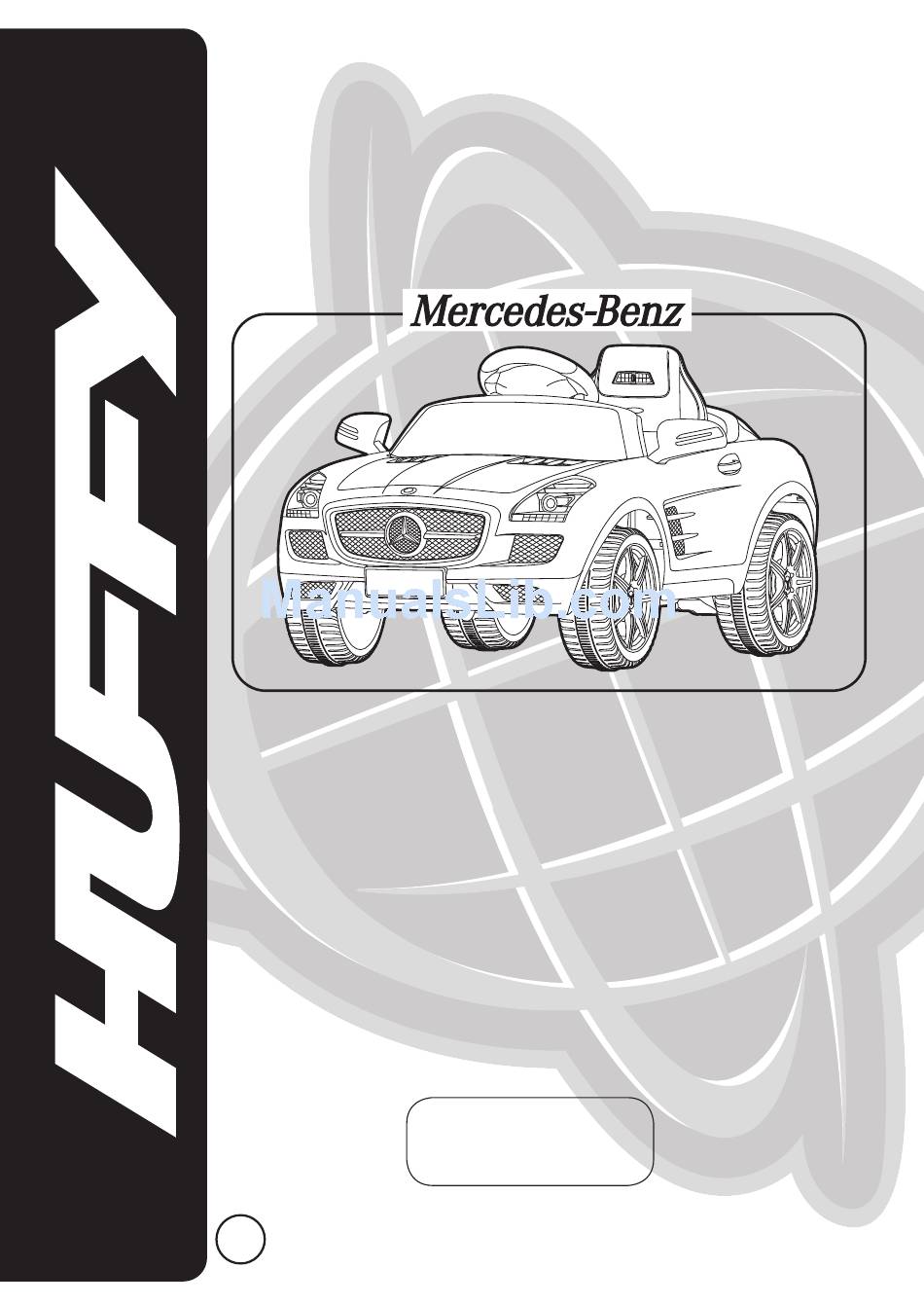

  • Page 1 Owner’s Manual Electric Ride On This manual contains important safety, assembly, operation and maintenance information. Please read and fully understand this manual before operation. Save this manual for future reference. m0203 HMercedes Ride On EN 091614 Copyright Huffy Corporation 2014...

  • Page 2: Table Of Contents

    • Battery replacement and disposal ............16 • Battery Storage ..................17 • Troubleshooting Guide ...............17/18 Huffy Warranty • Huffy Corporation Limited Warranty ............. 19 “Mercedes-Benz”, and the design of the enclosed product are subject to intellectual property protection owned by Daimler AG.

  • Page 3: Warnings

    WARNING The user must follow all safety rules and guidelines below or serious injury or death may occur to the user. • Always use common sense and safe practices when using the vehicle. This ve- hicle is unsuitable for children under 3 years. The user must be 3 to 5 years, and weigh no more than 65 lbs (30kgs).

  • Page 4: Warnings

    WARNING - Charging the Drive Motor Battery The following safety hazards may result in serious injury or death to the user of the vehicle: • Use of a battery or charger other than the supplied rechargeable battery and charger may cause a fire or explosion. Only use the supplied rechargeable battery (or suitable replacement) and char- ger with the vehicle.

  • Page 5: Vehicle Information

    Vehicle Information Applicable age 3-5 years old Weight limit 65 lbs (30kg) Power supply Chargeable type (supplied) Battery specifications DC6V/4.5AH Charging source Input: AC 100V-240V 50Hz/60Hz Output: DC8V/600mA Battery charging time Charging time: 9-10 hours Tools Needed for Assembly: Small Phillips Screwdriver Wrench Set Radio Frequency Information Caution: Changes or modifications not expressly approved by the party responsible...

  • Page 6: Parts Assembly View

    User Requirements The suitable age range for a child using the vehicle is 3 to 5 years. The maximum weight of the child is 65 lbs (30 kg). Before using the vehicle the child must understand the controls and safety issues. They must also demonstrate the capability to handle the vehicle and operate its controls.
  • Page 7 Parts List...

  • Page 8: Drive Motor And Wheel Installation

    Installing the Drive Motor and Wheels Installation of the front-wheel frame connecting-rod and wheel FRONT Gearbox hole REAR Rubber wheel tread • Install the front-wheel frame connecting-rod (part 11) as shown (may be pre-installed), and install screw (part 12) and locknut (part 13). Tighten securely, then loosen just enough so you can turn screw/nut by hand.

  • Page 9: Installing Steering Wheel, Power Supply And Seat

    Installing Steering Wheel, Power Supply and Seat Installation of steering wheel: • Connect the steering wheel wire plug to the plug extending out of the car body hole. • Put the connected plugs and wires down into the car body hole. Car body hole NOTE: Ensure wires are not pinched our bound up.

  • Page 10: Installing Windshield And Mirrors

    Installing Windshield and Mirrors Installation of windshield and rearview mirrors Install the windshield (part 2) and rearview mirrors (part 4) by inserting the tabs into the vehicle slots as shown. Press tabs in until a “snap” is heard. Completed Assembly...

  • Page 11: Operation

    Operation Front light switch Power switch MP3 plughole Power indicator light Volume adjustment knob Forward/Backward movement switch Foot switch Middle stop To Operate the vehicle: Power Button: Push IN to turn on. Push in again to turn OFF. Leave OFF when not in use. Steering wheel: Use to steer the vehicle in the direction you want to move.

  • Page 12: Mp3 Player

    Using MP3 Player (if equipped) Insert the MP3 Plug (A) into the Socket on the instrument panel (B). Adjust volume by turning the Volume Knob (C) (next to the MP3 Socket). WARNING: Listening to loud volumes can permanently damage your hearing. NOTE: When batteries are low the music may be muted and slow.

  • Page 13: General

    Maintenance The vehicle should be checked for damage, missing or badly worn parts before each use. • Check the tightness of the fasteners before each use. • Check the tightness of the wheels: • Note: If the drive wheel is not tight, it will not engage the gears and the vehicle will not run.

  • Page 14: Drive Battery And Fuse

    Drive Battery Only an adult who has read and understands the safety warnings should handle, charge or recharge the battery. Failure to comply with all safety warnings may result in serious injury or death. Battery Fuse The drive motor circuit features a thermal fuse that will automatically trip and cut all power to the vehicle if the motor, electric system or battery is overloaded.

  • Page 15: Charging The Drive Battery

    Charging the Drive Battery Battery black-plug (-) Black cable Battery red-plug (+) 5A over-current protection Driving cable control board Risk of fire. WARNING Do not bypass or tamper. Charging Port Socket Charger DC plug Signal Charging the Drive Battery NOTE: Before first use, charge battery 10 to 12 hours. 1.

  • Page 16: Battery Replacement And Disposal

    Drive Battery Replacement and Disposal The drive battery will eventually lose the ability to hold a charge. Depending on the amount of use, and varying conditions, the battery should operate for one to three years. Follow these steps to replace and dispose the battery: 1.

  • Page 17: Battery Storage

    Battery storage The drive battery should be charged when depleted, or if not used regularly, once a month. Failure to charge the battery as directed will cause permanent damage to the battery and will void the warranty. Follow these guidelines if the battery is removed: •...
  • Page 18 Troubleshooting Guide - continued Problem Possible Cause Solution Vehicle runs slug- Battery low on power Recharge battery (see Battery: Re- gishly placement and Disposal) Battery is old Replace battery (see Battery: Re- placement and Disposal) Vehicle is overload Reduce weight on vehicle (see user requirements and Safety Warnings) Vehicle is being used in Avoid using vehicle in harsh condi-...
  • Page 19 Vehicle other than for its intended purpose. How do you get service? Contact Huffy Consumer Service. See included list for Customer Contact information. This product meets ASTM F963 and CPSIA requirements for electric...
  • Page 20 WARNING: ALWAYS WEAR YOUR HELMET WHEN RIDING THIS PRODUCT! • Helmet should sit level on your head and low on your forehead • Adjust the strap sliders below the ear on both sides. • Buckle the chin strap. Adjust strap until it is snug. •...
