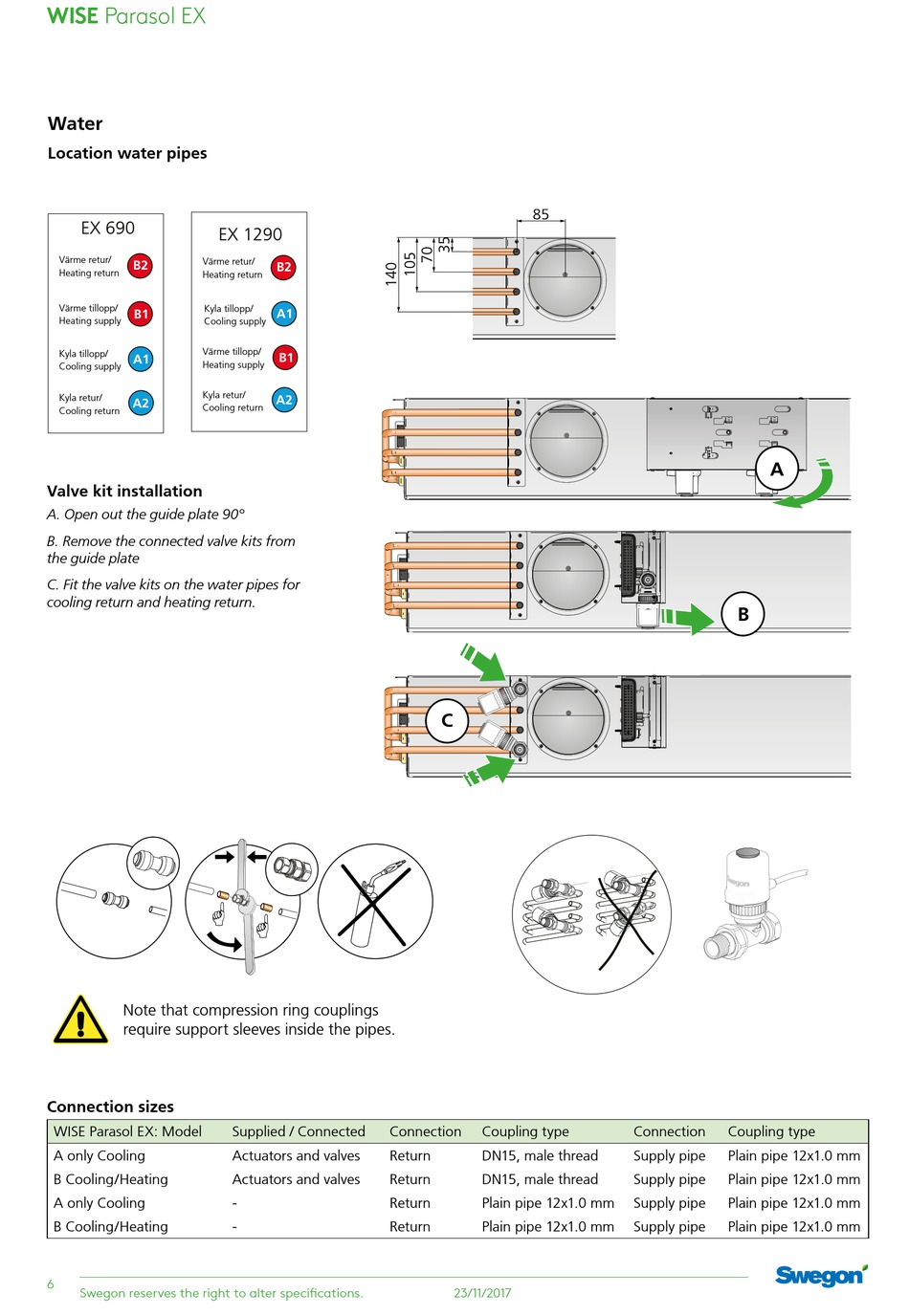

WISE Parasol EX

Water

Location water pipes
Värme retur/
Värme retur/
B2
Heating return
Heating return
Värme tillopp/
Kyla tillopp/
B1
Heating supply
Cooling supply
Värme tillopp/
Kyla tillopp/
A1
Heating supply
Cooling supply
Kyla retur/
Kyla retur/
A2
Cooling return
Cooling return
Valve kit installation
A. Open out the guide plate 90°
B. Remove the connected valve kits from
the guide plate
C. Fit the valve kits on the water pipes for
cooling return and heating return.
 
Note that compression ring couplings
require support sleeves inside the pipes.
Connection sizes
WISE Parasol EX: Model
A only Cooling
B Cooling/Heating
A only Cooling
B Cooling/Heating
6
Swegon reserves the right to alter specifications.
B2
A1
B1
A2
Supplied / Connected
Connection
Actuators and valves
Return
Actuators and valves
Return
-
Return
-
Return
C
Coupling type
DN15, male thread
DN15, male thread
Plain pipe 12x1.0 mm
Plain pipe 12x1.0 mm
23/11/2017
A
B
utvändig gänga DN (1/2")
Connection
Coupling type
Supply pipe
Plain pipe 12x1.0 mm
Supply pipe
Plain pipe 12x1.0 mm
Supply pipe
Plain pipe 12x1.0 mm
Supply pipe
Plain pipe 12x1.0 mm
