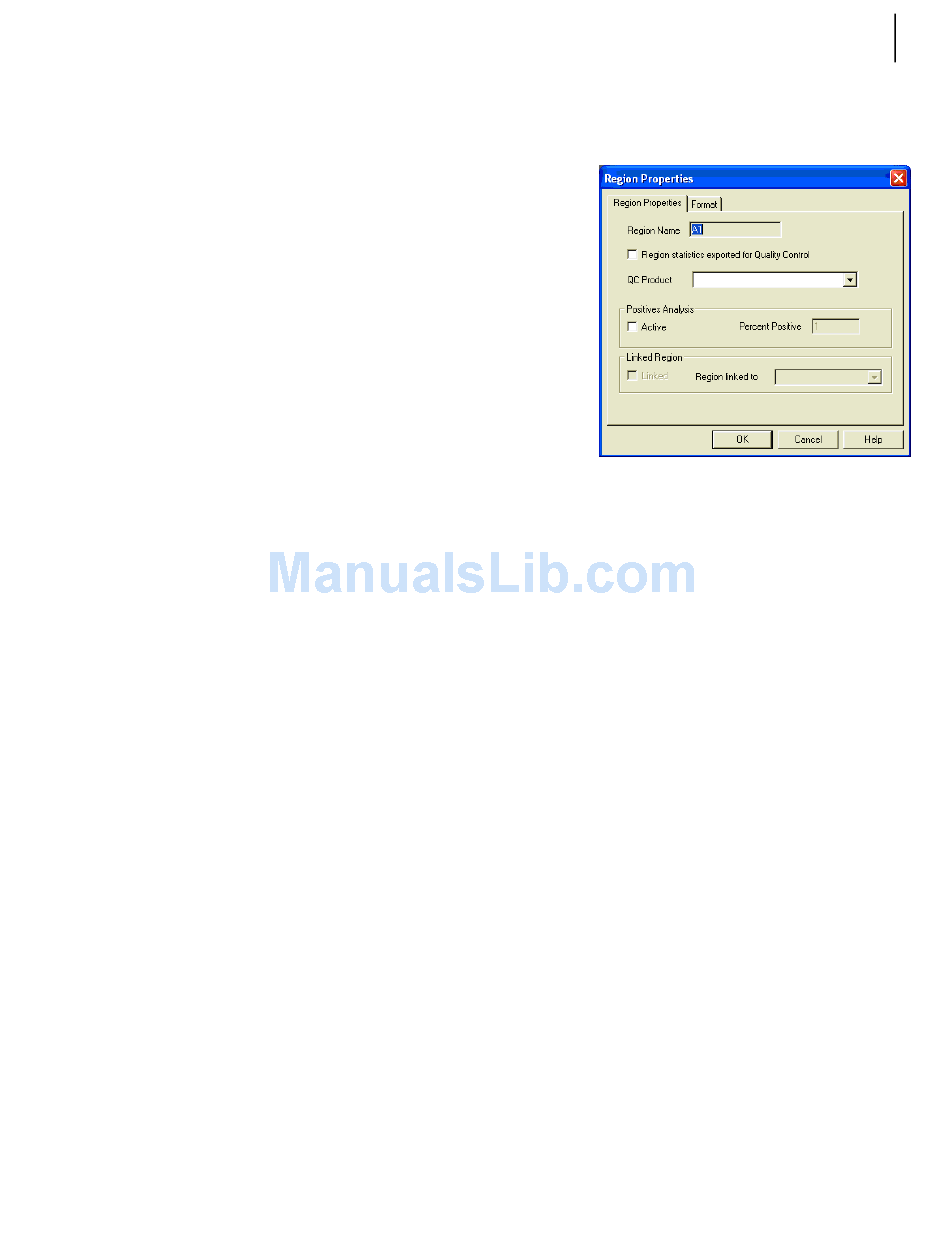

Quadrant Region Properties

Region Name
X and Y Coordinate
Region statistics exported for QC
QC Product
Positives Analysis
Linked Region
NOTE
You cannot make any changes on this screen when
running a
product or choosing to export QC statistics.

Interactive Quadrant Region Editing

When a Region's position is changed any Gates and statistics derived from the Region are
automatically updated and each plot is redrawn to reflect the changes in the Gate. When a Region is
deleted any Gate or statistics that used the Region are also automatically deleted. When a Gate has
been deleted, any plot, which used the deleted Gate, is reset to Ungated. Navios software allows you
to reposition an already created Region.

Elliptical AutoGate

Create an Elliptical AutoGate around the selected population on a plot.
See also: Create

Contour AutoGate

Create a Contour AutoGate around the selected population on a plot.
See also: Create

Linear Region

Insert a Linear Region. See also:
773232AH
locked protocol other than selecting a
AutoGate.
AutoGate.
Create Linear
QC
Regions.
Using Navios Software 10
Analysis Menu
10-129
