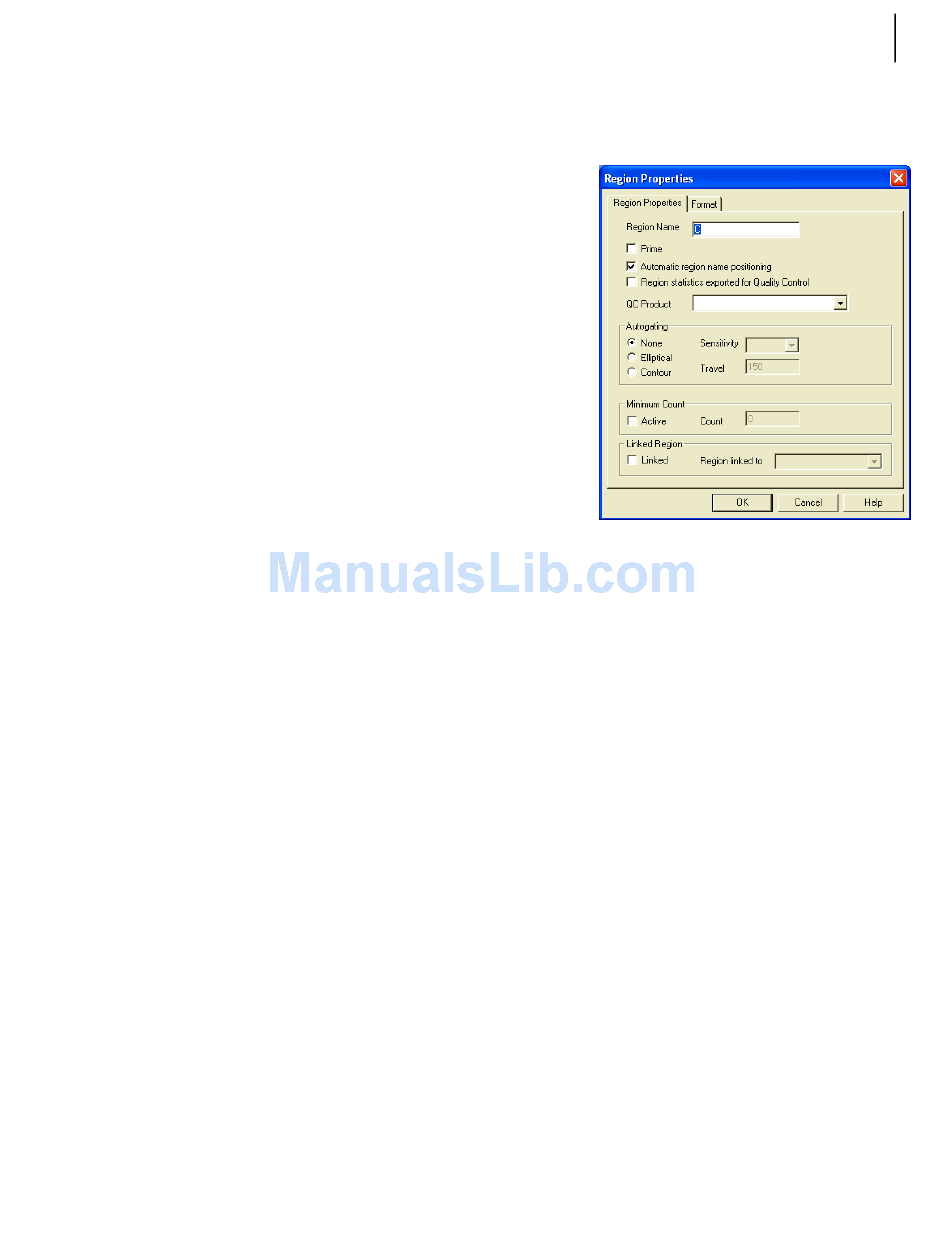

Polygonal Region Properties

Region Name

Prime

Automatic Region Name Positioning

Region statistics exported for QC

QC Product

None

Elliptical

Contour

Sensitivity

Travel

Minimum Count
Linked Region
NOTE
You cannot make any changes on this screen when
running a
product or choosing to export QC statistics.
Region Name
Displays the name of the region. If the name is not grayed, you can rename it.
Prime
When checked, this option allows the system to determine if the peak of the events on the plot is
within this region. If the peak is outside this region (due to an air bubble or partial clog), the system
performs a Prime cycle. A maximum of three sequential Prime cycles are allowed; if the peak of the
plot is still not within this region, the MCL aborts.
Automatic Region Name Positioning
Region labels default to an automatic position. You may move a region label to any desired position
within a plot, this user modification automatically unchecks this option. To revert to the automatic
position recheck this option.

Region Statistics exported for Quality Control

The region's results are exported to the Quality Control feature of the Report Generator.
NOTE
Exporting region statistics and selecting the QC product for FlexQuad regions operates differently
depending on whether the Region Properties dialog is opened via,
• right click on the selected region in the plot and using the context menu or
• right click on the region in Protocol explorer or double click the region name in the View /
Modify regions dialog.
If the Region Properties dialog is opened via right click on the selected region in the plot and using
the context menu, when a QC product is selected or changed, it is applied to all quadrants.
773232AH
locked protocol other than selecting a QC
Using Navios Software 10
Analysis Menu
10-125
