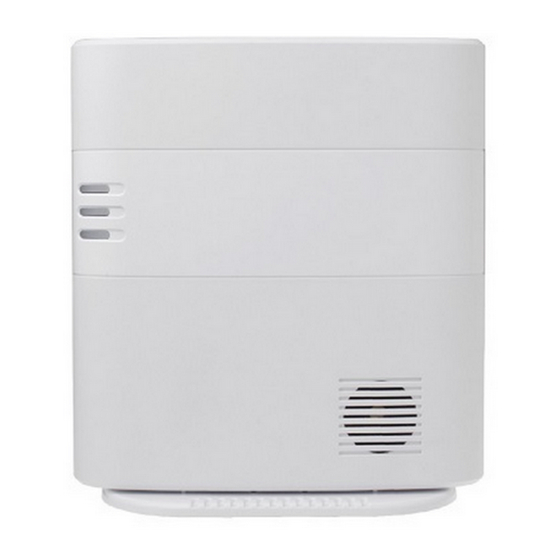

Climax Technology vesta series User Manual

Ip alarm system
Hide thumbs Also See for vesta series:
Table of Contents

Advertisement

Quick Links

See also: Operation & Installation Manual
May-09-2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the vesta series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Climax Technology vesta series

Summary of Contents for Climax Technology vesta series

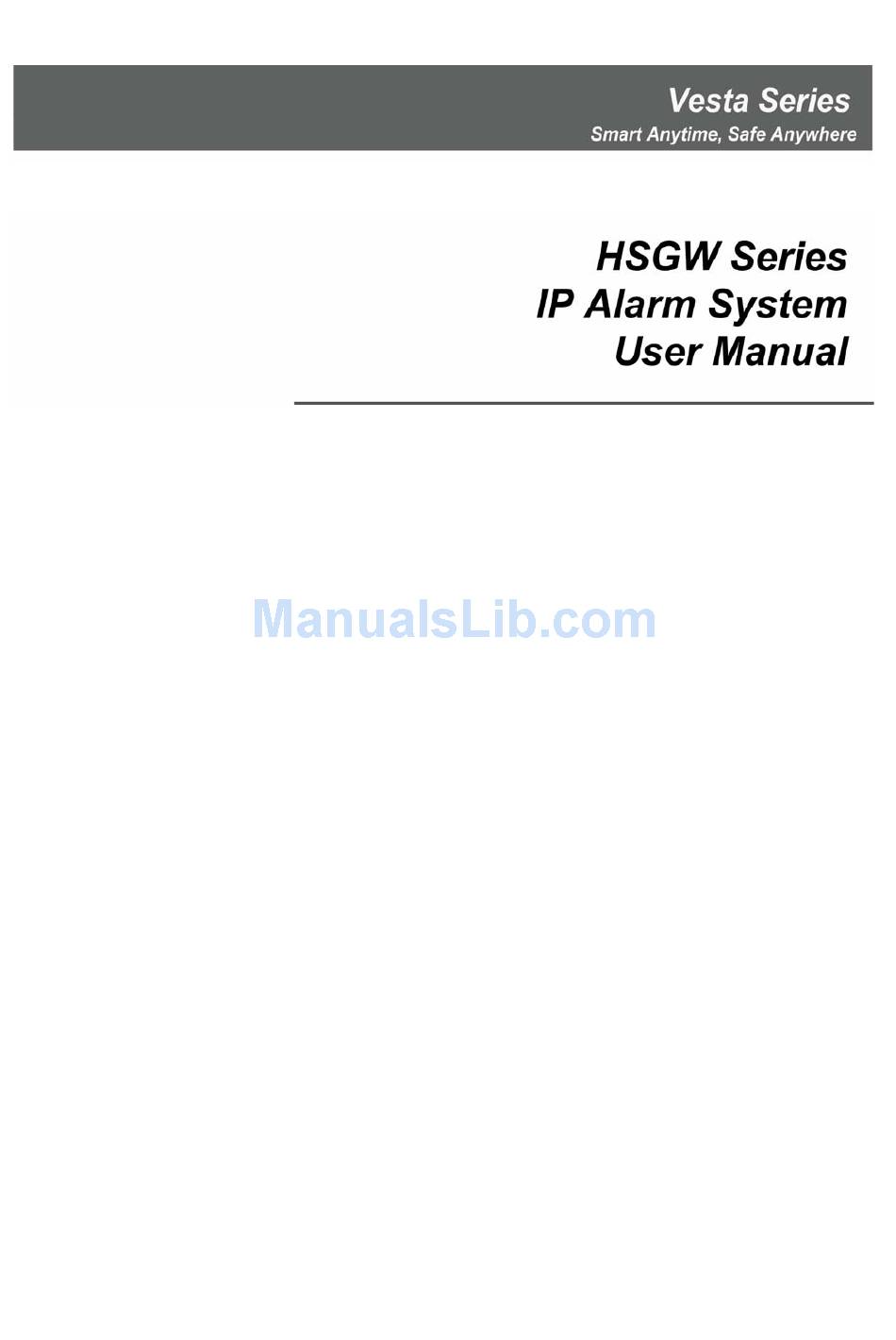

  • Page 1 May-09-2017...

  • Page 2: Table Of Contents

    Table of Contents  INTRODUCTION __________________________________________________________________ 1 1.1. S _____________________________________________________________ 2 YSTEM PECIFICATION PANEL INFORMATION _____________________________________________________________ 4 2.1. I : _____________________________________________________________ 4 DENTIFYING THE PARTS 2.2. T : _______________________________________________________________ 5 OWER UPPLY 2.3. S : ____________________________________________________________ 5 YSTEM EQUIREMENTS GETTING STARTED _______________________________________________________________ 6 3.1.
  • Page 3 8.1. A ___________________________________________________________ 48 DMINISTRATOR ETTING 8.2. H _______________________________________________________________ 49 UTOMATION 8.3. S _________________________________________________________________________ 54 CENE 8.4. R _____________________________________________________________________ 56 EPORTING 8.5. C __________________________________________________________________ 59 ETTINGS 8.6. SMTP S __________________________________________________________________ 61 ETTING 8.7. M __________________________________________________________________ 62 EDIA PLOAD 8.8. P _______________________________________________________________________ 63 OLLING 8.9.

  • Page 4: Introduction

    Introduction This section covers unpacking your IP Security System with HSGW Series IP Panel and Security Sensors. Refer to later chapters for information on setting up and configuring the system over the Web Page in more detail. The advanced IP Security System with fully integrated TCP/IP technology and Ethernet connectivity is able to take full advantage of new advances in IP Home Security and Home Automation and multi-path signalling.

  • Page 5: System Specification

    1.1. System Specification Function Zone Number 80 Wireless Zones (Includes up to 6 Remote Keypads and 20 Remote Controllers) Z-Wave devices Devices Zone Types Start Entry Delay, Burglar Follow, Burglar Instant, Burglar Outdoor, 24 Hours, Fire, Medical, Emergency, Emergency (Quiet), Water, Set/Unset, Silent Panic, CO, Gas, Heat For information on configuring Zone Groups, please see Appendix A User PIN Codes...
  • Page 6 Ni-Mh 7.2V, 1600mAH rechargeable battery pack (HSGW-X-6B series) APS fault Low Voltage SD 4.85 V ± 3% (HSGW-X-4B series) signal threshold 7.5 V ± 3% (HSGW-X-6B series) Battery Duration 6.5 hours for (HSGW-X-4B series) 13 hours or more for (HSGW-X-6B series) Battery Recharge Time to 72 hours 80% of 1100mAH/1600mAH...

  • Page 7: Panel Information

    2. Panel Information 2.1. Identifying the parts: 1. LED 1 (Green/Red) LED 1 Red On – Area 1 in the Full Arm mode. LED 1 Red Flash– Area 1 in the Home 1/Home2/Home3 mode LED 1 Green On – System in the learning mode. LED 1 Green Flash –...

  • Page 8: The Power Supply

    2.2. The Power Supply: An AC power adapter is required to connect to a wall outlet. Be sure only to use an adapter with the appropriate AC voltage rating to prevent component damage. DC 9V 1A switching power output adaptor is generally used to power the Control Panel with 4.8V, 1100mAh Ni-mH rechargeable battery pack and DC 12V 1A switching power is used to power the Control Panel with 7.2V, 1600 mAh, Ni-mH rechargeable battery pack.

  • Page 9: Getting Started

    3. Getting Started Read this section of the manual to learn how to set up your Control Panel and program System Settings over the Web page. 3.1. System Deployment Follow guidelines below when planning installation location:  The Control Panel requires Ethernet connection. ...
  • Page 10 The back cover of the panel has one line hole for wiring purpose. Choose to install the panel on desktop. Desktop: Replace the back cover, wire the cable through the side line hole and tighten the 2 fixing screws on the bottom. Replace the standing base bracket.

  • Page 11: Software Installation

    3.3. Software Installation ※ THIS INSTALLATION IS ONLY REQUIRED FOR FIRST TIME USER ※ RUNNING THE FINDER SOFTWARE The Finder software is required for your computer to identify the control panel on the LAN. To install the “Finder” software” Step 1. Insert the supplied CD-ROM into your CD-ROM drive Step 2.
  • Page 12 Step 6. Double click on the “Finder.exe” to start the software. Finder will automatically search for control panel on the LAN and display its information. If available, the panel’s LAN IP address, Firmware version and MAC address will be displayed Step 7.
  • Page 13 Step 8. (Optional)You can choose to edit the panel’s network setting by clicking on the panel column, then click “Configure Setting” The LanType is default to DHCP and does not require manual input of IP/Netmask/Gateawy/DNS setting. If you wish to configure these setting manually, change LanType to Static.

  • Page 14: Connection To Panel Webpage

    4. Connection to Panel Webpage For first time setup, webpage connection is only available within 1 hour after the panel is powered on; if the panel has been powered on for more than 1 hour. Webpage access will be disabled. Reboot the panel to enable webpage function again. Change default password after login to gain unrestricted webpage access.
  • Page 15 The Welcome page displays current control panel firmware version information according to different panel model and MAC address. <IMPORTANT NOTE>  If the default login password is not changed, webpage access will be disabled 1 hour after power on. Reboot the panel and changed password to allow unrestricted webpage access.

  • Page 16: Device Management

    5. Device Management The Device Management section allows you to learn in, edit, control and view all available accessory devices that can be included in the HSGW Series Control Panel. 5.1. Learning Use this function to add new devices into the Control Panel. HSGW Series supports up to 160 zones of accessory devices, in 2 areas, up to 80 zones each area.
  • Page 17 code.  For IP Camera VST-1818 Series, press and hold the Privacy button for 10 seconds. Step 4. When the system received the signal transmitted from device, the screen will display its information for selection. <NOTE>  It takes 5-10 seconds for the Control Panel to receive a learn code from or Z-Wave Sensor.
  • Page 18 when the Control Panel emits one short beep. LED 1 Green will turn ON to indicate the Control Panel is now in learning mode Step 2. Press the test or learn button on each device to transmit signal, refer to device manual for detail.
  • Page 19 Step 1. To edit the device setting or information, click “Edit” at end of device entry. Step 2. You will enter Device Edit webpage Step 3. Edit your device setting and information according to instruction below. Click “OK” to save your new changes when finished. Alternatively, click “Default” to reset all parameters to default values or click “Reset”...
  • Page 20 triggered.  If bypassed, the system can be armed directly regardless the device’s fault situation. However, its fault situation will still be monitored, logged and displayed in the webpage.  Latch report This function ONLY applies to Remote Control or Door Contact with Set/Unset attribute enabled.
  • Page 21  Chime  When the system is in Arm/ Home Arm 1/ Home Arm 2/ Home Arm 3 mode, if a sensor set to Chime is triggered, the Control Panel will sound a Door Chime (Ding-Dong Sound).  Burglar Follow ...
  • Page 22  Exit (No Response)  If checked, the panel will ignore trigger signal from this sensor during Exit Time countdown. If deselected, the panel will activated burglar alarm and report immediately when the sensor triggered during Exit Delay Timer.  24HR ...

  • Page 23: Add Rf Device

    5.2. Add RF Device Besides learning, you can also add RF devices into the system by entering its RF code into the system with Add RF Device function. Step 1. Click Add RF Device. Step 2. Select Area and Zone number for the device you wish to add into system. Step 3.

  • Page 24: Learn Rule

    5.3. Learn Rule You can enter the sensor RF code or MAC address manually to assign area and zone number to this sensor. Sensors learned with pre-assigned rule will be put under the area and zone number you specified. This function does not work with Z-Wave devices and DECT device. Step 1.
  • Page 25 Step 11. Learn in the sensors you have entered rules for according to 5.1.1 Add Sensor. <NOTE>  Learn rule function is only used to pre-assign area and zone number to sensors before learning. To add senor to control panel, you still need to follow the instruction in 5.1.1 Add Sensor to complete the learning process.

  • Page 26: Walk Test

    5.4. Walk Test This is to test the sensor operation range for installation purpose. Step 1. Click “Start” to enter Walk Test mode. Step 2. Press the test button on the sensor(s) or any button on the Remote Controller or triggering the sensor.

  • Page 27: Exclusion

    5.5. Exclusion This feature is only available for Z-Wave modules only, or when a Z-wave dongle is inserted into the Control Panel. This feature is for you to remove Z-Wave device only. Step 1. Click on “Exclusion” and click on “Start” to start the procedure. Then the Panel will enter the removing mode.

  • Page 28: Z-Wave Tool

    5.6. Z-Wave Tool The Z-wave Tool is used to reset Z-wave module to factory default and remove all Z-wave devices, or change routing setting. Step 1. Click ”Z-Wave Factory Reset”, the Z-Wave module is reset to factory default and all Z-Wave devices will be removed automatically.

  • Page 29: Pss Control

    5.7. PSS Control This feature is designed to control/edit/delete Power Switches included in the panel. Click Edit to edit attributes of power switches.   Click Delete to remove power switch from panel.  Click Switch On/Switch Off to turn on/off power switches. Or click Switch Toggle to toggle between on/off status.

  • Page 30: Upic Control

    5.8. UPIC Control UPIC Control webpage allows you to control UPIC IR Transmitter included in Control Panel  Transmit IR Signal Depending on the UPIC model number, select the function to be performed in the drop down menu, then click “Setup UPIC” for the UPIC to transmit IR Signal. ...

  • Page 31: Surveillance

    5.9. Surveillance The PIR Camera/Video Cameras and IP Cameras are listed under Surveillance for separate control.  Click Edit to edit camera attributes.  Click Delete to remove device from panel.  Click Request Media to capture a picture or vide ...

  • Page 32: Group Control

    5.10. Group Control This feature is designed for you to edit a name of group, switch on or off a group of Power Switches. You can also assign Power Switches to groups you desire. 5.10.1. Group Control/Edit Step 1. Specify a new name for a group. Step 2.

  • Page 33: Sound/Siren Setting

    5.11. Sound/Siren Setting The Sound/Siren Setting page includes setting Siren configuration function. 5.11.1. Device Edit/Delete Click Edit to edit the Siren’s attribute, volume and voice settings, or Delete to delete the Siren. After clicking Edit, you will be directed to the Device Edit page:...
  • Page 34 <NOTE>  The Device Edit page is only available for the newest BX/Siren series and BX series without DIP Switch. Edit your Siren setting and information accordingly to instruction below. Click “OK” to save your new changes when finished. Alternatively, click “Default” to reset all parameters to default values or click “Reset”...
  • Page 35 Control Panel is put into Full Arm Mode.  Home arm confirm beep: set the volume of the confirm beep sound of the Siren when Control Panel is put into Home Arm Mode. Disarm confirm beep: set the volume of the confirm beep sound of the Siren when ...
  • Page 36 5.11.2. RF Siren Setup  Tamper On/Off You can enable/disable all RF Sirens tamper protection with this function. Select to turn on or off the sirens tamper function. <NOTE>  When turned off, if siren tamper will be enabled again automatically after one hour if not turn on manually during the one hour period.

  • Page 37: Program The System

    6. Program the System After the initial set-up, you can then program your system by clicking on the left menu to set them individually. 6.1. Panel Condition In the Panel Section, user can arm, disarm or partially arm the system. Besides, it displays the current Panel Status &...
  • Page 38 inform you to recharge the battery.  Tamper: (reserved)  Interference: This is for you to check whether the Control Panel is purposely interfered. Whenever the signal jamming period lasts longer than 30 seconds, a “Jamming” message will be shown and reported to the Central Monitoring Station accordingly. ...
  • Page 39 - After pressing Reset Panel, the Control Panel will restart in 60 seconds and all configured values will be kept without any change. Note The function is designed for installer to make a note for each control panel. The note you make here can be delivered to a server over XMPP or polling protocol.

  • Page 40: Panel Settings

    6.2. Panel Settings Program the Panel, Time and Sound Settings at your discretion. Panel Setting  AC Fail Report: Set the waiting time before Control Panel report to Central Monitoring Station when AC failure is detected.  AC Fail Suspend: After AC failure is detected, the panel will enter sleeping mode and wake up at regular interval.
  • Page 41 Period. This is used to test whether the CMS is able to receive the report from the Panel accurately. After this test report is sent, the Control Panel will then send reports at regular interval based on the setting of the Auto Check-in Report. For example, if Offset Period is set to 2 Hours, and Auto Check-in Report is set to 12 hours, the Control Panel will transmit an event code 602 to the CMS after 2 hours, and then report 602 event code periodically at a regular intervals of 12 hours.
  • Page 42 report.  Entry Delay 2 for Full Arm: Set Entry Delay Timer 2 for full arm mode. When a sensor set to Start Entry Delay 2 is triggered under Full Arm mode, the control panel will begin Entry Delay Timer countdown according to duration set with this option If the Control Panel is disarmed before the Entry Delay Timer expires, the panel returns to Disarm mode and no alarm is activated.
  • Page 43  Confirm Sound: this is for you to decide whether to turn off/or adjust Control Panel beeping sounds when changing Arm/Home Arm/Disarm mode.  Warning beep: this is for you to decide whether the Control Panel will sound a warning beep whenever a fault condition has been detected and displayed.

  • Page 44: Pin Code

    6.3. PIN Code The User PIN Codes are used by Remote Keypad accessory to control system mode remotely. The 2 areas in the control panel each has 6 User PIN Codes available for setting. Each consists of 4 digits (numeric number 0~9). User PIN code #1 for each Area is always activated factory default.

  • Page 45: Network Settings

    7. Network Settings 7.1. GSM (HSGW-G8 Series only) Check SIM This is designed for the system to check the SIM card or not. (If users do not intend to use the GSM funciton, please tick “NO” to ensure the system will not check if the SIM card is inserted or not and it will not display the GSM fault by LED flashing.) GPRS In order to allow GPRS to serve as a back-up IP Reporting method, this section will need to...
  • Page 46  Password (GPRS) It is the User Password to input before accessing the GPRS feature. Please inquire your service provider. <NOTE>  All values will be applied to both Areas 1 & 2. The MMS settings are offered by your telecom service provider. Before configuring this function, contact your service provider for correct MMS setting information of the inserted SIM card.
  • Page 47 Step 1. Click Send SMS. Step 2. Enter a desired phone number and text message. Reset GSM This feature is designed for you to reset GSM module. Step 1. Click GSM Reset. Step 2. A pop-out message “Are you sure?” is displayed. Click Yes to confirm resetting.

  • Page 48: Network

    7.2. Network This is for you to program the Network for IP connection.  Obtain an IP address automatically (DHCP) If DHCP is selected, the Network will obtain an IP address automatically with a valid Network DHCP Server. Therefore, manual settings are not required. This is only to be chosen if your Network environment supports DHCP.

  • Page 49: Wireless

    7.3. Wireless Use “Wireless” webpage to setup the panel’s setting There are 3 ways you can connect to the wireless network. 1. Search for AP: Click “Scan AP” to search for available wireless network Select the available Wireless APs from the list by clicking “Set” after AP info column and enter the required information (pre-shared key, etc.) and click the “OK”...

  • Page 50: Upnp

    7.4. UPnP UPnP is Universal Plug and Play, which opens networking architecture that leverages TCP/IP and the Web technologies to enable seamless proximity networking in addition to control and data transfer among networked devices in the home, office, and public spaces. ...

  • Page 51: System Settings

    8. System Settings 8.1. Administrator Setting For setting new Administrator Log-in Name and Password. Please note both User Name and Password are case sensitive. Step 1. Enter the preferred User Name. Step 2. Enter the preferred Password in the “New Password” field and repeat the same Password in the Repeat Password field.

  • Page 52: Home Automation

    8.2. Home Automation It is used to set Home Automation rules to control sensors and home appliances. You can set up to 100 rules. Step 1. Click on Edit. Step 2. Select an operation area. Step 3. Set a rule condition. Step 4.
  • Page 53  : When set as Mode Change and Exit Timer Mode Change and Exit Timer Stopped Stopped, when the system changes mode to and Exit Delay Timer expires, , the rule will be activated according to rule schedule and execution setting. ...
  • Page 54  : When set as LUX Between, if the lux reading from specified light LUX Between sensor falls below the level specified, the rule will be activated according to rule schedule and execution setting.  : The Random condition must be used along with Rule Schedule setting. Set Random a percentace from 1 to 10%.
  • Page 55  : Turn on the Power Switch at specified zone. Zone Swich On  : Turn on the Power Switch at specified zone for a set duration. Zone Swich On For  Level:: Change the power output level for Dimmer at specified zone. Zone Switch ...
  • Page 56  : All PIR Cameras in the system will take a picture Request Image (All, No Flash) without activating LED Flash.  : The PIR Video Camera or IP Camera in specified zone will record a Request Video video.  : All PIR Video Cameras and IP Cameras in the system will Request Video (All) record a video.

  • Page 57: Scene

    8.3. Scene The Scene setting allows you to customize a series of actions with your devices, such as Power Switch control, image/video request, mode change and trigger alarm. The programmed scene can be set to activated when a device is triggered. (See 5.1.3. Edit Devicesl), or when a Home Automation Rule is excecuted.
  • Page 58 Step 5. Repeat Step 2-3 to setup the execution you wanted. As many as 5 executions can be included in one scene. Step 6. Click “Done”. Step 7. Click “OK” at bottom of webpage to confirm the new scene setting..

  • Page 59: Reporting

    8.4. Reporting This is used for installer to program/ set all requirements for reporting purposes. Reporting URL  This is used for installer to program report destinations. Climax CID protocol via IP Format: ip://(Account Number)@(server ip):(port)/CID Example: ip://1234@54.183.182.247:8080/CID SIA DC-09 protocol via IP Format: ip://(Account Number)@(server ip):(port)/SIA Example: ip://1234@54.183.182.247:8080/SIA...
  • Page 60 Example: ip://1234@54.183.182.247:8080/CID_SIA/KEY/4A46321737F890F654D632103F86B4 CSV protocol via IP Format: ip//(Account Number)@(server ip):(port)/CSV Example: ip://1234@54.183.182.247:8080/CSV CSV protocol via IP including username and password Format: ip//(Account Number)@(server ip):(port)/CSV/User/Pasword Example: ip://1234@54.183.182.247:8080/CSV/abcd/1357 Email Format: mailto:user@example.com Example: mailto:john@gmail.com  Level Select a reporting condition: All events: The system will report all events to this destination. Alarm events: The system will only report alarm event to this destination.
  • Page 61 will only report to Group 3 if reporting to Group 2 fails.  1 Retry/ 3 Retry/ 5 Retry/ 10 Retry/ 99 Retry: If reporting to all destinations in a group fails, the system will retry reporting to the group according to the retries times set here.

  • Page 62: Code Settings

    8.5. Code Settings The Duress Code, Master Code & Temporary Code adds the flexibility of different security level for operation in Code Settings menu. Step 1. Key in your preferred 4 digit Installer Code, Duress Code, Master Code, and/or Temporary Code. Step 2.
  • Page 63  Duress Code The Duress Code is designed for transmitting a secret & silence alarm. When Duress Code is used for accessing the system, the Control Panel will report a secret alarm message without sounding the siren to the Central Monitoring Station to indicate of a Duress Situation in Progress.

  • Page 64: Smtp Setting

    8.6. SMTP Setting Program the mail server related settings. The email account you set here would be used to send report for events or picture and video clip captured by PIR Camera and PIR Video Camera. Step 1. Enter the following settings: ...

  • Page 65: Media Upload

    8.7. Media Upload The system can deliver captured images and video clips captured by PIR Cameras and PIR Video Camera to cell phone, email or ftp.  FTP: ftp://user.password@server/path  HTTP: http://ip:port/path  Email: mailto:user@server (transmitting an alarm image over Ethernet) ...

  • Page 66: Polling

    8.8. Polling The polling function enables the Control Panel to query the destiation you set (URL1 or URL2) in turn as to whether it has any data to transmit.  URL/URL2: ip://server:port/path  Interval : interval time of polling...

  • Page 67: Xmpp

    8.9. XMPP XMPP setting enables the Control Panel to query the set destination. This setting is required for the Control Panel to connect to Climax’s Home Portal Server for remote control. If the panel is disconnected from the server, it will retry connection every 3 minutes. ...

  • Page 68: Date & Time

    8.10. Date & Time Program the current Date & Time and set automatic synchronization with internet time server.  Date & Time: set current month, date and time.  Time Zone: choose your time zone, and then the system will calculate the daylight saving time automatically (if necessary).

  • Page 69: Dynamic Dns

    8.11. Dynamic DNS This page is used to provide you the Control Panel’s current public IP address.  Dynamic DNS Server: http://checkip.dyndns.org...

  • Page 70: Test Ip

    8.12. Test IP This is for you to test the Control Panel internet connection. Step 1. Enter the URL destination you want to test connection to. Step 2. Enter the test interval. Step 3. Click “OK” You can check the test connect result in System Log.

  • Page 71: Firmware Upgrade

    8.13. Firmware Upgrade You can update the firmware via this web page. Step 1. Click on “Browse” and locate the latest firmware file (“unzipped image.bin” file) in your PC. Step 2. Press “Apply” to upload the latest firmware to Control Panel Step 3.

  • Page 72: Rf Firmware Upgrade

    8.14. RF Firmware Upgrade You can update the Control Panel’s RF firmware via this web page. Step 1. Click on “Browse” and locate the latest firmware file (“unzipped image.bin” file) in your PC. Step 2. Press “Apply” to upload the latest firmware to Control Panel Step 3.

  • Page 73: Factory Reset

    8.15. Factory Reset Yan can clear all programmed parameters in the Control Panel and reset it to Factory Default. Once the Factory Reset is executed, all the programmed settings will returned to its default value, and all the learnt-in devices will be removed. You will need to restart the programming and learning process again.
  • Page 74 Local Reset Step 1. Disconnect the AC adaptor, slide battery switch to OFF. Step 2. Press and Hold the reset button and connect the AC adaptor to the Control Panel. All 3 LEDs will turn on for 10 seconds. Step 3. Keep holding the reset button for 30 seconds then release. After 10 seconds, the Control Panel will restart and all 3 LEDs will turn on.

  • Page 75: Backup & Restore

    8.16. Backup & Restore Yan can backup all programmed parameters and save these programmed values into a file. Besides, you also can restore pre-programmed settings. 8.16.1 Backup Data Yan can backup all programmed data and save these programmed values into a file. Step 1.

  • Page 76: System Log

    8.17. System Log The sytem log webpage logs the control panel’s detail system operation history.  System Log File Download” Click to download a detail log files into your computer for more information.

  • Page 77: Event & History

    9. Event & History This section introduces event history of the system. 9.1. Captured Events This page stores all captured pictures and videos by PIR Camera and PIR Video Camera. When a PIR Camera is triggered, it will take 3 pictures in quick succession, when a PIR Video Camera is triggered, it will take a 10-second video clip.

  • Page 78: Reported Events

    9.2. Reported Events This page stores all triggered events by the control panel by recording the events’ CID event code and report status.  Reload : Click to refresh the page content  Limit # of Items: Click the drop down menu on the pageto select the numbers of captured events you want to display.

  • Page 79: Event Log

    9.3. Event Log The Event Log page records specific actions performed by the Control Panel and accessory devices.  Reload : Click to refresh the page content  Limit # of Items: Click the drop down menu on the pageto select the numbers of captured events you want to display.

  • Page 80: Device History

    9.4. Device History You can track your accessory device status history under Device History. For Power Switch Meter or Temperature Sensor, the update history power consumption or temperature ireading will be displayed under this page (the current info is also displayed under Panel and PSS Control).

  • Page 81: Appendix

    Appendix 10.1. Fault Event Description During operation, when the panel detects faulty events, the panel will log the event and make reports. When fault events exist in the system, the panel Fault LED will light up and the panel will emit a beep every 30 seconds.

  • Page 82: Control Panel Mode And Response Table

    10.2. Control Panel Mode and Response Table For Alarm Activation by Events and Control Panel Responses, please refer to the following table: System Mode / Status Attribute Under Exit Under Exit Under Entry Disarm Full Arm Home Arm Timer (No Timer Timer Response)
  • Page 83 Instant Instant Instant Instant Instant Instant 24H – Smoke Smoke Smoke Smoke Smoke Smoke Smoke Alarm Alarm Alarm Alarm Alarm Alarm Instant Instant Instant Instant Instant Instant 24H – Medical Medical Medical Medical Medical Medical Medical Alarm Alarm Alarm Alarm Alarm Alarm Instant Fire...

  • Page 84: Cross Zone Verification

    10.3. Cross Zone Verification Cross Zone Verification is use to setup cross verification for intrusion sensors. To use Cross Zone Verification, the following sensor and panel setting must be adjusted: At least 1 intrusion sensor must be set to Cross Zone attribute. The Cross Zone Timer option under Panel Setting webpage must be enabled.

  • Page 85: Contact-Id Protocol & Format

    10.5. Contact-ID Protocol & Format Where ACCT MT QXYZ GG C = 4 Digit Account number (0-9, B-F) ACCT = Message Type, 18H. = Event qualifier, which gives specific event information: = Event code (3 Hex digits 0-9, B-F) = Group, Partition number (00H), or Area Number - 00 = panel - 01= area 1…..xx= area xx...

  • Page 86: Event Code

    10.6. Event Code  100 – Medical  When a device set to Medical attribute is triggered.  101 – Personal emergency  When a device set to Personal Emergency attribute is triggered.  110 – Fire  When a device set to Fire attribute is triggered. ...
  • Page 87 supervision timer.  When the panel receives signal again from sensor that previously failed supervision.  154 – Water leakage  When the Water Sensor connected to Door Contact set at Water (@W) is triggered.  158 – High Temperature Alarm ...
  • Page 88  401 – Remote Arm/Disarm  When the system is armed or disarmed by SMS message or web access  407 – Disarm/Away Arm/Home Arm by Remote Keypad  408 – Set/Unset Arm/Disarm  When the DC set at Set\Unset is triggered. ...
  • Page 90 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15, 22, 24 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
