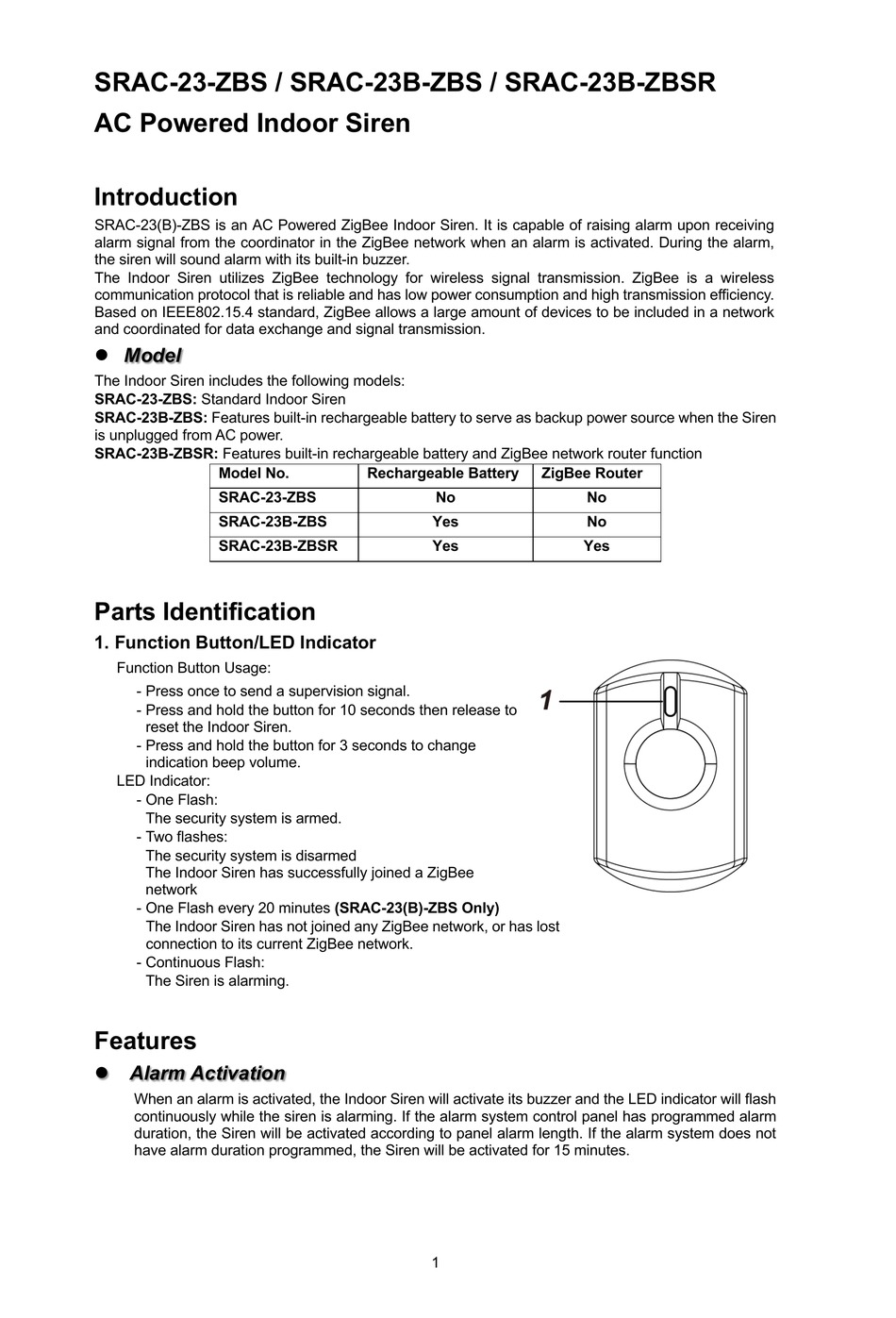

SRAC-23-ZBS / SRAC-23B-ZBS / SRAC-23B-ZBSR
AC Powered Indoor Siren
Introduction
SRAC-23(B)-ZBS is an AC Powered ZigBee Indoor Siren. It is capable of raising alarm upon receiving
alarm signal from the coordinator in the ZigBee network when an alarm is activated. During the alarm,
the siren will sound alarm with its built-in buzzer.
The Indoor Siren utilizes ZigBee technology for wireless signal transmission. ZigBee is a wireless
communication protocol that is reliable and has low power consumption and high transmission efficiency.
Based on IEEE802.15.4 standard, ZigBee allows a large amount of devices to be included in a network
and coordinated for data exchange and signal transmission.
l Model
The Indoor Siren includes the following models:
SRAC-23-ZBS: Standard Indoor Siren
SRAC-23B-ZBS: Features built-in rechargeable battery to serve as backup power source when the Siren
is unplugged from AC power.
SRAC-23B-ZBSR: Features built-in rechargeable battery and ZigBee network router function
Model No.
SRAC-23-ZBS
SRAC-23B-ZBS
SRAC-23B-ZBSR

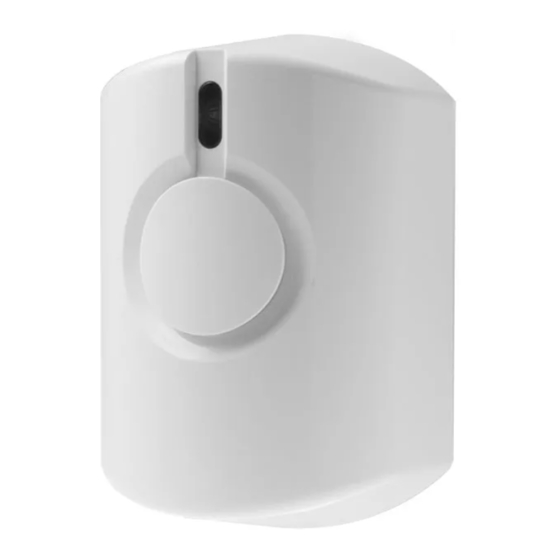

Parts Identification
1. Function Button/LED Indicator
Function Button Usage:
- Press once to send a supervision signal.
- Press and hold the button for 10 seconds then release to
reset the Indoor Siren.
- Press and hold the button for 3 seconds to change
indication beep volume.
LED Indicator:
- One Flash:
The security system is armed.
- Two flashes:
The security system is disarmed
The Indoor Siren has successfully joined a ZigBee
network
- One Flash every 20 minutes (SRAC-23(B)-ZBS Only)
The Indoor Siren has not joined any ZigBee network, or has lost
connection to its current ZigBee network.
- Continuous Flash:
The Siren is alarming.
Features
l Alarm Activation
When an alarm is activated, the Indoor Siren will activate its buzzer and the LED indicator will flash
continuously while the siren is alarming. If the alarm system control panel has programmed alarm
duration, the Siren will be activated according to panel alarm length. If the alarm system does not
have alarm duration programmed, the Siren will be activated for 15 minutes.
Rechargeable Battery
No
Yes
Yes
1
ZigBee Router
No
No
Yes
