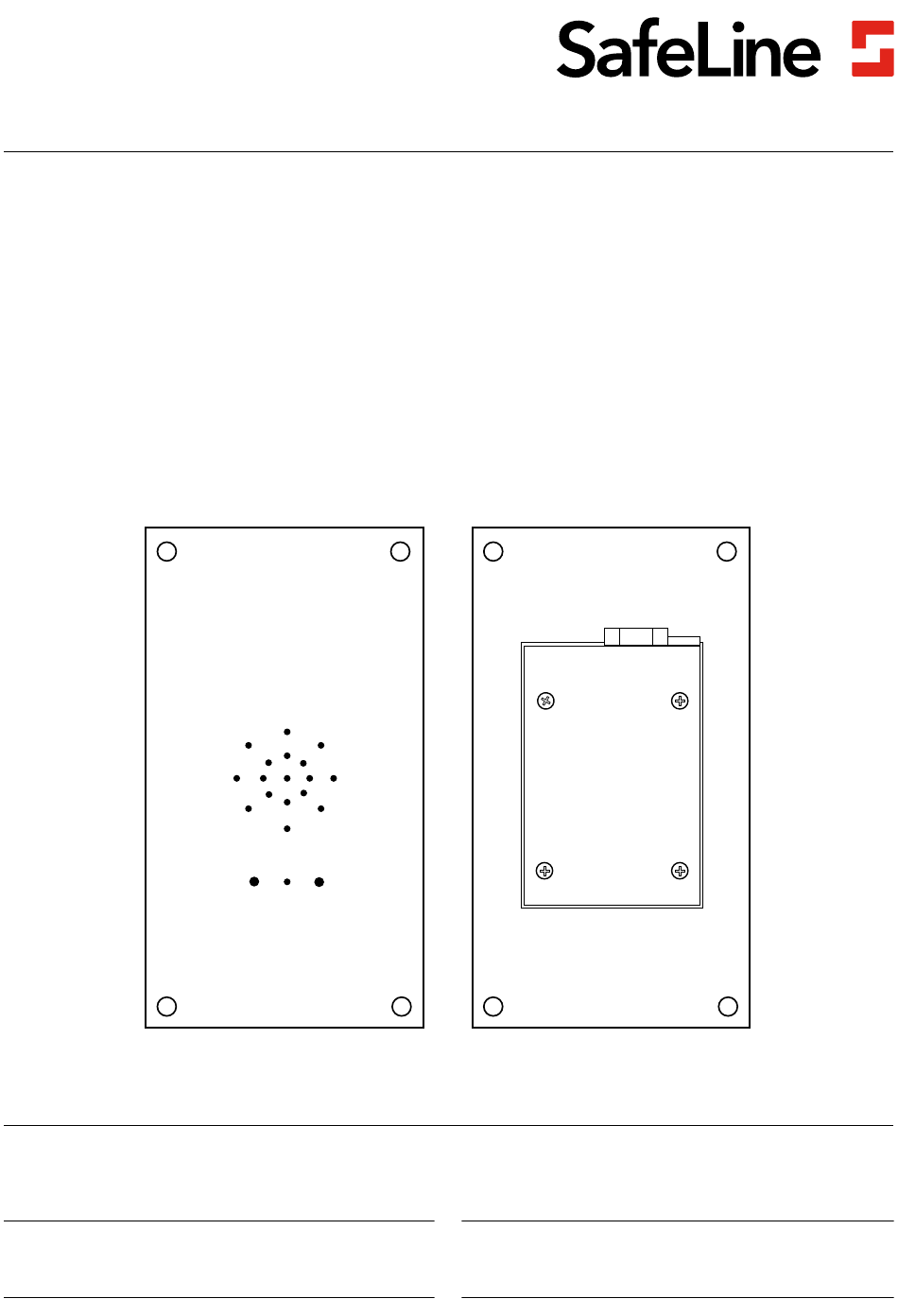

- Page 1 MX2 manual Lift Emergency Telephone Innovation brought to you from Tyresö, Sweden www.safeline-group.com 08.2020 © 2020 SafeLine and all the SafeLine products and SafeLine MX2 v.5.2.1 EN accessories are copyrighted by law.
- Page 2 Supply voltage: 10 - 30V DC Current consumption max 50 mA Emergency signal button: Can be set as NO or NC, 10-30V DC Auxillary input: Can be set as NO or NC, 10-30V DC Size HxWxD: 130x78x18mm SafeLine MX2 v.5.2.1 EN...
-
Page 3: Table Of Contents
Wiring diagram - PSTN LINE (Max 9 units) Configuration Configuration overviews Configuration method Configuration Unit numbers Configuration examples Parameter list Operation LED indication for pictogram in car Testing Emergency calling process Trouble shooting Declaration of Conformity SafeLine MX2 v.5.2.1 EN... -
Page 4: General Information
If it is to be used It is extremely important that for any other purpose, SafeLine these installation instructions must be contacted in advance. are made available at all times... -
Page 5: Overview
System LED RJ45 connector. Power, emergency button, phone line and auxilary input. RS232 PC connection Firmware update and programming with SafeLine Pro. Keyboard For configuration and line test Volume control Turn right to increase the volume. SafeLine MX2 v.5.2.1 EN... -
Page 6: Measurements And Components List
Measurements Flush mount SafeLine MX2 17,3 with pictograms Article number: *SLMX_Rec-Pic components list Flush mount SafeLine MX2 23,5 with pictograms and emer- gency alarm button. Article number: *SLMX_Rec-PicB Surface mount SafeLine MX2 with pictograms Cable hole diameter: 8mm Article number: *SLMX_SM-Pic... -
Page 7: Installation
Black Additional input (filter) Additional input (filter) Alarm button Alarm button Green Telephone line out to next SafeLine Telephone line out to next SafeLine Yellow Telephone line out to next SafeLine Telephone line out to next SafeLine Blue Telephone line in... -
Page 8: Wiring Diagram - Pstn Line (Max 9 Units)
Wiring diagram Parallel-wiring - PSTN LINE (Max 9 units) Phone line in Unit numbers must be pre-programmed. Daisy-chain-wiring (serial wiring) Phone line in Unit numbers can be programmed from remote. SafeLine MX2 v.5.2.1 EN... -
Page 9: Configuration

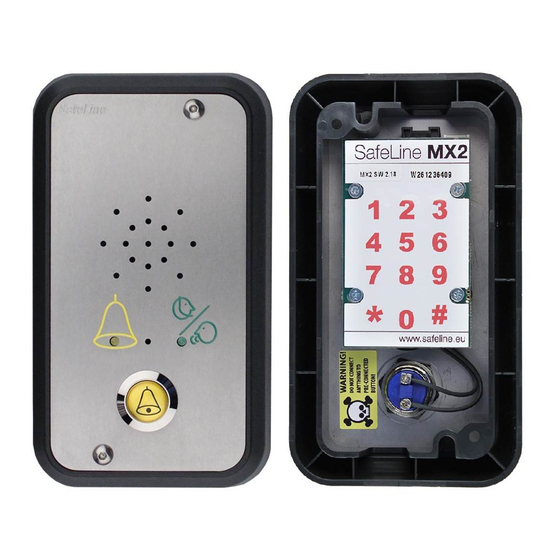

Configuration Configuration Keyboard configuration The integrated keyboard at the rear of the SafeLine enables a fast overviews programming of the unit. The unit has to be connected to a power SafeLine MX2 source before the configu- 1 2 3 ration can begin. 4 5 6 * 0 # www.safeline-group.com... - Page 10 1 2 3 4 5 6 7 8 9 Remote configuration with SafeLine Pro Connect an SLPro Link to a computer with SafeLine Pro and a serial cable. SafeLine Pro ProLink SafeLine Pro can be downloaded on our website: http://www.SafeLine-group.com/en/downloads/ SafeLine Pro 4.42 or later is required.
-
Page 11: Configuration Method
Enter code and data, eg: 2 short beeps *11*012341234# One long beep. Invalid Call disconnected or input. Last code has 2 short beeps? end of programming to be re-entered. MX2 will restart with the new settings SafeLine MX2 v.5.2.1 EN... -
Page 12: Configuration Unit Numbers
*82*n# Re-dial the phone number Terminate programming Press the next unit *00*# number repeatedly until hearing 3 beeps The next unit answers Program unit as number [1- 9] Hang up End programming? Unit programming is done SafeLine MX2 v.5.2.1 EN... -
Page 13: Configuration Examples
* 2 1 * 1 # Call type 2st number: * 2 2 * 1 # Alarm button delay: * 8 7 * 0 3 # - Example: 3 seconds delay. 7. End configuration: * 0 0 *# SafeLine MX2 v.5.2.1 EN... - Page 14 Configuration Example 2: SLCC (SafeLine Call Centre) and 3-day test. examples Start configuration: If at any time you need to start over, use the factory Enter P100 ID code: reset command *99*1#. * 0 1 * 4 5 6 4 5 6 4 5 # Lift ID code (each lift must have its own unique code).
-
Page 15: Parameter List
Change this only if your alarm operator is using any of the mentioned protocols. Call type LMS number *30* LMS (Lift Monitoring System) call type 0 = P100 3 = CPC (Only battery alarm) 4 = Caller ID (Battery powered only) SafeLine MX2 v.5.2.1 EN... - Page 16 1 = Enables recorded message. *61* Play the the recorded message. Options for the recorded *62* 0 = Disable recorded message. message from lift car 1 = Enables recorded message. *62* Play the the recorded message. SafeLine MX2 v.5.2.1 EN...
- Page 17 Program Unit number 1-9 (Default = 0) Detect dial tone *83* 0 = Off 1 = On (Default) Set to off if SafeLine has problem to detect the dial tone. Receipt to alarm receiver *84* Select which message(s) to send to the alarm receiver with P100 protocol at an alarm call.
- Page 18 It is possible to enter manual voice switching mode although the unit is programmed as automatic by pres- sing ”*”. No ascending tones will be heard. For repeating the voice message, press “1” in all modes. SafeLine MX2 v.5.2.1 EN...
-
Page 19: Operation
Test alarm failure Yellow LED Green LED Light on for 1 second Test alarm (line check) Test alarm (line check) failed then light off for 1 failed Returns to normal at next valid test alarm. second Returns to normal at next valid test alarm. SafeLine MX2 v.5.2.1 EN... -
Page 20: Testing
Testing Testing the SafeLine MX2 Connect 10-30 VDC. SafeLine MX2 will make a self-test. Green LED flashes Yellow LED flashes 5 times. Short tone 5 times. Long tone in the speaker? in the speaker. Check the mic and Connect telephone line. -
Page 21: Emergency Calling Process
This adds up to the 12 call limit. To restart the dialling process, another push of Calling 1st phone number. the alarm button is needed. Calling 2nd phone number. Calling 3rd phone number. Calling 4th phone number. Alarm operator made connection. SafeLine MX2 v.5.2.1 EN... -
Page 22: Trouble Shooting
The unit can not make an alarm call. At least one phone number (and one ID code if using data identifi- cation) must be programmed to enable making a call from the unit. Refer to the parameter list (*11*). SafeLine MX2 v.5.2.1 EN... -
Page 23: Declaration Of Conformity
EN 301 489-17 V3.1.1 EN 300 328 V2.1.1 3.2: Effective use of spectrum allocated Firmware used during assessment SafeLine MX3: 1.00 Tyresö, 2020-02-05 Lars Gustafsson, Technical Manager, R&D , SafeLine Group Antennvägen 10, 13548 Tyresö, Sweden +46 (0)8-447 79 32, www.safeline-group.com... - Page 24 Support: +32 (0)4 85 89 08 95 SafeLine Deutschland GmbH Kurzgewannstraße 3 · D-68526 Ladenburg · Germany Tel.: +49 (0) 6203 840 60 03 · sld@safeline.eu SafeLine Group UK Unit 47 · Acorn Industrial Park · Crayford · Kent · DA1 4AL · United Kingdom Tel.: +44 (0) 1322 52 13 96 ·...
