1.0

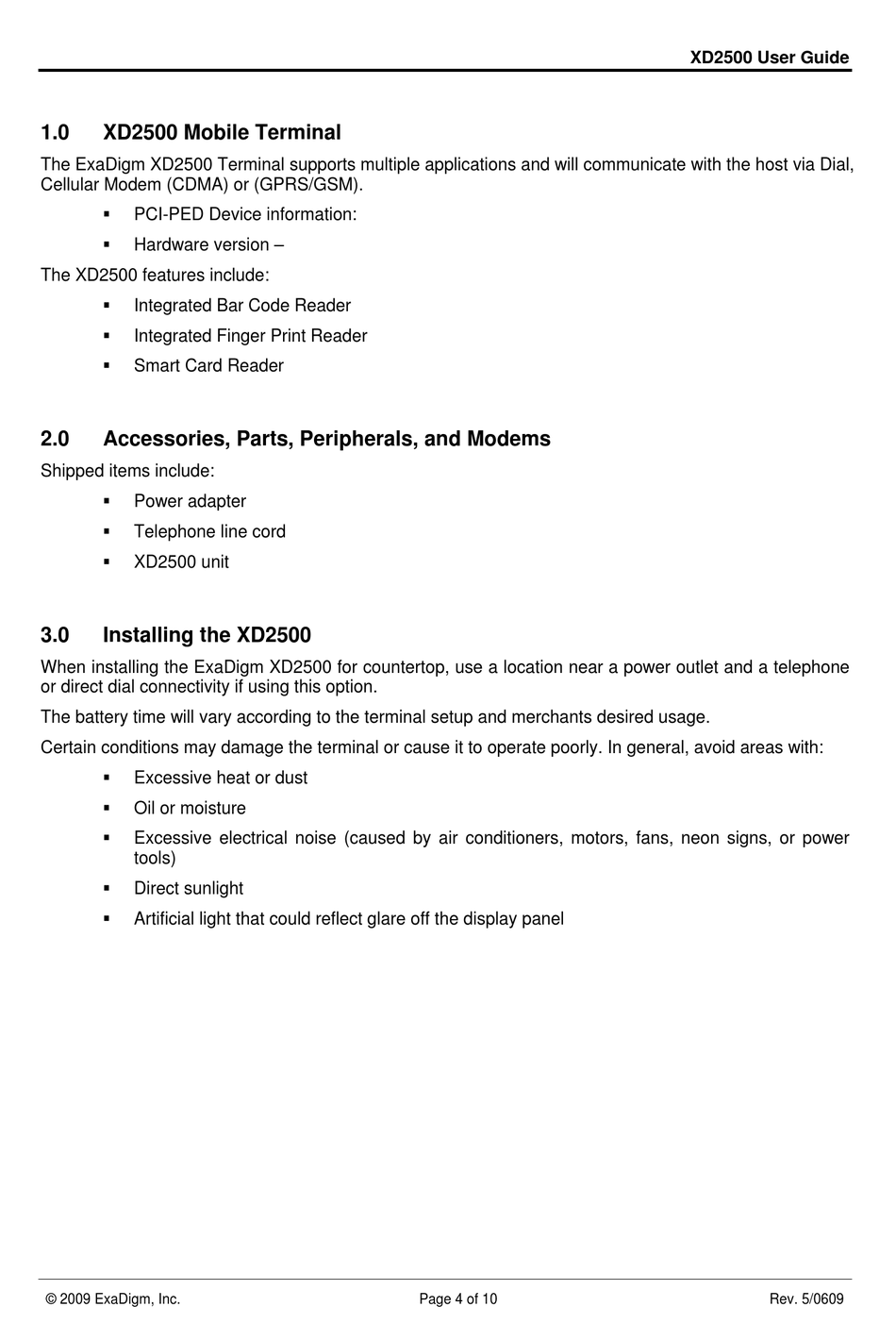

XD2500 Mobile Terminal

The ExaDigm XD2500 Terminal supports multiple applications and will communicate with the host via Dial,
Cellular Modem (CDMA) or (GPRS/GSM).

PCI-PED Device information:

Hardware version –
The XD2500 features include:

Integrated Bar Code Reader

Integrated Finger Print Reader

Smart Card Reader
2.0

Accessories, Parts, Peripherals, and Modems

Shipped items include:

Power adapter

Telephone line cord

XD2500 unit
3.0

Installing the XD2500

When installing the ExaDigm XD2500 for countertop, use a location near a power outlet and a telephone
or direct dial connectivity if using this option.
The battery time will vary according to the terminal setup and merchants desired usage.
Certain conditions may damage the terminal or cause it to operate poorly. In general, avoid areas with:

Excessive heat or dust

Oil or moisture

Excessive electrical noise (caused by air conditioners, motors, fans, neon signs, or power
tools)

Direct sunlight

Artificial light that could reflect glare off the display panel
© 2009 ExaDigm, Inc. Page 4 of 10
XD2500 User Guide
Rev. 5/0609
