Exadigm NX Seris Quick Navigation Manual

POWER
To turn on press the power key until beep is heard.
To turn off press the power key until below message displays.
Press power again to continue.
Press power key again to
power off!!
Other keys to cancel.
STATUS BAR
CDMA Signal Date & Time
Ethernet Date & Time
WiFi Date & Time
Half full battery
MENU ICONS
Screen 1
Screen 2
©2012 ExaDigm Inc.
Power Adapter
Battery
Battery
Low battery
QUICK NAVIGATION GUIDE
TOUCH SCREEN
Drag to toggle to next screen.
Select the desired icon.
Press and release to select the desired sub-menu.
QWERTY Keyboard
When prompted for alpha responses the lowercase letter
keyboard will display. For numeric responses the keyboard will
display numbers and symbols.
The stylus can be used to input the information and respond to [ENTER]
and [CANCEL] commands.
PHYSICAL KEYPAD
Press the red key to cancel the current
operation or return to the previous
menu.
Press the yellow key to clear an action
or backspace clearing each character.
Press the green key to signify to the
terminal that the task is complete, or
press to enable a function or perform
an action based on inputted data.
Press
corresponding letter and then press
alpha
displayed.
Press the feed key to advance the
receipt.
Press the up arrow to return to the
previous screen or move up in the sub-
menu.
Press the down arrow to move to the
next screen or move down the sub-
menu.
SUB-MENU: Pressing the physical number key will shortcut to the function.

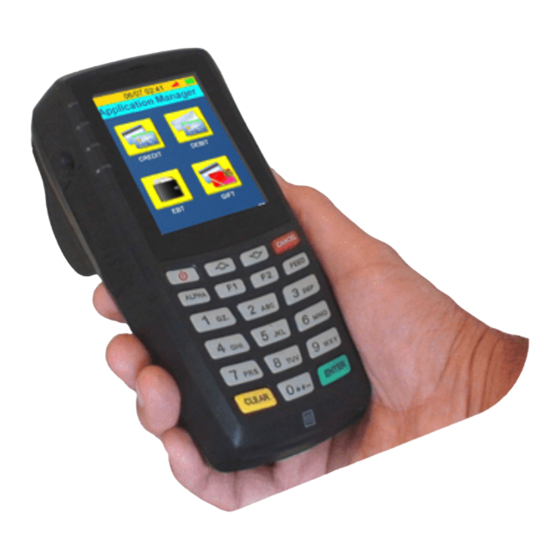

NX SERIES
the number key of the
until the desired letter is
QNG_NX22_1112
