XD2000 Terminal User's Guide
XD2000 Terminal User's Guide

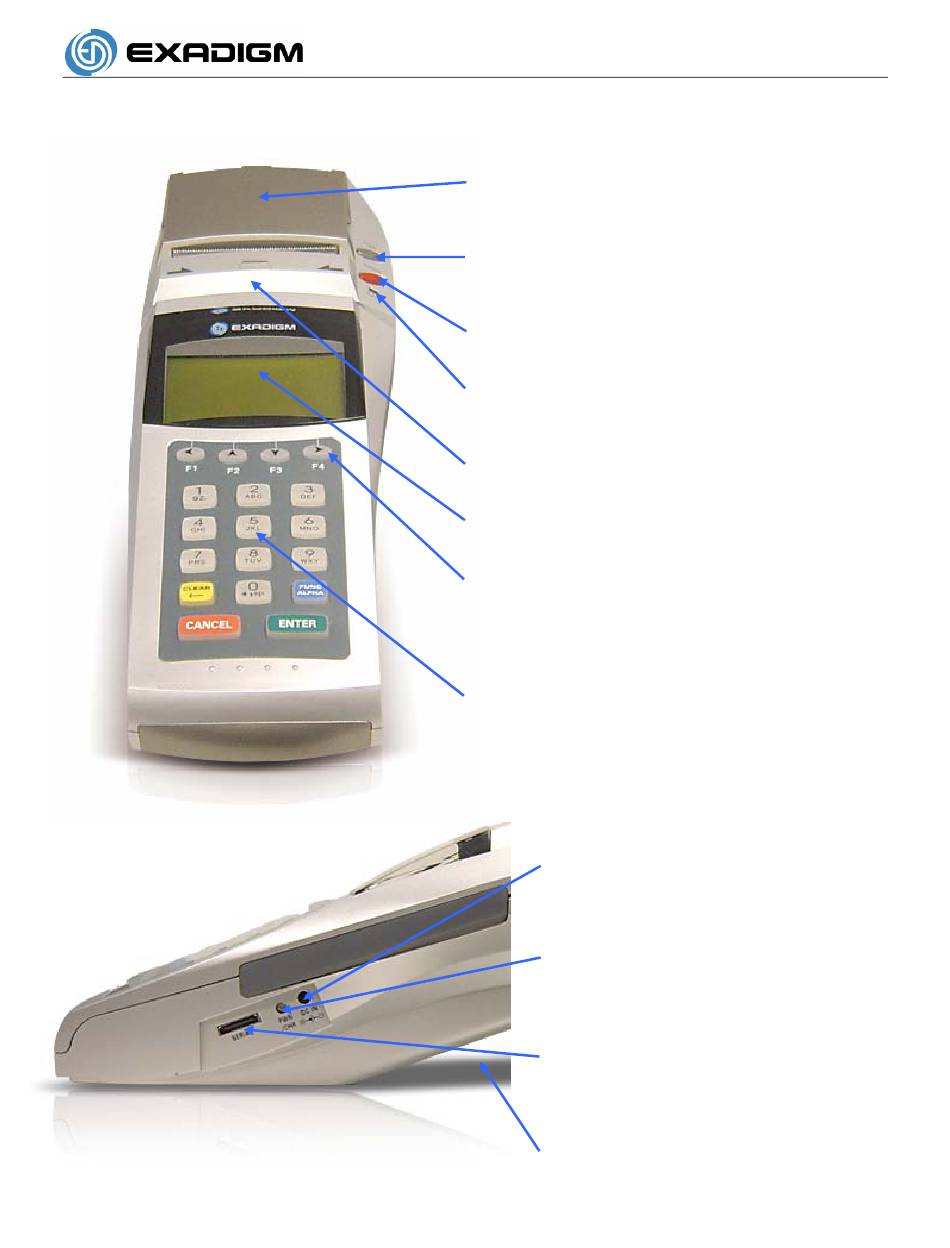

Printer compartment
Holds the printer head mechanism and large
capacity paper roll.
Paper feed key
When depressed, this key advances the paper
through the feed area.
Power key
Turns the terminal on or off.
Sleep indicator
Indicates whether or not the terminal is currently in
sleep mode.
Magnetic card reader
Reads cards with magnetic strips.
Graphical display
User display that offers 132 x 64 pixel resolution.
Arrow keys / Function keys
Used to navigate menus. The up and down arrow
keys move menu selections up and down while
the left and right arrow keys are used to scroll the
cursor left and right.
Keypad
Used to input numbers, menu navigation, etc.
Clear deletes the character to the left of the cursor.
Func Alpha inserts letters instead of numbers.
Cancel returns to the previous screen and Enter
confirms your selection.
AC adapter receptacle
Connects to the AC adapter to provide
power.
Power indicator
Indicates whether or not the terminal is
currently powered on.
Serial port
RS232 interface to connect to external
devices and computers.
Battery
Provides power current filtering.
- 1 -
