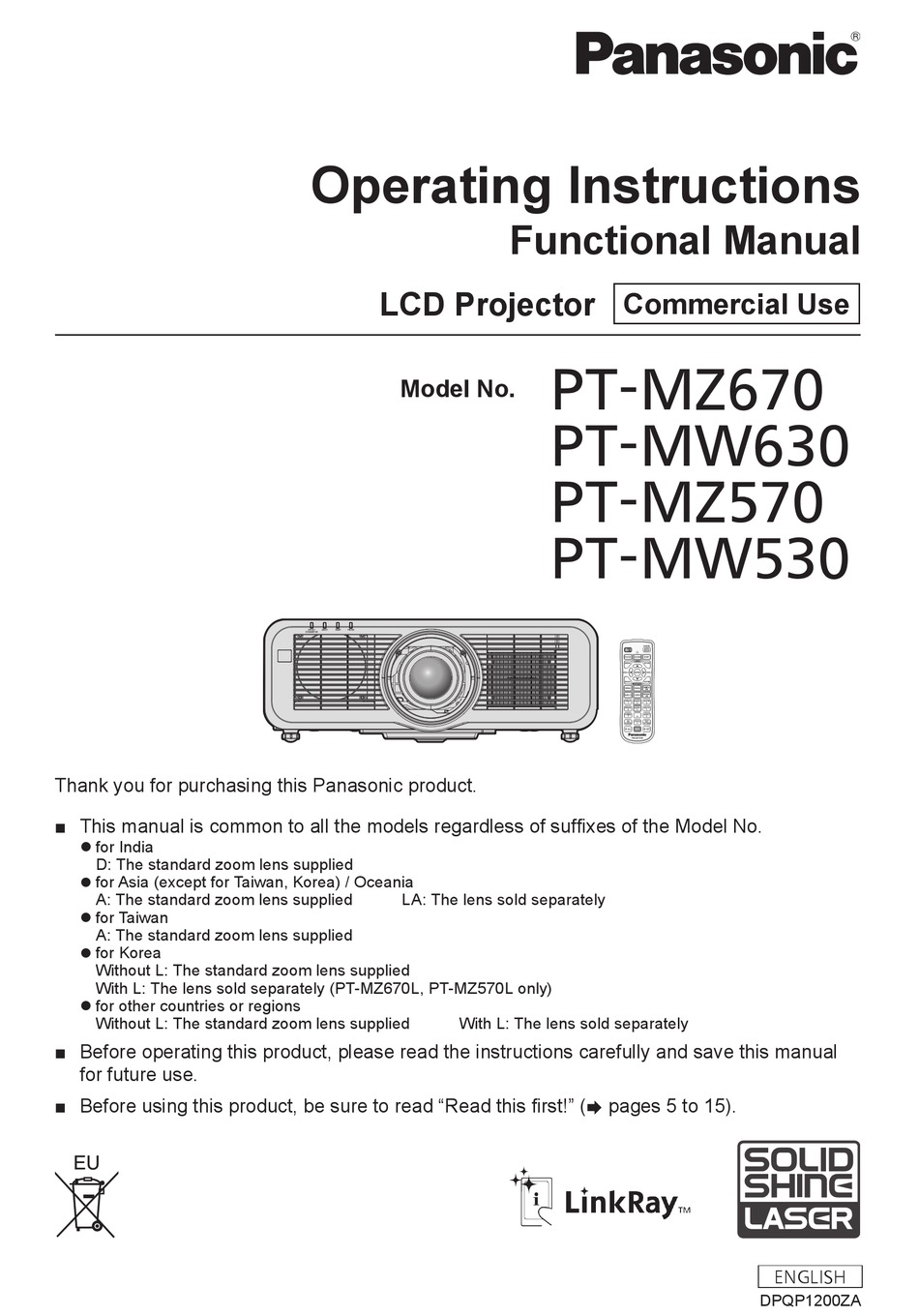

Page 1: Operating Instructions
Model No. PT-MW630 PT-MZ570 PT-MW530 Thank you for purchasing this Panasonic product. ■ This manual is common to all the models regardless of suffixes of the Model No. z for India D: The standard zoom lens supplied z for Asia (except for Taiwan, Korea) / Oceania...
Page 2: Table Of Contents
Contents Contents Read this first! Chapter 3 Basic Operations Switching on/off the projector Chapter 1 Preparation Connecting the power cord Power indicator Precautions for use Switching on the projector Lens protection material When the initial setting screen is displayed Cautions when transporting Making adjustments and selections Cautions when installing Switching off the projector...
Page 3 Contents [PICTURE] menu [PROJECTOR SETUP] menu [PICTURE MODE] [PROJECTOR ID] [CONTRAST] [PROJECTION METHOD] [BRIGHTNESS] [ECO MANAGEMENT] [COLOR] [LightID] [TINT] [INITIAL STARTUP] [COLOR TEMPERATURE] [STARTUP INPUT SELECT] [GAMMA] [DATE AND TIME] [DAYLIGHT VIEW] [SCHEDULE] [SHARPNESS] [RS-232C] [NOISE REDUCTION] [REMOTE1 MODE] [DYNAMIC CONTRAST] [FUNCTION BUTTON] [SYSTEM SELECTOR] [LENS CALIBRATION]...
Page 4 Application that can be used Index Connecting the device Ending the connection with the device Description of the standby screen Using the moderator mode in the Panasonic APPLICATION input Projecting with MIRRORING input Connecting the device Ending the connection with the device...
Page 5: Read This First
Read this first! Read this first! WARNING: THIS APPARATUS MUST BE EARTHED. WARNING: To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or moisture. This device is not intended for use in the direct field of view at visual display workplaces. To avoid incommoding reflexions at visual display workplaces this device must not be placed in the direct field of view.
Page 6 Read this first! WARNING: Do not look at the light emitted from the lens while the projector is being used. As with any bright source, do not stare into the direct beam. Indicated on the projector RG2 IEC 62471-5:2015 Notice on laser (for USA and Canada) This projector is the Class 3R laser product that complies with IEC 60825-1:2007.
Page 7 Read this first! (for other countries or regions) This projector is the Class 1 laser product that complies with IEC/EN 60825-1:2014. CAUTION: Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. CAUTION (North/Middle/South America/Taiwan) Power Supply: This Projector is designed to operate on 100 V - 240 V, 50 Hz/60 Hz AC, house current only.
Page 8 Read this first! FCC NOTICE (USA) Verification Model Number: PT-MZ670 / PT-MZ670L / PT-MW630 / PT-MW630L / PT-MZ570 / PT-MZ570L / PT-MW530 / PT-MW530L Trade Name: Panasonic Responsible Party: Panasonic Corporation of North America Address: Two Riverfront Plaza, Newark, NJ 07102-5490 General Contact: http://www.panasonic.com/support...
Page 9 L or colored RED. How to replace the fuse: Open the fuse compartment with a screwdriver and replace the fuse. Importer’s name and address within the European Union Panasonic Marketing Europe GmbH Panasonic Testing Centre Winsbergring 15, 22525 Hamburg, Germany...
Page 10 Read this first! Hazard distance (IEC 62471-5) The distance at which the level of exposure has dropped to the level of the applicable Exposure Limit Value is known as the hazard distance or safety distance. Do not look or stare into the light beam from a distance closer than the hazard distance (RG3 = risk group 3). Beyond this distance the light beam is considered to be safe.
Page 11 Read this first! WARNING: r POWER The wall outlet or the circuit breaker shall be installed near the equipment and shall be easily accessible when problems occur. If the following problems occur, cut off the power supply immediately. Continued use of the projector in these conditions will result in fire or electric shock, or will cause visual impairment.
Page 12 If liquid enters inside of the projector, consult your dealer. f Particular attention must be paid to children. Use the ceiling mount bracket specified by Panasonic. Using the ceiling mount bracket other than the specified one will result in falling accidents.
Page 13 Read this first! CAUTION: r POWER When disconnecting the power cord, be sure to hold the power plug and power connector. If the power cord itself is pulled, the lead will become damaged, and fire, short-circuits or serious electric shocks will result.
Page 14: Remote Control Battery
Read this first! CAUTION: r ACCESSORIES When not using the projector for an extended period of time, remove the batteries from the remote control. Failure to observe this will cause the batteries to leak, overheat, catch fire or explode, which may result in fire or contamination of surrounding area.
Page 15 Read this first! Brazil Only Brasil Apenas r Manuseio de baterias usadas BRASIL Após o uso, as pilhas e/ou baterias deverão ser entregues ao estabelecimento comercial ou rede de assistência técnica autorizada. Cobrir os terminais positivo (+) e negativo (-) com uma fita isolante adesiva, antes de depositar numa caixa destinada para o recolhimento.
Page 16 SOLID SHINE is a trademark of Panasonic Corporation. f Panasonic owns patents relating to Light ID technology in Japan and other countries. f “LinkRay” and the icon are trademarks of Panasonic Corporation. f Wi-Fi , Wi-Fi Direct and Miracast are registered trademarks or trademarks of Wi-Fi Alliance.
Page 17: Features Of The Projector
(x page 51) of 3 000 000:1 are achieved even with its compact size. *1 A value for PT-MZ670 and PT-MW630. A value for 3. Connect the power cord. PT-MZ570 and PT-MW530 is 5 500 lm. (x page 57) *2 When [PICTURE MODE] is set to [DYNAMIC], and...
Page 18: Chapter 1 Preparation
Preparation Chapter 1 This chapter describes things you need to know or check before using the projector. 18 - ENGLISH...
Page 19: Precautions For Use
Chapter 1 Preparation — Precautions for use Precautions for use Lens protection material If you purchased the projector with the standard zoom lens, remove the lens protection material before use, and store it for the future use. Move the lens position to the home position and attach the lens protection material when transporting.
Page 20 Chapter 1 Preparation — Precautions for use rAsk a qualified technician or your dealer for the installation work such as installing to a ceiling, etc. To ensure projector performance and safety, ask a qualified technician or your dealer when installing to a ceiling or in a high place.
Page 21 Panasonic takes no responsibility for any damage to the product caused by an inappropriate choice of location for installing the projector, even if the warranty period of the product has not expired.
Page 22: Security
PASSWORD CHANGE] or the [NETWORK/USB] menu → [Panasonic APPLICATION] → [PASSWORD CHANGE]. f Panasonic Corporation or its affiliate companies will never ask for your password directly. Do not divulge your password in case you receive such inquiries. f The connecting network must be secured by a firewall, etc.
Page 23: Light Id
This projector is equipped with a function to transmit the Light ID signal, and following usage is possible by utilizing the LinkRay Light ID solution service provided by Panasonic. f By receiving the Light ID signal transmitted by the projector using the camera on a device (smartphone/tablet) and a dedicated application software, the contents linked to that Light ID signal are acquired and displayed on the screen of the device.
Page 24: Digital Link
Note that the verification for devices of other manufacturers has been made for the items set by Panasonic Corporation, and not all the operations have been verified. For operation or performance problems caused by the devices of other manufacturers, contact the respective manufacturers.
Page 25: Cautions On Use
Chapter 1 Preparation — Precautions for use Cautions on use rTo get a good picture quality In order to view a beautiful image in higher contrast, prepare an appropriate environment. Draw curtains or blinds over windows and turn off any lights near the screen to prevent outside light or light from indoor lamps from shining onto the screen.
Page 26: Accessories
Chapter 1 Preparation — Precautions for use Accessories Make sure that the following accessories are provided with your projector. Numbers enclosed in < > show the number of accessories. Wireless/wired remote control unit <1> For Taiwan (N2QAYA000150) (1JP1RZ970) <1> CD-ROM <1> (1JK1MZ670U) Power cord (TXFSX01RXQZ)
Page 27: Optional Accessories
Chapter 1 Preparation — Precautions for use Optional accessories Optional accessories (product name) Model No. Zoom Lens ET-ELW20, ET-ELT20, ET-ELS20 , ET-ELT21, ET-ELW22 Projection lens Fixed-focus Lens ET-ELW21 ET-PKD120H (for High Ceilings) Ceiling Mount Bracket ET-PKD120S (for Low Ceilings) ET-PKE301B (Projector Mount Bracket) Early Warning Software ET-SWA100 Series (Basic license/3-year license)
Page 28: About Your Projector
Also used for cancel operation during digital zoom and the switched off (standby mode). operation of the Memory Viewer screen, or while the standby screen for Panasonic APPLICATION input is displayed. Remote control indicator During MIRRORING input, the receiving device name and the Blinks if any button in the remote control is pressed.
Page 29 Chapter 1 Preparation — About your projector 25 Remote control wired terminal This is a terminal used to connect to the projector via a cable when the remote control is used as a wired remote control. (x page 33) Attention f Do not drop the remote control. f Avoid contact with liquids or moisture.
Page 30: Projector Body
Chapter 1 Preparation — About your projector Projector body Front Side 2 3 4 Rear 11 12 Bottom Projection direction Remote control signal receiver (front) Air exhaust port Power indicator <ON (G)/STANDBY (R)> 10 Connecting terminals (x page 32) Indicates the status of the power. 11 Remote control signal receiver (rear) Light source indicator <LIGHT>...
Page 31: Control Panel
Displays or hides the main menu. (x page 79) operation in theMemory Viewer screen, or while the standby Returns to the previous menu when a sub-menu is displayed. screen for MIRRORING input or Panasonic APPLICATION input <VOL-> button/<VOL+> button is displayed.
Page 32: Connecting Terminals
Chapter 1 Preparation — About your projector r Connecting terminals <DC OUT> terminal <VIDEO IN> terminal This is the USB terminal only used for power supply. (DC 5 V, This is a terminal to input video signal. maximum 2.0 A) <HDMI 1 IN> terminal/<HDMI 2 IN> terminal This can be used when the projector is in projecting status and This is a terminal to input the HDMI signal.
Page 33: Preparing The Remote Control
Chapter 1 Preparation — Preparing the remote control Preparing the remote control Inserting and removing the batteries (ii) Fig. 1 Fig. 2 Open the cover. (Fig. 1) Insert the batteries and close the cover (insert the m side first). (Fig. 2) f When removing the batteries, perform the steps in reverse order.
Page 34: Chapter 2 Getting Started
Getting Started Chapter 2 This chapter describes things you need to do before using the projector such as the setup and connections. 34 - ENGLISH...
Page 35: Setting Up
Chapter 2 Getting Started — Setting up Setting up Installation mode The installation modes of the projector are as follows. Set [FRONT/REAR]/[FLOOR/CEILING] in the [PROJECTOR SETUP] menu → [PROJECTION METHOD] (x page 112) depending on the installation mode. Setting on a desk/floor and projecting forward Setting on a desk/floor and projecting from rear (Using the translucent screen) Menu item...
Page 36: Parts For Installation (Optional)
Chapter 2 Getting Started — Setting up r Angle sensor The range of the installation attitude that is detected by the angle sensor built-in the projector is as follows. Floor standing installation 30° Ceiling mount installation 30° Floor standing installation Projection direction Parts for installation (optional) The optional Ceiling Mount Bracket is required.
Page 37: Projected Image And Throw Distance
Chapter 2 Getting Started — Setting up Projected image and throw distance Install the projector referring to the projected image size and projection distance. Image size and image position can be adjusted in accordance with the screen size and screen position. f Following illustration is prepared on the assumption that the projected image size and position have been aligned to fit full in the screen.
Page 38 Chapter 2 Getting Started — Setting up [SCREEN ADJUSTMENT] projection range [VERTICAL KEYSTONE] (viewed from the side) [HORIZONTAL KEYSTONE] (viewed from above) Screen Screen Vertical arc correction (viewed from the side) Horizontal arc correction (viewed from above) Projection distance Projection distance Arc radius Arc radius Screen...
Page 39 Chapter 2 Getting Started — Setting up PT‑MZ670, PT‑MZ570 [KEYSTONE] and [CURVED CORRECTION] used Only [CURVED Only [KEYSTONE] used together CORRECTION] used Projection Throw Vertical Horizontal Vertical Horizontal lens Model ratio keystone keystone keystone keystone Min. value Min. value Min. value Min.
Page 40 Chapter 2 Getting Started — Setting up Projection distance of each projection lens A ±5 % error in listed projection distances may occur. When [SCREEN ADJUSTMENT] is used, distance is corrected to become smaller than the specified image size. PT‑MZ670, PT‑MZ570 r When the screen aspect ratio is 16:10 (Unit: m) Fixed-...
Page 41 Chapter 2 Getting Started — Setting up r When the screen aspect ratio is 16:9 (Unit: m) Fixed- Lens type Zoom Lens focus Lens Standard zoom Projection lens Model No. ET-ELW22 ET-ELW20 ET-ELT20 ET-ELT21 ET-ELW21 lens/ET-ELS20 Throw ratio 1.6-2.8:1 0.8-1.0:1 1.2-1.7:1 2.7-4.5:1 4.4-7.1:1 0.8:1...
Page 42 Chapter 2 Getting Started — Setting up r When the screen aspect ratio is 4:3 (Unit: m) Fixed- Lens type Zoom Lens focus Lens Standard zoom Projection lens Model No. ET-ELW22 ET-ELW20 ET-ELT20 ET-ELT21 ET-ELW21 lens/ET-ELS20 Throw ratio 1.9-3.3:1 0.9-1.2:1 1.5-2.0:1 3.3-5.4:1 5.3-8.6:1 0.9:1...
Page 43 Chapter 2 Getting Started — Setting up PT‑MW630, PT‑MW530 r When the screen aspect ratio is 16:10 (Unit: m) Fixed- Lens type Zoom Lens focus Lens Standard zoom Projection lens Model No. ET-ELW22 ET-ELW20 ET-ELT20 ET-ELT21 ET-ELW21 lens/ET-ELS20 Throw ratio 1.6-2.8:1 0.8-1.0:1 1.2-1.7:1 2.8-4.5:1...
Page 44 Chapter 2 Getting Started — Setting up r When the screen aspect ratio is 16:9 (Unit: m) Fixed- Lens type Zoom Lens focus Lens Standard zoom Projection lens Model No. ET-ELW22 ET-ELW20 ET-ELT20 ET-ELT21 ET-ELW21 lens/ET-ELS20 Throw ratio 1.6-2.8:1 0.8-1.0:1 1.2-1.7:1 2.8-4.5:1 4.5-7.2:1 0.8:1...
Page 45 Chapter 2 Getting Started — Setting up r When the screen aspect ratio is 4:3 (Unit: m) Fixed- Lens type Zoom Lens focus Lens Standard zoom Projection lens Model No. ET-ELW22 ET-ELW20 ET-ELT20 ET-ELT21 ET-ELW21 lens/ET-ELS20 Throw ratio 2.0-3.4:1 1.0-1.2:1 1.5-2.0:1 3.3-5.5:1 5.4-8.7:1 0.9:1...
Page 46 Chapter 2 Getting Started — Setting up Formula for calculating the projection distance per projection lens To use a projected image size not listed in this manual, check the projected image size SD (m) and use the respective formula to calculate projection distance. All the units for the formula are m.
Page 47: Adjusting Adjustable Feet
Chapter 2 Getting Started — Setting up r Fixed-focus Lens (Model No.: ET-ELW21) Projection lens Model No. Throw ratio Aspect ratio Projection distance (L) formula 0.8:1 16:10 = 0.684213 x SD - 0.057231 ET-ELW21 0.8:1 16:9 = 0.703228 x SD - 0.057231 0.9:1 = 0.774582 x SD - 0.057231 Adjusting adjustable feet...
Page 48: Removing/Attaching The Projection Lens
Panasonic takes no responsibility for any damage or malfunction of the product resulting from the use of projection lenses which are not manufactured by Panasonic. Always use the standard zoom lens supplied with the projector or the specified projection lens.
Page 49: Attaching The Projection Lens
Chapter 2 Getting Started — Removing/attaching the projection lens Attaching the projection lens Attach the projection lens using the following procedure. Red dot Projection lens Projection lens Fig. 1 Fig. 2 Align the mark (red dot) on the projection lens with the mark (red dot) on the projector, and insert it all the way in.
Page 50: Attaching The Wireless Module
Chapter 2 Getting Started — Attaching the Wireless Module Attaching the Wireless Module To use the wireless LAN function with the projector, it is necessary to attach the optional Wireless Module (Model No.: ET-WM300). Attaching the Wireless Module Top slide cover Wireless module attachment line Top slide cover fixing screw...
Page 51: Connecting
Chapter 2 Getting Started — Connecting Connecting Before connecting f Before connecting, carefully read the operating instructions for the external device to be connected. f Turn off the power of all devices before connecting cables. f Take note of the following points before connecting the cables. Failure to do so may result in malfunctions. g When connecting a cable to a device connected to the projector or the projector itself, touch any nearby metallic objects to eliminate static electricity from your body before performing work.
Page 52: Connecting Example: Av Equipment
Chapter 2 Getting Started — Connecting <HDMI 1 IN> terminal/<HDMI 2 IN> terminal pin assignments and signal names Outside view Pin No. Signal name Pin No. Signal name T.M.D.S data 2+ (11) T.M.D.S clock shield T.M.D.S data 2 shield (12) T.M.D.S clock- Even-numbered pins of (2) to (18) T.M.D.S data 2- (13)
Page 53: Connecting Example: Computers
Chapter 2 Getting Started — Connecting Connecting example: Computers Computer Control computer Computer USB memory Control computer Computer Attention f When connecting the projector to a computer or an external device, use the power cord supplied with each device and commercially available shielded cables.
Page 54: Connecting Example Using Digital Link
Chapter 2 Getting Started — Connecting Connecting example using DIGITAL LINK Twisted-pair-cable transmitter based on the communication standard HDBaseT such as the optional DIGITAL LINK output supported device (Model No.: ET-YFB100G, ET-YFB200G) uses the twisted pair cable to transmit input images, audio, Ethernet, and serial control signal, and the projector can input such digital signal to the <DIGITAL LINK/LAN>...
Page 55 150 m (492'2") if the twisted-pair-cable transmitter supports the long-reach communication method. If this distance is exceeded, image may be disrupted or a malfunction may occur in LAN communication. Please note that Panasonic does not support the use of the projector outside the maximum transmission distance.
Page 56: Chapter 3 Basic Operations
Basic Operations Chapter 3 This chapter describes basic operations to start with. 56 - ENGLISH...
Page 57: Switching On/Off The Projector
Chapter 3 Basic Operations — Switching on/off the projector Switching on/off the projector Connecting the power cord Make sure that the supplied power cord is securely fixed to the projector body to prevent it from being removed easily. Confirm that the <MAIN POWER> switch is on the <OFF> side before connecting the supplied power cord to the projector.
Page 58: Power Indicator
Chapter 3 Basic Operations — Switching on/off the projector Power indicator Indicate the status of the power. Check the status of the power indicator <ON (G)/STANDBY (R)> before operating the projector. Power indicator <ON (G)/STANDBY (R)> Indicator status Projector status The main power is switched off. The power is switched off.
Page 59: Switching On The Projector
Chapter 3 Basic Operations — Switching on/off the projector Switching on the projector When using the optional projection lens, attach the projection lens before switching on the projector. Remove the lens cover first. Connect the power cord to the projector. Connect the power plug to an outlet. Press the <ON>...
Page 60: When The Initial Setting Screen Is Displayed
Chapter 3 Basic Operations — Switching on/off the projector When the initial setting screen is displayed When the projector is switched on for the first time after purchase, or when the [PROJECTOR SETUP] menu → [INITIALIZE] → [ALL USER DATA] is executed, the focus adjustment screen is displayed immediately after the projection is started, and then the [INITIAL SETTING] screen is displayed.
Page 61 Chapter 3 Basic Operations — Switching on/off the projector Initial setting (installation setting) Set [FRONT/REAR] and [FLOOR/CEILING] in [PROJECTION METHOD] depending on the installation mode. Refer to “Installation mode” (x page 35) for details. After completed the initial setting, you can change the setting from the [PROJECTOR SETUP] menu → [PROJECTION METHOD].
Page 62 Chapter 3 Basic Operations — Switching on/off the projector Initial setting (screen setting) Set the screen format (aspect ratio) and display position of the image. After completed the initial setting, you can change the settings of each item from the [DISPLAY OPTION] menu → [SCREEN SETTING].
Page 63 Chapter 3 Basic Operations — Switching on/off the projector Initial setting (time zone) Set [TIME ZONE] in accordance with the country or region where you use the projector. After completed the initial setting, you can change the setting from the [PROJECTOR SETUP] menu → [DATE AND TIME].
Page 64: Making Adjustments And Selections
Chapter 3 Basic Operations — Switching on/off the projector Making adjustments and selections It is recommended that images be projected continuously for at least 30 minutes before the focus is adjusted. 1) 8) 7) 9) 1) 5) 7) 8) 9) Press the <FOCUS> button to roughly adjust the focus of the projected image. (x page 67) Change the setting of the [PROJECTOR SETUP] menu →...
Page 65: Switching Off The Projector
Chapter 3 Basic Operations — Switching on/off the projector Switching off the projector Press the power <v/b> button. f The [POWER OFF(STANDBY)] confirmation screen is displayed. Press qw to select [OK], and press the <ENTER> button. (Or press the power <v/b> button again.) f Projection of the image will stop, and the power indicator <ON (G)/STANDBY (R)>...
Page 66: Projecting
MEMORY VIEWER: Displays the still image or movie recorded in the USB memory using the Memory Viewer function. (x page 185) <NETWORK/USB> f Panasonic APPLICATION: Displays the image transferred via wireless LAN/wired LAN from a computer (including iPad/iPhone/iPod touch, Android device) using the Panasonic image transfer application software. (x page 178) f MIRRORING: Displays the image transferred via wireless LAN from the Miracast supported device using the mirroring function.
Page 67: Adjusting The Focus, Zoom, And Lens Shift
RGB2 VIDEO HDMI1 HDMI2 DIGITAL LINK MEMORY VIEWER Panasonic APPLICATION MIRRORING SELECT ENTER Press as to select the input for projection, and press the <ENTER> button. Note f [MIRRORING] is displayed when the optional Wireless Module (Model No.: ET-WM300) is attached.
Page 68: Moving The Lens Position To The Home Position
Chapter 3 Basic Operations — Projecting f Only [FOCUS] is displayed in yellow so that the displayed menu item can be recognized by color, even when the displayed characters are unreadable due to incorrect focus. (Factory default) The displayed color for [FOCUS] differs depending on the setting in the [DISPLAY OPTION] menu → [ON-SCREEN DISPLAY] → [OSD DESIGN].
Page 69: Using The Usb Memory
For how to use the image transfer application software “Plug and Share” allowing to easily connect via the wireless LAN by pairing the commercially available USB memory with the projector, refer to following URL. https://panasonic.net/cns/projector/ For the method of pairing the projector and the USB memory, refer to “Using the pairing function” (x page 193). By pairing, the connection information between the image transfer application software “Plug and Share”, and the projector and the USB memory is written into the...
Page 70: Removing The Usb Memory
Chapter 3 Basic Operations — Using the USB memory Removing the USB memory Remove the USB memory after confirming that the indicator on the USB memory is not blinking. Attention f The blinking of the indicator of the USB memory attached to the projector is indicating that the projector is accessing (reading or writing) the USB memory.
Page 71: Operating With The Remote Control
Chapter 3 Basic Operations — Operating with the remote control Operating with the remote control Using the shutter function If the projector is not used for a certain period of time during the meeting intermission, for example, it is possible to turn off the image and audio temporarily. button Press the <SHUTTER>...
Page 72: Adjusting The Volume
Chapter 3 Basic Operations — Operating with the remote control Adjusting the volume Adjust the volume of audio output. button Press the <VOL-> button/<VOL+> button on the remote control. <VOL+> Increases the volume. <VOL-> Decreases the volume. Note f This operation can be also performed using qw on the control panel. Using the freeze function The projected image can be paused and audio can be turned off regardless of the playback of the external device.
Page 73: Using The Automatic Setup Function
Chapter 3 Basic Operations — Operating with the remote control Using the automatic setup function The image position when the HDMI signal is input, or the dot clock, clock phase, and image position when the analog RGB signal is input can be adjusted automatically. (Analog RGB signal is a signal structured with dots just like the computer signal.) It is recommended to input an image with bright white borders at the edges and high-contrast black and white characters when the automatic adjustment is being performed.
Page 74: Using The Digital Zoom Function
(When RGB signal for still images, HDMI signal for still images, or DIGITAL LINK signal for still images is input. Or, when MEMORY VIEWER, Panasonic APPLICATION, or MIRRORING is input.) Enlarge the image or move the enlargement area of the image.
Page 75: Switching The Image Aspect Ratio
Chapter 3 Basic Operations — Operating with the remote control Switching the image aspect ratio Switch the image aspect ratio according to the input. button Press the <ASPECT> button. f The setting will change each time you press the button. Note f Refer to the [POSITION] menu →...
Page 76: Using The Status Function
Chapter 3 Basic Operations — Operating with the remote control Using the status function Display the status of the projector. button Press the <STATUS> button. f The [STATUS] screen is displayed. STATUS PROJECTOR TYPE PT-MZ670 SERIAL NUMBER SW1234567 PROJECTOR RUNTIME 10000h LIGHT RUNTIME 10000h / 10000h CONTINUOUS LIGHTING TIME...
Page 77 Chapter 3 Basic Operations — Operating with the remote control f The ID number set on the remote control will be stored unless it is set again. However, it will be erased if the remote control is left with dead batteries. Set the same ID number again when the batteries are replaced. Note f When the ID number of the remote control is set to [0], the projectors can be controlled regardless of the ID number setting on the projector, same as when set to [ALL].
Page 78: Chapter 4 Settings
Settings Chapter 4 This chapter describes the settings and adjustments you can make using the on-screen menu. 78 - ENGLISH...
Page 79: Menu Navigation
Chapter 4 Settings — Menu navigation Menu navigation The on-screen menu (Menu) is used to perform various settings and adjustments of the projector. Navigating through the menu Operating procedure button Press the <MENU> button on the remote control or control panel. f The [MAIN MENU] screen is displayed.
Page 80: Main Menu
Chapter 4 Settings — Menu navigation Press as to select a sub‑menu, and press qw or the <ENTER> button to change or adjust settings. f Some items will switch in order as follows each time you press qw. f For some items, press qw to display an individual adjustment screen with a bar scale as shown below. CONTRAST ADJUST Note...
Page 81: Sub-Menu
Chapter 4 Settings — Menu navigation Main menu item Page [DISPLAY LANGUAGE] [DISPLAY OPTION] [PROJECTOR SETUP] [TEST PATTERN] [SIGNAL LIST] [SECURITY] [NETWORK/USB] Sub-menu The sub-menu of the selected main menu item is displayed, and you can set and adjust items in the sub-menu. [PICTURE] Sub-menu item Factory default...
Page 82: Display Language
Chapter 4 Settings — Menu navigation Sub-menu item Factory default Page [RASTER POSITION] ― *1 Depends on the signal input. Note f The factory default setting varies depending on the selected input terminal. [DISPLAY LANGUAGE] Details (x page 98) [DISPLAY OPTION] Sub-menu item Factory default Page...
Page 83: Signal List
[WIRELESS LAN] [SIMPLE] [PROJECTOR NAME] ― [NETWORK CONTROL] ― [MEMORY VIEWER] ― [Panasonic APPLICATION] ― [MIRRORING] ― [NETWORK STATUS] ― *1 The sub-menu item can be selected when the optional Wireless Module (Model No.: ET-WM300) is attached. Note f Some items may not be adjusted or used for certain signal formats to be input to the projector.
Page 84: [Picture] Menu
Chapter 4 Settings — [PICTURE] menu [PICTURE] menu On the menu screen, select [PICTURE] from the main menu, and select an item from the sub‑menu. Refer to “Navigating through the menu” (x page 79) for the operation of the menu screen. [PICTURE MODE] You can switch to the desired picture mode suitable for the image source and the environment in which the projector is used.
Page 85: [Color]
Chapter 4 Settings — [PICTURE] menu [COLOR] You can adjust the color saturation of the projected image. Press as to select [COLOR]. Press qw or the <ENTER> button. f The [COLOR] individual adjustment screen is displayed. Press qw to adjust the level. Operation Adjustment Range of adjustment...
Page 86: [Gamma]
Chapter 4 Settings — [PICTURE] menu Press as to select [WHITE BALANCE]. Press the <ENTER> button. f The [WHITE BALANCE] screen is displayed. Press as to select [WHITE BALANCE HIGH] or [WHITE BALANCE LOW]. Press the <ENTER> button. f The [WHITE BALANCE HIGH] screen or the [WHITE BALANCE LOW] screen is displayed. Press as to select [RED], [GREEN], or [BLUE].
Page 87: [Daylight View]
Chapter 4 Settings — [PICTURE] menu Operation Adjustment Range of adjustment Press w. The intermediate tome becomes brighter. -8 - +7 Press q. The intermediate tone becomes darker. [DAYLIGHT VIEW] You can correct the image to the optimal vividness even if it is projected under a bright light. Press as to select [DAYLIGHT VIEW].
Page 88: [Dynamic Contrast]
Chapter 4 Settings — [PICTURE] menu [DYNAMIC CONTRAST] Light adjustment of the light source is performed automatically according to the image to make the contrast optimum for the image. Press as to select [DYNAMIC CONTRAST]. Press qw or the <ENTER> button. f The [DYNAMIC CONTRAST] individual adjustment screen is displayed.
Page 89: [Position] Menu
For the portrait setting, image position is moved horizontally when “Vertical (up and down) adjustment” is made. Image position is moved vertically when “Horizontal (right and left) adjustment” is made. f [SHIFT] cannot be adjusted when the input is MEMORY VIEWER, Panasonic APPLICATION, or MIRRORING. [ASPECT] You can switch the aspect ratio of the image.
Page 90: [Zoom]
Such images should be viewed as with an aspect ratio of 4:3 in the original format intended by the creator of the images. f [ASPECT] cannot be set when the input is MEMORY VIEWER, Panasonic APPLICATION, or MIRRORING. [ZOOM] You can adjust the image size.
Page 91: [Clock Phase]
Note f When the [POSITION] menu → [ASPECT] is set to anything other than [NORMAL], [MODE] is not displayed. f [ZOOM] cannot be adjusted when the input is MEMORY VIEWER, Panasonic APPLICATION, or MIRRORING. [CLOCK PHASE] You can adjust the image to achieve an optimal image when there is a flickering image or smeared outlines.
Page 92: [Screen Adjustment]
Chapter 4 Settings — [POSITION] menu g When the [PROJECTOR SETUP] menu → [PROJECTION METHOD] → [FLOOR/CEILING] is set to [AUTONEGOTIATION], and the actual installation status is ceiling mount f When [REALTIME KEYSTONE] and [SCREEN ADJUSTMENT] are both set to [OFF] and [REALTIME KEYSTONE] is changed to [ON], [SCREEN ADJUSTMENT] is changed to [KEYSTONE].
Page 93 Chapter 4 Settings — [POSITION] menu [CURVED CORRECTION] [VERTICAL KEYSTONE] [HORIZONTAL KEYSTONE] [VERTICAL ARC] [HORIZONTAL ARC] [VERTICAL BALANCE] [HORIZONTAL BALANCE] [MAINTAIN ASPECT RATIO] Select [ON] to correct while keeping the aspect ratio. Setting [CORNER CORRECTION] Press as to select [SCREEN ADJUSTMENT]. Press qw to select [CORNER CORRECTION].
Page 94 Chapter 4 Settings — [POSITION] menu [HORIZONTAL] [LINEARITY] [VERTICAL] Note f Depending on the correction value, the aspect ratio of the image may change. 94 - ENGLISH...
Page 95: [Advanced Menu] Menu
Press q. moves upward. Top of the screen [UPPER] The blanking zone Press w. moves downward. PT-MZ670, PT-MZ570: Top and bottom 0 - 599 PT-MW630, PT-MW530: Top The blanking zone Press w. and bottom 0 - 399 moves upward. Bottom of the...
Page 96: [Input Resolution]
Note f [BLANKING] cannot be adjusted when the input is MEMORY VIEWER, Panasonic APPLICATION, or MIRRORING. [INPUT RESOLUTION] You can adjust the image to achieve an optimal image when there is a flickering image or smeared outlines.
Page 97: [Raster Position]
Press as to select [RASTER POSITION]. Press the <ENTER> button. f The [RASTER POSITION] screen is displayed. Press asqw to adjust the position. Note f [RASTER POSITION] cannot be adjusted when the input is MEMORY VIEWER, Panasonic APPLICATION, or MIRRORING. ENGLISH - 97...
Page 98: [Display Language] Menu
Chapter 4 Settings — [DISPLAY LANGUAGE] menu [DISPLAY LANGUAGE] menu On the menu screen, select [DISPLAY LANGUAGE] from the main menu, and display the sub‑menu. Refer to “Navigating through the menu” (x page 79) for the operation of the menu screen. Changing the display language You can select the language of the on-screen display.
Page 99: [Display Option] Menu
Chapter 4 Settings — [DISPLAY OPTION] menu [DISPLAY OPTION] menu On the menu screen, select [DISPLAY OPTION] from the main menu, and select an item from the sub‑ menu. Refer to “Navigating through the menu” (x page 79) for the operation of the menu screen. [COLOR ADJUSTMENT] Correct the color difference between projectors when using multiple projectors simultaneously.
Page 100: [Screen Setting]
The items will switch each time you press the button. Model No. [SCREEN FORMAT] Range when [SCREEN POSITION] is selected [16:10] Cannot be adjusted. PT-MZ670 [4:3] Adjusts the horizontal position between -160 and 160. PT-MZ570 [16:9] Adjusts the vertical position between -60 and 60.
Page 101: [Rgb In]
Chapter 4 Settings — [DISPLAY OPTION] menu f Proceed to Step 5) when [USER] is selected. Press as to select [DISPLAY DOTS], and press qw to match [DISPLAY DOTS] to the horizontal resolution of the signal source. Press as to select [MODE]. Press the <ENTER>...
Page 102: [Hdmi In]
Chapter 4 Settings — [DISPLAY OPTION] menu f Proceed to Step 10) when [DEFAULT] or [SCREEN FIT] is selected. Press the <ENTER> button. f The [RESOLUTION] screen is displayed. Press asqw to select [RESOLUTION]. f Select [1024x768p], [1280x720p], [1280x768p], [1280x800p], [1280x1024p], [1366x768p], [1400x1050p], [1440x900p], [1600x900p], [1600x1200p], [1680x1050p], [1920x1080p], [1920x1080i], or [1920x1200p].
Page 103: [Digital Link In]
Chapter 4 Settings — [DISPLAY OPTION] menu Press as to select [EDID MODE] of [HDMI1] or [HDMI2]. Press the <ENTER> button. f The [HDMI1] screen or the [HDMI2] screen is displayed. Press qw to switch the item. f The items will switch each time you press the button. [DEFAULT] Standard setting.
Page 104: [On-Screen Display]
Chapter 4 Settings — [DISPLAY OPTION] menu Note f The optimal setting varies depending on the output setting of the connected external device. Refer to the operating instructions of the external device regarding the output of the external device. f The signal level is displayed for 30 bits of input. Setting [EDID MODE] in [DIGITAL LINK IN] Press as to select [DIGITAL LINK IN].
Page 105 Sets to the bottom right of the screen. Sets to the upper left of the screen. Setting [OSD SIZE] (Only for PT-MZ670, PT-MZ570) Set the display size of the menu screen (OSD). Press as to select [ON-SCREEN DISPLAY]. Press the <ENTER> button.
Page 106 Chapter 4 Settings — [DISPLAY OPTION] menu Sets the background color to light blue and and selection color to yellow. Sets the background color to dark blue and the selection color to blue. Sets the background color to gray and and selection color to white. Sets the background color to green and and selection color to light green.
Page 107: [Closed Caption Setting] (Only When Ntsc Signal Is Input)
Chapter 4 Settings — [DISPLAY OPTION] menu Note f When [OFF] is set, a warning message is not displayed on the projected image even if a warning condition such as [TEMPERATURE WARNING] is detected while using the projector. The message prompting to clean/replace the filter is also not displayed. [CLOSED CAPTION SETTING] (only when NTSC signal is input) Set closed captions.
Page 108: [Back Color]
[USER LOGO] Displays the image registered by the user. Note f To create and register the [USER LOGO] image, use “Logo Transfer Software”. The software can be downloaded from the Panasonic website (https://panasonic.net/cns/projector/). [STARTUP LOGO] Set the logo display when the power is turned on.
Page 109: [P-Timer]
Chapter 4 Settings — [DISPLAY OPTION] menu Item Adjustment [OFF] Does not set fade-in or fade-out. [FADE-IN] Sets the fade-in or fade-out time. [FADE-OUT] [0.5s] - [10.0s] Select an item from [0.5s] - [4.0s], [5.0s], [7.0s], or [10.0s]. [0.5s] - [4.0s] can be selected in increments of 0.5. Note f If the <SHUTTER>...
Page 110: [Freeze]
[DIGITAL ZOOM] (When RGB signal for still images, HDMI signal for still images, or DIGITAL LINK signal for still images is input. Or, when MEMORY VIEWER, Panasonic APPLICATION, or MIRRORING is input.) Press as to select [DIGITAL ZOOM]. 110 - ENGLISH...
Page 111 Chapter 4 Settings — [DISPLAY OPTION] menu Press the <ENTER> button. f The [DIGITAL ZOOM] individual adjustment screen is displayed. Press qw to adjust the magnification factor. f The magnification factor can be adjusted from 1.0 times to 3.0 times in 0.1 intervals. Press the <ENTER>...
Page 112: [Projector Setup] Menu
Chapter 4 Settings — [PROJECTOR SETUP] menu [PROJECTOR SETUP] menu On the menu screen, select [PROJECTOR SETUP] from the main menu, and select an item from the sub‑ menu. Refer to “Navigating through the menu” (x page 79) for the operation of the menu screen. [PROJECTOR ID] The projector has an ID number setting function that can be used when multiple projectors are used side by side to enable simultaneous control or individual control via a single remote control.
Page 113: [Eco Management]
Chapter 4 Settings — [PROJECTOR SETUP] menu [ECO MANAGEMENT] Set [ECO MANAGEMENT] to reduce the power consumption and enhance the life of the light source. Setting [LIGHT POWER] Press as to select [ECO MANAGEMENT]. Press the <ENTER> button. f The [ECO MANAGEMENT] screen is displayed. Press as to select [LIGHT POWER].
Page 114 When the [PROJECTOR SETUP] menu → [LightID] is set to [EXTERNAL CONTROL] or [INTERNAL ID], [SIGNAL DETECTION] is set to [OFF]. f The [SIGNAL DETECTION] function will also operate during MEMORY VIEWER, MIRRORING, or Panasonic APPLICATION input. In the following cases, the projector will determine that there is no input signal.
Page 115: [Lightid]
Chapter 4 Settings — [PROJECTOR SETUP] menu Press the <ENTER> button. f The [ECO MANAGEMENT] screen is displayed. Press as to select [STANDBY MODE]. Press qw to switch the item. f The items will switch each time you press the button. [NORMAL] Select this item when using the network function during standby.
Page 116: [Initial Startup]
The [PICTURE] menu → [DYNAMIC CONTRAST] g The [PROJECTOR SETUP] menu → [ECO MANAGEMENT] → [AMBIENT LIGHT DETECTION] and [SIGNAL DETECTION] f To set the Light ID signal, use “Multi Monitoring & Control Software”. The software can be downloaded from the Panasonic website (https:// panasonic.net/cns/projector/).
Page 117: [Date And Time]
Chapter 4 Settings — [PROJECTOR SETUP] menu Sets the input to DIGITAL LINK, and switches the input of the Panasonic twisted-pair-cable [INPUT1] - [INPUT10] transmitter to the specified input. *1 [MIRRORING] is displayed when the optional Wireless Module (Model No.: ET-WM300) is attached.
Page 118: [Schedule]
Chapter 4 Settings — [PROJECTOR SETUP] menu [SCHEDULE] Set the command execution schedule for each day of the week. Enabling/disabling the schedule function Press as to select [SCHEDULE]. Press qw to switch the item. f The items will switch each time you press the button. [OFF] Disables the schedule function.
Page 119: Rs-232C]
Switches the input to MIRRORING. Switches the input to DIGITAL LINK, and switches the input of the [INPUT1] - [INPUT10] Panasonic twisted-pair-cable transmitter to the specified input. [NORMAL] Prioritizes luminance. Controls the power to increase the life of the light source although...
Page 120 Using the control command for the existing projector Set this function when using the control command for previously purchased Panasonic projector to control this projector with a computer using the <SERIAL IN> terminal on the projector. The existing Panasonic projector control software, etc., can continually be used.
Page 121: [Remote1 Mode]
Chapter 4 Settings — [PROJECTOR SETUP] menu [VW431D] VW431D series Press the <ENTER> button. f The confirmation screen is displayed. Press qw to select [OK], and press the <ENTER> button. [REMOTE1 MODE] Set the <REMOTE 1 IN> terminal. Press as to select [REMOTE1 MODE]. Press qw to switch the item.
Page 122: [Audio Setting]
Chapter 4 Settings — [PROJECTOR SETUP] menu [AUDIO SETTING] Set audio functions in detail. Adjusting the volume Press as to select [AUDIO SETTING]. Press the <ENTER> button. f The [AUDIO SETTING] screen is displayed. Press as to select [VOLUME]. Press qw to adjust the level. Operation Adjustment Range of adjustment...
Page 123 Sets the audio to output when HDMI2 is input. [DIGITAL LINK] Sets the audio to output when DIGITAL LINK is input. Sets the audio to output when MEMORY VIEWER, MIRRORING, or Panasonic APPLICATION is [NETWORK/USB] input. Press qw to switch the item.
Page 124: [Filter Counter]
*2 Only when the input signal is HDMI2 *3 Only when the input signal is DIGITAL LINK *4 Only when the input signal is MEMORY VIEWER, MIRRORING, or Panasonic APPLICATION [FILTER COUNTER] Check the runtime of the filter and set the cleaning/replacement cycle of the filter. Also, the runtime of the filter can be reset.
Page 125: [Dc Out]
Chapter 4 Settings — [PROJECTOR SETUP] menu [DC OUT] Set the power supply function of the <DC OUT> terminal. Press as to select [DC OUT]. Press qw to select an item. Enables the power supply function. Power is supplied to the external device connected to the <DC [ON] OUT>...
Page 126: [Data Cloning]
Chapter 4 Settings — [PROJECTOR SETUP] menu [INPUT] Displays the input terminal used for the projected image. [SIGNAL FORMAT] Displays the format of the input signal. [SIGNAL FREQUENCY] Displays the frequency of the input signal. [SYNC.STATE] Displays the sync polarity of the input signal. [V.SYNC WIDTH] Displays the vertical sync signal pulse width of the input signal.
Page 127 Chapter 4 Settings — [PROJECTOR SETUP] menu Connect all projectors to the hub using LAN cables. (x page 154) Turn on all the projectors. Press as to select [DATA CLONING]. Press the <ENTER> button. f The [SECURITY PASSWORD] screen is displayed. Enter a security password and press the <ENTER>...
Page 128 Chapter 4 Settings — [PROJECTOR SETUP] menu Press qw to switch the item. f The items will switch each time you press the button. [OFF] Operation of [DATA CLONING] from other projector via LAN is enabled. Operation of [DATA CLONING] from other projector via LAN is disabled. [ON] f Copy will not be possible when set to [ON].
Page 129: [Save All User Data]
Chapter 4 Settings — [PROJECTOR SETUP] menu Press the <ENTER> button. f The [SELECT COPY TYPE] screen is displayed. Press as to select [USB MEMORY -> PROJECTOR]. Press the <ENTER> button. f The confirmation screen is displayed. Press qw to select [OK], and press the <ENTER> button. f Copying of the data from the USB memory is started, and the projector will go into standby mode.
Page 130: [Service Password]
Chapter 4 Settings — [PROJECTOR SETUP] menu Enter a security password and press the <ENTER> button. f The [INITIALIZE] screen is displayed. Press as to select an item to initialize. Returns all setting values including [REGISTERED SIGNAL], [NETWORK/E-MAIL], and [LOGO [ALL USER DATA] IMAGE] to the factory default settings.
Page 131: [Test Pattern] Menu
Chapter 4 Settings — [TEST PATTERN] menu [TEST PATTERN] menu On the menu screen, select [TEST PATTERN] from the main menu. Refer to “Navigating through the menu” (x page 79) for the operation of the menu screen. [TEST PATTERN] Display the test pattern built-in to the projector. Settings of position, size, and other factors will not be reflected in test patterns.
Page 132: [Signal List] Menu
Chapter 4 Settings — [SIGNAL LIST] menu [SIGNAL LIST] menu On the menu screen, select [SIGNAL LIST] from the main menu. Refer to “Navigating through the menu” (x page 79) for the operation of the menu screen. r Registered signal details Memory number: A1 (1-2) Sub memory number...
Page 133: Protecting The Registered Signal
Chapter 4 Settings — [SIGNAL LIST] menu Note f A registered signal can also be deleted from [REGISTERED SIGNAL DELETE] on the [REGISTERED SIGNAL SETUP] screen. Protecting the registered signal Press asqw to select the signal to protect. Press the <ENTER> button. f The [REGISTERED SIGNAL STATUS] screen is displayed.
Page 134: Sub Memory
Chapter 4 Settings — [SIGNAL LIST] menu f When a registration signal is deleted, the settings are also deleted. f In an environment where multiple types of signals are input to the same terminal, signals are sometimes not determined correctly when the setting is set to [WIDE].
Page 135: [Security] Menu
Chapter 4 Settings — [SECURITY] menu [SECURITY] menu On the menu screen, select [SECURITY] from the main menu, and select an item from the sub‑menu. Refer to “Navigating through the menu” (x page 79) for the operation of the menu screen. f When the projector is used for the first time Initial password: Press awsqawsq in order, and press the <ENTER>...
Page 136: [Text Change]
[USER LOGO] Displays the image registered by the user. Note f To create and register the [USER LOGO] image, use “Logo Transfer Software”. The software can be downloaded from the Panasonic website (https://panasonic.net/cns/projector/). [TEXT CHANGE] Edit the text to be displayed when [TEXT] is selected in [DISPLAY SETTING].
Page 137: [Control Device Setup]
Chapter 4 Settings — [SECURITY] menu [CONTROL DEVICE SETUP] Enable/disable the button operations on the control panel and the remote control. Press as to select [CONTROL DEVICE SETUP]. Press the <ENTER> button. f The [CONTROL DEVICE SETUP] screen is displayed. Press as to select [CONTROL PANEL] or [REMOTE CONTROL]. [CONTROL PANEL] Sets the limitation on the control from the control panel.
Page 138: [Control Device Password Change]
The following items can be selected only when [NETWORK/USB BUTTON] is selected in [INPUT SELECT BUTTON]. Switches the items in following order when the button is operated. [TOGGLE] [MEMORY VIEWER] → [Panasonic APPLICATION] → [MIRRORING] [MEMORY VIEWER] Fixes to [MEMORY VIEWER]. [Panasonic APPLICATION] Fixes to [Panasonic APPLICATION].
Page 139: [Network/Usb] Menu
Chapter 4 Settings — [NETWORK/USB] menu [NETWORK/USB] menu On the menu screen, select [NETWORK/USB] from the main menu, and select an item from the sub‑menu. Refer to “Navigating through the menu” (x page 79) for the operation of the menu screen. f To use the wireless LAN function with the projector, it is necessary to attach the optional Wireless Module (Model No.: ET-WM300).
Page 140: [Digital Link Menu]
Chapter 4 Settings — [NETWORK/USB] menu [SIGNAL QUALITY] is a numerical value of the amount of error, and the display color changes to green, yellow, or red depending on that value. Check the signal quality level while receiving a signal from the twisted-pair-cable transmitter. f [MAX]/[MIN]: Maximum/minimum value of the amount of error [SIGNAL QUALITY] f Green (-12 dB or lower) →...
Page 141: [Wireless Lan]
For how to use the image transfer application software “Wireless Manager ME6.4” compatible to the Windows computer or Mac, refer to the Operating Instructions of “Wireless Manager ME6.4”. The software can be downloaded from the Panasonic website (https://panasonic.net/ cns/projector/).
Page 142 The factory default setting for [KEY] is set to the same character string as the network ID “Projxxxx” (xxxx is 4-digit number). The network ID is a fixed value assigned to each product. The network ID can be confirmed in the standby screen projected when switched to Panasonic APPLICATION input.
Page 143 (xxxx is the last four digits of the network ID. The network ID is a fixed value assigned to each product. The [SSID] network ID can be confirmed in the standby screen projected when switched to Panasonic APPLICATION input.) [CHANNEL]...
Page 144 Chapter 4 Settings — [NETWORK/USB] menu Set WEP key to the key number selected in [DEFAULT KEY]. This item can be selected only when [AUTHENTICATION] is set to [OPEN] or [SHARED], and the encryption method is [WEP]. [KEY1] - [KEY4] Only the 64 bits or 128 bits WEP key can be set. For 64 bits, enter five characters in alphanumeric (10 digits in case of hexadecimal), and for 128 bits, enter 13 characters in alphanumeric (26 digits in case of hexadecimal).
Page 145: [Projector Name]
The factory default of the projector name is “Namexxxx”. xxxx is the last four digits of the network ID. The network ID is a fixed value assigned to each product. The network ID can be confirmed in the standby screen projected when switched to Panasonic APPLICATION input.
Page 146 Chapter 4 Settings — [NETWORK/USB] menu Press the <ENTER> button. f The [MEMORY VIEWER] screen is displayed. Press as to select an item, and press qw to change the setting. f The items will switch each time you press the button. Sets the display view of the Memory Viewer screen.
Page 147: [Panasonic Application]
Note f When [ON] is set, cut-in of image by other user is not possible. f For how to operate the moderator mode in the Panasonic APPLICATION input, refer to “Projecting with Panasonic APPLICATION input” (x page 178). f The image transfer application software used for Panasonic APPLICATION input are as follows.
Page 148 It is possible to ask the input of password against the device when trying to connect to the projector using the Panasonic image transfer application software. By requiring the input of password, it is possible to prevent image cut-in caused by erroneous external connection.
Page 149: [Mirroring]
Does not detect even if USB memory is connected to the <VIEWER/PAIRING> terminal. Note f The [PAIRING GUIDE] setting is enabled when the Panasonic APPLICATION input is selected. f For the method of pairing the projector and the USB memory, refer to “Using the pairing function” (x page 193).
Page 150: [Network Status]
Chapter 4 Settings — [NETWORK/USB] menu Press qw to select an item. f The items will switch each time you press the button. Disables the moderator mode. [OFF] Number of device that can connect to the projector and display the image is restricted to one. Enables the moderator mode.
Page 151 Chapter 4 Settings — [NETWORK/USB] menu Displays the network information of the wireless LAN set on the projector. [ANTENNA LEVEL] Displays the signal status of wireless LAN. [NETWORK] Displays the connection method of wireless LAN. [SSID] Displays the string of SSID. [AUTHENTICATION] Displays the user authentication method.
Page 152: Chapter 5 Operations
Operations Chapter 5 This chapter describes how to use each function. 152 - ENGLISH...
Page 153: Network Connection
For details, visit the Panasonic website (https://panasonic.net/cns/projector/). f Image transfer application software Using the Panasonic image transfer application software, the image sent from a device can be displayed as a projected image. For details, refer to “Projecting with Panasonic APPLICATION input” (x page 178).
Page 154: Connecting Via Wired Lan
Chapter 5 Operations — Network connection Connecting via wired LAN This projector can receive the Ethernet signal from the twisted-pair-cable transmitter together with the video, audio, and serial control signal via a LAN cable. Example of a normal network connection Computer Projector LAN cable (straight) LAN cable (straight)
Page 155: Setting The Projector
(https://panasonic.net/cns/projector/). Note that the verification for devices of other manufacturers has been made for the items set by Panasonic Corporation, and not all the operations have been verified. For operation or performance problems caused by the devices of other manufacturers, contact the respective manufacturers.
Page 156: Connecting With The Wireless Lan
Image transfer application software (Example) Displaying the contents (Example) Displaying on multiple screens Projector Projector Illustration of connection Miracast Miracast compatible device Device such as computer that has installed the Panasonic image transfer application software Input MIRRORING Panasonic APPLICATION Communication IEEE802.11n IEEE802.11a/b/g/n method Connection ―...
Page 157 192.168.12.100 [SUBNET MASK] 255.255.255.0 M-DIRECTxxxx [M-DIRECT] [SSID] (xxxx is the last four digits of the network ID.) [CHANNEL] [KEY] The same character string as SSID [SSID] Panasonic Projector [AUTHENTICATION] [OPEN] [ENCRYPTION] [NONE] [DHCP] [OFF] [USER] [IP ADDRESS] 192.168.11.100 [SUBNET MASK] 255.255.255.0...
Page 158: Web Control Function
Enter the user name and the password. f The factory default settings are User name: dispuser (user rights)/dispadmin (administer rights); Password: @Panasonic. f Change of password is prompted when using the web control function for the first time. Proceed to Step 4).
Page 159 Chapter 5 Operations — Web control function For user rights For administrator rights Enter the new user name and password, and click [Change]. f The screen in Step 3) is displayed again. Enter the new user name and password. f Enter the new user name and password set in Step 5). Click OK.
Page 160 Chapter 5 Operations — Web control function Item Function Administrator rights User rights Page User name of [Administrator] ― User name of [User] ― User name of [Moderator] ― [Change password] Password of [Administrator] ― 175, Password of [User] Password of [Moderator] ―...
Page 161 Chapter 5 Operations — Web control function [Projector status] page Click [Status] → [Projector status]. Display the status of the projector for the following items. [PROJECTOR TYPE] 11 [REMOTE1 STATUS] Displays the type of the projector. Displays the control status of the <REMOTE 1 IN> terminal. [PROJECTOR NAME] 12 [INPUT] Displays the projector name set for the projector.
Page 162: Error Information Page
Chapter 5 Operations — Web control function Error information page When [Error (Detail)] or [Warning (Detail)] is displayed in the [SELF TEST] display field of the [Projector status] screen, click it to display the content of the error/warning. f The projector may go into the standby status to protect the projector depending on the contents of the error. Display of error information Error code Displays the alphanumeric symbols and content of errors/...
Page 163 Chapter 5 Operations — Web control function [Access error log] page Click [Status] → [Access error log]. The error log on the web server is displayed such as access to the pages that do not exist or access with unauthorized user names or passwords. [Mail error log] page Click [Status] →...
Page 164 Chapter 5 Operations — Web control function [Detail control] page Click [Projector control] → [Detail control]. Control of the projector [MUTE] The projector is controlled by clicking the buttons in the same Switches whether to use the mute function. way as the buttons on the remote control. After control, the on- [STATUS] screen display of the projector at the right of the control page is The [STATUS] screen is displayed on the projected image.
Page 165 Chapter 5 Operations — Web control function [Network config] page Click [Detailed set up] → [Network config]. f To use the wireless LAN function with the projector, it is necessary to attach the optional Wireless Module (Model No.: ET-WM300). For details on how to attach the optional Wireless Module (Model No.: ET-WM300), refer to “Attaching the Wireless Module”...
Page 166 Chapter 5 Operations — Web control function When [WIRED LAN] is selected [DHCP ON], [DHCP OFF] [Back], [Next] To enable the DHCP client function, set to [DHCP ON]. Click the [Back] button to return to the previous screen. When [EAP] is set to anything other than [NONE], clicking the [Next] [IP ADDRESS] button will advance to next page.
Page 167 Chapter 5 Operations — Web control function When [M-DIRECT] (wireless LAN) is selected [IP ADDRESS] [KEY] Enter the IP address. Set the key to be used with M-DIRECT. Enter 8 to 63 characters of ASCII character, or 64-digit [SUBNET MASK] hexadecimal number. Enter the subnet mask.
Page 168 Chapter 5 Operations — Web control function When [USER] (wireless LAN) is selected [DHCP ON], [DHCP OFF] 10 [EAP] To enable the DHCP client function, set [DHCP ON]. Select the EAP set for the RADIUS server. [IP ADDRESS] 11 [ENCRYPTION] Enter the IP address if the DHCP server is not used. Select the encryption method used for the communication between the projector and the network.
Page 169 Chapter 5 Operations — Web control function [Adjust clock] page Click [Detailed set up] → [Adjust clock]. [Time Zone] [Date] Select the time zone. Enter the date to be changed. [Set time zone] [Time] Updates the time zone setting. Enter the time to be changed. [NTP SYNCHRONIZATION] [Set date and time] Set to [ON] when setting the date and time automatically.
Page 170 Chapter 5 Operations — Web control function [E-mail set up] page When there is a problem or the runtime of the light source reaches the preset value, an E-mail can be sent to previously set E-mail addresses (up to two addresses). Click [Detailed set up] →...
Page 171 Chapter 5 Operations — Web control function [Authentication set up] page Set the authentication items when POP authentication or SMTP authentication is necessary to send an E-mail. Click [Detailed set up] → [Authentication set up]. [Auth] [Password] Select the authentication method specified by your Internet Enter the password for the POP server or the SMTP server.
Page 172 Chapter 5 Operations — Web control function Contents of E-mail sent Example of the E-mail sent when E-mail is set The following E-mail is sent when the E-mail settings have been established. === Panasonic projector report(CONFIGURE) === Projector Type : PT-MZ670 Serial No...
Page 173 Chapter 5 Operations — Web control function Example of the E-mail sent for an error The following E-mail is sent when an error has occurred. === Panasonic projector report(ERROR) === Projector Type : PT-MZ670 Serial No : 123456789 ----- E-mail setup data -----...
Page 174 Used to change the setting of the [User]. Used to change the setting of the password. Note f The [Moderator] account is used when operating in the moderator mode when the MIRRORING input or the Panasonic APPLICATION input is selected. [Administrator] account...
Page 175 Chapter 5 Operations — Web control function [User] and [Moderator] [Account] [Change] Displays the account to change. Determines the change of password. [New] [User name]: Enter the desired new user name. (Up to 16 characters in single byte) [Password]: Enter the desired new password. (Up to 16 characters in single byte) [Password(Retype)]: Enter the desired new password again.
Page 176 Chapter 5 Operations — Web control function Operation page [Tools], [Info], [Help] [Input Select] Controls input selection. Tabs for selecting the setting, information, or help page of the projector. Not available when the power of the projector is turned off. [POWER] Menu screen control buttons Turns off/on the power.
Page 177 Chapter 5 Operations — Web control function [Info] page Click [Info] in the operation page. [Projector Name] [Source] Displays the projector name. Displays the selected input. [Mac Address] [Lamp Mode] Displays the MAC address. Displays the [LIGHT POWER] setting. [Lamp Hours] [Error Status] Displays the runtime of the light source.
Page 178: Projecting With Panasonic Application Input
Chapter 5 Operations — Projecting with Panasonic APPLICATION input Projecting with Panasonic APPLICATION input Using the Panasonic application, the image sent from a device connected via LAN can be displayed as a projected image. Application that can be used The image transfer application software used for Panasonic APPLICATION input are as follows.
Page 179: Description Of The Standby Screen
Chapter 5 Operations — Projecting with Panasonic APPLICATION input Description of the standby screen The standby screen differs depending on the setting in the [NETWORK/USB] menu → [WIRELESS LAN]. r When [WIRELESS LAN] is set to [SIMPLE] Network ID/projector name [SSID] Displays the network ID of the projector and the projector name Displays the SSID to be used.
Page 180: Using The Moderator Mode In The Panasonic Application Input
For details on moderator mode setting, refer to the [NETWORK/USB] menu → [Panasonic APPLICATION] (x page 147). f Press the <ENTER> button while displaying the image in full screen to return to the screen in thumbnail view. Select different image by pressing asqw to switch the image to display.
Page 181: Projecting With Mirroring Input
Press the <NETWORK/USB> button to switch the input to MIRRORING. f Every time the <NETWORK/USB> button is pressed, the input will switch in the order of MEMORY VIEWER, Panasonic APPLICATION, and MIRRORING. Press the <NETWORK/USB> button until the input switches to MIRRORING.
Page 182: Ending The Connection With The Device
Press the <NETWORK/USB> button to switch the input to MIRRORING. f Every time the <NETWORK/USB> button is pressed, the input will switch in the order of MEMORY VIEWER, Panasonic APPLICATION, and MIRRORING. Press the <NETWORK/USB> button until the input switches to MIRRORING.
Page 183: Operating With The Web Browser
Enter the address displayed in Step 4) into the URL entry field of the web browser. Enter the user name and password with moderator rights. f The factory default setting of the user name is moderator, and the password is @Panasonic. Click OK.
Page 184: Description Of The [Moderator Mode] Page
Chapter 5 Operations — Projecting with MIRRORING input Description of the [MODERATOR MODE] page Connection destination Device list Displays the receiving device name that is connected. Click the device name to display the screen of that device as a projected image. Language switching button Switches the display language (Japanese/English).
Page 185: Projecting With Memory Viewer Input
Chapter 5 Operations — Projecting with MEMORY VIEWER input Projecting with MEMORY VIEWER input Display the still image or movie recorded in the USB memory as a projected image using the Memory Viewer function. Images that can be played back with the Memory Viewer function The following still image/movie files can be played back on the projector.
Page 186: Displaying The Memory Viewer Screen
Press the <NETWORK/USB> button to switch the input to MEMORY VIEWER. f Every time the <NETWORK/USB> button is pressed, the input will switch in the order of MEMORY VIEWER, Panasonic APPLICATION, and MIRRORING. Press the <NETWORK/USB> button until the input switches to MEMORY VIEWER.
Page 187 Chapter 5 Operations — Projecting with MEMORY VIEWER input f Press the <AUTO SETUP/CANCEL> button to move the cursor from the thumbnail display area at the right of the screen to the folder list at the left of the screen. Press as to select a folder and press the <ENTER> button to display the files inside that folder in the thumbnail display area, and move the cursor to the thumbnail display area.
Page 188: Playing Back Still Images
Chapter 5 Operations — Projecting with MEMORY VIEWER input Playing back still images This section describes the procedure using an operation example on the Memory Viewer screen in thumbnail view. Playback on the Memory Viewer screen in list view can be performed with the same procedure except for the file selection.
Page 189: Playing Back Movies
To resume the playback of still images, perform the playback operation after the distribution of contents list is completed. *1 The maximum number of display dot for each product is as follows. PT-MZ670, PT-MZ570: 1 920 x 1 080 PT-MW630, PT-MW530: 1 280 x 800...
Page 190 To resume the playback of movies, perform the playback operation after the distribution of contents list is completed. *1 The maximum number of display dot for each product is as follows. PT-MZ670, PT-MZ570: 1 920 x 1 080 PT-MW630, PT-MW530: 1 280 x 800 Resume playback When the automatic playback is disabled (the [NETWORK/USB] menu →...
Page 191: Description Of The Memory Viewer Screen
Chapter 5 Operations — Projecting with MEMORY VIEWER input Description of the Memory Viewer screen The icons on the Memory Viewer screen indicate the following. An icon to indicate moving to upper hierarchy. Select it to move to the upper hierarchy. An icon to display folders in lower hierarchy.
Page 192: Playing Back Using The Contents List
Press the <NETWORK/USB> button to switch the input to MEMORY VIEWER. f Every time the <NETWORK/USB> button is pressed, the input will switch in the order of MEMORY VIEWER, Panasonic APPLICATION, and MIRRORING. Press the <NETWORK/USB> button until the input switches to MEMORY VIEWER.
Page 193: Using The Pairing Function
If the USB memory cannot be directly connected to the <VIEWER/PAIRING> terminal of the projector, such as the projector is installed on the ceiling, it is possible to download the image transfer application software “Plug and Share” to a USB memory from the Panasonic website, and use it.
Page 194 For how to use the image transfer application software “Plug and Share”, refer to the Operating Instructions of “Plug and Share”. Operating Instructions of “Plug and Share” can be downloaded from the Panasonic website (https://panasonic.net/cns/projector/). 194 - ENGLISH...
Page 195: Chapter 6 Maintenance
Maintenance Chapter 6 This chapter describes methods of inspection when there are problems, maintenance, and replacement of the units. ENGLISH - 195...
Page 196: Light Source/Temperature/Filter Indicators
Chapter 6 Maintenance — Light source/temperature/filter indicators Light source/temperature/filter indicators When an indicator lights up If a problem occurs inside the projector, the slight source indicator <LIGHT>/temperature indicator <TEMP>/filter indicator <FILTER> will inform you by illuminating or blinking. Check the status of the indicators and take following measures.
Page 197 Chapter 6 Maintenance — Light source/temperature/filter indicators Temperature indicator <TEMP> Blinking in red Blinking in red Indicator status Lighting in red (2 times) (3 times) Internal temperature is high (standby Status Internal temperature is high (warning). The cooling fan has stopped. status).
Page 198: Maintenance/Replacement
Chapter 6 Maintenance — Maintenance/replacement Maintenance/replacement Before performing maintenance/replacement f Make sure to turn off the projector and disconnect the power plug from the outlet before maintaining or replacing the unit. (x pages 57, 65) f When switching off the projector, make sure to follow the procedures in “Switching off the projector” (x page 65).
Page 199 Chapter 6 Maintenance — Maintenance/replacement Remove the air filter cover. (Fig. 1) f Turn the air filter cover fixing screw (x 1) counterclockwise with a Phillips screwdriver until it turns freely, and remove the air filter cover by placing a finger in the depressed section and pull it out slowly in the direction of the arrow.
Page 200: Replacing The Unit
Chapter 6 Maintenance — Maintenance/replacement Resetting the filter counter Turn on the power of the projector. Press the <MENU> button on the remote control or control panel. f The [MAIN MENU] screen is displayed. Press as to select [PROJECTOR SETUP]. Press the <ENTER> button. f The [PROJECTOR SETUP] screen is displayed.
Page 201 Chapter 6 Maintenance — Maintenance/replacement Air filter unit replacement procedure Attention f Make sure to turn off the projector before replacing the filter. f When attaching the air filter unit, make sure to secure the stability of the projector, and execute in a safe location even if the air filter unit falls accidentally.
Page 202: Troubleshooting
Chapter 6 Maintenance — Troubleshooting Troubleshooting Review the following points. For details, see the corresponding pages. Problems Points to be checked Page f Is the power plug firmly inserted into the outlet? ― f Is the <MAIN POWER> switch set to <OFF>? f Is the wall outlet supplying electricity? ―...
Page 203 Chapter 6 Maintenance — Troubleshooting Problems Points to be checked Page f Is the cable compatible to the condition of the projector used? f Are the connections between the twisted-pair-cable transmitter and an external ― device, and between the twisted-pair-cable transmitter and projector correctly done? The DIGITAL LINK input image is not displayed.
Page 204: Faq
Restoration process of the built-in Wireless Module is performed, which may enable the connection. r Image of the Panasonic APPLICATION input is disrupted. f Under certain reception conditions, the image may be disrupted. In such a case, try the following.
Page 205 Chapter 6 Maintenance — FAQ g It may improve by ending the mirroring connection once, and then change to a different channel in the [NETWORK/USB] menu → [MIRRORING] → [CHANNEL]. End the mirroring connection once, and re- connect. f Confirm that there is no problem with the used contents. f It may be caused by the processing performance or the wireless transfer performance of the device in use.
Page 206: [Self Test] Display
Chapter 6 Maintenance — [SELF TEST] display [SELF TEST] display [SELF TEST] can be checked in the [PROJECTOR SETUP] menu → [STATUS] → [SELF TEST]. The following list shows the alphanumeric symbol that is displayed when an error or a warning has occurred and its details.
Page 207 Chapter 6 Maintenance — [SELF TEST] display r Measure for error and warning Action Measure number The operating environment temperature is too high. Use the projector in an appropriate operating environment temperature The operating environment temperature is too low. Use the projector in an appropriate operating environment temperature Battery replacement is required.
Page 208: Chapter 7 Appendix
Appendix Chapter 7 This chapter describes specifications and after-sales service for the projector. 208 - ENGLISH...
Page 209: Technical Information
HDMI1 1, 2 HDMI2 DIGITAL LINK INPT? Input selection query MEMORY VIEWER Panasonic APPLICATION MIRRORING Shutter function disabled (shutter: open), mute function disabled Shutter control/audio AVMT Shutter function enabled (shutter: closed), mute function disabled output control Shutter function disabled (shutter: open), mute function disabled...
Page 210: Control Commands Via Lan
APPLICATION 52 / MIRRORING Input signal resolution AAAA: Horizontal resolution IRES ? AAAAxBBBB query BBBB: Vertical resolution 1920x1200 Only for PT-MZ670, PT-MZ570 Recommended RRES ? resolution query 1280 x 800 Only for PT-MW630, PT-MW530 FILT ? Filter runtime inquiry xxxxx Returns the runtime of the filter.
Page 211: Error Response
“xxxxxx:yyyyy:zzzzzzzz” xxxxxx Administrator rights user name for the web control (default user name is “dispadmin”) yyyyy Password of above administrator rights user (default password is “@Panasonic”) zzzzzzzz 8-byte random number obtained in Step 2) Command transmission method Transmit using the following command formats.
Page 212 Chapter 7 Appendix — Technical information Termination Data section Blank Mode symbol Command “NTCONTROL” ‘ ’ ‘0’ (CR) example (ASCII string) 0x20 0x30 0x0d Data length 9 bytes 1 byte 1 byte 1 byte f Mode: 0 = Non-protect mode f Example: Response during non-protect mode “NTCONTROL 0”...
Page 213: Serial In> Terminal
Chapter 7 Appendix — Technical information <SERIAL IN> terminal The <SERIAL IN> terminal of the projector conforms with RS-232C so that the projector can be connected to and controlled from a computer. Connection When connecting directly Projector connecting terminals Computer D-Sub 9p (female) D-Sub 9p (male) Communication cable (straight) When connecting using DIGITAL LINK compatible device...
Page 214: Basic Format
Chapter 7 Appendix — Technical information Basic format Transmission from the computer starts with STX, then the ID, command, parameter, and ETX are sent in this order. Add parameters according to the details of control. ID designate ZZ, 01 to 64 (2 bytes) End (1 byte) Parameter (undefined length)
Page 215: Control Command
Power standby STANDBY Power query Power on VIDEO RGB1 RGB2 HDMI1 Switching the input HDMI2 signal DIGITAL LINK Panasonic APPLICATION MIRRORING MEMORY VIEWER Shutter control OPEN Shutter status query CLOSE NORMAL/VID AUTO Aspect ratio switch WIDE NATIVE FULL Aspect ratio settings...
Page 216: Remote 1 In> Terminal
Chapter 7 Appendix — Technical information <REMOTE 1 IN> terminal The projector can be remotely controlled (contact control) by the control board that is located far away form the projector where the signal from the remote control does not reach. Use the <REMOTE 1 IN> terminal on the connecting terminals of the projector to connect to the control board. Remote control Contact control Remote control/contact control...
Page 217: List Of Compatible Signals
Chapter 7 Appendix — Technical information List of compatible signals The following table specifies the video signals compatible with the projector. This signal with l in the supported signal column is supported. f Symbols that indicate formats are as follows. g V: VIDEO g R: RGB g Y: YC g H: HDMI...
Page 218 Note f A signal with a different resolution is converted to the number of display dots. The number of display dots is as follows. g PT-MZ670, PT-MZ570: 1 920 x 1 200 g PT-MW630, PT-MW530: 1 280 x 800 f The “i” at the end of the resolution indicates an interlaced signal.
Page 219: Specifications
The specifications of the projector are as follows. Power supply 100 V - 240 V ~ (100 V - 240 V alternating current), 50 Hz/60 Hz PT-MZ670 525 W (6.0 A - 2.5 A) PT-MW630 505 W (5.9 A - 2.4 A)
Page 220 Chapter 7 Appendix — Specifications 32 dB When [LIGHT POWER] in [ECO MANAGEMENT] is set to [NORMAL] Noise level 26 dB When [LIGHT POWER] in [ECO MANAGEMENT] is set to [QUIET] Operating environment 0 °C (32 °F) to 45 °C (113 °F) temperature Operating environment...
Page 221 Chapter 7 Appendix — Specifications r Wireless LAN To use the wireless LAN function with the projector, it is necessary to attach the optional Wireless Module (Model No.: ET-WM300). Compliance standards IEEE802.11a/b/g/n Transmission method DSSS, OFDM Modulation method DBPSK, DQPSK, CCK, BPSK, QPSK, 16QAM, 64QAM, MIMO IEEE802.11b Maximum 11 Mbps Transmission speed...
Page 222 Chapter 7 Appendix — Specifications When MIRRORING input is selected PT‑MZ670, PT‑MZ670L, IEEE802.11b/g/n Channels 1 to 11 PT‑MW630, PT‑MW630L, PT‑MZ570, PT‑MZ570L, IEEE802.11a/n Channels 36/40/44/48 (W52) PT‑MW530, PT‑MW530L PT‑MZ670A, PT‑MZ670LA, IEEE802.11b/g/n Channels 1 to 11 PT‑MW630A, PT‑MW630LA, Channels 149/153/157/161 (W58: excluding PT‑MZ570A, PT‑MZ570LA, IEEE802.11a/n ch 165) PT‑MW530A, PT‑MW530LA...
Page 223: Compatible Signal
RGB input f Resolution: 640 x 400 to 1 920 x 1 200 f Dot clock frequency: 162 MHz or less f PIAS (Panasonic Intelligent Auto Scanning) system input f Resolution: 480i/576i to 1 920 x 1 080 f Dot clock frequency: 148.5 MHz or less f The SYNC/HD and VD terminals do not support 3 value SYNC.
Page 224: Dimensions
Chapter 7 Appendix — Dimensions Dimensions Unit: mm 280 (11-1/32") 235 (9-1/4") 326 (12-27/32") 470 (18-1/2") 560 (22-1/16") * The above dimensions are obtained when the standard zoom lens is attached. * Actual dimensions may differ depending on the product. 224 - ENGLISH...
Page 225: Precautions For Attaching The Ceiling Mount Bracket
Ask a qualified technician to do the installation work such as mounting the projector on the ceiling. f Panasonic takes no responsibility for any damage to the projector resulting from use of the Ceiling Mount Bracket not manufactured by Panasonic or the inappropriate choice of location for installing the Ceiling Mount Bracket, even if the warranty period of the projector has not expired.
Page 226: Index
<TEST PATTERN> button <ECO> button Pairing function Remote control 28, 75 Remote control 28, 76 [Panasonic APPLICATION] [TEXT CHANGE] [ECO MANAGEMENT] Panasonic APPLICATION input [TINT] <ENTER> button [PICTURE] 81, 84 Troubleshooting Projector body [PICTURE MODE] Remote control 28, 79 [POSITION]...
Page 227 Index Web control [WIRED LAN] [WIRELESS LAN] Wireless Module [ZOOM] <ZOOM> button Remote control 28, 67 ENGLISH - 227...
Page 228 Atıkların atılmasıyla ilgili yanlış uygulamalar yasayla belirlenmiş olan cezalara sebebiyet verebilir. Panasonic Corporation Web Site : https://panasonic.net/cns/projector/ © Panasonic Corporation 2017 Panasonic System Communications Company of North America 5th Floor, Two Riverfront Plaza, Newark, NJ 07102-5490 TEL: (877) 803 - 8492 Panasonic Canada Inc.
