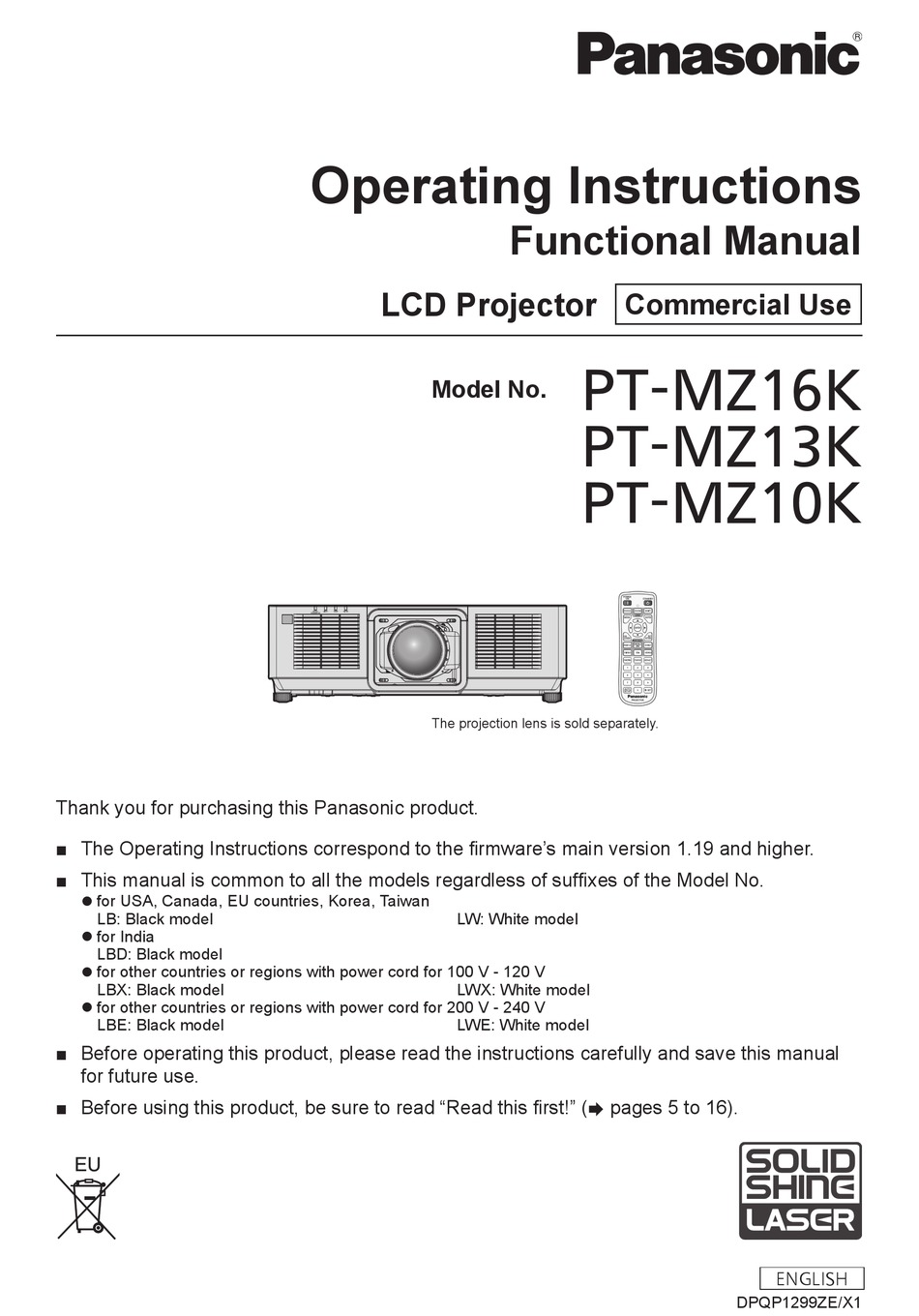

Page 1 PT-MZ10K The projection lens is sold separately. Thank you for purchasing this Panasonic product. ■ The Operating Instructions correspond to the firmware’s main version 1.19 and higher. ■ This manual is common to all the models regardless of suffixes of the Model No.
Page 2: Table Of Contents
Contents Contents Read this first! Chapter 3 Basic Operations Switching on/off the projector Chapter 1 Preparation Connecting the power cord Power indicator Precautions for use Switching on the projector Intended use of the product When the initial setting screen is displayed Cautions when transporting Making adjustments and selections Cautions when installing...
Page 3 Contents [POSITION] menu [PROJECTOR SETUP] menu [SHIFT] [PROJECTOR ID] [ASPECT] [PROJECTION METHOD] [ZOOM] [LENS] [CLOCK PHASE] [OPERATION SETTING] [GEOMETRY] [LIGHT OUTPUT] [ADVANCED MENU] menu [STANDBY MODE] [DIGITAL CINEMA REALITY] [QUICK STARTUP] [NO SIGNAL SETTING] [BLANKING] [INITIAL STARTUP] [INPUT RESOLUTION] [STARTUP INPUT SELECT] [CLAMP POSITION] [DATE AND TIME] [EDGE BLENDING]...
Page 4 Contents Chapter 5 Operations Network connection Connecting via wired LAN Web control function Computer that can be used for setting Accessing from the web browser Using the information monitor function Screen mode Top menu Sub-menu Basic operation procedure in the menu operation mode [USER VIEW] menu [SETUP] menu...
Page 5: Read This First
Read this first! Read this first! WARNING: THIS APPARATUS MUST BE EARTHED. WARNING: To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or moisture. This device is not intended for use in the direct field of view at visual display workplaces. To avoid incommoding reflexions at visual display workplaces this device must not be placed in the direct field of view.
Page 6 Read this first! WARNING: RISK OF ELECTRIC SHOCK. DON’T OPEN Indicated on the projector The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
Page 7 Read this first! (for Taiwan) This projector is the Class 1 laser product that complies with IEC/EN 60825-1:2014. 第 1 類雷射產品 (for India) This projector is the Class 1 laser product that complies with IEC/EN 60825-1:2014. (for other countries or regions) This projector is the Class 1 laser product that complies with IEC/EN 60825-1:2014.
Page 8 PT-MZ13KLB / PT-MZ13KLW / PT-MZ13KLBE / PT-MZ13KLWE / PT-MZ13KLBX / PT-MZ13KLWX / PT-MZ10KLB / PT-MZ10KLW / PT-MZ10KLBE / PT-MZ10KLWE / PT-MZ10KLBX / PT-MZ10KLWX Trade Name: Panasonic Responsible Party: Panasonic Corporation of North America Address: Two Riverfront Plaza, Newark, NJ 07102-5490 General Contact: http://www.panasonic.com/support Projector Contact: https://panasonic.net/cns/projector/...
Page 9 L or colored RED. How to replace the fuse: Open the fuse compartment with a screwdriver and replace the fuse. Importer’s name and address within the European Union Panasonic Marketing Europe GmbH Panasonic Testing Centre Winsbergring 15, 22525 Hamburg, Germany...
Page 10 *1 The risk group varies depending on the throw ratio of the actual use condition. *2 When PT-MZ16K or PT-MZ13K is used with the optional Zoom Lens (Model No.: ET-EMT800) attached, the hazard distance exceeds 1 m (39-3/8") and therefore it is categorized as the risk group 3.
Page 11 작동하기 전에 위험 거리에 대해서는 사용 설명서를 참조하십시오. DPQT1432ZA DPQT1460ZA DPQT1461ZA PT-MZ16K PT-MZ13K PT-MZ10K Each dimension inside the hazard distance (within RG3 range) for combination with projection lens which the hazard distance exceeds 1 m (39-3/8") is as follows. (Unit: m) Projection lens Model No.
Page 12 Read this first! WARNING: r POWER The wall outlet or the circuit breaker shall be installed near the equipment and shall be easily accessible when problems occur. If the following problems occur, cut off the power supply immediately. Continued use of the projector in these conditions will result in fire or electric shock, or will cause visual impairment.
Page 13 If liquid enters inside of the projector, consult your dealer. f Particular attention must be paid to children. Use the ceiling mount bracket specified by Panasonic. Using the ceiling mount bracket other than the specified one will result in falling accidents.
Page 14 Read this first! CAUTION: r POWER When disconnecting the power cord, be sure to hold the power plug and power connector. If the power cord itself is pulled, the lead will become damaged, and fire, short-circuits or serious electric shocks will result.
Page 15 Read this first! CAUTION: r ACCESSORIES When not using the projector for an extended period of time, remove the batteries from the remote control. Failure to observe this will cause the batteries to leak, overheat, catch fire or explode, which may result in fire or contamination of surrounding area.
Page 16 Read this first! Brazil Only Brasil Apenas r Manuseio de baterias usadas BRASIL Após o uso, as pilhas e/ou baterias deverão ser entregues ao estabelecimento comercial ou rede de assistência técnica autorizada. Cobrir os terminais positivo (+) e negativo (-) com uma fita isolante adesiva, antes de depositar numa caixa destinada para o recolhimento.
Page 17 “Operating Instructions – Basic Guide” is supplied with the product. At least three (3) years from delivery of this product, Panasonic will give to any third party who contacts us at the contact information provided below, for a charge no more than our cost of physically performing source code distribution, a complete machine-readable copy of the corresponding source code covered under GPL V2.0, LGPL...
Page 18 3. Connect with external devices. *1 A value for PT-MZ16K. A value for PT-MZ13K is 13 000 lm. A (x page 46) value for PT-MZ10K is 10 000 lm.
Page 19: Chapter 1 Preparation
Preparation Chapter 1 This chapter describes things you need to know or check before using the projector. ENGLISH - 19...
Page 20: Precautions For Use
Chapter 1 Preparation — Precautions for use Precautions for use Intended use of the product The purpose of the projector is to project a video signal from imaging equipment or a computer on a screen or other surface as a still image or moving image. Cautions when transporting f Transport the projector with two or more people.
Page 21 Chapter 1 Preparation — Precautions for use rFocus adjustment The high clarity projection lens is thermally affected by the light from the light source, making the focus generally unstable in the period just after switching on the power. This projector is equipped with the active focus optimizer function and automatically corrects the focus based on the detected temperature change of the lens or the detected change in brightness of the image, enabling the focus to be stable even just after switching on the power or when there is a large change in brightness of the image.
Page 22 Panasonic takes no responsibility for any damage to the product caused by an inappropriate choice of location for installing the projector, even if the warranty period of the product has not expired.
Page 23: Security
Change your password periodically. A password can be set in the [SECURITY] menu → [SECURITY PASSWORD CHANGE]. f Panasonic Corporation or its affiliate companies will never ask for your password directly. Do not divulge your password in case you receive such inquiries.
Page 24: Storing
Auto Screen Adjustment Upgrade Kit (Model No.: ET-CUK10) and the optional Auto Screen Adjustment Upgrade Kit (PC) (Model No.: ET-CUK10P) are required. “Geometric & Setup Management Software” can be downloaded from the Panasonic website (https://panasonic. net/cns/projector/pass/). It is necessary to register and login to PASS to download.
Page 25: Accessories
Chapter 1 Preparation — Precautions for use Accessories Make sure that the following accessories are provided with your projector. Numbers enclosed in < > show the number of accessories. Wireless/wired remote control unit <1> For Korea (N2QAYA000208) (K2CZ3YY00032) <1> 200 V - 240 V For India (K2CZ3YY00058) <1>...
Page 26: Optional Accessories
NFC function enabled from the time of factory shipment, and there are some countries or regions where the NFC Upgrade Kit cannot be applied. For the availability of the NFC function in the country or region where you purchased the product, visit the Panasonic website (https://panasonic.net/cns/projector/) or consult your dealer.
Page 27: About Your Projector
Chapter 1 Preparation — About your projector About your projector Remote control Front Bottom Power standby <v> button Number (<0> - <9>) buttons Used for entering an ID number or a password in a multiple Sets the projector to the state where the projector is turned off (standby mode) when the <MAIN POWER>...
Page 28 Chapter 1 Preparation — About your projector g Be sure the batteries are inserted properly. For other instructions, read the instructions related to batteries that are described in “Read this first!”. Caution label at the back of the remote control Note f When operating the remote control by directly pointing at the remote control signal receiver of the projector, operate the remote control within a distance approximately 30 m (98'5") from the remote control signal receiver.
Page 29: Projector Body
Chapter 1 Preparation — About your projector Projector body Front Side Rear Bottom Projection direction Remote control signal receiver (front) 10 <MAIN POWER> switch Turns on/off the main power. Power indicator <ON (G)/STANDBY (R)> Indicates the status of the power. 11 Power cord holder Light source indicator <LIGHT>...
Page 30 NFC function enabled from the time of factory shipment, and there are some countries or regions where the NFC Upgrade Kit cannot be applied. For the availability of the NFC function in the country or region where you purchased the product, visit the Panasonic website (https:// panasonic.net/cns/projector/) or consult your dealer.
Page 31 Chapter 1 Preparation — About your projector r Connecting terminals <SDI IN> terminal <SERIAL/MULTI PROJECTOR SYNC IN> terminal This is a terminal to input the SDI signal. This is the RS-232C compatible terminal to externally control the projector by connecting a computer. <RGB IN>...
Page 32: Preparing The Remote Control
Chapter 1 Preparation — Preparing the remote control Preparing the remote control Inserting and removing the batteries (ii) Fig. 1 Fig. 2 Open the cover. (Fig. 1) Insert the batteries and close the cover (insert the m side first). (Fig. 2) f When removing the batteries, perform the steps in reverse order.
Page 33: Chapter 2 Getting Started
Getting Started Chapter 2 This chapter describes things you need to do before using the projector such as the setup and connections. ENGLISH - 33...
Page 34: Setting Up
Chapter 2 Getting Started — Setting up Setting up Usable outlet This projector supports AC 100 V to AC 240 V as the power supply. A grounded outlet supporting 15 A is required with either voltage. The shape of the usable outlet differs depending on the power supply. Following illustrations are examples. 2P/3W 15 A 250 V 2P/3W 20 A 250 V 2P/3W 15 A 250 V...
Page 35 Chapter 2 Getting Started — Setting up Mounting on the ceiling and projecting forward Mounting on the ceiling and projecting from rear (Using the translucent screen) Menu item Setting value Menu item Setting value [FRONT/REAR] [FRONT] [FRONT/REAR] [REAR] [FLOOR/CEILING] [AUTO] or [CEILING] [FLOOR/CEILING] [AUTO] or [CEILING] Portrait setting and projecting forward...
Page 36: Parts For Installation (Optional)
Chapter 2 Getting Started — Setting up Parts for installation (optional) The optional Ceiling Mount Bracket is required. The Ceiling Mount Bracket (Model No.: ET-PKD120H (for High Ceilings), ET-PKD120S (for Low Ceilings), ET-PKD130H (for High Ceilings, 6-axis Adjustment)) is used together with the Ceiling Mount Bracket (Model No.: ET-PKE301B (Projector Mount Bracket)).
Page 37 Chapter 2 Getting Started — Setting up (Unit: m) Projection lens Model No. Lens protrusion dimension (L1) (approximate value) ET-EMW200 0.152 ET-EMW300 0.121 ET-EMW400 0.121 ET-EMW500 0.122 ET-EMS600 0.117 ET-EMT700 0.167 ET-EMT800 0.172 Note f For the adjustment range of the projected image position with the lens shift, refer to “Lens shift range” (x page 71). [GEOMETRY] projection range [VERTICAL KEYSTONE] (viewed from the side) [HORIZONTAL KEYSTONE] (viewed from above)
Page 38 Chapter 2 Getting Started — Setting up Standard status Only [CURVED Only [KEYSTONE] used [KEYSTONE] and [CURVED CORRECTION] used together CORRECTION] used Projection Vertical Horizontal Vertical Horizontal lens Model keystone keystone keystone keystone Min. value of Min. value of Min. value of Min.
Page 39 Chapter 2 Getting Started — Setting up Projection distance of each projection lens A ±5 % error in listed projection distances may occur. When [GEOMETRY] is used, distance is corrected to become smaller than the specified image size. r When the screen aspect ratio is 16:10 (Unit: m) Lens type Zoom Lens...
Page 40 Chapter 2 Getting Started — Setting up r When the screen aspect ratio is 16:9 (Unit: m) Lens type Zoom Lens Projection lens Model No. ET-EMS600 ET-EMW200 ET-EMW300 ET-EMW400 ET-EMW500 Throw ratio 1.35-2.10:1 0.480-0.550:1 0.550-0.690:1 0.690-0.950:1 0.950-1.36:1 Projected image size Projection distance (L) Height Width Min.
Page 41 Chapter 2 Getting Started — Setting up r When the screen aspect ratio is 4:3 (Unit: m) Lens type Zoom Lens Projection lens Model No. ET-EMS600 ET-EMW200 ET-EMW300 ET-EMW400 ET-EMW500 Throw ratio 1.62-2.50:1 0.580-0.660:1 0.660-0.830:1 0.830-1.15:1 1.14-1.63:1 Projected image size Projection distance (L) Height Width Min.
Page 42: Adjusting Adjustable Feet
Chapter 2 Getting Started — Setting up Formula for calculating the projection distance per projection lens To use a projected image size not listed in this manual, check the projected image size SD (m) and use the respective formula to calculate projection distance. The unit of all the formulae is m.
Page 43: Attaching/Removing The Projection Lens (Optional)
Before attaching the projection lens, remove the lens cover attached to the projection lens. f Panasonic takes no responsibility for any damage or malfunction of the product resulting from the use of projection lenses which are not manufactured by Panasonic. Be sure to use the specified projection lenses.
Page 44: Removing The Projection Lens
Chapter 2 Getting Started — Attaching/removing the projection lens (optional) Align the mark on the projection lens (red) with the protruding mark of the projector, and insert the projection lens all the way in. (Fig. 4) While holding the projection lens, turn the lock lever fully to the Lock side. (Fig. 5) f Make sure to fully turn the lens lock lever.
Page 45 Chapter 2 Getting Started — Attaching/removing the projection lens (optional) Attention f Store the removed projection lens where it will be free from vibration and impact. f Store the removed lens fixing screw in a safe place. ENGLISH - 45...
Page 46: Connecting
Chapter 2 Getting Started — Connecting Connecting Before connecting f Before connecting, carefully read the operating instructions for the external device to be connected. f Turn off the power of all devices before connecting cables. f Connect cables taking care of the following descriptions. Failure to do so may result in malfunctions. g When connecting a cable to a device connected to the projector or the projector itself, touch any nearby metallic objects to eliminate static electricity from your body before performing work.
Page 47: Connecting Example: Av Equipment
Chapter 2 Getting Started — Connecting <DVI-D IN> terminal pin assignments and signal names Outside view Pin No. Signal name Pin No. Signal name T.M.D.S data 2- (13) ― T.M.D.S data 2+ (14) +5 V T.M.D.S data 2/4 shield (15) ― (16) Hot plug detection (24)
Page 48: Connecting Example: Computers
Chapter 2 Getting Started — Connecting For <SDI IN> terminal Digital VCR for commercial use HD-SDI signal or 3G-SDI signal Note f Setting of the [DISPLAY OPTION] menu → [SDI IN] may be necessary depending on the connected external device. f Use a connection cable 5C-FB or higher (such as 5C-FB or 7C-FB), or Belden 1694A or higher to properly transmit the image. Use a connection cable with length of 100 m (328'1") or shorter.
Page 49: Connecting Example Using Digital Link
Chapter 2 Getting Started — Connecting f The <DVI-D IN> terminal supports single links only. f If you operate the projector using the computer with the resume feature (last memory), you may have to reset the resume feature to operate the projector. Connecting example using DIGITAL LINK Twisted-pair-cable transmitters based on the communication standard HDBaseT such as the optional DIGITAL...
Page 50: Connecting Example When Using The Contrast Synchronization Function/Shutter Synchronization Function
(https://panasonic.net/cns/projector/). Note that the verification for devices of other manufacturers has been made for the items set by Panasonic Corporation, and not all the operations have been verified. For operation or performance problems caused by the devices of other manufacturers, contact the respective manufacturers.
Page 51 Chapter 2 Getting Started — Connecting Connecting example Connect all the projectors to be linked in a loop by daisy chain connection when using the contrast synchronization function/shutter synchronization function. The number of linked projectors is limited to the maximum of 64 projectors. Connecting terminals of the first projector Connecting terminals of the second projector Communication cable (straight all connected)
Page 52: Chapter 3 Basic Operations
Basic Operations Chapter 3 This chapter describes basic operations to start with. 52 - ENGLISH...
Page 53: Switching On/Off The Projector
Chapter 3 Basic Operations — Switching on/off the projector Switching on/off the projector Connecting the power cord Make sure that the supplied power cord is securely fixed to the <AC IN> terminal of the projector to prevent it from being removed easily. Confirm that the <MAIN POWER>...
Page 54 Chapter 3 Basic Operations — Switching on/off the projector How to remove the power cord For India (when using the power cord with the lock button) Lock button Fig. 1 Fig. 2 Confirm that the <MAIN POWER> switch on the side of the projector is on the <OFF> side, and remove the power plug from the outlet.
Page 55: Power Indicator
Chapter 3 Basic Operations — Switching on/off the projector Power indicator Indicate the status of the power. Check the status of the power indicator <ON (G)/STANDBY (R)> before operating the projector. Power indicator <ON (G)/STANDBY (R)> Indicator status Projector status The main power is switched off. The power is switched off.
Page 56: Switching On The Projector
Chapter 3 Basic Operations — Switching on/off the projector Switching on the projector Attach the projection lens before switching on the projector. Remove the lens cover first. Connect the power cord to the projector. Connect the power plug to an outlet. Press the <ON>...
Page 57: When The Initial Setting Screen Is Displayed
Chapter 3 Basic Operations — Switching on/off the projector When the initial setting screen is displayed When the projector is switched on for the first time after purchase, or when the [PROJECTOR SETUP] menu → [INITIALIZE] → [FACTORY RESET] is executed, the focus adjustment screen is displayed after projection starts, and then the [INITIAL SETTING] screen is displayed.
Page 58 Chapter 3 Basic Operations — Switching on/off the projector Initial setting (operation setting) Set the items regarding the operating method depending on the duration of use and the usage of the projector. After completed the initial setting, you can change the settings of each item from the [PROJECTOR SETUP] menu →...
Page 59 50.0 6 400 40.0 30.0 20 000 21 000 22 000 23 000 24 000 25 000 Estimated runtime (hours) r PT-MZ13K [LIGHT OUTPUT] (%) Brightness (lm) Estimated runtime (hours) 100.0 13 000 20 000 80.0 10 400 21 500 60.0...
Page 60 Chapter 3 Basic Operations — Switching on/off the projector r PT-MZ10K [LIGHT OUTPUT] (%) Brightness (lm) Estimated runtime (hours) 100.0 10 000 20 000 80.0 8 000 21 500 60.0 6 000 23 000 40.0 4 000 25 000 *1 Estimated runtime is the time until the brightness decreases to approximately half of the time of delivery when the projector is used with the [PICTURE] menu →...
Page 61 Chapter 3 Basic Operations — Switching on/off the projector Initial setting (installation setting) Set [FRONT/REAR] and [FLOOR/CEILING] in [PROJECTION METHOD] depending on the installation mode. Refer to “Installation mode” (x page 34) for details. After completed the initial setting, you can change the setting from the [PROJECTOR SETUP] menu → [PROJECTION METHOD].
Page 62 Chapter 3 Basic Operations — Switching on/off the projector Initial setting (screen setting) Set the screen format (aspect ratio) and display position of the image. After completed the initial setting, you can change the settings of each item from the [DISPLAY OPTION] menu → [SCREEN SETTING].
Page 63 Chapter 3 Basic Operations — Switching on/off the projector Initial setting (time zone) Set [TIME ZONE] in accordance with the country or region where you use the projector. After completed the initial setting, you can change the setting from the [PROJECTOR SETUP] menu → [DATE AND TIME].
Page 64: Making Adjustments And Selections
Chapter 3 Basic Operations — Switching on/off the projector Making adjustments and selections When the [PROJECTOR SETUP] menu → [LENS] → [ACTIVE FOCUS OPTIMIZER] → [ACTIVE FOCUS] is set to [OFF], it is recommended to perform the focus adjustment after 30 minutes or more have elapsed with the focus test pattern displayed.
Page 65: Switching Off The Projector
Chapter 3 Basic Operations — Switching on/off the projector Switching off the projector Press the power standby <v> button. f The [POWER OFF(STANDBY)] confirmation screen is displayed. Press qw to select [OK], and press the <ENTER> button. (Or press the power standby <v> button again.) f Projection of the image will stop, and the power indicator <ON (G)/STANDBY (R)>...
Page 66: Projecting
Chapter 3 Basic Operations — Projecting Projecting Check the external device connection (x page 46) and the power cord connection (x page 53), and turn on the power (x page 56) to start projection. Select the image to project, and adjust appearance of the projected image.
Page 67: Adjusting The Focus, Zoom, And Lens Shift
Chapter 3 Basic Operations — Projecting Switching the input by displaying the input selection screen The input for projection can be selected by displaying the input selection screen using the <INPUT SELECT> button on the control panel. Press the <INPUT SELECT> button on the control panel. f The input selection screen is displayed.
Page 68: Adjusting The Focus Balance
Chapter 3 Basic Operations — Projecting Note f The focus adjustment and the zoom adjustment cannot be performed in following case. g When [---] is displayed in the [PROJECTOR SETUP] menu → [LENS] → [LENS TYPE] f The adjustment can be performed faster by holding down asqw while adjusting the focus or zoom. f The adjustment can be performed faster by holding down asqw for approximately three seconds or longer while adjusting the lens shift.
Page 69: Executing The Lens Calibration
Chapter 3 Basic Operations — Projecting Executing the lens calibration When the projector is used for the first time or when the projection lens is replaced, execute the lens calibration. Detect the lens adjustment limit value, and perform the calibration in the adjustment range. Press the <MENU>...
Page 70: Moving The Projection Lens To The Home Position
Chapter 3 Basic Operations — Projecting Moving the projection lens to the home position Operate in following procedure to move the projection lens to the home position. When operating from the main menu Press the <MENU> button. f The [MAIN MENU] screen is displayed. Press as to select [PROJECTOR SETUP].
Page 71: Lens Shift Range
Chapter 3 Basic Operations — Projecting Lens shift range The projector can adjust the position of the projected image within the lens shift range for each projection lens based on the position of the projected image in the home position (standard projection position). Perform the lens shift adjustment within the range indicated in the following illustration.
Page 72: Operating With The Remote Control
Chapter 3 Basic Operations — Operating with the remote control Operating with the remote control Using the shutter function If the projector is not used for a certain period of time during the meeting intermission, for example, it is possible to turn off the image temporarily. button Press the <SHUTTER>...
Page 73: Using The Automatic Setup Function
Chapter 3 Basic Operations — Operating with the remote control Using the automatic setup function The image position and signal level when the DVI-D/HDMI signal is input, or the resolution, clock phase, image position, and signal level when the analog RGB signal is input can be adjusted automatically. (Analog RGB signal is a signal structured with dots just like the computer signal.) It is recommended to input an image with bright white borders at the edges and high-contrast black and white characters when executing the automatic setup.
Page 74: Using The Status Function
Chapter 3 Basic Operations — Operating with the remote control Using the status function Display the status of the projector. button Press the <STATUS> button. f The [STATUS] screen is displayed. STATUS PROJECTOR TYPE PT-MZ16K SERIAL NUMBER 123456789012 PROJECTOR RUNTIME 10000h LIGHT RUNTIME 10000h / 10000h CONTINUOUS LIGHTING TIME...
Page 75: Chapter 4 Settings
Settings Chapter 4 This chapter describes the settings and adjustments you can make using the on-screen menu. ENGLISH - 75...
Page 76: Menu Navigation
Chapter 4 Settings — Menu navigation Menu navigation The on-screen menu (Menu) is used to perform various settings and adjustments of the projector. Navigating through the menu Operating procedure button Press the <MENU> button on the remote control or control panel. f The [MAIN MENU] screen is displayed.
Page 77: Main Menu
Chapter 4 Settings — Menu navigation Press as to select a sub-menu, and press qw or the <ENTER> button to change or adjust settings. f Some items will switch in order as follows each time you press qw. f For some items, press qw to display an individual adjustment screen with a bar scale as shown below. CONTRAST ADJUST Note...
Page 78: Sub-Menu
Chapter 4 Settings — Menu navigation Main menu item [SIMPLE] mode Page [DISPLAY LANGUAGE] [DISPLAY OPTION] [PROJECTOR SETUP] [TEST PATTERN] [SIGNAL LIST] [SECURITY] ― [NETWORK] Sub-menu The sub-menu of the selected main menu item is displayed, and you can set and adjust items in the sub-menu. The menu item with l in the [SIMPLE] mode column indicates that this is displayed in the menu screen (OSD) when the [DISPLAY OPTION] menu →...
Page 79 Chapter 4 Settings — Menu navigation Sub-menu item Factory default [SIMPLE] mode Page [INPUT RESOLUTION] ― ― [CLAMP POSITION] [24] ― [EDGE BLENDING] [OFF] ― [FRAME RESPONSE] [NORMAL] ― [RASTER POSITION] ― ― *1 Depends on the signal input. [DISPLAY LANGUAGE] Details (x page 101) [DISPLAY OPTION] Sub-menu item...
Page 80 Chapter 4 Settings — Menu navigation Sub-menu item Factory default [SIMPLE] mode Page [FUNCTION BUTTON] ― ― [FILTER COUNTER] ― ― [STATUS] ― [INFO MONITOR SETTING] ― ― [DATA CLONING] ― ― [SAVE ALL USER DATA] ― ― [LOAD ALL USER DATA] ―...
Page 81: [Picture] Menu
Chapter 4 Settings — [PICTURE] menu [PICTURE] menu On the menu screen, select [PICTURE] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” (x page 76) for the operation of the menu screen. [PICTURE MODE] You can switch to the desired picture mode suitable for the image source and the environment in which the projector is used.
Page 82: [Color]
Chapter 4 Settings — [PICTURE] menu Press qw to adjust the level. Operation Adjustment Range of adjustment Increases the brightness of the dark (black) parts of the screen. Press w. -31 - +31 Reduces the brightness of the dark (black) parts of the screen. Press q.
Page 83: [Gamma]
Chapter 4 Settings — [PICTURE] menu Press qw or the <ENTER> button. f The [COLOR TEMPERATURE] individual adjustment screen is displayed. Press qw to select [USER]. Press the <ENTER> button. f The [COLOR TEMPERATURE] screen is displayed. Press as to select [WHITE BALANCE]. Press the <ENTER>...
Page 84: [System Daylight View]
Chapter 4 Settings — [PICTURE] menu Press qw or the <ENTER> button. f The [GAMMA] individual adjustment screen is displayed. Press qw to adjust the level. Operation Adjustment Range of adjustment Press w. The intermediate tone becomes brighter. -8 - +7 The intermediate tone becomes darker.
Page 85: [Dynamic Contrast]
Chapter 4 Settings — [PICTURE] menu [DYNAMIC CONTRAST] Light adjustment of the light source and signal compensation are performed automatically according to the image to make the contrast optimum for the image. Press as to select [DYNAMIC CONTRAST]. Press qw or the <ENTER> button. f The [DYNAMIC CONTRAST] individual adjustment screen is displayed.
Page 86: [System Selector]
Chapter 4 Settings — [PICTURE] menu Setting item Details Does not set the fade-out of the image when the light source is [OFF] turned off with [LIGHTS OUT TIMER]. [LIGHTS OUT FADE-OUT] Sets the time to fade out the image when the light source is turned (Setting of fade-out when off with [LIGHTS OUT TIMER].
Page 87: [Default Picture Mode]
Chapter 4 Settings — [PICTURE] menu [DEFAULT PICTURE MODE] Set the picture mode to be applied when a new signal is input. The setting in the [PICTURE] menu → [PICTURE MODE] will switch according to the setting. Press as to select [DEFAULT PICTURE MODE]. Press qw to switch the item.
Page 88: [Position] Menu
Chapter 4 Settings — [POSITION] menu [POSITION] menu On the menu screen, select [POSITION] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” (x page 76) for the operation of the menu screen. Note f When the optional DIGITAL LINK output supported device (Model No.: ET-YFB100G, ET-YFB200G) is connected to the <DIGITAL LINK>...
Page 89: [Zoom]
Chapter 4 Settings — [POSITION] menu [THROUGH] Displays images without changing the resolution of the input signals. Displays images with the aspect ratio converted to 16:9 when standard signals are input . When [16:9] wide-screen signals are input , the images are displayed without changing the aspect ratio. Displays images without changing the aspect ratio when standard signals are input .
Page 90: [Clock Phase]
Chapter 4 Settings — [POSITION] menu Press the <ENTER> button. f The [ZOOM] screen is displayed. Press as to select [MODE]. Press qw to switch the item. [INTERNAL] Enlarges the size within the aspect range set with [SCREEN FORMAT]. [FULL] Enlarges or reduces the size using the entire display area set with [SCREEN FORMAT]. Press as to select [INTERLOCKED].
Page 91 Software” . Up to three correction data can be saved. [PC-3] *1 “Geometric & Setup Management Software” can be downloaded from the Panasonic website (https://panasonic.net/cns/projector/pass/). It is necessary to register and login to PASS to download. Note f The menu, logo, or waveform monitor display may run off the screen when [GEOMETRY] is set.
Page 92 Chapter 4 Settings — [POSITION] menu [CURVED CORRECTION] [LENS THROW RATIO] Set the throw ratio. Select the value close to the actual projection distance divided by projected image width here. [VERTICAL KEYSTONE] [HORIZONTAL KEYSTONE] [VERTICAL ARC] [HORIZONTAL ARC] [VERTICAL BALANCE] [HORIZONTAL BALANCE] [MAINTAIN ASPECT RATIO] Select [ON] to correct while keeping the aspect ratio.
Page 93 Chapter 4 Settings — [POSITION] menu [CORNER CORRECTION] [UPPER LEFT] [UPPER RIGHT] [LOWER LEFT] [LOWER RIGHT] [LINEARITY] Horizontal direction Vertical direction [FREE GRID] Finer adjustment is possible by selecting the points or lines to be corrected. For details of operation, refer to “Adjusting distortion with [FREE GRID]” (x page 93). Adjusting to desired linearity Press as to select [GEOMETRY].
Page 94 Chapter 4 Settings — [POSITION] menu Performs the adjustment using the pattern of the outer border (there are two lines each vertically and [2x2] horizontally as a grid line). Performs the adjustment using the grid pattern divided into two in the horizontal direction and also in [3x3] the vertical direction.
Page 95 Chapter 4 Settings — [POSITION] menu 18) Press the <ENTER> button. f The screen switches to the control point selection mode. 19) Press asqw to select the control point. f Move the marker over the intersection of the grid lines to adjust. f When [HORIZONTAL LINE] is selected in Step 10), press as to select the control point.
Page 96: [Advanced Menu] Menu
Chapter 4 Settings — [ADVANCED MENU] menu [ADVANCED MENU] menu On the menu screen, select [ADVANCED MENU] from the main menu, and select an item from the sub- menu. Refer to “Navigating through the menu” (x page 76) for the operation of the menu screen. [DIGITAL CINEMA REALITY] The picture quality is enhanced by raising the vertical resolution higher performing the cinema processing when interlace signal for moving image is input.
Page 97: [Input Resolution]
The upper limit of the adjustment range may be restricted so that the entire projected image is not covered by blanking width. f “Geometric & Setup Management Software” can be downloaded from the Panasonic website (https://panasonic.net/cns/projector/pass/). It is necessary to register and login to PASS to download.
Page 98: [Edge Blending]
Chapter 4 Settings — [ADVANCED MENU] menu [EDGE BLENDING] The edge blending function allows multiple images to be seamlessly overlapped by using the inclination of the brightness at the overlapped area. It is recommended that edge blending is adjusted after an image is projected continuously for at least 30 minutes and then the image is stable.
Page 99 Chapter 4 Settings — [ADVANCED MENU] menu 13) Press the <ENTER> button. f The adjustment area in the projected image becomes temporarily bright and the [NON-OVERLAPPED BLACK LEVEL] screen is displayed. f [RED], [GREEN], and [BLUE] can be adjusted individually if [INTERLOCKED] is set to [OFF]. 14) Press as to select an item, and press qw to adjust the setting.
Page 100: [Frame Response]
Chapter 4 Settings — [ADVANCED MENU] menu f Adjustment of the tilt of the border between [NON-OVERLAPPED BLACK LEVEL] and [BLACK BORDER LEVEL] is a function to perform edge blending together with the adjustment of [GEOMETRY] (x page 90). Perform the edge blending adjustment matching the shape in [NON-OVERLAPPED BLACK LEVEL] following Steps 17) and 18) when [NON-OVERLAPPED BLACK LEVEL] is tilted due to correcting the keystone with the [POSITION] menu →...
Page 101: [Display Language] Menu
Chapter 4 Settings — [DISPLAY LANGUAGE] menu [DISPLAY LANGUAGE] menu On the menu screen, select [DISPLAY LANGUAGE] from the main menu, and display the sub-menu. Refer to “Navigating through the menu” (x page 76) for the operation of the menu screen. Changing the display language You can select the language of the on-screen display.
Page 102: [Display Option] Menu
Chapter 4 Settings — [DISPLAY OPTION] menu [DISPLAY OPTION] menu On the menu screen, select [DISPLAY OPTION] from the main menu, and select an item from the sub- menu. Refer to “Navigating through the menu” (x page 76) for the operation of the menu screen. [COLOR ADJUSTMENT] Correct the color difference between projectors when using multiple projectors simultaneously.
Page 103: [Screen Setting]
Chapter 4 Settings — [DISPLAY OPTION] menu For each signal format of RGB signal and YC signal, six colors of red, green, blue, cyan, [USER] magenta, and yellow can be adjusted and registered. Press the <ENTER> button and set the details. Adjustment is possible within the range of -31 to +31.
Page 104: [Backup Input Setting]
Chapter 4 Settings — [DISPLAY OPTION] menu f Proceed to Step 5) when [USER] is selected. Press as to select [DISPLAY DOTS], and press qw to match [DISPLAY DOTS] to the horizontal resolution of the signal source. Press as to select [MODE]. Press the <ENTER>...
Page 105 Chapter 4 Settings — [DISPLAY OPTION] menu Primary input Secondary input Details [OFF] Disables the backup function. [DVI-D] [HDMI] [SDI] [DVI-D] Enables the backup function. [SDI] [HDMI] Press the <MENU> button. f The [BACKUP INPUT SETTING] screen is displayed. Press as to select [AUTOMATIC SWITCHING]. f When [BACKUP INPUT MODE] is set to [OFF], [AUTOMATIC SWITCHING] cannot be selected.
Page 106: [Hdmi In]
Chapter 4 Settings — [DISPLAY OPTION] menu Using the DVI-D input and HDMI input Press as to select [BACKUP INPUT SETTING]. Press the <ENTER> button. f The [BACKUP INPUT SETTING] screen is displayed. Press as to select [BACKUP INPUT MODE]. Press the <ENTER> button. f The [BACKUP INPUT MODE] screen is displayed.
Page 107 Chapter 4 Settings — [DISPLAY OPTION] menu Select this item when the signal output from the HDMI terminal of an external device (such as a Blu- [64-940] ray disc player) is input to the <HDMI IN> terminal. Select this item when the signal output from the DVI-D terminal of an external device (such as a computer) is input to the <HDMI IN>...
Page 108: [Dvi-D In]
Chapter 4 Settings — [DISPLAY OPTION] menu Press the <ENTER> button. f The [VERTICAL SCAN FREQUENCY] screen is displayed. Press qw to select [VERTICAL SCAN FREQUENCY]. f Select [60Hz], [50Hz], [30Hz], [25Hz], or [24Hz] when [1920x1080p] is selected for [RESOLUTION]. f Select [60Hz], [50Hz], or [48Hz] when [1920x1080i] is selected for [RESOLUTION]. f Select [60Hz] or [50Hz] when anything other than following is selected for [RESOLUTION].
Page 109: [Sdi In]
Chapter 4 Settings — [DISPLAY OPTION] menu Note f The data for plug and play will change when the setting is changed. Refer to “List of compatible signals” (x page 233) for details on a resolution that supports plug and play. Setting [EDID MODE] in [DVI-D IN] Press as to select [DVI-D IN].
Page 110 Chapter 4 Settings — [DISPLAY OPTION] menu Press as to select the item, and press the <ENTER> button. f Select [AUTO], [1280x720p], [1920x1080i], [1920x1080p], [1920x1080sF], or [2048x1080p]. Setting [3G-SDI MAPPING] Press as to select [SDI IN]. Press the <ENTER> button. f The [SDI IN] screen is displayed. Press as to select [3G-SDI MAPPING].
Page 111: [Rgb In]
Chapter 4 Settings — [DISPLAY OPTION] menu Press the <ENTER> button. f The [SDI IN] screen is displayed. Press as to select [SIGNAL LEVEL]. Press qw to switch the item. f The items will switch each time you press the button. [64-940] Normally use this setting.
Page 112: [Digital Link In]
Chapter 4 Settings — [DISPLAY OPTION] menu g [1920x1080p], [1920x1080i] 10) Press the <ENTER> button. f The confirmation screen is displayed. 11) Press qw to select [OK], and press the <ENTER> button. Note f The setting details are displayed in [RESOLUTION] and [VERTICAL SCAN FREQUENCY] of [EDID STATUS]. f Setting of the resolution and the vertical scanning frequency may be necessary on the computer or video device in use.
Page 113: [On-Screen Display]
Chapter 4 Settings — [DISPLAY OPTION] menu Setting [EDID MODE] in [DIGITAL LINK IN] Press as to select [DIGITAL LINK IN]. Press the <ENTER> button. f The [DIGITAL LINK IN] screen is displayed. Press as to select [EDID MODE]. Press the <ENTER> button. f The [DIGITAL LINK EDID MODE] screen is displayed.
Page 114 Chapter 4 Settings — [DISPLAY OPTION] menu Sets to the center left of the screen. Sets to the bottom left of the screen. Sets to the top center of the screen. Sets to the center of the screen. Sets to the bottom center of the screen. Sets to the upper right of the screen.
Page 115: [Menu Mode]
Chapter 4 Settings — [DISPLAY OPTION] menu [OFF] Does not hold the cursor position. Note f Even if [ON] is set, the cursor position is not maintained when the power is turned off. Setting [INPUT GUIDE] Set whether to display the input guide in the position set in [OSD POSITION]. Input guide is a screen to display information such as the currently selected input terminal name, signal name, memory number, and [BACKUP INPUT STATUS].
Page 116: [Image Rotation]
The [PROJECTOR SETUP] menu → [NO SIGNAL SETTING] → [BACK COLOR] f To create and register the [USER LOGO] image, use “Logo Transfer Software”. The software can be downloaded from the Panasonic website (https://panasonic.net/cns/projector/). [STARTUP LOGO] Set the logo display when the power is turned on.
Page 117 Chapter 4 Settings — [DISPLAY OPTION] menu [OFF] Does not correct the brightness unevenness and color unevenness of the entire screen. Corrects the brightness unevenness and color unevenness of the entire screen as desired. [USER CORRECTION] For details, refer to “Setting [USER CORRECTION]” (x page 117). Corrects the brightness unevenness and color unevenness of the entire screen using a computer.
Page 118: [Shutter Setting]
Chapter 4 Settings — [DISPLAY OPTION] menu Initializing adjustments for [USER CORRECTION] Return the setting values of the brightness for the selected [ADJUSTMENT LEVEL] and the color unevenness of each image position to the factory setting values. Press as to select [UNIFORMITY]. Press qw to select [USER CORRECTION], and press the <ENTER>...
Page 119 Chapter 4 Settings — [DISPLAY OPTION] menu Setting [STARTUP] Automatically enable/disable the shutter function (shutter: closed/opened) when the power is turned on. Press as to select [SHUTTER SETTING]. Press the <ENTER> button. f The [SHUTTER SETTING] screen is displayed. Press as to select [STARTUP]. Press qw to switch the item.
Page 120: [Freeze]
Chapter 4 Settings — [DISPLAY OPTION] menu All the projectors are correctly connected, and correctly set. They are in the condition that the contrast [LINKED] synchronization function or the shutter synchronization function can be used. The projectors are not correctly connected, or not correctly set. Check the cable connection status [NO LINK] and the projector setting for each projector that is linked.
Page 121 Chapter 4 Settings — [DISPLAY OPTION] menu Note f Setting is also available from the [PROJECTOR SETUP] menu → [FUNCTION BUTTON]. f The waveform monitor is not displayed when on-screen display is hidden (off). Adjusting the waveform Project the luminance adjustment signal of a commercial test disk (0 % (0 IRE or 7.5 IRE) – 100 % (100 IRE)) and adjust.
Page 122: [Cut Off]
Chapter 4 Settings — [DISPLAY OPTION] menu [CUT OFF] Each red, green, and blue color component can be removed. Press as to select [CUT OFF]. Press the <ENTER> button. f The [CUT OFF] screen is displayed. Press as to select [RED], [GREEN], or [BLUE]. Press qw to switch the item.
Page 123: [Projector Setup] Menu
Chapter 4 Settings — [PROJECTOR SETUP] menu [PROJECTOR SETUP] menu On the menu screen, select [PROJECTOR SETUP] from the main menu, and select an item from the sub- menu. Refer to “Navigating through the menu” (x page 76) for the operation of the menu screen. [PROJECTOR ID] The projector has an ID number setting function that can be used when multiple projectors are used side by side to enable simultaneous control or individual control via a single remote control.
Page 124: [Lens]
Chapter 4 Settings — [PROJECTOR SETUP] menu Select this item when installing the projector using the Ceiling Mount Bracket (optional). [CEILING] Projected image is inverted upside down. Note f Refer to “Angle sensor” (x page 35) for details on the range of the installation attitude that can be detected by the built-in angle sensor. [LENS] Perform the setting and operation regarding the projection lens.
Page 125 Chapter 4 Settings — [PROJECTOR SETUP] menu 10) After the name is input, press asqw to select [OK], and press the <ENTER> button. f Saving of the lens memory is completed, and returns to the [LENS MEMORY SAVE] screen. f If you press asqw to select [CANCEL] and then press the <ENTER> button, the lens memory will not be saved.
Page 126 Chapter 4 Settings — [PROJECTOR SETUP] menu Press as to select [LENS MEMORY EDIT]. Press the <ENTER> button. f The [LENS MEMORY EDIT] screen is displayed. Press as to select [LENS MEMORY DELETE]. Press the <ENTER> button. f The [LENS MEMORY DELETE] screen is displayed. f The name of the saved lens memory and its lens position information ([VERTICAL POSITION]/ [HORIZONTAL POSITION]/[FOCUS POSITION]/[ZOOM POSITION]/[PERIPHERY FOCUS POSITION]) are displayed in the [LENS MEMORY DELETE] screen.
Page 127 Chapter 4 Settings — [PROJECTOR SETUP] menu Note f Lens memory with numeric value information of the periphery focus position displayed is the lens memory saved when one of the following lenses is attached. g ET-EMW200, ET-EMW300, ET-EMW400, ET-EMW500 [LENS HOME POSITION] Operate in following procedure to move the projection lens to the home position.
Page 128 Chapter 4 Settings — [PROJECTOR SETUP] menu f Pressing the <FOCUS> button on the remote control for at least three seconds will also display the confirmation screen for lens calibration execution. [ACTIVE FOCUS OPTIMIZER] Enable/disable the active focus optimizer function. By enabling this function, the shift in focus caused by the temperature change of the projection lens or the change in brightness of the image, which occurs after the projector is turned on and the projection is started, can be reduced.
Page 129: [Operation Setting]
Chapter 4 Settings — [PROJECTOR SETUP] menu [OPERATION SETTING] Set the operation method of the projector. The settings are reflected when “Initial setting (operation setting)” (x page 58) in the [INITIAL SETTING] screen is already set. If you change the settings while using the projector, the duration until the brightness decreases to half may shorten or the brightness may decrease.
Page 130 50.0 6 400 40.0 30.0 20 000 21 000 22 000 23 000 24 000 25 000 Estimated runtime (hours) r PT-MZ13K [LIGHT OUTPUT] (%) Brightness (lm) Estimated runtime (hours) 100.0 13 000 20 000 80.0 10 400 21 500 60.0...
Page 131: [Light Output]
Chapter 4 Settings — [PROJECTOR SETUP] menu r PT-MZ10K [LIGHT OUTPUT] (%) Brightness (lm) Estimated runtime (hours) 100.0 10 000 20 000 80.0 8 000 21 500 60.0 6 000 23 000 40.0 4 000 25 000 *1 Estimated runtime is the time until the brightness decreases to approximately half of the time of delivery when the projector is used with the [PICTURE] menu →...
Page 132: [Quick Startup]
Chapter 4 Settings — [PROJECTOR SETUP] menu f When [ECO] is set, it may take approximately 10 seconds longer before the projector starts projecting after the power is turned on, compared with when [NORMAL] is set. f When [NORMAL] is set, power can be supplied using the <DC OUT> terminal even while the projector is in the standby mode. If [ECO] is set, power cannot be supplied in the standby mode.
Page 133 Chapter 4 Settings — [PROJECTOR SETUP] menu Primary input Secondary input Details [OFF] Disables the backup function. [DVI-D] [HDMI] [SDI] [DVI-D] Enables the backup function. [SDI] [HDMI] Press the <MENU> button. f The [BACKUP INPUT SETTING] screen is displayed. Press as to select [AUTOMATIC SWITCHING]. f When [BACKUP INPUT MODE] is set to [OFF], [AUTOMATIC SWITCHING] cannot be selected .
Page 134 The [DISPLAY OPTION] menu → [BACK COLOR] f To create and register the [USER LOGO] image, use “Logo Transfer Software”. The software can be downloaded from the Panasonic website (https://panasonic.net/cns/projector/). [NO SIGNAL LIGHTS-OUT] This is a function to automatically turn off the light source of the projector when there is no input signal for specific period.
Page 135: [Initial Startup]
The no signal lights-out function is disabled in following case. g When [BACK COLOR] is set to [DEFAULT LOGO] or [USER LOGO], and the Panasonic logo or the image registered by the user is displayed in the projected image f When the [PROJECTOR SETUP] menu →...
Page 136: [Date And Time]
Sets the input to RGB. [DIGITAL LINK] Sets the input to DIGITAL LINK. Sets the input to DIGITAL LINK, and switches the input of the Panasonic twisted-pair-cable [INPUT1] - [INPUT10] transmitter to the specified input. *1 When the optional DIGITAL LINK output supported device (Model No.: ET-YFB100G, ET-YFB200G) is connected to the projector, its input name is automatically reflected from [INPUT1] to [INPUT10].
Page 137: [Schedule]
Chapter 4 Settings — [PROJECTOR SETUP] menu Press the <ENTER> button. f The [ADJUST CLOCK] screen is displayed. Press as to select [NTP SYNCHRONIZATION], and press qw to change the setting to [ON]. Press as to select [APPLY], and press the <ENTER> button. f The setting of the date and time will be completed.
Page 138: [Multi Projector Sync]
Switches the input to DIGITAL LINK. Switches the input to DIGITAL LINK, and switches the input of the [INPUT1] - [INPUT10] Panasonic twisted-pair-cable transmitter to the specified input. [NORMAL] Prioritizes brightness. Operates the projector with low noise although the brightness [QUIET] decreases compared to [NORMAL].
Page 139 Chapter 4 Settings — [PROJECTOR SETUP] menu To use the contrast synchronization function and the shutter synchronization function, it is necessary to connect the projectors targeted for synchronization in a loop with daisy chain connection using the <SERIAL/MULTI PROJECTOR SYNC IN> terminal and the <SERIAL/MULTI PROJECTOR SYNC OUT> terminal. For details of how to connect the projectors, refer to “Connecting example when using the contrast synchronization function/ shutter synchronization function”...
Page 140 Chapter 4 Settings — [PROJECTOR SETUP] menu Press as to select [MODE]. Press qw to switch the item. f The items will switch each time you press the button. Select this item when the contrast synchronization function and the shutter synchronization function [OFF] are not used.
Page 141 Chapter 4 Settings — [PROJECTOR SETUP] menu Press as to select [(IN) BAUDRATE]. Press qw to switch the item. f The items will switch each time you press the button. [9600] [19200] Select the proper speed. [38400] Press as to select [(IN) PARITY]. Press qw to switch the item.
Page 142: [Remote1 Mode]
Chapter 4 Settings — [PROJECTOR SETUP] menu Press as to select [RESPONSE(ID GROUP)]. Press qw to switch the item. [ON] Returns the response when an ID is designated as GROUP. [OFF] Does not return the response when an ID is designated as GROUP. Note f When [INPUT SELECT] is set to [DIGITAL LINK], communication using that serial terminal is available only when the corresponding device (such as the optional DIGITAL LINK output supported device (Model No.: ET-YFB100G, ET-YFB200G)) is connected to the <DIGITAL LINK>...
Page 143: [Filter Counter]
Chapter 4 Settings — [PROJECTOR SETUP] menu [FILTER COUNTER] Check the runtime of the filter and set the cleaning/replacement cycle of the filter. Also, the runtime of the filter can be reset. Press as to select [FILTER COUNTER]. Press the <ENTER> button. f The [FILTER COUNTER] screen is displayed.
Page 144 Chapter 4 Settings — [PROJECTOR SETUP] menu [LIGHT RUNTIME] Displays the runtime of the light source 1 and the light source 2. Displays the elapsed time from when the light source is illuminated. [CONTINUOUS LIGHTING The elapsed time after the illumination of the light source can be confirmed when adjusting the focus. TIME] The elapsed time is reset when the light source is temporarily turned off such as using the shutter function.
Page 145: [Info Monitor Setting]
Chapter 4 Settings — [PROJECTOR SETUP] menu Note f E-mail containing the status can be sent to the E-mail address (up to two addresses) set in “[E-mail set up] page” (x page 181) by pressing the <ENTER> button while the [STATUS] screen is displayed. f Some items in [SIGNAL INFORMATION] may be displayed and others not displayed, depending on the signal being input.
Page 146 Chapter 4 Settings — [PROJECTOR SETUP] menu [INPUT] Currently selected input terminal [SIGNAL NAME] Input signal name [AC VOLTAGE] Input supply voltage [INTAKE AIR TEMP.] Intake air temperature of the projector [EXHAUST AIR TEMP.] Exhaust air temperature of the projector [SHUTTER] Status of the shutter ([CLOSE]: Shutter function enabled;...
Page 147: [Data Cloning]
Chapter 4 Settings — [PROJECTOR SETUP] menu [DATA CLONING] Perform the operations of the data cloning function. Data such as the settings and adjustment values of the projector can be copied to multiple projectors via LAN. For details of operation, refer to “Using the data cloning function” (x page 198). [SAVE ALL USER DATA] Save the various setting values as a backup in the built-in memory of the projector.
Page 148 Chapter 4 Settings — [PROJECTOR SETUP] menu Returns all the setting items under the [NETWORK] menu and all the setting items under the operation page in the [Detailed set up] page and the Crestron Connected of the web control screen to the factory default settings.
Page 149: [Service Password]
Chapter 4 Settings — [PROJECTOR SETUP] menu [INITIALIZE] Returns to the factory default settings when initialization is executed by [USER SETTINGS]. f Repeat Steps 6) to 7) until the desired initialization items are set. Press as to select [INITIALIZE]. Press the <ENTER> button. f The confirmation screen is displayed.
Page 150: [Test Pattern] Menu
Chapter 4 Settings — [TEST PATTERN] menu [TEST PATTERN] menu On the menu screen, select [TEST PATTERN] from the main menu. Refer to “Navigating through the menu” (x page 76) for the operation of the menu screen. [TEST PATTERN] Display the test pattern built-in to the projector. Settings of position, size, and other factors will not be reflected in test patterns.
Page 151: [Signal List] Menu
Chapter 4 Settings — [SIGNAL LIST] menu [SIGNAL LIST] menu On the menu screen, select [SIGNAL LIST] from the main menu. Refer to “Navigating through the menu” (x page 76) for the operation of the menu screen. r Registered signal details A1 (1-2) Memory number: Sub memory number...
Page 152: Protecting The Registered Signal
Chapter 4 Settings — [SIGNAL LIST] menu Note f A registered signal can also be deleted from [REGISTERED SIGNAL DELETE] on the [REGISTERED SIGNAL SETUP] screen. Protecting the registered signal Press asqw to select the signal to protect. Press the <ENTER> button. f The [REGISTERED SIGNAL STATUS] screen is displayed.
Page 153: Sub Memory
Chapter 4 Settings — [SIGNAL LIST] menu f When a registration signal is deleted, the settings are also deleted. f In an environment where multiple types of signals are input to the same terminal, signals are sometimes not determined correctly when the setting is set to [WIDE].
Page 154: [Security] Menu
Chapter 4 Settings — [SECURITY] menu [SECURITY] menu On the menu screen, select [SECURITY] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” (x page 76) for the operation of the menu screen. f When the projector is used for the first time Initial password: Press awsqawsq in order, and press the <ENTER>...
Page 155: [Text Change]
Displays the image registered by the user. Note f To create and register the [USER LOGO] image, use “Logo Transfer Software”. The software can be downloaded from the Panasonic website (https://panasonic.net/cns/projector/). [TEXT CHANGE] Edit the text to be displayed when [TEXT] is selected in [DISPLAY SETTING].
Page 156: [Control Device Password Change]
Chapter 4 Settings — [SECURITY] menu Press the <ENTER> button. Press as to select [CONTROL PANEL] or [REMOTE CONTROL]. Press qw to switch [USER]. Press as to select the button item to set. f When [INPUT SELECT BUTTON] is selected, press the <ENTER> button, and then press as to select the button to set.
Page 157: [Network] Menu
Chapter 4 Settings — [NETWORK] menu [NETWORK] menu On the menu screen, select [NETWORK] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” (x page 76) for the operation of the menu screen. [DIGITAL LINK MODE] Switch the communication method of the <DIGITAL LINK>...
Page 158: [Network Setup]
Chapter 4 Settings — [NETWORK] menu [SIGNAL QUALITY] is a numerical value of the amount of error, and the display color changes to green, yellow, or red depending on that value. Check the signal quality level while receiving a signal from the twisted-pair-cable transmitter. f [MAX]/[MIN]: Maximum/minimum value of the amount of error [SIGNAL QUALITY] f Green (-12 dB or lower) →...
Page 159: [Network Status]
Chapter 4 Settings — [NETWORK] menu Set to [ON] to control with the controller of AMX Corporation. Setting this function to [ON] enables detection through “AMX Device Discovery”. For details, visit the [AMX D.D.] website of AMX Corporation. URL http://www.amx.com/ Set to [ON] when connecting the “XTP transmitter” of Extron Electronics to the <DIGITAL LINK> terminal.
Page 160: [Art-Net Channel Setting]
Chapter 4 Settings — [NETWORK] menu [OFF] Disables the Art-Net function. [ON(2.X.X.X)] Enables the Art-Net function and sets the IP address to 2.X.X.X. [ON(10.X.X.X)] Enables the Art-Net function and sets the IP address to 10.X.X.X. [ON(MANUAL)] Enables the Art-Net function and uses the IP address set in [NETWORK SETUP]. f Proceed to Step 3) when anything other than [OFF] is selected.
Page 161: [Art-Net Status]
[NONE] No definition *1 “Geometric & Setup Management Software” can be downloaded from the Panasonic website (https://panasonic.net/cns/projector/pass/). It is necessary to register and login to PASS to download. f The setting can be also made by pressing as to select the channel, pressing the <ENTER> button to display the item list, pressing asqw to select the item, and pressing the <ENTER>...
Page 162: Chapter 5 Operations
Operations Chapter 5 This chapter describes how to use each function. 162 - ENGLISH...
Page 163: Network Connection
The application software “Smart Projector Control” can be used, which enables to set and adjust the projector connected via LAN using a smartphone or tablet. For details, visit the Panasonic website (https://panasonic.net/cns/projector/). f Multi Monitoring & Control Software “Multi Monitoring & Control Software”, a software application to monitor and control multiple display devices (projector or flat panel display) connected to intranet, can be used.
Page 164 (https://panasonic.net/cns/projector/). Note that the verification for devices of other manufacturers has been made for the items set by Panasonic Corporation, and not all the operations have been verified. For operation or performance problems caused by the devices of other manufacturers, contact the respective manufacturers.
Page 165 Chapter 5 Operations — Network connection Press as to select [NETWORK SETUP], and press the <ENTER> button. f The [NETWORK SETUP] screen is displayed. Perform the [NETWORK SETUP] setting. f Refer to [NETWORK SETUP] (x page 158) for details. Note f To connect to an existing network, perform after consulting your network administrator. r Factory default setting f Following setting has been made as a factory default.
Page 166: Web Control Function
Enter the user name and the password. f The factory default settings are User name: dispuser (user rights)/dispadmin (administer rights); Password: @Panasonic. f Change of password is prompted when using the web control function for the first time. Proceed to Step 4).
Page 167 Chapter 5 Operations — Web control function For user rights For administrator rights Enter the new user name and password, and click [Change]. f The screen in Step 3) is displayed again. Enter the new user name and password. f Enter the new user name and password set in Step 5). Click OK.
Page 168 Chapter 5 Operations — Web control function Rights for each account The administrator rights allow use of all functions. There is a limitation in the rights that can be used with the user rights. Select the rights depending on the purpose. The function that has l in the administrator rights/user rights column indicates that it can be operated with that rights.
Page 169 Chapter 5 Operations — Web control function [Projector status] page Click [Status] → [Projector status]. Display the status of the projector for the following items. [PROJECTOR TYPE] 11 [INPUT] Displays the type of the projector. Displays the status of the selected input. [MAIN VERSION] 12 [INTAKE AIR TEMPERATURE] Displays the firmware version of the projector.
Page 170 Chapter 5 Operations — Web control function Error information page When [Error (Detail)] or [Warning (Detail)] is displayed in the [SELF TEST] display field of the [Projector status] screen, click it to display the content of the error/warning. f The projector may go into the standby status to protect the projector depending on the contents of the error. Display of error information Error code Displays the alphanumeric symbols and content of errors/...
Page 171 Chapter 5 Operations — Web control function [Mail error log] page Click [Status] → [Mail error log]. E-mail error log is displayed if periodic E-mail sending has failed. Note f [Access error log] and [Mail error log] display the recent few thousand accesses/requests. All information may not be displayed when many accesses/requests are made at once.
Page 172 Chapter 5 Operations — Web control function [Detail control] page Click [Projector control] → [Detail control]. Control of the projector [OSD POSITION] The projector is controlled by clicking the buttons in the same Switches the OSD position setting. way as the buttons on the remote control. After control, the on- [GEOMETRY] screen display of the projector at the right of the control page is Switches the geometric adjustment setting.
Page 173 Chapter 5 Operations — Web control function Lens position setting page Click [Projector control] → [Detail control] → [LENS] → [SET POSITION]. [Get] [Back] Acquires the current lens position and displays the acquired Returns to the [LENS] page. values in the lens position information field. [Apply] Lens position information field Moves to the lens position displayed in the lens position...
Page 174 Chapter 5 Operations — Web control function [Adjust clock] page Click [Detailed set up] → [Adjust clock]. [Time Zone] [Date] Select the time zone. Enter the date to change when [NTP SYNCHRONIZATION] is set to [OFF]. [Set time zone] Updates the time zone setting. [Time] Enter the time to change when [NTP SYNCHRONIZATION] is [NTP SYNCHRONIZATION]...
Page 175 Chapter 5 Operations — Web control function [Https set up] page Set this page when HTTPS (Hypertext Transfer Protocol Secure) communication encrypted with the SSL/TLS protocol is to be performed between the computer and the projector while the web control function is used. To perform the HTTPS communication, it is necessary to install the certificate for authentication into the projector.
Page 176 Chapter 5 Operations — Web control function r Flow for setting The flow for setting differs depending on which certificate is to be used as the security certificate used for the HTTPS communication, either the server certificate or the self-signed certificate. Generate the CRT key.
Page 177 Chapter 5 Operations — Web control function f Generation of the CRT key may take up to approximately two minutes. f When the CRT key is updated, apply for the server certificate or generate the self-signed certificate again using that CRT key. A certificate linked to the CRT key is required.
Page 178 Chapter 5 Operations — Web control function Generating the signing request When using the server certificate issued by the certification organization as a security certificate used for the HTTPS communication, generate a signing request necessary for application of issuing to the certification organization.
Page 179 Chapter 5 Operations — Web control function Installing the certificate Install the server certificate and the intermediate certificate issued by the certification organization into the projector. Click [Https set up] → [Server Certificate install] → [Browse]. f A dialog to select the file is displayed. Select the server certificate file and click [Open].
Page 180 Chapter 5 Operations — Web control function Generating the self-signed certificate When the server certificate issued by the certification organization is not to be used as the security certificate used for HTTPS communication, it is possible to use the self-signed certificate generated in the projector. Generate the self-signed certificate after generating the CRT key.
Page 181 Chapter 5 Operations — Web control function Note f The generated self-signed certificate can be deleted by clicking [Https set up] → [Self-signed Certificate] → [Delete]. However, it cannot be deleted when [Connection] is set to [HTTPS]. Delete it after changing the setting to perform the HTTP communication. [E-mail set up] page E-mail can be sent to preset E-mail addresses (up to two addresses) periodically or when an error or problem has occurred.
Page 182 Chapter 5 Operations — Web control function [Authentication set up] page Set the authentication items when POP authentication or SMTP authentication is necessary to send an E-mail. Click [Detailed set up] → [Authentication set up]. [Auth] [Password] Select the authentication method specified by your Internet Enter the password for the POP server or the SMTP server.
Page 183 Example of the E-mail sent when E-mail is set The following E-mail is sent when the E-mail settings have been established. f Example: When [MAIL CONTENTS] is set to [SIMPLE] in the [E-mail set up] page === Panasonic projector report(CONFIGURE) === Projector Type : PT-MZ16K...
Page 184 Chapter 5 Operations — Web control function [Crestron tools] page Set the information required for connecting the Crestron control system to the projector. The [Crestron Connected(TM)] page is not displayed if Adobe Flash Player is not installed on your computer, or ®...
Page 185 Chapter 5 Operations — Web control function [Change password] page Click [Change password]. [Administrator] [Next] Used to change the setting of the [Administrator]. Used to change the setting of the password. [User] Used to change the setting of the [User]. [Administrator] account [Account] [New] [User name]:...
Page 186 Chapter 5 Operations — Web control function [User] account [Account] [Change] Displays the account to change. Determines the change of password. [New] [User name]: Enter the desired new user name. (Up to 16 characters in single byte) [Password]: Enter the desired new password. (Up to 16 characters in single byte) [Password(Retype)]: Enter the desired new password again.
Page 187 Chapter 5 Operations — Web control function [Crestron Connected(TM)] page The projector can be monitored/controlled with Crestron Connected. It is necessary to access with the administrator rights to start the operation screen of Crestron Connected from the web control screen. ([Crestron Connected(TM)] is not displayed in the web control screen with the user rights.) The operation page of Crestron Connected is displayed by clicking [Crestron Connected(TM)].
Page 188 Chapter 5 Operations — Web control function [Tools] page Click [Tools] in the operation page. [Control System] Network status Set the information required for communicating with the Displays the settings of wired LAN. controller to be connected with the projector. [DHCP] Displays the current setting.
Page 189 Chapter 5 Operations — Web control function [Help] page Click [Help] in the operation page. The [Help Desk] window is displayed. [Help Desk] A message can be sent/received with the administrator using the Crestron Connected. ENGLISH - 189...
Page 190: Using The Information Monitor Function
Chapter 5 Operations — Using the information monitor function Using the information monitor function Status of the projector can be checked in the information monitor on the control panel. Screen mode Information monitor is categorized into following four modes. This is one of the screen modes in normal status, and is a mode to be selected when not displaying Hide mode information on the screen during no operation.
Page 191: Basic Operation Procedure In The Menu Operation Mode
Chapter 5 Operations — Using the information monitor function Basic operation procedure in the menu operation mode Press the <INFO> button on the control panel. f The top menu screen is displayed. USER VIEW SETUP STATUS Press as to select a top menu item. f The selected item is displayed inverted.
Page 192: [Setup] Menu
Chapter 5 Operations — Using the information monitor function [SHUTTER] Status of the shutter ([CLOSE]: Shutter function enabled; [OPEN]: Shutter function disabled) [OSD] Status of the on-screen display function ([ON]: Display; [OFF]: Hide) [IP ADDRESS] IP address of the wired LAN [SETUP] menu Set the information monitor to the menu operation mode by pressing the <INFO>...
Page 193 Chapter 5 Operations — Using the information monitor function Press qw to switch the setting item. f The items will switch each time you press the button. Sets the screen mode during no operation to the hide mode. [OFF] Does not display the information. Sets the screen mode during no operation to the USER VIEW mode.
Page 194 Chapter 5 Operations — Using the information monitor function Press the <ENTER> button. f The detailed setting item is displayed. Press as to select [DIRECTION]. Press the <ENTER> button. f Setting can be changed. Press qw to switch the setting. f The items will switch each time you press the button. Detects the orientation of the projector by the built-in angle sensor, and automatically sets the [AUTO] direction of the text displayed in the information monitor.
Page 195: [Status] Menu
Chapter 5 Operations — Using the information monitor function Press as to select [DHCP]. f The current setting is displayed. Press the <ENTER> button. f Setting can be changed. Press qw to switch the setting item. f The items will switch each time you press the button. Acquires the IP address automatically if a DHCP server exists in the network where the projector is to [ON] be connected.
Page 196 Chapter 5 Operations — Using the information monitor function Press the <ENTER> button. f The detailed item is displayed. Press as to switch the item. f The display items will switch each time you press the button. Sub-menu item Detailed item Details [PROJECTOR ID] Displays the ID number set to the projector.
Page 197: Error Notification Mode
Chapter 5 Operations — Using the information monitor function Error notification mode The error/warning symbol is displayed in the information monitor as a self-diagnosis information when an error or warning has occurred in the projector. For details on content of the error/warning symbols, refer to “[SELF TEST] indications” (x page 215). Operation procedure when an error/warning has occurred This section explains using the case when the intake air temperature warning is detected in the self-diagnosis as an example.
Page 198: Using The Data Cloning Function
Chapter 5 Operations — Using the data cloning function Using the data cloning function Perform the operation of the data cloning function. Data such as the settings and adjustment values of the projector can be copied to multiple projectors via LAN. r Data that cannot be copied The following settings cannot be copied.
Page 199 Chapter 5 Operations — Using the data cloning function g Red: Data copy has failed. Confirm the connection of the LAN cable and power status of the copy destination projector. f Data is copied to the copy destination projector in the standby mode. If the copy destination projector is in the projection mode, the data cloning request message is displayed, and then the copy destination projector automatically shifts to the standby mode to start copy of data.
Page 200: Updating The Firmware
The firmware of the projector can be updated via LAN. Check the Panasonic website (https://panasonic.net/cns/projector/pass/) for availability of the firmware that can be updated. Customer can update the firmware if a newer version than the current firmware version is published.
Page 201 When other software has started up or operating g When the computer has gone into sleep/pause status Acquiring the firmware Download the firmware update tool for this projector (compressed file in zip format) from the Panasonic website (https://panasonic.net/cns/projector/pass/). f File name (example): FirmUpdateTool_PT-MZ10K_101_102.zip (Update tool for the PT-MZ16K/PT-MZ13K/PT-MZ10K series with main version 1.01/sub version 1.02)
Page 202 Chapter 5 Operations — Updating the firmware Double-click the executable file generated by extracting. f The update tool is started up, and the confirmation screen is displayed. Confirm the status of the projector. f Confirm that the projector to be updated is in the standby mode. Confirm the connection status.
Page 203 Chapter 5 Operations — Updating the firmware Select [I accept]. Click [Next]. f The connection setting screen is displayed. Enter the setting details of the projector. f Enter the details set in the projector to be updated. Item Details [IP Address] The [NETWORK] menu →...
Page 204 Chapter 5 Operations — Updating the firmware Click [Next]. f The update confirmation screen is displayed. 10) Click [Start]. f Update is started. f The light source indicator <LIGHT> on the projector blink in red while updating. f Elapsed time and rough progress can be confirmed in the update status display screen. The required time is approximately 10 minutes.
Page 205 Chapter 5 Operations — Updating the firmware Note f In following cases, turn the power of the projector off and on and perform the update from the beginning. g When the update does not complete after 60 minutes or more have elapsed g When the power of the projector or the computer has turned off due to power outage, etc., during the update ENGLISH - 205...
Page 206: Chapter 6 Maintenance
Maintenance Chapter 6 This chapter describes inspection methods when there are problems, and maintenance methods. 206 - ENGLISH...
Page 207: Light Source/Temperature/Filter Indicators
Chapter 6 Maintenance — Light source/temperature/filter indicators Light source/temperature/filter indicators When an indicator lights up If a problem occurs inside the projector, the slight source indicator <LIGHT>/temperature indicator <TEMP>/filter indicator <FILTER> will inform you by lighting or blinking. Check the status of the indicators and take following measures.
Page 208 Chapter 6 Maintenance — Light source/temperature/filter indicators Temperature indicator <TEMP> Blinking in red Blinking in red Indicator status Lighting in red (2 times) (3 times) Internal temperature is high The cooling fan has Status Internal temperature is high or low (warning). or low (standby status).
Page 209: Maintenance/Replacement
Chapter 6 Maintenance — Maintenance/replacement Maintenance/replacement Before performing maintenance/replacement f Make sure to turn off the projector and disconnect the power plug from the outlet before maintaining or replacing the unit. (x pages 53, 65) f When switching off the projector, make sure to follow the procedures in “Switching off the projector” (x page 65).
Page 210 Chapter 6 Maintenance — Maintenance/replacement Removing the air filter unit Air filter cover fixing screw Tabs on the projector body Air filter unit compartment and the projector’s intake vent Grip Air filter unit Air filter cover Fig. 1 Fig. 2 Turn off the power of the projector. f Always follow the procedure of “Switching off the projector”...
Page 211 Chapter 6 Maintenance — Maintenance/replacement Attaching the air filter unit Attach the air filter unit to the projector. f Attach the air filter unit in the reverse procedure of Step 3) in “Removing the air filter unit” (x page 210). f Push in the air filter unit all the way in until it clicks. Attach the air filter cover.
Page 212: Replacing The Unit
Chapter 6 Maintenance — Maintenance/replacement Replacing the unit Air filter unit Air filter unit should be replaced if the dirt does not come off after cleaning. The Replacement Filter Unit (Model No.: ET-RFM100) is an optional accessory. To purchase the product, consult your dealer.
Page 213: Troubleshooting
Chapter 6 Maintenance — Troubleshooting Troubleshooting Review the following points. For details, see the corresponding pages. Problems Points to be checked Page f Is the power plug firmly inserted into the outlet? ― f Is the <MAIN POWER> switch set to <OFF>? f Is the wall outlet supplying electricity? ―...
Page 214 Chapter 6 Maintenance — Troubleshooting Problems Points to be checked Page f Are the connections between the twisted-pair-cable transmitter and an external ― device, and between the twisted-pair-cable transmitter and projector correctly done? Cannot control the projector with Art-Net. f Is [Art-Net SETUP] set to other than [OFF]? f Are [NET], [SUB NET], [UNIVERSE], and [START ADDRESS] set correctly? f Is the cable compatible to the condition of the projector used? f Are the connections between the twisted-pair-cable transmitter and an external...
Page 215: [Self Test] Indications
Chapter 6 Maintenance — [SELF TEST] indications [SELF TEST] indications [SELF TEST] can be checked in the [PROJECTOR SETUP] menu → [STATUS] → [SELF TEST]. The following list shows the alphanumeric symbol that is displayed when an error or a warning has occurred and its details.
Page 216 Chapter 6 Maintenance — [SELF TEST] indications Error/warning display Details Action number U290 Filter clogging warning U291 Exhaust filter not installed U300 Intake temperature error U301 Exhaust air temperature error U303 Light source temperature 1 error U304 Light source temperature 2 error U353 Power supply temperature error U390...
Page 217: Chapter 7 Appendix
Appendix Chapter 7 This chapter describes specifications and after-sales service for the projector. ENGLISH - 217...
Page 218: Technical Information
SETUP]. Manufacturer name INF1 ? Panasonic Returns manufacturer name. query PT-MZ16K INF2 ? Model name query PT-MZ13K Returns model name. PT-MZ10K Other information INF0 ? xxxxx Returns information such as version number. queries Class information CLSS ? Returns class for PJLink.
Page 219: Using Art-Net Function
Chapter 7 Appendix — Technical information Parameter/response Class Command Control details Remark string Recommended RRES ? 1920 x 1200 Returns display resolution. resolution query FILT ? Filter runtime inquiry xxxxx Returns the runtime of the filter. Filter replacement RFIL ? ET-RFM100 Returns the filter replacement model number.
Page 220 Chapter 7 Appendix — Technical information Control details r LIGHT OUTPUT This can be set in 256 steps between 100 % and 0 %. Performance Parameter Default value 100 % … … r INPUT SELECT (when [Art-Net CHANNEL SETTING] is set to [1]) Performance Parameter Default value...
Page 221 Chapter 7 Appendix — Technical information r LENS H SHIFT, LENS V SHIFT, LENS FOCUS, LENS ZOOM Performance Parameter Default value (-) High speed 0-31 Lens adjustment (-) Low speed 32-63 (-) Fine adjustment 64-95 Operation stop 96-159 (+) Fine adjustment 160-191 Lens adjustment (+) Low speed...
Page 222 Chapter 7 Appendix — Technical information r FADE-IN, FADE-OUT (when [Art-Net CHANNEL SETTING] is set to [1] or [USER]) Operate together with SHUTTER. Performance Parameter Default value 0-15 0.5s 16-31 1.0s 32-47 1.5s 48-63 2.0s 64-79 2.5s 80-95 3.0s 96-111 3.5s 112-127 4.0s 128-143...
Page 223: Control Commands Via Lan
“ENABLE/DISABLE” of channel 11 to “Disable” and then back to “Enable”. f To create and register the USER LOGO image, use “Logo Transfer Software”. The software can be downloaded from the Panasonic website (https://panasonic.net/cns/projector/). Control commands via LAN The projector can be controlled via the <DIGITAL LINK>...
Page 224 “xxxxxx:yyyyy:zzzzzzzz” xxxxxx Administrator rights user name for the web control (default user name is “dispadmin”) yyyyy Password of above administrator rights user (default password is “@Panasonic”) zzzzzzzz 8-byte random number obtained in Step 2) Command transmission method Transmit using the following command formats.
Page 225 Chapter 7 Appendix — Technical information When web control administrator rights password is not set (Non-protect mode) Connecting Obtain the IP address and port number (Initial set value = 1024) of the projector and request a connection to the projector. f You can obtain both the IP address and the port number from the menu screen of the projector. IP address Obtain from the [NETWORK] menu →...
Page 226 Chapter 7 Appendix — Technical information Note f The projector will automatically disconnect the connection with the network right after sending the command. This is the specification based on the security view point to prevent unauthorized operation of this product by a malicious third party. To send commands continuously, execute the network connection request every time the command is to be sent.
Page 227: Serial/Multi Projector Sync In>/ Terminals
Chapter 7 Appendix — Technical information <SERIAL/MULTI PROJECTOR SYNC IN>/<SERIAL/MULTI PROJECTOR SYNC OUT> terminals The <SERIAL/MULTI PROJECTOR SYNC IN>/<SERIAL/MULTI PROJECTOR SYNC OUT> terminals of the projector conform with RS-232C so that the projector can be connected to and controlled from a computer. A combined screen with a balanced contrast can be displayed by linking multiple projectors using the <SERIAL/ MULTI PROJECTOR SYNC IN>...
Page 228 Chapter 7 Appendix — Technical information Pin assignments and signal names D-Sub 9-pin (female) Pin No. Signal name Details Outside view ― Transmitted data Received data MULTI PROJECTOR For contrast synchronization function/for SYNC shutter synchronization function Earth ― Connected internally ― D-Sub 9-pin (male) Pin No.
Page 229 Chapter 7 Appendix — Technical information Basic format (has subcommands) Same as the basic format Sub command (5 bytes) Parameter (6 bytes) Symbol “+” or “–” (1 byte) and setting or adjustment value (5 bytes) Operation (1 byte) “=” (Set the value specified using parameter) *1 When transmitting a command which does not need a parameter, an operation (E) and parameter are not necessary.
Page 230 Chapter 7 Appendix — Technical information Cable specification When connected to a computer When multiple projectors are connected NC NC NC NC Projector Computer Projector 1 Projector 2 (<SERIAL/MULTI PROJECTOR (DTE specifications) (<SERIAL/MULTI PROJECTOR (<SERIAL/MULTI PROJECTOR SYNC IN> terminal) SYNC OUT> terminal) SYNC IN>...
Page 231: Remote 1 In> Terminal
Chapter 7 Appendix — Technical information <REMOTE 1 IN> terminal It is possible to control the projector remotely (by contact control) from a control board located away from the projector where remote control signals cannot reach. Use the <REMOTE 1 IN> terminal on the connecting terminals of the projector to connect to the control board. Remote control Contact control Remote control/contact control...
Page 232: Upgrade Kit
Chapter 7 Appendix — Technical information Upgrade Kit If the optional Upgrade Kit (Model No.: ET-UK20) is applied, the following functions are extended. Function Standard status When the Upgrade Kit is applied Adjustment range of Maximum of ±40° Maximum of ±45° [VERTICAL KEYSTONE] Adjustment range of Maximum of ±15°...
Page 233: List Of Compatible Signals
Chapter 7 Appendix — Technical information List of compatible signals The following table specifies the video signals compatible with the projector. For details of SDI signal, refer to “List of single link SDI compatible signals” (x page 236). This projector supports the signal with l in the compatible signal column. f The content of the compatible signal column is as follows.
Page 234 Chapter 7 Appendix — Technical information Scanning freq. Compatible signal Signal name Resolution Dot clock freq. Horizontal Vertical (SIGNAL FORMAT) (Dots) (MHz) DVI-D HDMI (kHz) (Hz) 1680 x 1050/60 1 680 x 1 050 65.3 60.0 146.3 1920 x 1200/50 1 920 x 1 200 61.8 49.9 158.3...
Page 235 Chapter 7 Appendix — Technical information Scanning Plug and play compatible signal Dot clock freq. Signal name Resolution freq. (SIGNAL FORMAT) (Dots) DVI-D HDMI Horizontal Vertical (MHz) (kHz) (Hz) EDID1 EDID2 EDID3 4K/60p 4K/30p 4K/60p 4K/30p 640 x 480/60 640 x 480 31.5 59.9 25.2...
Page 236 Chapter 7 Appendix — Technical information List of single link SDI compatible signals The following table specifies the single link SDI signals that the projector can project. Scanning freq. Dot clock Signal name Resolution freq. Format Color format Sampling Horizontal Vertical (SIGNAL FORMAT) (Dots) (MHz)
Page 237 Chapter 7 Appendix — Technical information Scanning freq. Dot clock Signal name Resolution freq. Format Color format Sampling Horizontal Vertical (SIGNAL FORMAT) (Dots) (MHz) (kHz) (Hz) 2 048 x 1 080 67.5 60.0 148.5 3G-SDI Level-A 4:2:2 10bit 2K/60p 2 048 x 1 080 67.5 60.0 148.5...
Page 238: Specifications
100 V - 240 V ~ (100 V - 240 V alternating current), 50 Hz/60 Hz PT-MZ16K 1 050 W (11.0 A - 4.5 A) Power consumption PT-MZ13K 800 W (8.3 A - 3.4 A) PT-MZ10K 640 W (6.5 A - 2.7 A) Approx.
Page 239 Risk group 3 (IEC 62471-5:2015) ET-EMW200, ET-EMW300, Laser ET-EMW400, ET-EMW500, Risk group 2 (IEC 62471-5:2015) Classification ET-EMS600 Risk Group PT-MZ13K Risk group 2 or Risk group 3 (IEC ET-EMT700 62471-5:2015) ET-EMT800 Risk group 3 (IEC 62471-5:2015) ET-EMW200, ET-EMW300, ET-EMW400, ET-EMW500,...
Page 240 RGB signal input f Resolution: 640 x 480 to 1 920 x 1 200 f Dot clock frequency: 162 MHz or less f PIAS (Panasonic Intelligent Auto Scanning) system signal input f Resolution: 480p/576p to 1 920 x 1 080 f Dot clock frequency: 148.5 MHz or less...
Page 241: Dimensions
Chapter 7 Appendix — Dimensions Dimensions Unit: mm 325 (12-25/32") 294 (11-9/16") 316 (12-7/16") 588 (23-5/32") 650 (25-19/32") * Actual dimensions may differ depending on the product. ENGLISH - 241...
Page 242: Precautions For Attaching The Ceiling Mount Bracket
Ask a qualified technician to do the installation work such as mounting the projector on the ceiling. f Panasonic takes no responsibility for any damage to the projector resulting from use of the Ceiling Mount Bracket not manufactured by Panasonic or the inappropriate choice of location for installing the Ceiling Mount Bracket, even if the warranty period of the projector has not expired.
Page 243 Chapter 7 Appendix — Precautions for attaching the Ceiling Mount Bracket r Dimensions for the screw holes to fix the projector (projector bottom view) Unit: mm 223 (8-25/32") 190 (7-15/32") 180 (7-3/32") 45 (1-25/32") 272 (10-23/32") ENGLISH - 243...
Page 244: Index
Index Index Function button Precautions for use <FUNCTION> button Projecting Accessories Remote control 27, 73 [PROJECTION METHOD] <AC IN> terminal 29, 53 [FUNCTION BUTTON] Projector body [ACTIVE FOCUS OPTIMIZER] [PROJECTOR ID] Adjusting adjustable feet [PROJECTOR SETUP] 79, 123 [ADVANCED MENU] 78, 96 [GAMMA] Protecting the registered signal...
Page 245 Index Web control [ZOOM] <ZOOM> button Remote control 27, 67 ENGLISH - 245...
Page 246 Este equipo cumple con los requisitos esenciales asi como con otras disposiciones de la Directiva 2014/53/UE. El cliente puede descargar una copia de la DoC original de este producto desde nuestro servidor DoC: https:// www.ptc.panasonic.eu/ Contacto en la U.E.: Panasonic Marketing Europe GmbH, Panasonic Testing Centre, Winsbergring 15, 22525 Español Hamburg, Germany Este producto ha sido desarrollado para el uso en los siguientes países.
Page 247 Това устройство отговаря на съществените изисквания и останалите приложими разпоредби на Директива Български 2014/53/EC. Toto zařízení je v souladu se základními požadavky a ostatními odpovídajícími ustanoveními Směrnice 2014/53/ Čeština Dette udstyr er i overensstemmelse med de væsentlige krav og andre relevante bestemmelser i Direktiv 2014/53/ Dansk Eesti See seade vastab direktiivi 2014/53/EL olulistele nõuetele ja teistele asjakohastele sätetele.
Page 248 Atıkların atılmasıyla ilgili yanlış uygulamalar yasayla belirlenmiş olan cezalara sebebiyet verebilir. Panasonic Corporation Web Site : https://panasonic.net/cns/projector/ © Panasonic Corporation 2019 Panasonic System Solutions Company of North America Two Riverfront Plaza, Newark, NJ 07102 TEL: (877) 803 - 8492 Panasonic Canada Inc.

This manual is also suitable for:

Pt-mz16k Pt-mz10k Pt-mz16kl Pt-mz13kl Pt-mz10kl

Panasonic PT-MZ13K Operating Instructions Manual

Chapter 1 Preparation

Chapter 2 Getting Started

Chapter 3 Basic Operations

Chapter 4 Settings

Chapter 5 Operations

Chapter 6 Maintenance

Chapter 7 Appendix

Quick Links

Related Manuals for Panasonic PT-MZ13K

Summary of Contents for Panasonic PT-MZ13K

This manual is also suitable for:

Table of Contents
