INTRODUCTION
for purchasing the Infinity
THANK YOU
better serve you should your new product require service, please retain your original
purchase receipt and read the enclosed warranty registration card.

BOX CONTENTS

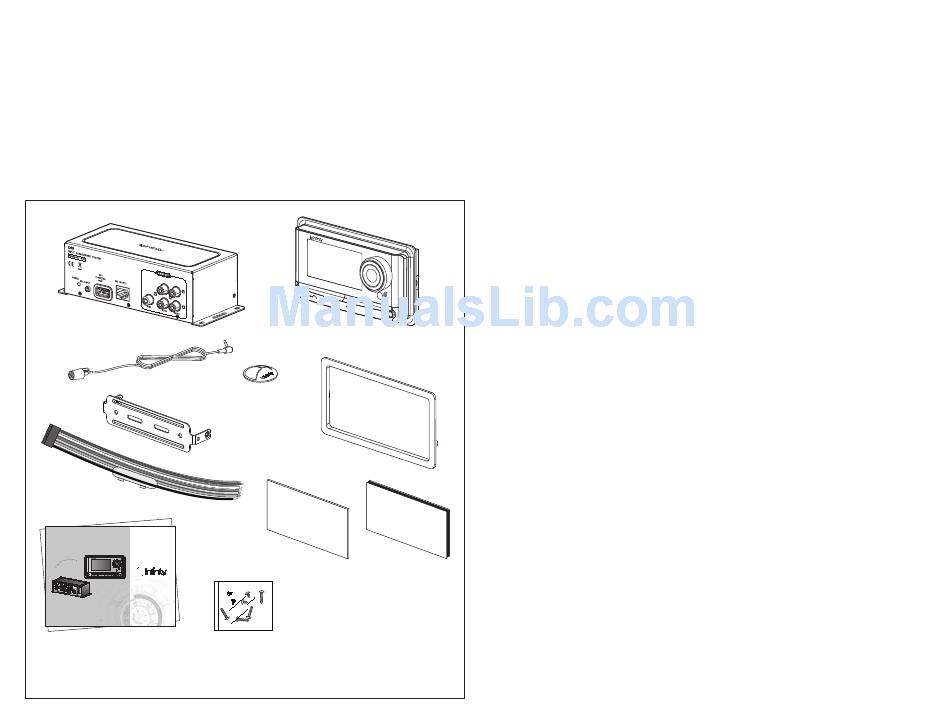

Your IMS box should contain all the items shown in Figure 1:
Junction Box
Hands-Free
Microphone
U-Bracket
Wiring
Harness
IMS
Input Management System
R +
Vol
-
Select
reference series
Instruction Manual, Quick-Start Guide
and Warranty Card
F
I G U R E
2
® IMS Input Management System. So that we may
Control Head
Hands-Free
Microphone
Flush-Mount
Surface-Mount
Ring
Holder
Adhesive
Strip
*Contents
4 x #8 x 1" Screws for Junction Box
Bag with
2 x #6 Screws for Control Head
Installation Screws*
2 x 3mm Machine Screws for U-Bracket
1 : B C
O X O N T E N T S
WARNING!
Playing loud music in an automobile can hinder your ability to hear traffic and
permanently damage your hearing. We recommend listening at low or moderate
levels while driving your car. Infinity accepts no responsibility for hearing loss, bodily injury
or property damage resulting from the use or misuse of this product.

INSTALLATION

IMPORTANT
To get the most out of your IMS' features, we strongly recommend that installation be
entrusted to a qualified professional. Although these instructions explain how to install,
connect and set-up the IMS, they cannot show all of the different possible systems that can
be assembled using the IMS. Please ask your authorized Infinity car audio dealer about
professional installation.
INSTALLATION WARNINGS AND TIPS
• Always use protective eyewear when using tools
• Turn OFF the vehicle's audio system and other electrical devices before beginning installa-
tion. disconnect the (–) negative lead from the vehicle's battery.
• Check clearances on both sides of any planned mounting surface before drilling any holes
or installing any screws. Remember that the screws can extend behind the mounting
surface.
• At the installation locations, locate and make a note of all fuel lines, hydraulic brake lines,
vacuum lines and electrical wiring. Use extreme caution when cutting or drilling in and
around these areas.
• Before drilling or cutting holes, use a utility knife to remove unwanted fabric or vinyl to keep
material from snagging in the drill bit.
• To minimize noise, when routing cables, keep input-signal cables away from power cables
and speaker wires.
• When making connections, make certain they are secure and properly insulated.
• If the IMS' fuse must be replaced, use only the same type and rating as the original. Do not
substitute another kind.
INSTALLING THE CONTROL HEAD
Velcro ®
Strip
We recommend finding a location for the Control Head first, and then finding a
location for the Junction Box that is within the length of the Control Head's integral 4m cable.
IMPORTANT INSTALLATION WARNINGS:
• Do not install the Control Head where it may obstruct your view through the
windshield, or of your vehicle's indicator displays.
• Do not install the Control Head where it may hinder the function of safety
devices such as an airbag. Doing so may prevent the airbag from
functioning properly in the event of an accident.
• Mount the Control Head in a location that is easily accessible.
