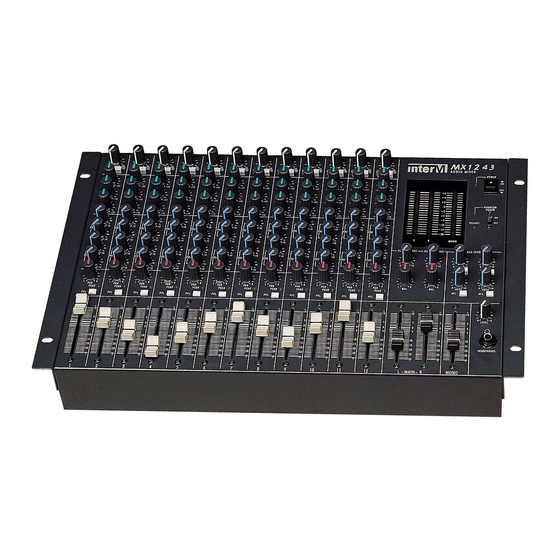

- Page 1 Operation anual udio Mixer X-1243...
- Page 2 Welcome personal welcome to you from the management and employees of Inter-M ll of the co-workers here at Inter-M are dedicated to providing excellent products with inherently good value, and we are delighted you have purchased one of our products.
-
Page 3: Table Of Contents
UDIO MIXER Contents Contents Unpacking ............................2 Installation Environment............................2 Important Safety Instructions......................2 Features........................3 Front Panel Controls ....................4 Rear Panel Controls ....................7 pplications ......................8 Block Diagram ......................9 Specifications ......................10 Service Procedures............................11 Schematic .............................11 Parts List ............................11 Variations and Options .......................11 Warranty ............................11 MX-1243... -
Page 4: Unpacking
UDIO MIXER Unpacking Unpacking lthough your MX-1243 is neither complicated nor difficult to operate, we recommend you take a few minutes to read this brief manual and familiarize yourself with the important information regarding product features, setup and operation. s with most electronic devices, we strongly recommend you retain the original packaging. In the unlikely event the product must be returned for servicing, the original packaging (or reasonable equivalent) is required. -
Page 5: Features
The PFL/ FL function allows you to monitor through headphone any input channel before the channel fader and UX output channel after the UX SEND volume. - PH NTOM POWER Phantom power is provided for easy connection of condenser microphones requiring an external power supply. MX-1243... -
Page 6: Front Panel Controls
UDIO MIXER Front Panel Controls Front Panel Controls MX-1243... - Page 7 3) Normally when PFL and FL switch is OFF, the headphone will monitor the same signal as the STEREO L/R jacks. 11. M IN OUTPUT F DERS The stereo and mono master faders independently adjust level of the L/R and MONO channel main buss signals appearing at the STEREO L/R and MONO OUT connectors. MX-1243...
- Page 8 20. CH NNEL F DERS This is the main level control for each input channel. It determines level of the signal sent from the corresponding input channel to the master stereo buss. Faders of channels not in use should be pulled down. MX-1243...
-
Page 9: Rear Panel Controls
These are XLR type connectors used to connect a stereo power amplifier. (Pin assignment– 1: GND, 2: HOT, 3: COLD) 7. LINE IN These are balanced input connector which can be connected line level equipment. Impedance is 10k . MX-1243... -
Page 10: Pplications
CLIP 20dB 40dB 40dB 20dB CLIP PROT CHANNEL 1 CHANNEL 2 POWER CD Player CD Player Monitor Speaker Power Amplifier PROT CLIP 20dB 40dB 40dB 20dB CLIP PROT CHANNEL 1 CHANNEL 2 POWER Tuner Tuner Electric Organ Main Speaker MX-1243... -
Page 11: Block Diagram
UDIO MIXER Block Diagram Block Diagram MX-1243... -
Page 12: Specifications
UDIO MIXER Specifications................ Specifications 0dB=0.775Vrms MX-1243 +24dB @ 600 , 0.5% THD at 1kHz (B L) Main Out L/R +24dB @ 600 , 0.5% THD at 1kHz (B L) Mono Out Maximum Output Level +20dB @ 600 , 0.5% THD at 1kHz (UNB L) UX Send 1-4 100mW @ 40 , 0.5% THD at 1kHz Headphone... -
Page 13: Service
To obtain specific warranty information and available service locations contact Inter-M directly or the authorized Inter-M Distributor for your specific country or region. - Page 14 Inter-M, Ltd. (Korea) began operations in 1983. Since then, Inter-M has grown to become one of the largest manufacturers of professional audio and commercial sound electronics equipment in the world. Inter-M has gained worldwide recognition for its own branded products, as well as private label manufacturing of electronics sold under other names (OEM).
