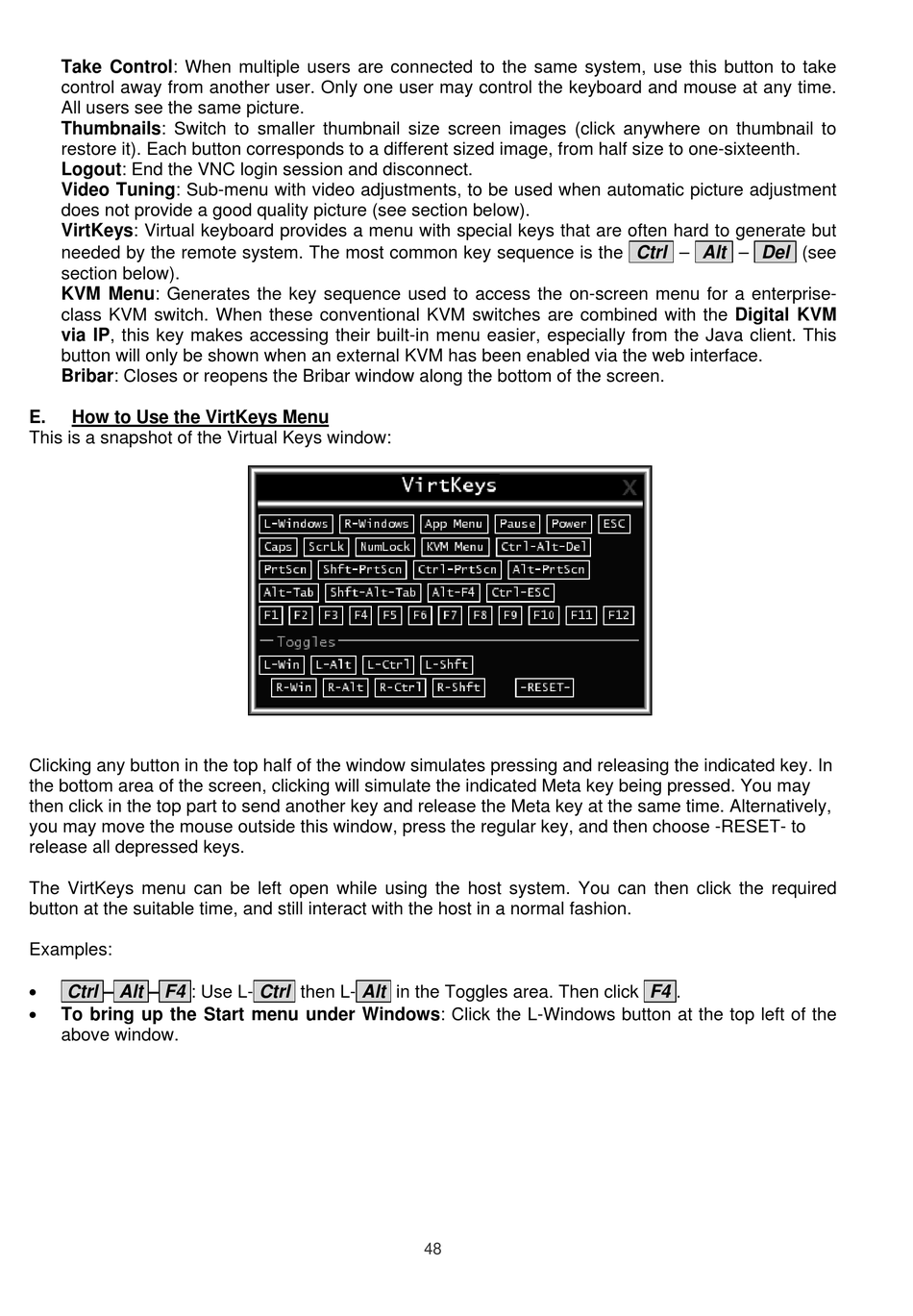

How To Use The Virtkeys Menu - Rextron MNIP-01 User Manual

Take Control: When multiple users are connected to the same system, use this button to take
control away from another user. Only one user may control the keyboard and mouse at any time.
All users see the same picture.
Thumbnails: Switch to smaller thumbnail size screen images (click anywhere on thumbnail to
restore it). Each button corresponds to a different sized image, from half size to one-sixteenth.
Logout: End the VNC login session and disconnect.
Video Tuning: Sub-menu with video adjustments, to be used when automatic picture adjustment
does not provide a good quality picture (see section below).
VirtKeys: Virtual keyboard provides a menu with special keys that are often hard to generate but
needed by the remote system. The most common key sequence is the Ctrl – Alt – Del (see
section below).
KVM Menu: Generates the key sequence used to access the on-screen menu for a enterprise-
class KVM switch. When these conventional KVM switches are combined with the Digital KVM
via IP, this key makes accessing their built-in menu easier, especially from the Java client. This
button will only be shown when an external KVM has been enabled via the web interface.
Bribar: Closes or reopens the Bribar window along the bottom of the screen.
E.

How to Use the VirtKeys Menu

This is a snapshot of the Virtual Keys window:
Clicking any button in the top half of the window simulates pressing and releasing the indicated key. In
the bottom area of the screen, clicking will simulate the indicated Meta key being pressed. You may
then click in the top part to send another key and release the Meta key at the same time. Alternatively,
you may move the mouse outside this window, press the regular key, and then choose -RESET- to
release all depressed keys.
The VirtKeys menu can be left open while using the host system. You can then click the required
button at the suitable time, and still interact with the host in a normal fashion.
Examples:

Ctrl – Alt – F4 : Use L- Ctrl then L- Alt in the Toggles area. Then click F4 .

To bring up the Start menu under Windows: Click the L-Windows button at the top left of the
above window.
