Page 1

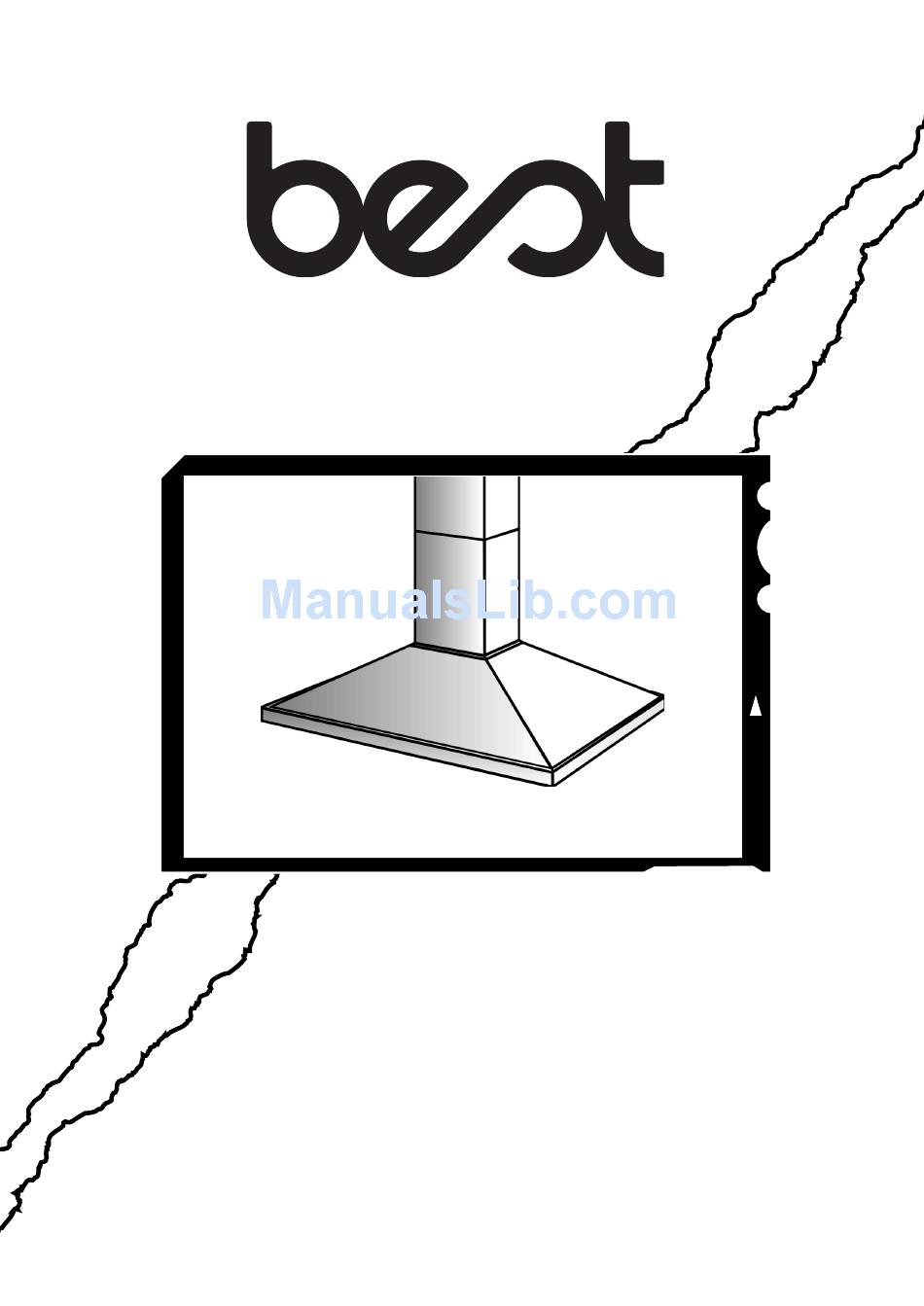

Model IEX42 ENGLISH........2 FRANÇAIS.........15 ESPAÑOL........28 In USA - BEST Hartford, Wisconsin In CANADA - BEST Drummondville, QC, Canada REGISTER YOUR PRODUCT ONLINE AT : www.BestRangeHoods.com/register For additional Information visit www.BestRangeHoods.com...
Page 2
READ AND SAVE THESE INSTRUCTIONS INTENDED FOR DOMESTIC COOKING ONLY WARNING TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: 1. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer at the address or telephone number listed in the warranty.
Page 3
CAUTION 1. For indoor use only. 2. To reduce risk of fire and to properly exhaust air, be sure to duct air outside. Do not vent exhaust air into spaces within walls or ceilings or into attics, crawl spaces, or garages. 3.
CAUTION: Either an exterior blower or in-line blower may be used with this hood. The IEX42 hood must be installed with blower models EB6, EB9, EB12, EB15, ILB3, ILB6, ILB9, or ILB11 only. Other Blowers cannot be substituted (Blowers sold separately).
INSTALL SUPPORT SYSTEM DRYWALL CROSS FRAMING 1. At hood location, install 2 X 4 cross framing ” between ceiling joists using dimensions shown. 2. Finish the ceiling surface. Be sure to mark the location of the ceiling joists and cross framing.
CONNECT DECORATIVE FLUE MOUNTING SCREWS (3.9X9.5MM) 1. Secure the upper flue to the upper support frame with mounting screws (3,9x9,5mm). 2. Insert the lower flue moving it completely towards the top and fix it temporarily with retaining screw (3.9x9.5mm). UPPER FLUE INSERT THE LOWER FLUE RETAINING SCREW...
Page 9
MOUNT HOOD TO SUPPORT ELECTRICAL BOX FRAME 1. Before mount hood to support frame remove the electrical box. 2. Mount hood to support frame. 3. Insert four (4) bolts through the top of the hood - from the inside. 4. Use four (4) nuts and four (4) washers (Ø6,4mm) to secure hood to support frame as shown.
Page 10
WIRING BLOWER CONNECTION AT HOOD CAUTION: All electrical wiring should Exterior or In-Line be done by a qualified person (s) in blower accordance with all applicable codes and CONNECT: WHITE-TO-WHITE, standards. This range hood must be RED-TO-BLACK, properly grounded. GREEN-TO-GROUND. Do not turn power on at service panel until all wires have been connected.
CONNECT DUCTWORK LOWER FLUE 1. Use 8" round metal duct to connect the RETAINING discharge collar on the hood to the ductwork SCREWS above. 2. Use duct tape to make all joints secure and air tight. 3. Remove the two temporary retaining screws from the lower flue and set it in place on the hood.
MAINTENANCE Proper maintenance of the Range Hood will assure proper performance of the unit. Grease Filters The grease filters should be cleaned fre- quently. Use a warm detergent solution. Grease filters are dishwasher safe. GREASE FILTERS Remove filters by pushing filters towards the back of hood and rotating filters downward.
OPERATION Controls BLOWER LIGHT The hood is operated using the slide controls ON / OFF SWITCH BLOWER under the front edge of the hood. SWITCH SPEED The light switch turns the halogen lights on CONTROL and off. The blower on / off switch turns the blower on to the running speed set by the blower speed control.
FUSE REPLACEMENT FUSE/S ELECTRICAL SWITCH OFF THE ELECTRICITY SUPPLY. Remove the grease filters. Open the electrical box. Replace with the same type of fuse (5x20mm, 5A, 125V). WARRANTY ONE YEAR LIMITED WARRANTY FOR BEST PRODUCTS Broan-NuTone LLC (Broan-NuTone) warrants to the original consumer purchaser of Best products that such products will be free from defects in materials or workmanship for a period of one year from the date of original purchase.
Page 15
LISEZ ET CONSERVEZ CES INSTRUCTIONS SEULEMENT POUR UTILISATION DOMESTIQUE AVERTISSEMENTS POUR REDUIRE LES RISQUES D’INCENDIE, DE DECHARGES ELECTRIQUES OU DE DOMMAGES AUX PERSONNES, OBSERVEZ LES INSTRUCTIONS SUIVANTES: 1. N’utilisez cet appareil que comme cela est indiqué par le constructeur. Si vous avez des problèmes, contactez le fabriquant à...
Page 16
4. Utilisez un extincteur SEULEMENT si: A. Vous savez que vous avez un extincteur Classe ABC, et vous en connaissez déjà le mode d’emploi. B. Ce n’est pas un très gros incendie et qu’il se limite à l’endroi où il a explosé. C.
Page 17
PREPAREZ LA HOTTE Enlever la hotte dans l’emballage et controller le contenu. Vous devez recevoir : 1 - Hotte 1 - Conduit décoratif 1 - Structure de support 1 - Collier d’évacuation 1 - Sachet (B080810004) avec: 4 - Vis d’assemblage (6 x 70mm) 8 - Rondelles Ø...
CHOIX DE VENTILATEUR EXTERNE OU “IN-LINE” ATTENTION: avec cette hotte, on peut utiliser soit un ventilateur externe soit “In-Line”. La hotte IEX42 doit être installée avec un ventilateur des modèles suivants EB6, EB9, EB12, EB15, ILB3, ILB6, ILB9, ou ILB11 uniquement. On ne peut pas utiliser d’autres ventilateurs (les ventilateurs sont vendus...
Page 20
INSTALLATION DU SYSTEME SURFACE DU CADRE CROISÉ PLAFOND DE SUPPORT ” 1. Installez, à l’emplacement de votre hotte, un cadre croisé de 2 x 4 entre les solives du plafond en suivant les dimensions qui vous sont indiquées. 2. Perfectionnez la surface du plafond. Assurez-vous de bien marquer l’empla- SOLIVES DU PLAFOND...
Page 21
ASSEMBLAGE DU CONDUIT VIS D’ASSEMBLAGE DECORATIF (3.9X9.5MM) 1. Fixez le conduit supérieur à la structure de support du haut avec les vis d’assemblage (3,9x9,5mm). 2. Installer le conduit inférieur pour qu’il touche le plafond et le fixer provisoirement CONDUIT à l’aide de la vis d’assemblage SUPERIEUR (3.9x9.5mm).
Page 22
ASSEMBLAGE DE VOTRE BOÎTE DE CONNEXION ELECTRIQUE HOTTE A LA STRUCTURE DE SUPPORT 1. Avant l’assemblage de votre hotte a la structura de support enlever la boîte de connexion electrique. 2. Assemblage de votre hotte a la structura de support. 3.
INSTALLATION ELECTRIQUE BRANCHEMENT DU VENTILATEUR À LA HOTTE A T T E N T I O N : L ’ i n s t a l l a t i o n Ventilateur externe ou électrique doit être faite par du person- «In-Line»...
Page 24
CONNEXION DU SYSTEME CONDUIT INFERIEUR D’EVACUATION D’ASSEMBLAGE 1. Reliez le collier d’évacuation qui se trouve sur votre hotte au système d’évacuation qui se trouve au-dessus au moyen d’un tuyau rond en métal de 8” (20cm). 2. Utilisez du ruban pour tuyauterie afin de rendre toutes les jonctions sures et étan- ches.
ENTRETIEN Un bon entretien de votre hotte garantira une excellente performance. Filtres anti-graisse Les Filtres anti-graisse doivent être nettoyés fréquemment. Utilisez une solution contenant un détergent tiède. Les filtres anti-graisse peuvent être lavés au lave-vaisselle. FILTRES ANTI-GRAISSE Enlevez les filtres en poussant les filtres vers l’arrière de votre hotte et en les faisant tourner vers le bas.
Page 26
FONCTIONNEMENT INTERRUPTEUR DE Commandes INTERRUPTEUR LA LUMIÈRE ON/OFF DU Votre hotte fonctionne grâce à des interrupteurs VENTILATEUR que vous faites glisser sur le devant de votre hotte. BOUTON RÉGLANT L’interrupteur de la lumière allume et éteint LA VITESSE DU les lampes halogènes. VENTILATEUR L’interrupteur ON/OFF du ventilateur fait fonctionner le ventilateur à...
REMPLACEMENT FUSIBLE BOÎTER FUSIBLE/S INSTALLATION DÉBRANCHEZ L’APPAREIL. ELECTRIQUE Enlevez les filtres anti-graisse. Ouvrir le boîtier installation électrique. Remplacez par un fusible du même type (5x20mm, 5A, 125V). GARANTIE GARANTIE LIMITÉE DE UN AN DE BEST Broan-NuTone LLC (Broan-NuTone) garantit à l'acheteur original que les produits BEST vendus en vertu de la présente sont libres de tout vice de matériau ou de fabrication pour une période de un an à...
Page 28
LEA Y CONSERVE ESTAS INSTRUCCIONES INDICADO PARA EL USO EN COCINAS DOMESTICAS ADVERTENCIA PARA EVITAR EL RIESGO DE INCENDIO, CORTOCIRCUITO O DAÑO PARA LAS PERSONAS, OBSERVE ATENTAMENTE LAS SIGUIENTES NORMAS: 1. Use esta unidad solamente de la manera indicada por el fabricante; si tiene dudas, póngase en contacto con éste a la dirección o teléfono indicados en la garantía.
Page 29
ADVERTENCIA 1. Para uso en interiores. 2. Para reducir el riesgo de incendios y para evacuar correctamente los humos, asegurarse de haber realizado una conducción del aire hasta el exterior. No expulsar los humos en espacios cerrados por paredes o techos, áticos, espacios angostos o garajes. 3.
PREPARE LA CAMPANA Sacar la campana de l’embalaje y controlar el contenido. Recivireis: 1 - Campana 1 - Tubo decorativo 1 - Armazón de soporte 1 - Casquillo 1 - Bolsita (B080810004) con: 4 - Tornillos de montaje (6 x 70mm) 8 - Arandelas Ø...
Page 31
VENTILADOR IN-LINE PRECAUCIÓN: con este tipo de campana se deben utilizador tanto un ventilador exterior como un ventilador in-line. La campana IEX42 debe instalarse utilizando ventiladores de los modelos EB6, EB9, EB12, EB15, ILB3, ILB6, ILB9 o ILB11 únicamente. No pueden reemplazarse por otro tipo de ventiladores (los ventiladores se venden por separado).
Page 33
INSTALACION DEL SISTEMA SUPERFICIE DEL ENTRAMADO TECHO DE SUJECION ” 1. En el sitio donde vaya a ir la campana, instale un entramado entre las vigas del techo utilizando las medidas dadas. 2. Termine la superficie del techo. Asegúrese de marcar la colocación de las vigas del techo y del entramado.
Page 34
INSTALACION DEL TUBO TORNILLOS PARA EL MONTAJE DECORATIVO (3.9X9.5MM) 1. Sujete el tubo superior a la parte superior de la estructura de soporte de madera en la pared con los tornillos para el montaje (3,9x9,5mm). 2. Introduzca el tubo inferior hasta hacerlo TUBO tocar el techo, y fíjelo momentáneamente SUPERIOR...
Page 35
FIJAR LA CAMPANA A LA CAJA DE CONEXIÓN ELÉCTRICA ESTRUCTURA DE MADERA 1. Antes de instalar la campana a la estructura quitar la caja de conexión eléctrica. 2. Sujetar la campana a la estructura de soporte. 3. Introduzca cuatro (4) tornillos en la parte superior de la campana desde la parte interna de ésta.
INSTALACION ELECTRICA CON.DEL VENTIL.A LA CAMPANA PRECAUCIÓN : Toda la instalación eléctrica CONECTE: Ventilador Exterior tiene que ser realizada exclusivamente por per- EL CABLO BLANCO CON EL BLANCO, EL sonal preparado y a norma con los estándares ROJO CON EL NEGRO Y y las reglas establecidas.
Page 37
INSTALACION DEL TUBO DE TUBO INFERIOR EXTRACCION TORNILLOS 1. Use un tubo de metal de 8” (20cm) de MONTAJE diámetro para unir el casquillo situado en la parte superior de la campana con el tubo de extracción. 2. Use la cinta para unir todas las junturas, de esta manera el tubo quedará...
MANTENIMIENTO Un mantenimiento adecuado de la campana asegura el funcionamiento correcto del aparato. Filtros antigrasa Los filtros antigrasa deben limpiarse a menudo. Use un detergente que no sea fuerte. FILTROS ANTIGRASA Los filtros antigrasa se pueden meter en el lavavajillas. Extraiga los filtros tirando de ellos hacia atrás de la campana y girándolos hacia abajo.
Page 39
FUNCIONAMIENTO MANDO DE ENCENDIDO Y APAGADO Mandos DEL ASPIRADOR La campana se pone en funcionamiento INTERRUPTOR DA usando los mandos situados abajo de la parte frontal de la campana. CONTROL DE LA El interruptor sa luz enciende y apaga las VELOCIDAD DEL ASPIRADOR lámparas halógenas.
Page 40
SUSTITUCION FUSIBLE CAJA DE LA FUSIBLE/S INSTALACION DESCONECTAR EL APARATO. ELECTRICA Remover los filtros antigrasa. Abrir la caja de la instalación eléctrica. Sustituir por un fusible del mismo tipo (5x20mm, 5A, 125V). GARANTIA GARANTIA BEST POR UN AÑO Broan-NuTone LLC (Broan-NuTone) garantiza al consumidor-comprador de sus productos BEST que dichos productos no tendrán defectos en los materiales o fabricación, durante un periodo de un año a partir de la fecha de la compra.NO HAY OTRO TIPO DE GARANTIAS QUE INCLUYAN O SE LIMITEN EXCLUSIVAMENTE A GARANTIAS IMPLICITAS O DE CAPACIDAD COMERCIAL O CONVENIENCIA PARA UN PROPOSITO ESPECIFICO.
SERVICE PARTS MODEL IEX42 - Parts for stainless steel models shown. For service parts for black, white, polished brass, or brushed copper models, call Broan Customer Service. KEY NO. PART NO. DESCRIPTION B08091633 N. 3 Grease Filters BE3345379 Electrical Box Support...
Page 42
LISTE PIECES DE RECHANGE MODELE IEX42 - Ci-dessous liste pièces de rechange pour hottes en inox. Pour les pièces de recharge des modèles de couleurs noir, blanc, laiton jaune poli, cuivre brossé, contacter Broan Customer Service. PART N. DESCRIPTION B08091633 N.
LISTA DE PIEZAS DE RECAMBIO MODELO IEX42 - Aquí aparecen solamente las piezas de recambio para campanas de acero inoxidable, si desean las piezas de recambio de los modelos en blanco, negro, latón lustrado ó cobre acepillado, pónganse en contacto con el servicio al cliente de Broan.
Page 44
SERVICE PARTS - LISTE PIECES DE RECHANGE - LISTA DE PIEZAS DE RECAMBIO MODEL IEX42 04307165/5...
