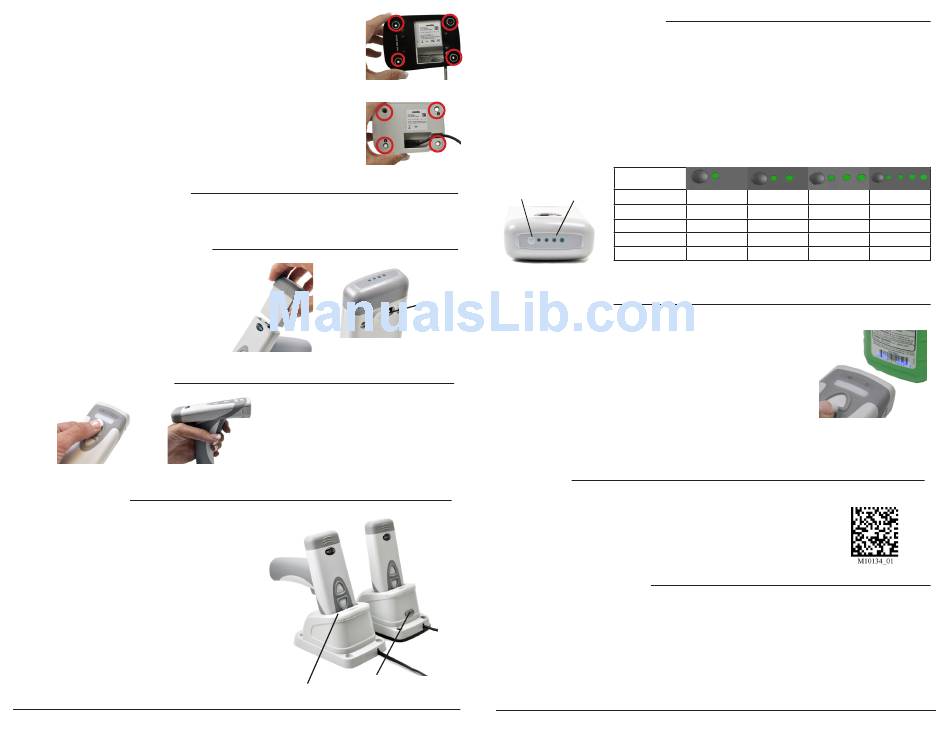

4. (Optional) To mounting the Charging Station to a Surface place the 'This
Side Down' (Figure 4) side of the weighted base onto the surface and
secure with screws. Note: Because surface types differ, screws are not
included to mount a Charging Station to a surface. Place the Charging
Station on top of the secured weighted base (Figure 3) and secure to the
base with the screws provided (Figure 3)
5. Plug the USB cable into the computer's USB port or the power adapter
into the wall outlet.
Weighted Base Adapter Plate
The weighted base has the same pre-drilled mounting holes as the ECS-H and UMC Chargers.
Battery Installation and Removal
Place the battery into the reader as shown in
Figure 6. Once in place, the battery will snap
and lock to indicate proper installation. For
battery removal, slide the latch (Figure 7), to
unlock and release the battery.
Powering on the Reader
Figure 8 Figure 9
Charging a CR2600
Batteries ship with approximately 50% battery life
and should be completely charged before initial use.
Approximate time to charge a depleted battery is 4
hours via USB cable and 2 1/2 hours via AC power
supply.
To charge a reader, remove the plastic 'Remove
Before Use' cap, and place the reader into the
Charging Station. (Figure 10)
When the reader is seated correctly, the Charging
Indicator LED (Figure 10) will turn green.
Figure 4
Figure 5
Figure 7
Figure 6
Press and hold either
of the buttons or
trigger for one second,
to power on.
Figure 10
Communication
Charge
Mode Switch
Indicator
Fuel Gauge Battery Status
Check Battery Life
Press the fuel gauge button (Figure 11) to determine remaining battery life. If the battery has less
then 10% capacity, the first LED will flash rapidly. For 25% or greater capacity, the LEDs will flash
ON for 4 seconds.
Fuel Gauge Status Indicator While Charging
If the battery has less then 10% capacity, the first LED will flash rapidly while charging. For 25% or
greater capacity, the LEDs will flash ON for 4 seconds and OFF for 1 second. (Figure 12)
Fuel Gauge Fuel Gauge
Button Indicators
Figure 11
Latch
Using the CR2600
Press and hold a button or trigger on the CR2600, the two blue bars
emitting from the reader are used for targeting. Center the blue bars in
the middle of a bar code. When the bar code is in the reader's field of
view and at the optimal distance (4" from the bar code) , the reader will
automatically read the code.
The CR2600 will beep, vibrate and the good read indicator will flash
green to indicate a 'good read' has occurred. (Figure 16)

Suffix Enter

The default setting on the CR2600 has Suffix Enter disabled. To enable
Suffix Enter, scan the following configuration code. For RS232 Settings,
please refer to the CR2600 Configuration Guide.
CR2600 Default Settings
Out of the box the CR2600 will read the following bar codes:
Aztec
Code 128
Codabar
Data Matrix
Code 39
GS1 DataBar
Code 93 Int 2 of 5
Battery Life
<10% Rapid Flashing
<25% ON
25-50% ON ON
50-75% ON ON
75%+ ON ON
Figure 12
PDF417 To configure a CR2600 to read bar codes not listed,
QR Code
download the CR2600 Configuration Guide from
UPC
www.codecorp.com and scan the appropriate 'Enable'
bar code reading symbology configuration code.
ON
ON ON
Figure 13
Suffix Enter - USB
