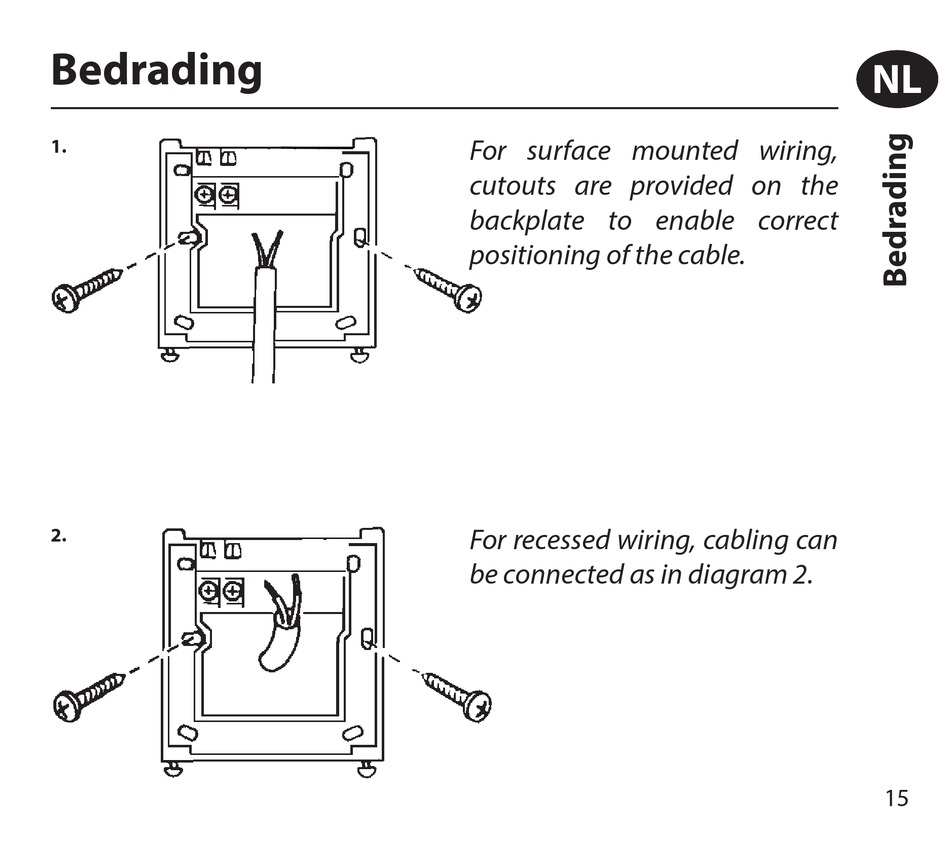

Bedrading

1.
2.
For surface mounted wiring,
cutouts are provided on the
backplate to enable correct
positioning of the cable.
For recessed wiring, cabling can
be connected as in diagram 2.
NL
NL
NL
15
