WebDAQ 504 User's Guide

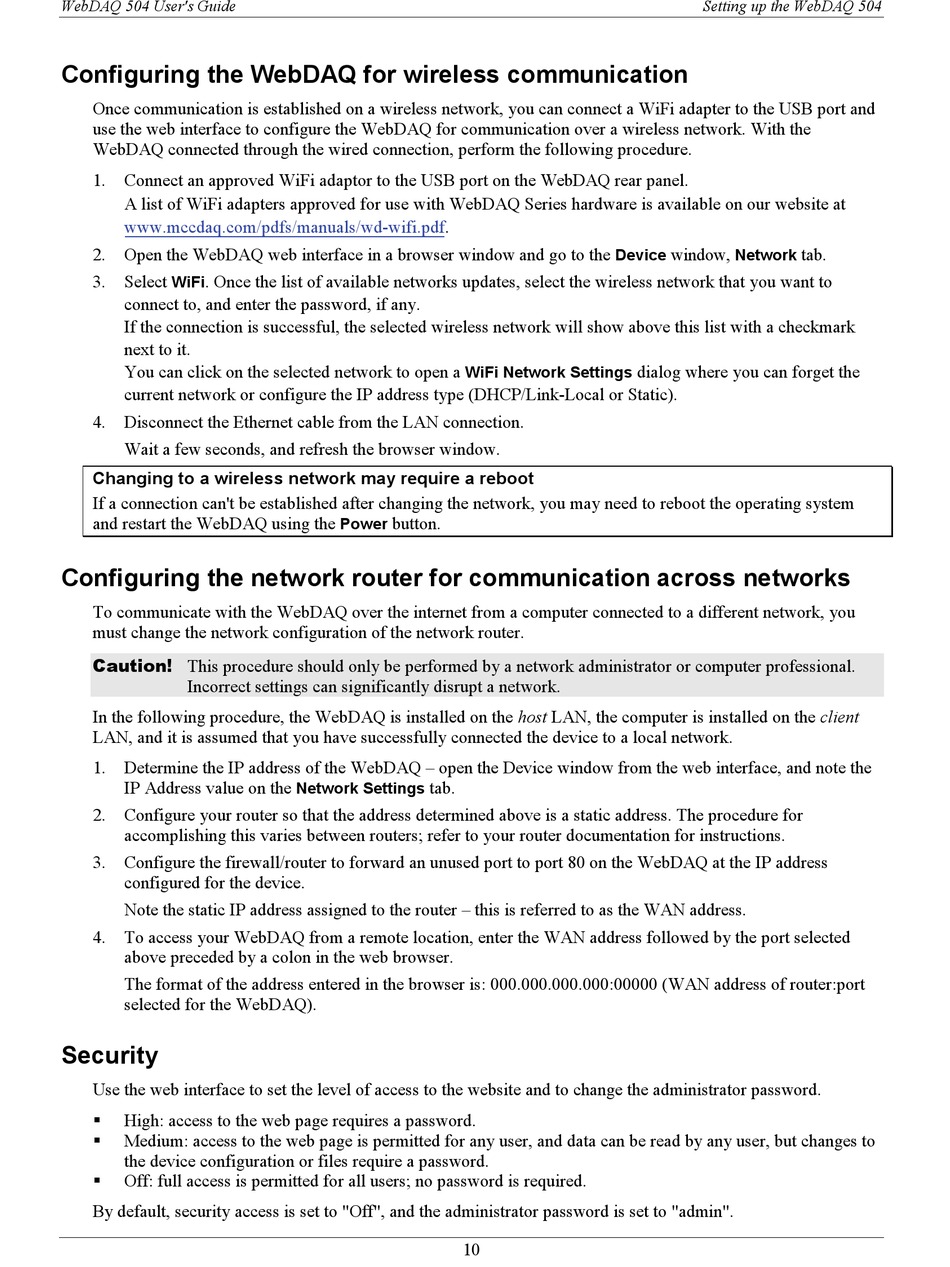

Configuring the WebDAQ for wireless communication

Once communication is established on a wireless network, you can connect a WiFi adapter to the USB port and
use the web interface to configure the WebDAQ for communication over a wireless network. With the
WebDAQ connected through the wired connection, perform the following procedure.
1. Connect an approved WiFi adaptor to the USB port on the WebDAQ rear panel.
A list of WiFi adapters approved for use with WebDAQ Series hardware is available on our website at
www.mccdaq.com/pdfs/manuals/wd-wifi.pdf.
2. Open the WebDAQ web interface in a browser window and go to the
3. Select . Once the list of available networks updates, select the wireless network that you want to
WiFi
connect to, and enter the password, if any.
If the connection is successful, the selected wireless network will show above this list with a checkmark
next to it.
You can click on the selected network to open a
current network or configure the IP address type (DHCP/Link-Local or Static).
4. Disconnect the Ethernet cable from the LAN connection.
Wait a few seconds, and refresh the browser window.
Changing to a wireless network may require a reboot
If a connection can't be established after changing the network, you may need to reboot the operating system
and restart the WebDAQ using the

Configuring the network router for communication across networks

To communicate with the WebDAQ over the internet from a computer connected to a different network, you
must change the network configuration of the network router.
Caution! This procedure should only be performed by a network administrator or computer professional.
Incorrect settings can significantly disrupt a network.
In the following procedure, the WebDAQ is installed on the host LAN, the computer is installed on the client
LAN, and it is assumed that you have successfully connected the device to a local network.
1. Determine the IP address of the WebDAQ – open the Device window from the web interface, and note the
IP Address value on the
2. Configure your router so that the address determined above is a static address. The procedure for
accomplishing this varies between routers; refer to your router documentation for instructions.
3. Configure the firewall/router to forward an unused port to port 80 on the WebDAQ at the IP address
configured for the device.
Note the static IP address assigned to the router – this is referred to as the WAN address.
4. To access your WebDAQ from a remote location, enter the WAN address followed by the port selected
above preceded by a colon in the web browser.
The format of the address entered in the browser is: 000.000.000.000:00000 (WAN address of router:port
selected for the WebDAQ).

Security

Use the web interface to set the level of access to the website and to change the administrator password.
High: access to the web page requires a password.

Medium: access to the web page is permitted for any user, and data can be read by any user, but changes to

the device configuration or files require a password.
Off: full access is permitted for all users; no password is required.

By default, security access is set to "Off", and the administrator password is set to "admin".
WiFi Network Settings
button.
Power
tab.
Network Settings
10
Setting up the WebDAQ 504
window,
Device Network
dialog where you can forget the
tab.
