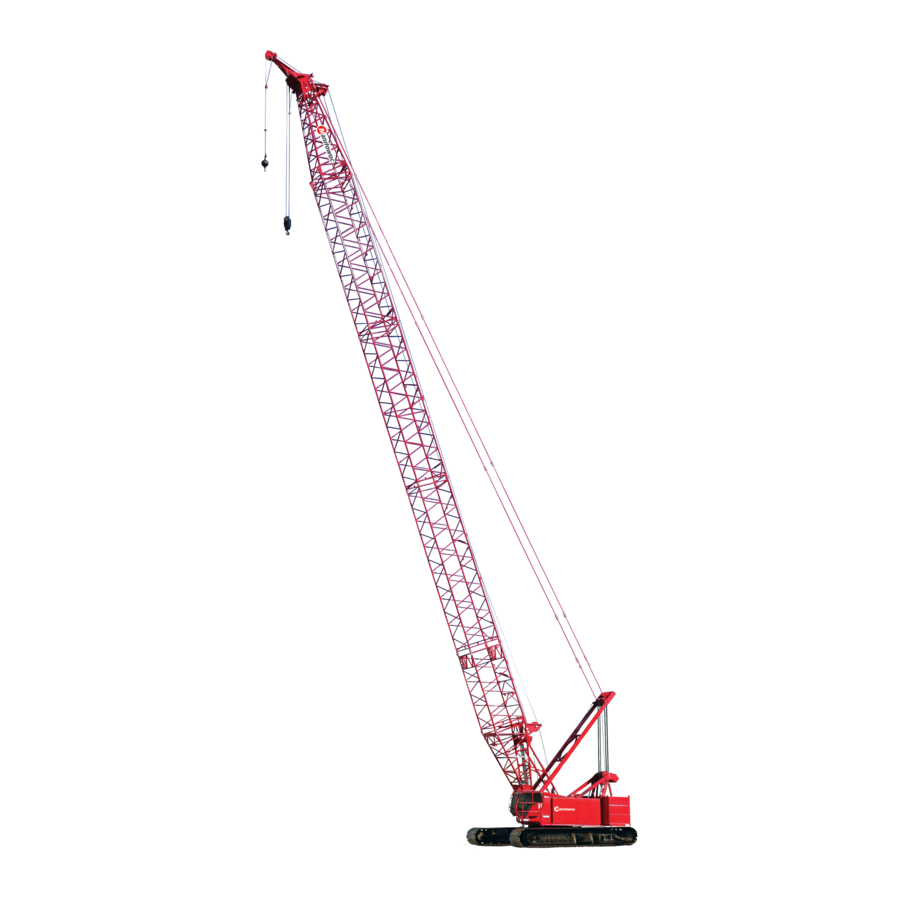

Manitowoc 14000
Product Guide

Features

•
200 mton (220 ton) capacity
•
865 m-ton (6,267 ft-kips)
Maximum Load Moment
•
89 m (292') Heavy-Lift Boom
•
98,4 m (323') Fixed Jib on
Heavy-Lift Boom
•
113,8 m (373') Luffing Jib on
Heavy-Lift Boom
•
253 kW (340 HP) engine

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 14000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Manitowoc 14000

Summary of Contents for Manitowoc 14000

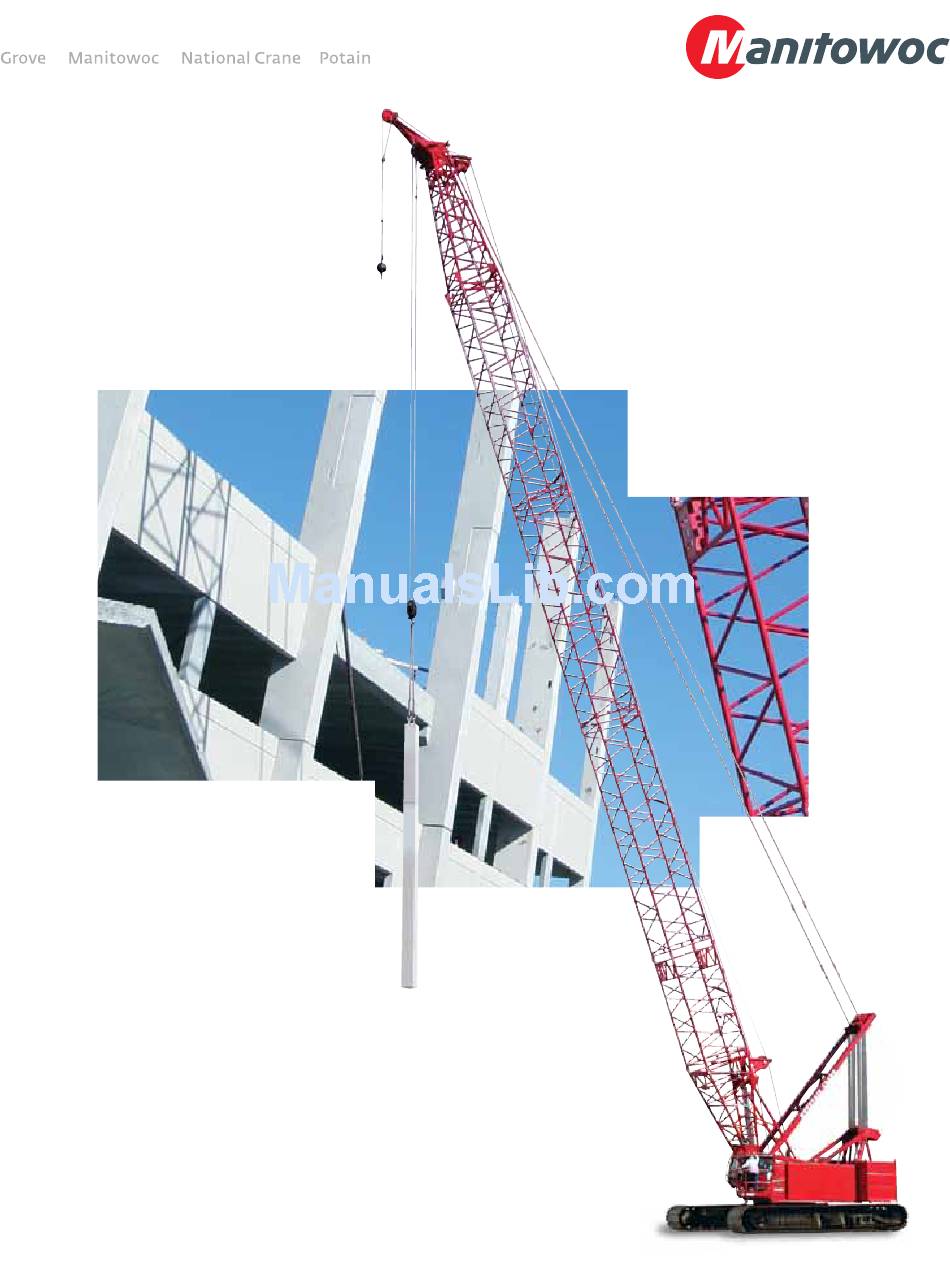

  • Page 1 Manitowoc 14000 Product Guide Features • 200 mton (220 ton) capacity • 865 m-ton (6,267 ft-kips) Maximum Load Moment • 89 m (292’) Heavy-Lift Boom • 98,4 m (323’) Fixed Jib on Heavy-Lift Boom • 113,8 m (373’) Luffing Jib on Heavy-Lift Boom •...
  • Page 2 . EPIC’s microprocessor and sensors also maximize a Manitowoc crane’s overall reliability and simplify servicing by pinpointing any problem in the crane’s engine, power transmission or other operating systems.

  • Page 3: Table Of Contents

    Contents Specifications Outline dimensions Transport data Performance data Boom combinations Main boom range / load charts Fixed Jib range / load charts Luffing jib range / load charts Manitowoc Crane Care...

  • Page 4: Specifications

    Optional: Free-fall operation for front and/or rear provide infinite speed response directly proportional drums(s). to control lever movement. Controls include Manitowoc’s exclusive EPIC® Electronically Optional: Auxiliary (third) hydraulic powered Processed Independent Control system providing drum mounted in boom butt. Includes third drum microprocessor driven control logic, pump control, control system.
  • Page 5 Fully enclosed and insulated steel module is No. 76 boom utilizes steel suspension straps and equipped with sliding door, large safety glass Manitowoc’s patented, exclusive FACT™ connection windows on all sides and roof. Signal horn, cab system. The FACT™ connection system consists...
  • Page 6 Optional: Blocks and Hooks – Optional Special Paint: in color(s) other than 13,6 mton (15 ton) swivel hook and weight ball. Manitowoc standard red and black. 27,2 mton (30 ton) hook block with one 76,2 cm Optional Special Customer Decals: custom (30") sheave for 26 mm wire rope with swivel...

  • Page 7: Outline Dimensions

    Outline dimensions Model 14000...
  • Page 8 Outline dimensions Basic Crane Length 11,63 m 38' 2" Width 3,00 m 9' 10" Height 3,20 m 10' 6" (CE pkg) Height 3,43 m 11' 3" (non-CE pkg) Weight 39 689 kg 87,500 lb Note: Weight includes carbody, upperworks, operator’s cab, gantry, backhitch, mast, boom- hoist wire rope, maximum hoist and whip lines on drums, optional self-assembly jacks, full hydraulic fluid reservoir, and half tank of fuel.
  • Page 9 1 634 kg 3,600 lb No. 76 Boom Top 9,0 m (29.5') & Wire Rope Guide, Straps Length 9,58 m 31' 5" Width 2,51 m 8' 3" Height 2,97 m 9' 9" Weight 4 495 kg 9,900 lb Model 14000 Option...
  • Page 10 Outline dimensions No. 76 Main Boom 3,0 m (9.8') Insert & Straps Length 3,17 m 10' 5" Width 2,54 m 8' 4" Height 2,59 m 8' 6" Weight 772 kg 1,700 lb No. 76 Main Boom 6,0 m (19.7') Insert & Straps Length 6,17 m 20' 3"...
  • Page 11 1,30 m 4' 3 Weight 381 kg 840 lb No. 135 Luffing Jib Insert 6,1 m (20') & Pendants x 1, 2 Length 6,20 m 20 4 Width 1,52 m Height 1,30 m Weight 612 kg 1,350 lb Model 14000 Option...
  • Page 12 Outline dimensions No. 135 Luffing Jib Insert 12,2 m (40') & Pendants x 1, 2, 3 Length 12,29 m 40' 4" Width 1,52 m 5' 0" Height 1,30 m 4' 3" Weight 1 050 kg 2,315 lb No. 76 Upper Boom Point Length 2,64 m 8' 8"...

  • Page 13: Transport Data

    Transport data Model 14000 Load Out Summary No. 76 Boom 65 m (213') Series 2 Weight Quantity on Trailer Load # Each Item Item (lb) Upperworks Structure with 39 689 Carbody, Gantry & Mast (87,500) 17 690 Crawler Assembly (39,000)

  • Page 14: Performance Data

    Performance data Main and Standard Whip Drum - 140kN (31,500 lb) Full Power Drum - Continuous Duty Single Line Pull/Single Line Speed m/min (ft/min) Layer Single Line Pull (lb) (318) (347) (377) (406) (435) (464) 2 268 (5,000) (299) (324) (349) (374) (399)
  • Page 15 28 580 63,000 42 860 94,500 57 150 126,000 71 440 157,500 85 730 189,000 100 020 220,500 114 310 252,000 128 590 283,500 142 880 315,000 157 170 346,500 171 460 378,000 185 750 409,500 200 030 441,000 Model 14000...
  • Page 16 Performance data Wire Rope Lengths Boom No. 76 - or - Fixed Jib No. 134 Boom No. 76 Whip Line - Drum 1 or 3 Hoist Line - Drum 2 Boom or (Front or Auxiliary Drum) (Rear Drum) Boom and Jib Length 1 Part 2 Part...
  • Page 17 (158,600 lb) (158,600 lb) (153,800 lb) Maximum Load 14 290 kg 14 290 kg 9 070 kN Per Line (31,500 lb) (31,500 lb) (20,000 lb) Approximate Weight 3,56 kg/m 3,56 kg/m 3,36 kg/m (2.39 lb/ft) (2.39 lb/ft) (2.26 lb/ft) Model 14000...
  • Page 18 Performance data Drum Capacities - Wire Rope Maximum Length No Lagging Front or Rear Grooved Drum 399 m (1,310 ft) 26 mm Wire Rope* 6 Layers Auxiliary Drum 208 m (684 ft) (1") Wire Rope** 8 Layers Boom Hoist Drum 323 m (1,060 ft) 22,23 mm (7/8") Wire Rope...
  • Page 19 NOTE: Load block(s), hook(s) and weight ball(s) on ground until boom and luffing jib are erected. Boom lengths shown with a pound sign (#) require lower boom point and wire rope guide assembly No. 177364 to be removed. Model 14000...

  • Page 20: Boom Combinations

    89 m (292 ft) 6,0 m (19.7 ft) Boom Insert 3,0 m (9.8 ft) Boom Insert 5,5 m (18.0 ft) with WRG Boom Insert 5,5 m (18.0 ft) Boom Butt Model 14000 No. 76 Heavy-Lift Main Boom 89 m (292 ft)
  • Page 21 Boom Insert 6,0 m (19.7 ft) Boom Insert 5,5 m (18.0 ft) with WRG Boom Insert 5,5 m (18.0 ft) Boom Butt Model 14000 No. 134 Fixed Jib on No 76 Heavy-Lift Main Boom 98,4 m (323 ft) Model 14000...
  • Page 22 (39.4 ft) Boom Insert 3,0 m (9.8 ft) Boom Insert 5,5 m (18.0 ft) with WRG Boom Insert 5,5 m (18.0 ft) Boom Butt Model 14000 No. 135 Luffing Jib on No. 76 Heavy-Lift Main Boom 110,8 m (363.6 ft)
  • Page 23 Heavy-lift boom range diagrams ANSI B30.5 Liftcrane Boom Capacities - Model 14000 Series 2 No. 76 Heavy Lift Main Boom (340) 103,6 (320) 97,5 (300) 91,4 (280) 85,3 (260) 79,2 (240) 73,2 (220) 67,1 (200) 61,0 (180) 54,9 (160) 48,8...
  • Page 24 Heavy-lift boom load charts ANSI B30.5 Liftcrane Boom Capacities - Model 14000 Series 2 No. 76 Heavy Lift Main Boom 76 200 kg (168,000 lb) Counterweight 24 040 kg (53,000 lb) Carbody Counterweight 360° Rating (lb) x 1 000 Boom...
  • Page 25 1,22 m 12,2 18,8 24,4 30,5 36,6 42,7 48,8 54,9 61,0, 67,1 73,2 79,2 (4' 0") 5,89 m (40) (60) (80) (100) (120) (140) (160) (180) (200) (220) (240) (260) (19' 4") 2,44 m TAILSWING (8' 0") ROTATION Model 14000...
  • Page 26 Fixed jib load charts ANSI B30.5 Liftcrane Boom Capacities Fixed Jib Capacities - 134 Fixed Jib on No. 76 Main Boom 76 200 kg (168,000 lb) Counterweight 24 000 kg (53,000 lb) Carbody Counterweight 360° Rating (lb) x 1 000 5°...
  • Page 27 (16.3) (17.4) 48,0 (150) (15.5) (16.8) (17.0) (17.1) (11.2) (12.7) (14.0) (15.1) 56,0 — (180) (13.3) (15.4) (14.2) (12.4) (11.1) (12.3) (13.3) 64,0 (210) (11.5) (9.8) (8.0) (10.9) (9.4) 70,0 (235) (7.5) (5.7) (6.3) 76,0 (255) (5.6) (4.2) Model 14000...
  • Page 28 Luffing jib range diagram ANSI B30.5 Liftcrane Boom Capacities Fixed Jib Capacities - 134 Fixed Jib on No. 76 Main Boom (380) 115,8 (360) 109,7 (340) 103,6 (320) 97,5 (300) 91,4 (280) 85,3 (260) 79,2 (240) 73,2 (220) 67,1 (200) 61,0 (180) 54,9...
  • Page 29 Luffing jib load charts ANSI B30.5 Liftcrane Luffing Jib Boom Capacities - Model 14000 Series 2 No. 59 Luffing Jib on No. 58 Heavy Lift Main Boom 76 200 kg (168,000 lb) Counterweight 24 000 kg (53,000 lb) Carbody Counterweight 360°...
  • Page 30 Luffing jib load charts ANSI B30.5 Liftcrane Luffing Jib Boom Capacities - Model 14000 Series 2 No. 59 Luffing Jib on No. 58 Heavy Lift Main Boom 76 200 kg (168,000 lb) Counterweight 24 000 kg (53,000 lb) Carbody Counterweight 360°...
  • Page 31 Luffing jib load charts ANSI B30.5 Liftcrane Luffing Jib Boom Capacities - Model 14000 Series 2 No. 59 Luffing Jib on No. 58 Heavy Lift Main Boom 76 200 kg (168,000 lb) Counterweight 24 000 kg (53,000 lb) Carbody Counterweight 360°...

  • Page 32: Manitowoc Crane Care

    200 Hour Kit training, prompt parts availability, expert field service, Consists of the following: technical support and documentation — for every one of the more than 7,000 Manitowoc cranes currently in use Engine throughout the world. • Filter Oil (1) •...
  • Page 33 Factory-trained service experts are always ready to help Crane Care Package maintain your crane’s peak performance. Manitowoc has assembled all of the available literature, CD’s and videos listed above plus several Manitowoc For a worldwide listing of dealer locations, please consult premiums into one complete Crane Care Package.
  • Page 34 Notes...
  • Page 35 Notes Model 14000...
  • Page 36 Regional headquarters Manitowoc - Americas Manitowoc - Europe, Middle East, Africa Manitowoc - Asia - Pacific Manitowoc, Wisconsin, USA Ecully, France Shanghai, China Tel: +1 920 684 6621 Tel: +33 (0)4 72 18 20 20 Tel: +86 21 6457 0066...
