Airspan MicroMAX Hardware Installation

Base station radio
Hide thumbs Also See for MicroMAX:
Table of Contents

Advertisement

Quick Links

Download this manual
IP-based
Broadband Wireless Access (BWA) System
605-0000-742 Rev G
MicroMAX

Hardware Installation

Connecting the World

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MicroMAX and is the answer not in the manual?

Questions and answers

Related Manuals for Airspan MicroMAX

Summary of Contents for Airspan MicroMAX

  • Page 1: Hardware Installation

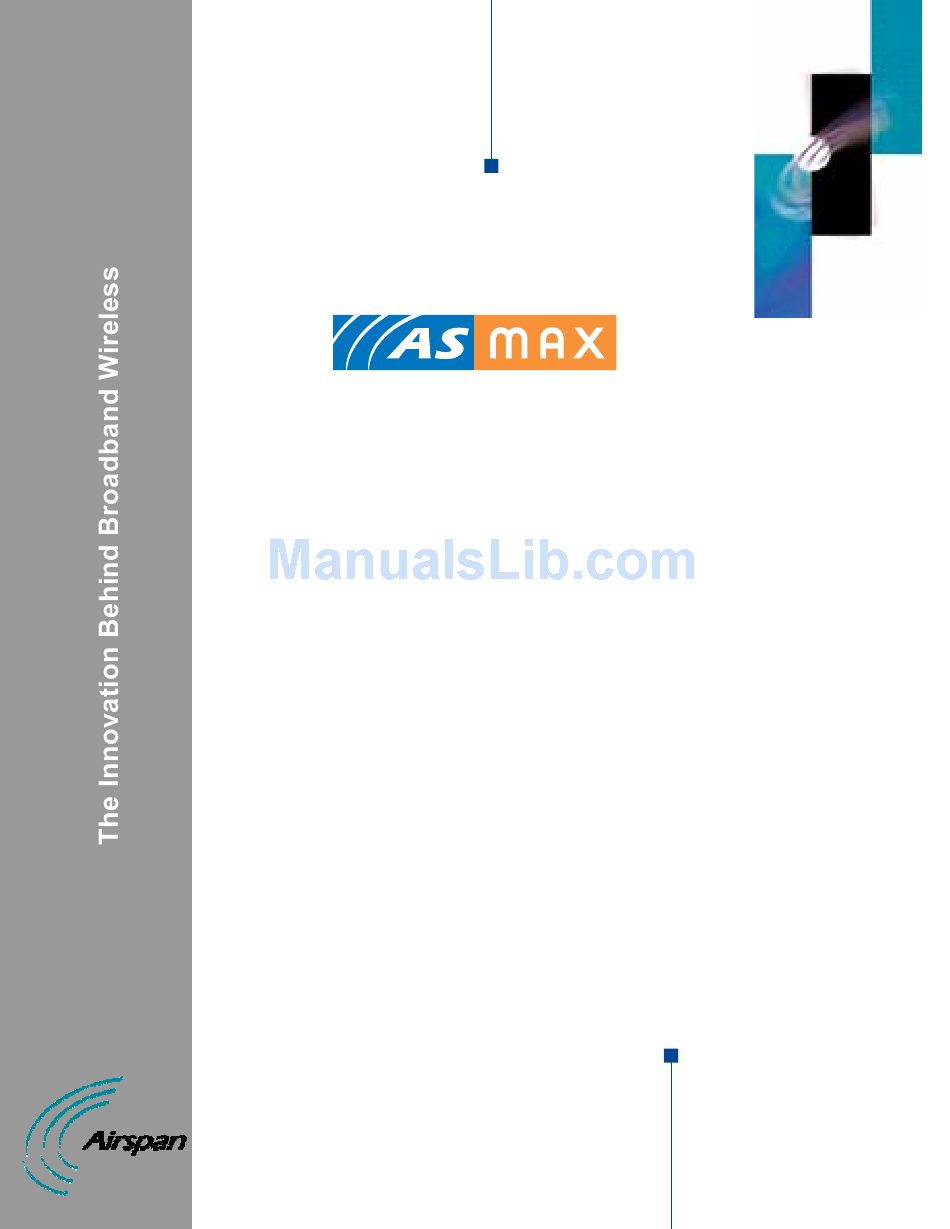

    IP-based Broadband Wireless Access (BWA) System 605-0000-742 Rev G MicroMAX Hardware Installation Connecting the World...
