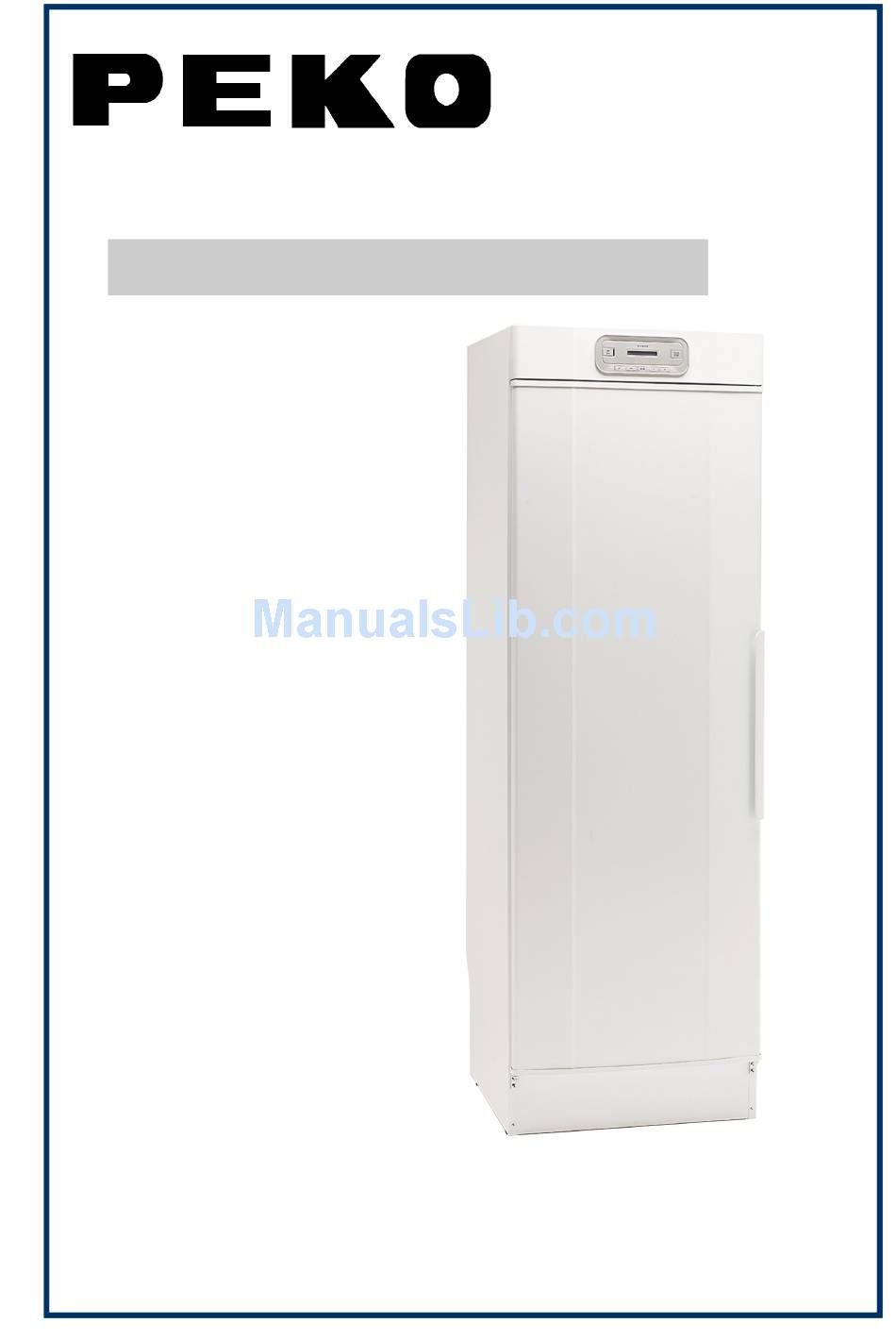

- Page 1 Drying Cabinet Drying Cabinet Installation and Operating Manual Installation and Operating Manual Model:- ETS-1700E Electronic Sensor Drying...
-
Page 2: Table Of Contents
MANUFACTURING STANDARDS HOW TO LOAD THE WASHING ELECTRICAL DIAGRAM AND DIMENSIONAL DRAWING CONTROL PANEL UK Distributor: Peko Equipment Limited Peko House, Northbridge Road Berkhamsted, Herts, HP4 1GE Tel: 01442 872323 Fax: 01442 866900 Email: info@peko.co.uk Installa on and Opera ng Manual Page 2 ... -
Page 3: This User Manual
THIS USER MANUAL The contents of this user manual describes the functions of NOTE. Keep this user the ETS-1700E drying cabinet and how it should be used. It manual so it is always also includes instructions for installation and maintenance. -
Page 4: Description Of The Cabinet
DESCRIPTION OF THE CABINET INSTALLATION UNPACKING THE CABINET The cabinet must be handled After unpacking, check that the product is free of carefully at all times. faults. Damage, defects and any missing parts must be immediately reported to the dealer. RISK OF TIPPING OVER. -
Page 5: Door Gasket Not Sealing
INSTALLATION Assembly kit: DOOR GASKET NOT SEALING Once the cabinet has been unpacked, you will notice that the top of the door may not be parallel with the control panel above, and the door sealing gasket may not fit to the cabinet - see images below. This situation arises due to the weight of the door pulling down on one side of the cabinet. -
Page 6: Door Adjustment
INSTALLATION DOOR ADJUSTMENT Minor adjustments to the door can be made by small alterations to the front levelling feet after the cabinet has been secured. Further small adjustments to the door alignment can be made by slightly loosening the lower hinge pin fixing bracket. -
Page 7: Location And Fixing
INSTALLATION LOCATION AND FIXING The drying cabinet should not be installed in The drying cabinet should not be installed in a a location where high pressure water is used location where any doorways or safety exits are for cleaning. blocked when the door is open and the hanging rails extended. -
Page 8: Electrical Connection
INSTALLATION ELECTRICAL CONNECTION The cabinet is supplied ready for connection to the power supply with a UK style 3-pin plug complete with a 10 A fuse. Power supply rated at 220 – 240V single-phase 50 Hz. The power cable is approx. 1.9 m in length. The plug (and socket outlet) should be in an accessible position for ease of removal. -
Page 9: Ventilation Connection
INSTALLATION VENTILATION CONNECTION The cabinet can be connected to an exhaust duct in NOTE. The exhaust ducting should not two ways: be connected into an existing chimney, boiler flue or tumble dryer system. 1. CONNECTION TO AN EXISTING SYSTEM This method is only suitable for buildings that have an existing mechanical ventilation system, or where the room has a dedicated extraction... -
Page 10: Start Up
START-UP Read this user manual before using WARNING! Read the safety advice on the drying cabinet for the first time. page 3 before using the drying cabinet. Check that the cabinet is firmly attached to the wall. See page 7 of this manual. Check that no packaging material has been left behind. -
Page 11: Control Panel
CONTROL PANEL Main power switch Automatic programme 60° Green light indicating cabinet is on Manual time control (step function) Display screen Reduce drying time (15 minute increments) Programme START/STOP Increase drying time (15 minute increments) Automatic programme 40° DISPLAY Current programme selection Revolving symbol indicating drying process is in progress With... -
Page 12: Start The Programme
DRYING PROGRAMMES START THE PROGRAMME LAST USED DRYING PROGRAMME Press the main power ON/OFF switch. A green light should appear, indicating that the cabinet is on. The display shows the most recently run programme. If this is the desired programme, press START/STOP. -
Page 13: Adjusting The Drying Programmes
ADJUSTING THE DRYING PROGRAMMES INTRODUCTION The drying cabinet is equipped with two automatic programmes, 40° and 60°. The automatic programmes end when the washing is dry. To determine when the washing is dry, a measured value is taken from the exhaust duct and compared with a factory-set parameter; parameter P4 for the 40°... -
Page 14: Care
CARE SERVICE AND REPLACEMENTS PARTS You MUST first disconnect the cabinet from If the connecting cable is damaged for any the power source, then open the door before reason, it must be replaced immediately. removing the four screws underneath the control All genuine parts can be obtained from the drying panel. -
Page 15: Technical Data
(see page 2). The electrical wiring diagram and dimensional drawing can be obtained from the distributor (see contact details on page 2 of this manual). They can also be found under the ‘Downloads’ section of the Peko Drying Cabinet website; www.pekodryingcabinets.co.uk. ... - Page 16 EQUIPMENT LIMITED Peko House Northbridge Road Berkhamsted Herts. HP4 1GE Tel: 01442 872323 Fax: 01442 866900 www.pekodryingcabinets.co.uk...
