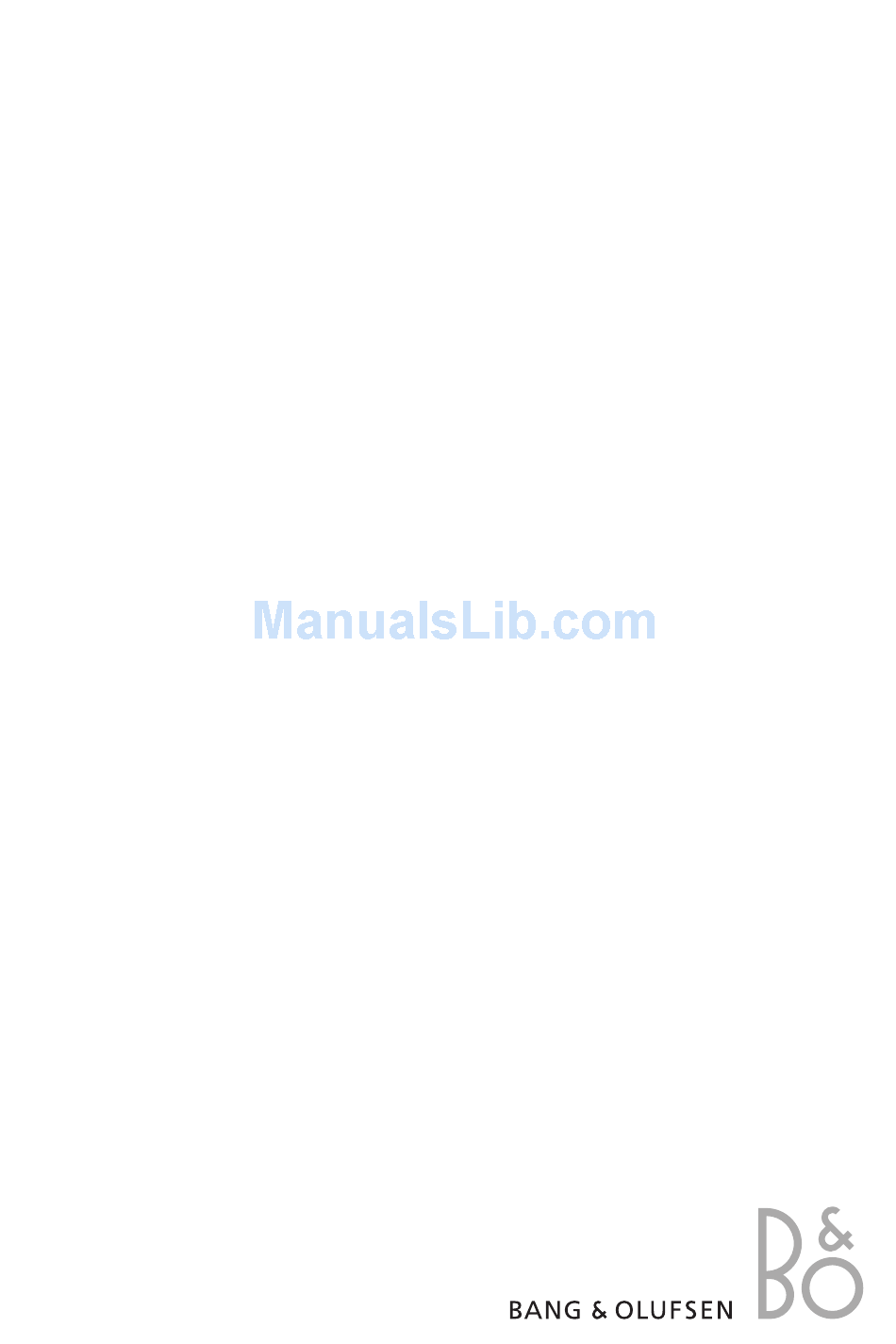

- Page 1 BeoLink Wireless 1 Guide...
- Page 2 This class B digital apparatus meets all requirements CAUTION of the Canadian Interference-Causing Equipment RISK OF ELECTRIC SHOCK Regulations. DO NOT OPEN The internal antennas used for this mobile transmitter must provide a separation distance of at least 20 cm CAUTION: To reduce the risk of (8") from all persons, and must not be co-located or electric shock, do not remove...
-
Page 3: Table Of Contents
Beo4 – Sound adjustments, 8 Find out how to use the Beo4 remote control to adjust sound settings. Set up BeoLink Wireless 1, 9 Information about placement, installation and connections of the Wireless 1 units and the ‘IR-eye’. -
Page 4: Introduction
– complete with their various sources (the main system). Connected to the main system, you will need a BeoLink Wireless 1 set up as transmitter. The link room is where you have set up another BeoLink Wireless 1 as receiver. -
Page 5: Power Link Setups
For information about installation of the BeoLink Wireless 1 system, refer to ‘Set up BeoLink Wireless 1’ (pp. 9–15) in this Guide. For information about how to set up the main room system and the link room products, refer to the Guides enclosed with the products. -
Page 6: Close-Up Operation
Close-up operation This page concerns only a Power Listen-in on a main room source Link setup with an ‘IR-eye’. For > Press PLAY • to listen-in on a TIMER information about close-up source that is currently playing in operation of link room products your main system. -
Page 7: Beo4 Remote Control
> Press LIST to display additional Functions mentioned here are only sources, such as N.MUSIC (music available via BeoLink Wireless 1 if stored on a PC), and then press the source in question is present in GO to switch on a source. -
Page 8: Beo4 - Sound Adjustments
Beo4 – Sound adjustments This page concerns only a Power To adjust sound volume or mute To adjust bass, treble or Link setup with an ‘IR-eye’. For the sound … loudness … information about sound > Press LIST repeatedly until >... -
Page 9: Set Up Beolink Wireless 1
– Make sure that Wireless 1 is set up – One transmitter can serve up to BeoLink Wireless 1 – both in the in accordance with the instructions seven receivers, and you can only main room and in a link room. - Page 10 >> Set up BeoLink Wireless 1 Wireless 1 – Transmitter/ To set up connection between a receiver … transmitter and a receiver … Light indications Wireless 1 must be set up as Fast yellow flash … Wireless 1 is > Set the two-position switch to either transmitter or receiver.
- Page 11 Wireless 1 – wall mount Wireless 1 can be fastened to a wall (or ceiling) with one of the two enclosed brackets – in either a horisontal or a vertical position. It can be placed on the bracket so that the cables may be run either to the left or to the right.
- Page 12 >> Set up BeoLink Wireless 1 Connections – Master Link Master Link In the main room: Connect the connection transmitter to the Master Link socket on the main system. Then connect both the main system and transmitter to the mains supply.
- Page 13 Connections – Power Link Master Link In the main room: Connect the connection transmitter to the Master Link socket on the main system. Then connect both the main system and transmitter to the mains supply. Connection button In the link room: Connect the Receiver/Transmitter loudspeakers to the Power Link switch...
- Page 14 >> Set up BeoLink Wireless 1 ‘IR-eye’ – cable connections The small circular ‘IR-eye’ is available from a Bang & Olufsen retailer. An ‘IR-eye’ must be used in each link room with a Power Link setup. Use the cable supplied with the ‘IR-eye’...
- Page 15 ‘IR-eye’ – wall mount If the ‘IR-eye’ is placed next to a door and at a suitable height, you can easily switch on or off by close- up operation when entering or leaving the room. Likewise, if it is placed near your telephone, you can switch off the speakers while you are on the phone.
-
Page 16: Ready For Use
Ready for use … Option settings In a Power Link setup set the link Option 4 When you have made all the room speakers to one of the connections as described on the following Options: previous pages or in the Guides Option 0: Used if you want to enclosed with your link room disable remote control operation... - Page 17 Wireless interference Use a Beo4 remote control to set the Option. The entire system Signals between the transmitter must be switched to standby: and receiver can be influenced by > While holding down the • button, other systems, such as microwaves press LIST.
- Page 18 Waste Electrical and Electronic Equipment (WEEE) – Environmental protection The European Parliament and the Products and equipment which Council of the European Union must be collected for reuse, have issued the Waste Electrical recycling and other forms of and Electronic Equipment Directive. recovery are marked with the The purpose of the Directive is the pictogram shown.
- Page 19 This product is in conformity with the provisions of the Directives 1999/5/EC and 2006/95/EC. This product may be used in member states of the EEU and EFTA. Technical specifications, features and the use thereof are subject to change without notice!
- Page 20 www.bang-olufsen.com 3509535 0703...
