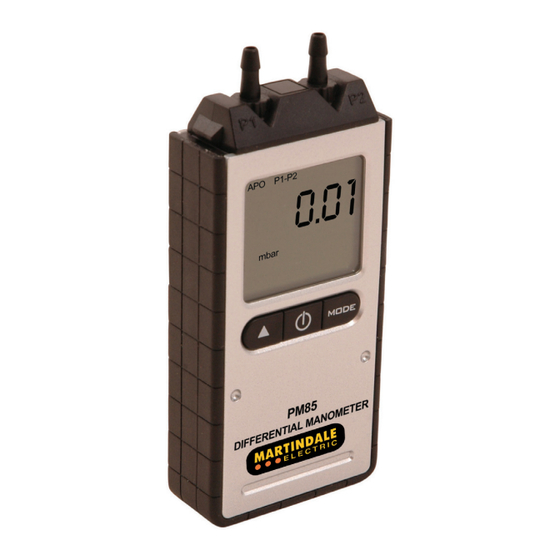

MARTINDALE PM85 Instruction Manual

PM85 DIFFERENTIAL
MANOMETER
1 SAFETY INFORMATION
REMEMBER: SAFETY IS NO ACCIDENT
These instructions contain both information and warnings that are
necessary for the safe operation and maintenance of this product. It
is recommended that you read the instructions carefully and ensure
that the contents are fully understood. Failure to understand and to
comply with the warnings and instructions can result in serious injury,
damage or even death.
Particular attention should be paid to the Warnings, Precautions and
Technical Specifi cations.
Please keep these instructions for future reference. Updated
instructions and product information are available at:
www.martindale-electric.co.uk
1.1 Meaning of Symbols and Markings
Caution - risk of danger and refer to instructions
Equipment complies with relevant EU Directives
End of life disposal of this equipment should be in
accordance with relevant EU Directives.
Instruction
Manual
19/06/2014 09:59:18 PM85 instructions rev1.indd 3
1
ALWAYS READ THESE INSTRUCTIONS BEFORE PROCEEDING
Thank you for buying one of our products. For safety and a full
understanding of its benefi ts please read this manual before use.
Technical support is available from 01923 441717 and
support@martindale-electric.co.uk.
CONTENTS
1 Safety Information
1.1 Meaning of Symbols and Markings
1.2 Precautions
2 Introduction
2.1 Inspection
2.2 Description
2.3 Accessories
2.4 Battery Installation
3 Operation
3.1 Low Battery Indication
3.2 Description of Press Buttons
3.3 Description of LCD Symbols
3.4 Power On/Off
3.5 Auto Power Off
3.6 Backlight
3.7 Set Mode
3.8 Zero Function
3.9 Measurement Mode
3.10 Hold Mode
4 Maintenance
4.1 Battery Replacement
4.2 Calibration
4.3 Cleaning
4.4 Repair & Service
4.5 Storage Conditions
5 Warranty
Specifi cations
1.2 Precautions
This product has been designed with your safety in mind, but please
pay attention to the following warnings and cautions before use.
Cautions
The PM85 must only be used by a skilled and competent person
who is familiar with the relevant regulations, the safety risks involved
and the consequent normal safe working practices, and under the
conditions and for the purposes for which it has been constructed and
specifi ed.
The maximum pressure on either port must not exceed 29 psi.
Before use check the unit for cracks or any other damage. Make
sure the unit is free from dust, grease and moisture. Do not use if
damaged.
Avoid severe mechanical shock or vibration and extreme temperature.
To avoid possible corrosion from leaking batteries, remove the
batteries if discharged, or when the unit is not in use for an extended
period.
2
1
1
2
3
3
3
3
3
4
4
4
4
5
5
5
5
6
7
7
9
9
9
9
10
10
11
