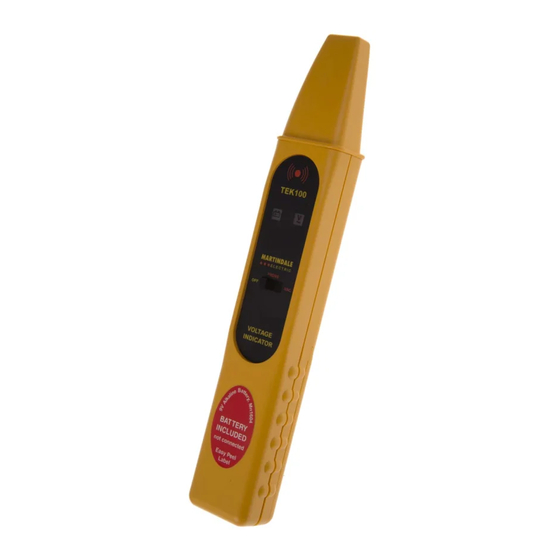

MARTINDALE TEK100 Instruction Manual

TEK100/TEK100YE/ TEK101
VOLTAGE INDICATOR
ALWAYS READ THESE INSTRUCTIONS BEFORE PROCEEDING
Thank you for buying one of our products. For safety and full
understanding of its benefits please read this manual before use.
Technical support is available from 01923 441717 and
support@martindale-electric.co.uk
CONTENTS
1 Safety Information
1.1 Meaning of Symbols and Markings
1.2 Precautions
2 Introduction
2.1 Inspection
2.2 Description
2.3 Accessories
3 Operation
3.1 Self Test
3.2 Proving Check
3.3 Testing for the Presence of Voltage
3.4 Voltage Testing Considerations
4 Maintenance
4.1 Battery Replacement
4.2 Cleaning
4.3 Repair & Service
4.4 Storage Conditions
5 Warranty
Measurement Categories
Specifications
I
NSTRUCTION
M
ANUAL
1
1
2
4
4
4
4
5
5
5
6
6
8
8
8
8
9
9
10
1. SAFETY INFORMATION: Always read before proceeding.
REMEMBER: SAFETY IS NO ACCIDENT
These instructions contain both information and warnings that are necessary
for the safe operation and maintenance of this product. It is recommended
that you read the instructions carefully and ensure that the contents are
fully understood. Failure to understand and to comply with the warnings and
instructions can result in serious injury, damage or even death.
Particular attention should be paid to the Warnings, Precautions and Technical
Specifications.
Please keep these instructions for future reference. Updated instructions and
product information are available at: www.martindale-electric.co.uk
1.1 Meaning of Symbols and Markings
Caution - risk of danger & refer to instructions
Caution - risk of electric shock
Equipment protected by double or reinforced insulation
(Class II)
CAT IV (Measurement Category IV) is applicable to test and measuring
equipment connected at the source of the building's low-voltage
MAINS installation.
For further information on measurement categories see page 10 or
visit www.martindale-electric.co.uk/measurement_categories.php
Equipment complies with relevant EU Directives
End of life disposal of this equipment should be in accordance
with relevant EU Directives
1.2 Precautions
This product has been designed with your safety in mind, but
please pay attention to the following warnings and cautions before
use.
Warnings
In order to avoid the danger of electrical shock, it is important that
proper safety measures are taken when working with voltages
exceeding 30V AC rms, 42V AC peak or 60V DC.
Where applicable other safety measures such as use of protective
gloves, goggles etc. should be employed.
The voltage indicator must only be used by a skilled and competent
person who is familiar with the relevant regulations, the safety risks
involved and the consequent normal safe working practices, and is
capable of interpreting the results under the conditions and for the
purposes for which it has been constructed.
Before each use the unit should be examined for damage, cracks,
cuts or scratches. If there is any doubt the voltage indicator should
not be used.
Make sure the unit is dry, clean and free from dust, grease and
moisture while in use to avoid the danger from electric shock due
to surface leakage.
Before and after each use, the voltage indicator must be proven
using a suitable proving device or a known good voltage source.
Do not use the voltage indicator if any expected indication LED's
fail to illuminate correctly during proving.
