2.2 Panel Mounting
With the use of an optional panel-mount adapter, the RuggedMC
series of media converters can
TM
be panel mounted. The drawing shown in Figure 2.2.1 shows an example of an RMC unit panel
mounted using the optional panel mount adapter.
The panel mount adapter can be secured to a panel with three screws. The RuggedMC
product
TM
is easily mounted onto the panel mount adapter via the two metal clips on either side of the unit,
and a single screw located on the bottom.

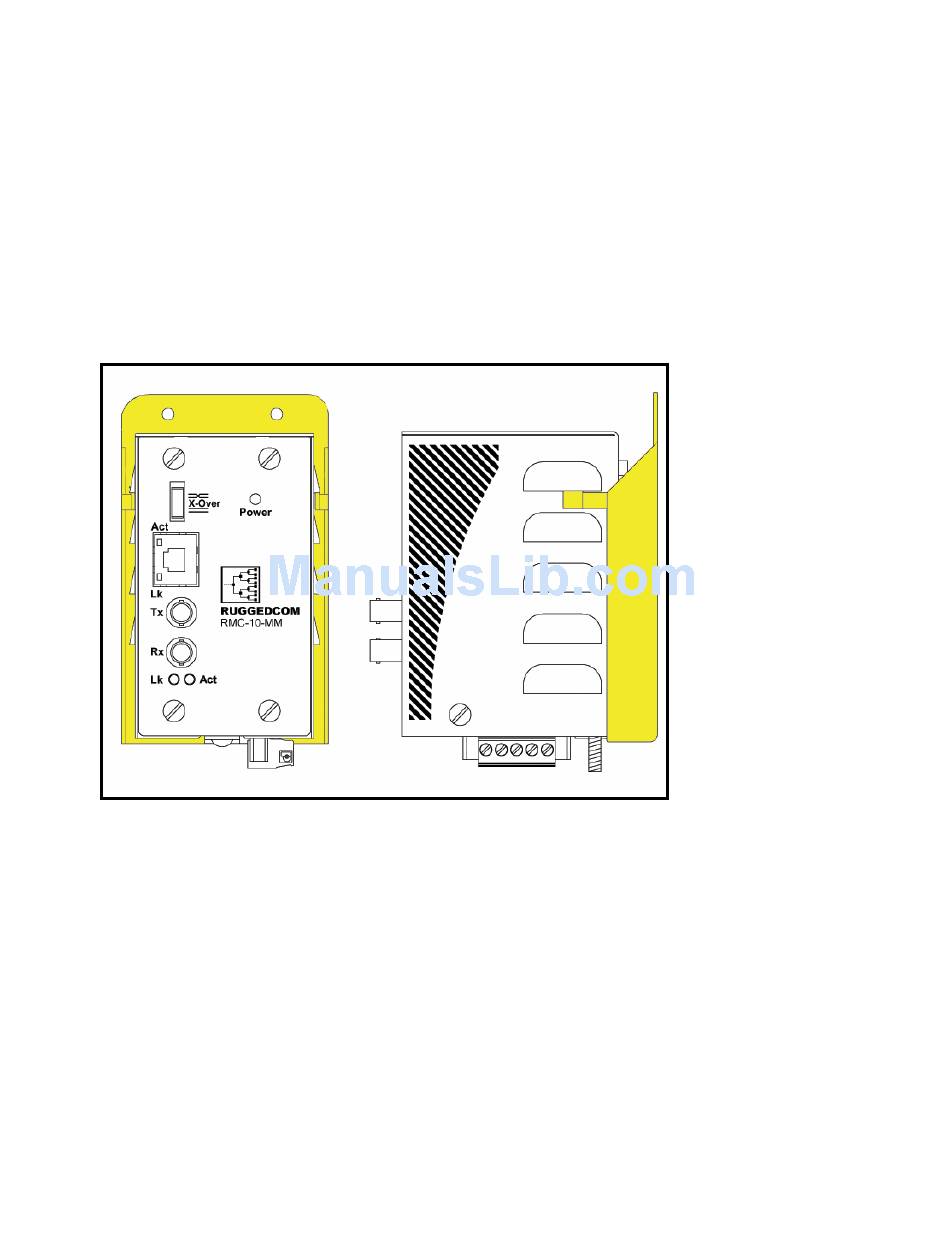

Figure 2.2.1: RuggedMC
panel mounted using optional panel mount mounting adapter.
