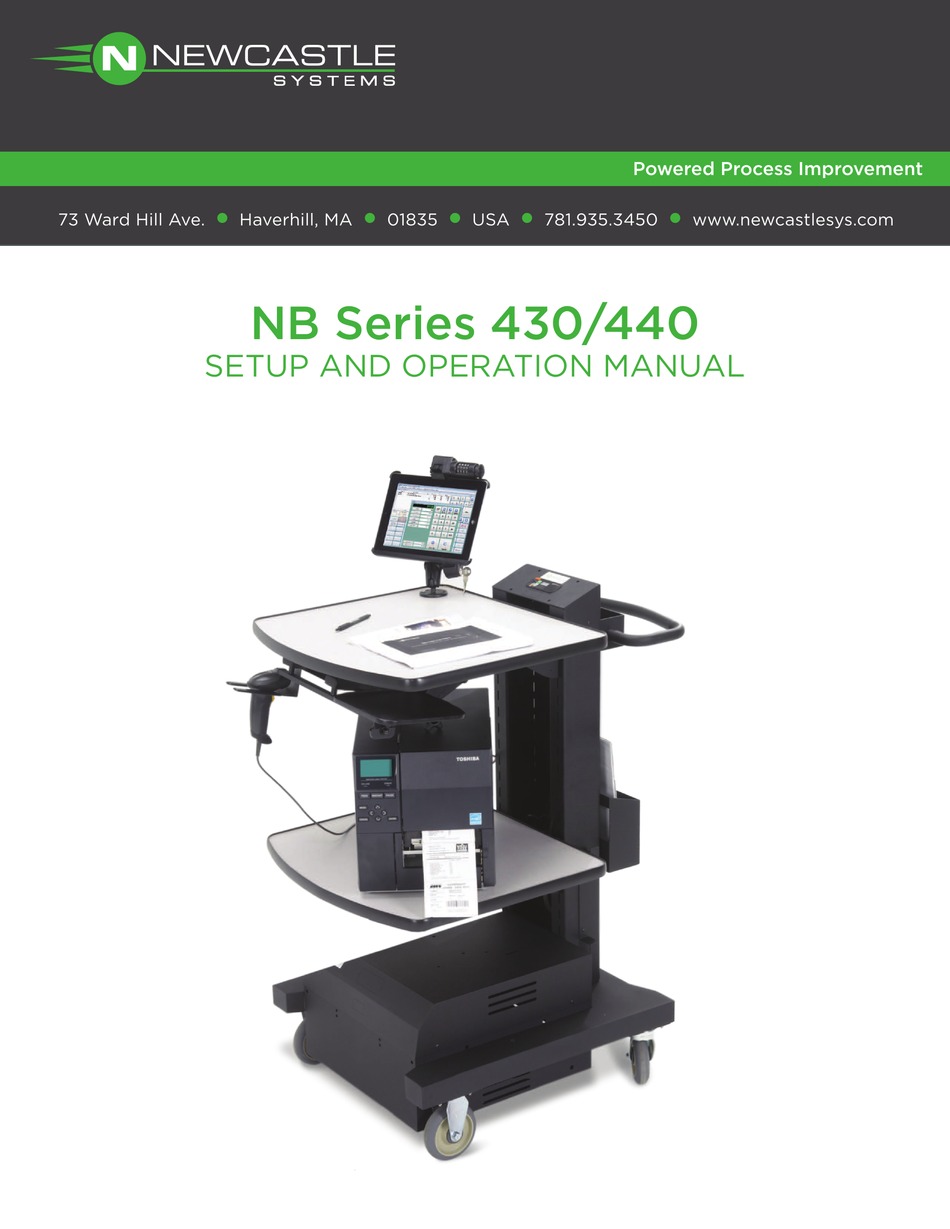

- Page 1 Powered Process Improvement 73 Ward Hill Ave. Haverhill, MA 01835 781.935.3450 www.newcastlesys.com NB Series 430/440 SETUP AND OPERATION MANUAL...
- Page 2 NB Series 430/440 Setup and Operation Manual Document Number: NS100_NB430_00_C Revision Date: January, 2018 Release Date: September, 2016 TECHNICAL SUPPORT 781.935.3450 EXT. 3...
- Page 3 COPYRIGHT All copyrights to this document are owned by Newcastle Systems, Inc. No part of the contents of this document may be reproduced or transmitted in any form or by any means without the prior written con- sent of Newcastle Systems, Inc.
-
Page 4: Table Of Contents
Table of Contents About This Manual Symbols and Conventions ........................ v Newcastle Systems Technical Support ..................v The NB Series 430/440 Standard Contents ..........................1 Optional Accessories .......................... 1 Tools Required ............................1 Setting up the NB Series ........................2 One Battery Setup for NB430 ...........................3... -
Page 5: About This Manual
Also report the damage, along with the model and serial numbers, to Newcastle Systems Customer Ser- vice at (781) 935-3450 so that action can be initiated to either repair or replace the damaged items. Do not return any items to Newcastle Systems until you obtain instructions from Customer Service. -
Page 6: The Nb Series 430/440
Standard Contents The NB Series 430/440 Standard Contents Each cart will come with the following standard contents: Your Power to Productivity • Cart (assembled) erhill, MA 01835 781.935.3450 www.newcastlesys.com • Battery and hardware • Trash can holder and green can TTERY SET-UP FOR NB SERIES What you’ll need... -
Page 7: Setting Up The Nb Series
Setting up the NB Series Setting up the NB Series Open the power box by loosening the (4) thumbscrews. 2. Next, remove the power box cover. Once the cover has been removed from the power box, proceed to the appropriate section on battery installation according to the number of batteries your cart has. -
Page 8: One Battery Setup For Nb430
What you’ll Setting up the NB Series What you’ll need 73 Ward Hill Ave. Haverhill, MA 01835 781.935.3450 1 BATTERY SET-UP FOR NB S One Battery Setup for NB430 10 m black 10 mm Battery Wire Connections Overview What you’ll need black 10 mm Your Power to Productivity... - Page 9 Setting up the NB Series Hardware Tighten bolts with 10 mm wrench Sparking is normal during initial connection. bolts Pull rubber boot over tightened lock terminal washers After performing step 5, proceed to “Testing the Battery Function” on page 7. flat Your Power to Productivity washers...
-
Page 10: Two Battery Setup For Nb440
2 BATTER lock Setting up the NB Series washers Your Your Power to Productivity bolts 73 Ward Hill Ave. Haverhill, MA 01835 781.935.3450 Ward Hill Ave. Haverhill, MA 01835 781.935.3450 www.newcastlesys.com black What you’ll 2 BATTERY SET-UP FOR NB SERIES flat 2 BATTERY SET-UP FOR NB SERI Two Battery Setup for NB440... - Page 11 10 mm Setting up the NB Series Your Power to Productivity d Hill Ave. Haverhill, MA 01835 781.935.3450 www.newcastlesys.com 2 BATTERY SET-UP FOR NB SERIES Tighten bolts with 10 mm wrench Sparking is normal during initial connection. What you’ll need hardware 10 mm Pull rubber boot over tightened...
-
Page 12: Testing The Battery Function
POWER SWITCH Testing the Battery Function *MAKE SURE THIS IS TURNED ON ( A RED LIGHT WILL INDICATE THIS ) Testing the Battery Function READING YOUR BATTERY METER Make sure all fittings are tight and that the battery is strapped down in the cabinet. Test the unit before replacing the power box cover. -
Page 13: Tips For Proper Cart Operation
Tips for Proper Cart Operation Tips for Proper Cart Operation • Charge your battery before using it to ensure it is fully charged. Simply plug the charger cord (located on the side of the unit) into a standard wall outlet. •... -
Page 14: Frequently Asked Questions
Frequently Asked Questions Frequently Asked Questions QUESTION ANSWER • These are normal codes you should see every charging cycle = Bulk mode What does ABS/BUL or FUL mean? = Absorption mode = Full • While plugged in and charging, press the “select” button to view your current settings What are my 1000w or 1800w inverter/charger Recommended settings:... -
Page 15: Index
Index Accessories Warning Battery Light Meter Caution Contents, Standard Conventions Customer Service Damaged Unit Error Codes Inverter/Charger Settings Light Meter One Battery Setup Settings, Inverter/Charger Setup One Battery Two Battery Symbols Technical Support Testing the Battery Tips for Proper Operation Tools Required Troubleshooting Tips Two Battery Setup... - Page 17 73 Ward Hill Ave. Haverhill, MA 01835 781.935.3450 www.newcastlesys.com...
