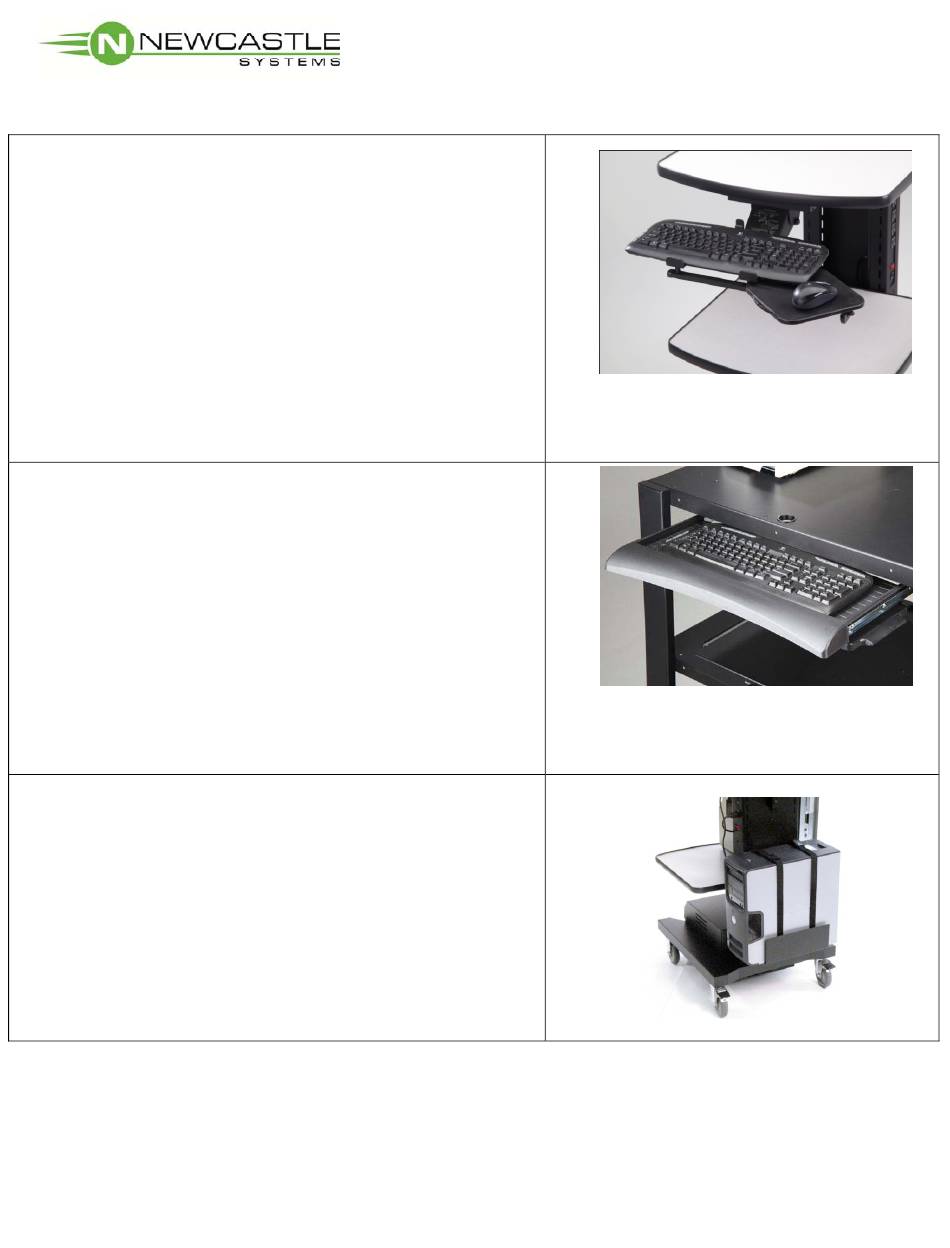

Newcastle Systems B100 Accessory Assembly Instructions

B100 – Adjustable Keyboard Tray for NB/RC Series
B104 – Adjustable Keyboard Tray w/mouse tray for NB/RC
Series
Installation:
1. Before you attach the shelf to the center mast, install the
adjustable Keyboard Tray to the shelf using the 6 wood
screws provided.
2. Place the base plate of the keyboard inside the perimeter of
the supporting shelf bracket and attach it with the 6 wood
screws on the pre-drilled holes.
B106 Keyboard Drawer for PC Series
Installation:
1. After you attached the metal shelf to the center mast, attach
the preassembled slide rails and holding brackets to the
Keyboard Drawer.
2. Use the 4 wood screws; make sure the holding brackets are
attached in the correct order (right and left side).
3. Install the keyboard to either side under the metal shelf by
aligning the 4 (10/32) screws to the holding brackets.
B109 Adjustable CPU/Inverter Holder
Installation:
1. Before you attach the CPU Holder to the back of the center
mast, adjust the straps and the width of the CPU Holder to fit
your desktop computer.
2. Attach the CPU Holder to the mast and then place the CPU
into the CPU Holder and secure with the 2 straps.
